Page 1: Instruction Manual

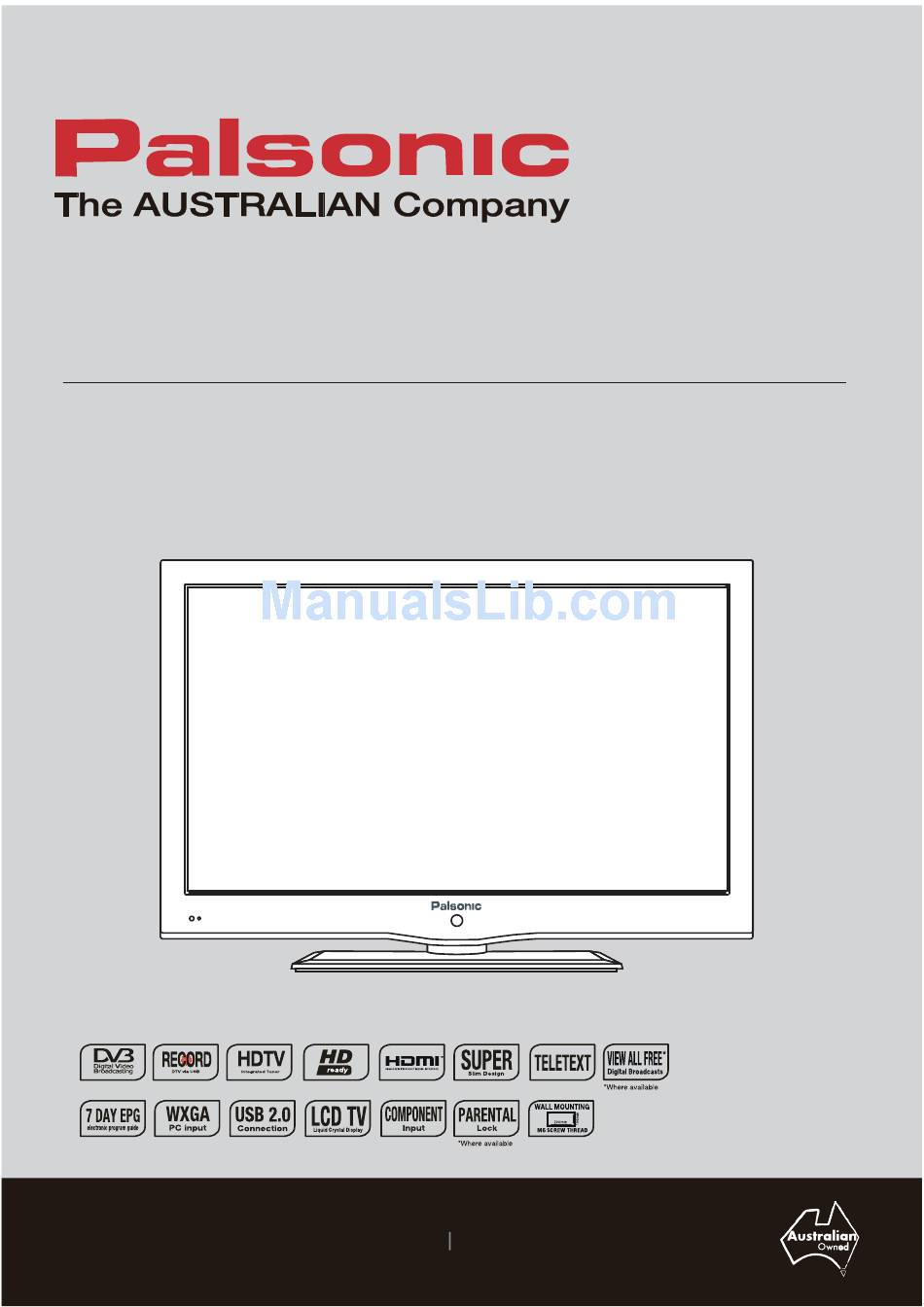

80cm (31.5”) LED-LCD TV WITH DVB-T INSTRUCTION MANUAL TFTV800LEDR MENU VOL- VOL+ Offering Australians quality since 1958 www.palsonic.com.au... -
Page 3: Table Of Contents
Contents Power Supply..............................1 Installation................................. 2 Use and Maintenance............................3 Important Safety Instructions ..........................4-5 Overview(Front View) / Accessories ......................... 6 Overview(Back View) ............................7 Remote control ..............................8-9 Basic Operation ..............................10 OSD Menu 1. CHANNEL Menu ............................11-12 2. -
Page 4: Power Supply
Power Supply... -
Page 5: Installation
Installation... -
Page 6: Use And Maintenance
Use and Maintenance... -
Page 7: Important Safety Instructions
Important Safety Instructions... -
Page 8: Important Safety Instructions
Important Safety Instructions... -
Page 9: Overview(Back View)
Overview Front View MENU VOL- VOL+ LED Indicator POWER MENU VOL- VOL+ Remote Control Sensor (keep clear) MENU: Display/exit the OSD menu. CH+/-: Scan through channels. VOL+/-: Adjust the volume. TV/AV: Display the input source menu. POWER: Turn on/standby the TV set. User’s Guide Remote Control... - Page 10 Overview Back View VIDEO L-IN R-IN HDMI1 AC POWER IN: Connect to the power. Headphone out: Connect it to your headphone or other audio equipment. Coax: Digital output to AV receiver. Video: Connect it to video output terminal of DVD. L/R in: Connect them to audio output terminals of DVD, shared with YPbPr.
-
Page 11: Remote Control
Remote Control POWER: Turn the TV on/standby. MUTE: Press to mute the sound, press again or press VOL+ tounmute. REC LIST CH/LIST SUBTITLE REPEAT REC LIST: Record List. CH/LIST: Display the programs list. SUBTITLE: Turn on/off the subtitle display in DTV mode REPEAT: Repeat playing the title or chapter. - Page 12 Remote Control REC LIST CH/LIST SUBTITLE REPEAT TV/AV DISPLAY MENU EXIT : Scan through channels. : Adjust the volume. PICTURE: Select the picture mode. EPG: To show the Electronic Program Guide during no-menu state only in DTV mode. SOUND: Select the sound mode. SLEEP: Standby timer.
-
Page 13: Basic Operation
Basic Operation Power on/off 1. Connect to the power supply with the power cable, and turn on the POWER SWITCH. 2. -To turn on the TV Press POWER button on the TV or remote control. -To turn off the TV Input Source Press POWER button on the TV or remote control. -
Page 14: Osd Menu
OSD Menu 1. CHANNEL menu Description Auto Scan Press OK button to enter the hint menu, and select Australia the Country and Tune Type mode for the TV, then press OK button to start auto tuning. DTV Manual Tuning Press OK button to enter the DTV Manual Tuning menu, select a DTV channel, and press OK button to start searching. -
Page 15: Osd Menu
OSD Menu Programme Edit Press OK button to enter the Program Edit menu as the following picture. CH. Name Rename Delete: Select a channel and press RED button, “Delete” will appear on the right of the program edit menu next to the channel you have chosen, then press RED button again, the program will be deleted. -
Page 16: Picture Menu
OSD Menu 2. PICTURE menu Description Picture Mode: Choose from Standard, Dynamic, User and Mild. Note: Contrast, Brightness, Color and sharpness are only available and can be adjusted in the User mode option in the Picture Mode Settings. Contrast: Controls the difference between the brightest and darkest regions of the picture. Brightness: Controls the overall brightness of the picture. -
Page 17: Sound Menu
OSD Menu 3. SOUND menu SPDIF MODE Description Sound Mode: Allows you to select among: Standard, Music, Movie, Sports and User. Treble(Could be adjusted when the sound mode is User): Controls the relative intensity of higher pitched sounds. Bass (Can be adjusted when the sound mode is set to User): Controls the relative intensity of lower pitched sounds. - Page 18 OSD Menu 4. TIME menu Western Austr.. Description Clock: Use the buttons to select the position, and use the buttons to set the time. Note: User can not change time manually during DTV mode, for time is from signal source directly.
-
Page 19: Option Menu
OSD Menu 5. OPTION menu OSD Duration a i l Description OSD Language: Allows you to select menu language. Audio Language 1st/2nd (can be selected in DTV mode): Allows you to select first and second audio language. Subtitle Language 1st/2nd (can be selected in DTV mode): Allows you to select first and second subtitle language. -
Page 20: Lock Menu
OSD Menu 6. LOCK menu No Block Description Lock System: Turn on/off the Lock System function. Note: You should enter the code to operate the menu.(original code is 0000) Set Password: Set pin code. If the Pin code has been changed you must enter the newest code. -
Page 21: Multimedia Operation
Multimedia Operation Basic Operation 1). Press the TV/AV button on the remote control to display the input source menu, select USB source by the buttons, and press OK button to enter the Multimedia menu seen below. Input Source YPBPR HDMI1 HDMI2 HDMI3 Select... - Page 22 Multimedia Operation 1. Photo Play the photo ZOOM IN ZOOM OUT Press button to select the option on the table, and press OK button to change. Repeat: Select the repeat mode from Repeat All, Repeat 1, Repeat None. Music: Play/pause the music program (you can only play or pause the music you have programed). Playlist: Display the playlist on the screen, and you can select the photo by button, and press OK button to program.
-
Page 23: Multimedia Operation
Multimedia Operation 3. Movie Play the movie GOTO Time Press button to select the option on the table, and press OK button to change. Repeat: Select the repeat mode from Repeat All, Repeat 1, Repeat None. Set A-B: Select and play the preferable paragraph of the program by seting A and B at the beginning and end, and there will be a sign on the left screen, press OK button again to cancel. -
Page 24: Recording Operation
Recording Operation PVR settings Press the MENU button, and select CHANNEL menu. Recording Timer 1). Recorded List Display the recorded list Recorded list: Display the Recorder List menu, and changed the mode of program. INFO: Display the information of the program you recorded. RED button: Delete the program you select. -
Page 25: Recording Operation
Recording Operation 3). Schedule List Display the recorder shedule Note: a. Could’t add shedules which have existent on the list; b. Could’t add shedules when the list is full, you have to delete some schedules; c. You could delete a schedules by RED button on the remote control. 4). - Page 26 Recording Operation 5) Record Start When you finish the settings above, you could start recording by select Record Start in the menu and press OK button in DTV mode. (You can also start recording by press the button on the remote control) Record buttons Recording: Press to enter the recording mode.
-
Page 27: Simple Troubleshooting
Simple Troubleshooting If the display fails or performance dramatically deteriorates check the Display in accordance with the following instructions.Remember to check the peripherals topinpiont the source of the failure. If the display still fails to perform as expected,connect your helpline for assistance. No power - Check all connections to the TV. -
Page 28: Specifications
Specifications 32” TFT LED LCD Panel Panel Size Max. Resolution 1366 x 768 VIDEO Input Connector YPbPr AUDIO (L/R) PC AUDIO HDMI Output Connector HEADPHONE COAX AUDIO OUT (L/R) AC 100-240V 50/60Hz Main Voltage Power... - Page 32 Palsonic Customer Service Telephone (Australia) 1300 657 888 Palsonic C ABN 34 000 474 108 1 Joynton Avenue, Waterloo NSW 2017 Australia Telephone (02) 9313 7111 Facsimile (02) 9697 0655 www.palsonic.com.au...
