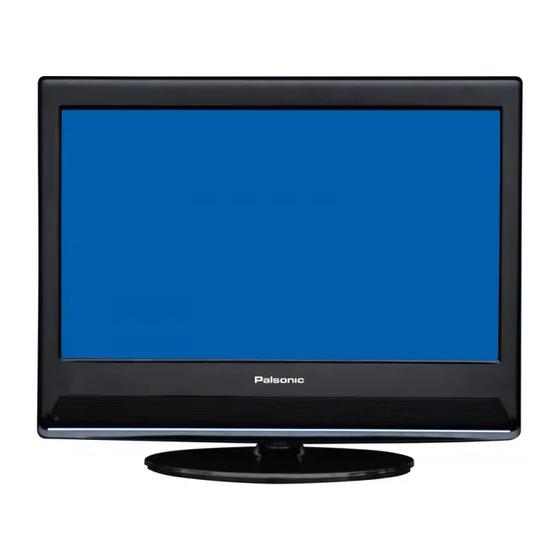

- Page 1 60cm(23.6) LCD TV WITH DVD & DVB-T INSTRUCTION MANUAL TFTV6042FHD...
-
Page 3: Table Of Contents
Contents Power Supply..............................1 Installation................................. 2 Use and Maintenance............................3 Important Safety Instructions ..........................4-5 Overview(Front View) / Accessories ......................... 6 Overview(Back View) ............................7 Remote control ..............................8-9 Basic Operation ..............................10 OSD Menu 1. CHANNEL Menu ............................11-12 2. -
Page 4: Power Supply
Power Supply... -
Page 5: Installation
Installation... -
Page 6: Use And Maintenance
Use and Maintenance... -
Page 7: Important Safety Instructions
Important Safety Instructions... -
Page 8: Important Safety Instructions
Important Safety Instructions... -
Page 9: Overview(Front View) / Accessories
Overview Front View MENU TV AV PLAY EJECT POWER Please insert a 12cm disc according to the silk LED Indicator Remote Control Sensor (keep clear) MENU: Display/exit the OSD menu. CH+/-: Scan through channels. VOL+/-: Adjust the volume. INPUT: Display the input source menu. PLAY: Play / Pause the disc playing EJECT: Eject the disc. -
Page 10: Overview(Back View)
Overview Back View POWER SWITCH AC POWER IN Coax Audio in AC POWER IN: Connect to power supply. POWER SWITCH: Turn on/off the power supply. USB: Software update (Use only on advice from Customer Support). HDMI: Connect it to the HDMI of DVD or other equipment. VGA: For PC display.Connect it to the D-Sub 15-pin output connector of the PC. -
Page 11: Remote Control
User Guidance Information Remote Control POWER: Turn the TV on/standby. POWER MUTE MUTE: Press to mute the sound, press again or press VOL+ to unmute. REC LIST: Record List. REC LIST CH/LIST SUBTITLE CH/LIST: Display the programs list. SUBTITLE: Turn on/off the subtitle display in DTV mode PVR/DVD and DVD mode. -
Page 12: Remote Control
User Guidance Information Remote Control POWER MUTE REC LIST CH/LIST SUBTITLE PVR/DVD TV/AV DISPLAY CH / : Scan through channels. VOL / : Adjust the volume. PICTURE: Select the picture mode. NICAM/A2: TV Nicam/A2 select. SOUND: Select the sound mode. SLEEP: Standby timer. -
Page 13: Basic Operation
Basic Operation Power on/off 1. Connect to the power supply with a power cord, and turn on the power by the SWITCH. 2. -To turn on the TV Press POWER button on the TV or remote control. Input Source -To turn off the TV Press POWER button on the TV or remote control. -
Page 14: Osd Menu
OSD Menu 1. CHANNEL menu Description Auto Scan Press OK button to enter the hint menu, and select Australia the Country and Tune Type mode for the TV, then press OK button to start auto tuning. DTV Manual Tuning Press OK button to enter the DTV Manual Tuning menu, select a DTV channel, and press OK button to start searching. -
Page 15: Osd Menu
OSD Menu Programme Edit Press OK button to enter the Program Edit menu as the following picture. CH. Name Rename Delete: Select a channel and press RED button, “Delete” will appear on the right of the program edit menu next to the channel you have chosen, then press RED button again, the program will be deleted. -
Page 16: Picture Menu
OSD Menu 2. PICTURE menu Description Picture Mode: Choose from Standard, Dynamic, User and Mild. Note: Contrast, Brightness, Color and sharpness are only available and can be adjusted in the User mode option in the Picture Mode Settings. Contrast: Controls the difference between the brightest and darkest regions of the picture. Brightness: Controls the overall brightness of the picture. -
Page 17: Sound Menu
OSD Menu 3. SOUND menu SPDIF MODE Description Sound Mode: Allows you to select among: Standard, Music, Movie, Sports and User. Treble(Could be adjusted when the sound mode is User): Controls the relative intensity of higher pitched sounds. Bass (Can be adjusted when the sound mode is set to User): Controls the relative intensity of lower pitched sounds. -
Page 18: Timer Menu
OSD Menu 4. TIME menu Western Austr.. Description Clock: Use the buttons to select the position, and use the buttons to set the time. Note: User can not change time manually during DTV mode, for time is from signal source directly. -
Page 19: Option Menu
OSD Menu 5. OPTION menu OSD Duration Country Australia Description OSD Language: Allows you to select menu language. Audio Language 1st/2nd (can be selected in DTV mode): Allows you to select first and second audio language. Subtitle Language 1st/2nd (can be selected in DTV mode): Allows you to select first and second subtitle language. -
Page 20: Lock Menu
OSD Menu 6. LOCK menu No Block Description Lock System: Turn on/off the Lock System function. Note: You should enter the code to operate the menu.(original code is 0000) Set Password: Set pin code. If the Pin code has been changed you must enter the newest code. -
Page 21: Multimedia Operation
Multimedia Operation Multimedia Operation Basic Operation 1). Press the TV/AV button on the remote control to display the input source menu, select USB source by the buttons, and press OK button to enter the Multimedia menu seen below. Input Source YPBPR HDMI Select... - Page 22 Multimedia Operation Multimedia Operation 1. Photo Play the photo ZOOM IN ZOOM OUT Press button to select the option on the table, and press OK button to change. Repeat: Select the repeat mode from Repeat All, Repeat 1, Repeat None. Music: Play/pause the music program (you can only play or pause the music you have programed).
-
Page 23: Multimedia Operation
Multimedia Operation Multimedia Operation 3. Movie Play the movie GOTO Time Press button to select the option on the table, and press OK button to change. Repeat: Select the repeat mode from Repeat All, Repeat 1, Repeat None. Set A-B: Select and play the preferable paragraph of the program by seting A and B at the beginning and end, and there will be a sign on the left screen, press OK button again to cancel. -
Page 24: Recording Operation
Recording Operation Recording Operation PVR settings Press the MENU button, and select CHANNEL menu. Recording Timer 1). Recorded List Display the recorded list Recorded list: Display the Recorder List menu, and changed the mode of program. INFO: Display the information of the program you recorded. RED button: Delete the program you select. -
Page 25: Recording Operation
Recording Operation Recording Operation 3). Schedule List Display the recorder shedule Note: a. Could’t add shedules which have existent on the list; b. Could’t add shedules when the list is full, you have to delete some schedules; c. You could delete a schedules by RED button on the remote control. 4). - Page 26 Recording Operation Recording Operation 5) Record Start When you finish the settings above, you could start recording by select Record Start in the menu and press OK button in DTV mode. (You can also start recording by press the button on the remote control) Record buttons Recording: Press to enter the recording mode.
-
Page 27: Dvd Operation
DVD Operation DVD Operation Press the Power button on the TV or the remote control, then press the TV/AV button to select DVD mode. Place a disc Insert Disc according to picture next to disc slot. Do not touch the playing surface. Hold the disc around the outside with your fingers and place the disc into the slot. -
Page 28: Dvd Operation
DVD Operation DVD Operation Additional operation Selecting Tracks 1 . Compatible with DVD, SVCD, VCD, CD, HD-CD, WMA, Digital Audio disc /JPEG discs. 2. When playing a DVD disc, press Numeric buttons on the menu or title page to select tracks; During DVD playback, you can input desired title numbers directly. - Page 29 DVD Operation DVD Operation Using the Display Feature 1. Compatible with DVD, SVCD, VCD, CD, HD-CD, WMA, Digital Audio disc discs. 2. Loading and playing DVDs (two pages) - Press DISPLAY button once to show the first page: - "Disc Type, Title * / * (the playing title / total titles), Chapter * / * (the playing chapter / total chapters), Elapsed Time of the Disc".
-
Page 30: Dvd Operation
DVD Operation DVD Operation 3. Notes a) This feature does not work in Program Play mode. b) If PBC is on, it will turn off automatically when Search Playback starts. c) When playing WMA, MP3 / JPEG discs, Search Feature does not work. Changing the Soundtrack or Language 1. -
Page 31: Dvd Operation
DVD Operation DVD Operation DVD System Operation System operation will define the setting of the set; these definitions will be stored until you change them again. General Steps of Setup Menu 1. Pause or Stop the player. Press SETUP on the remote control. The main menu will be shown as below. -
Page 32: Dvd Operation
DVD Operation DVD Operation RATING The Rating feature is a rating limit feature, like movie ratings. This helps you to control what DVD the family watches. There are 8 levels of selection, from KIDS SAFE to ADULT. Adult is the "play all" selection. 2. -
Page 33: Dvd Operation
DVD Operation Disc Care Disc Care About Disc Terms Title Generally, pictures or music compressed on a DVD are divided into several sections, "title". Chapter The smaller section unit of picture or music in a DVD under the title, usually one title is comprised of one or more chapters and each of them is numbered for easy searching, but some discs may not have a recording chapter. -
Page 34: Maintenance And Service
Maintenance and Service Trouble shooting Do not use other functions that are not mentioned in this user’s manual. In case a problem occurs with your TV, please take the following steps first. If you still have the problem, turn the power off and contact your dealer or an authorized service center. i t c Is the power plug pulled out? Insert the power plug. -
Page 35: Specifications
Maintenance and Service Specifications 23.6” TF T LCD LCD Panel Panel Size Max. Resolution 1920x 1080 VIDEO Input Connector YPbPr AUDIO (L/R) PC AUDIO HDMI Output Connector HEADPHONE COAX 100-240V ~ 50/60HZ Main Voltage Power or 2 Conia Australia Pty Ltd...
