Summary of Contents for Infinity Total Solutions TSS-SAT500

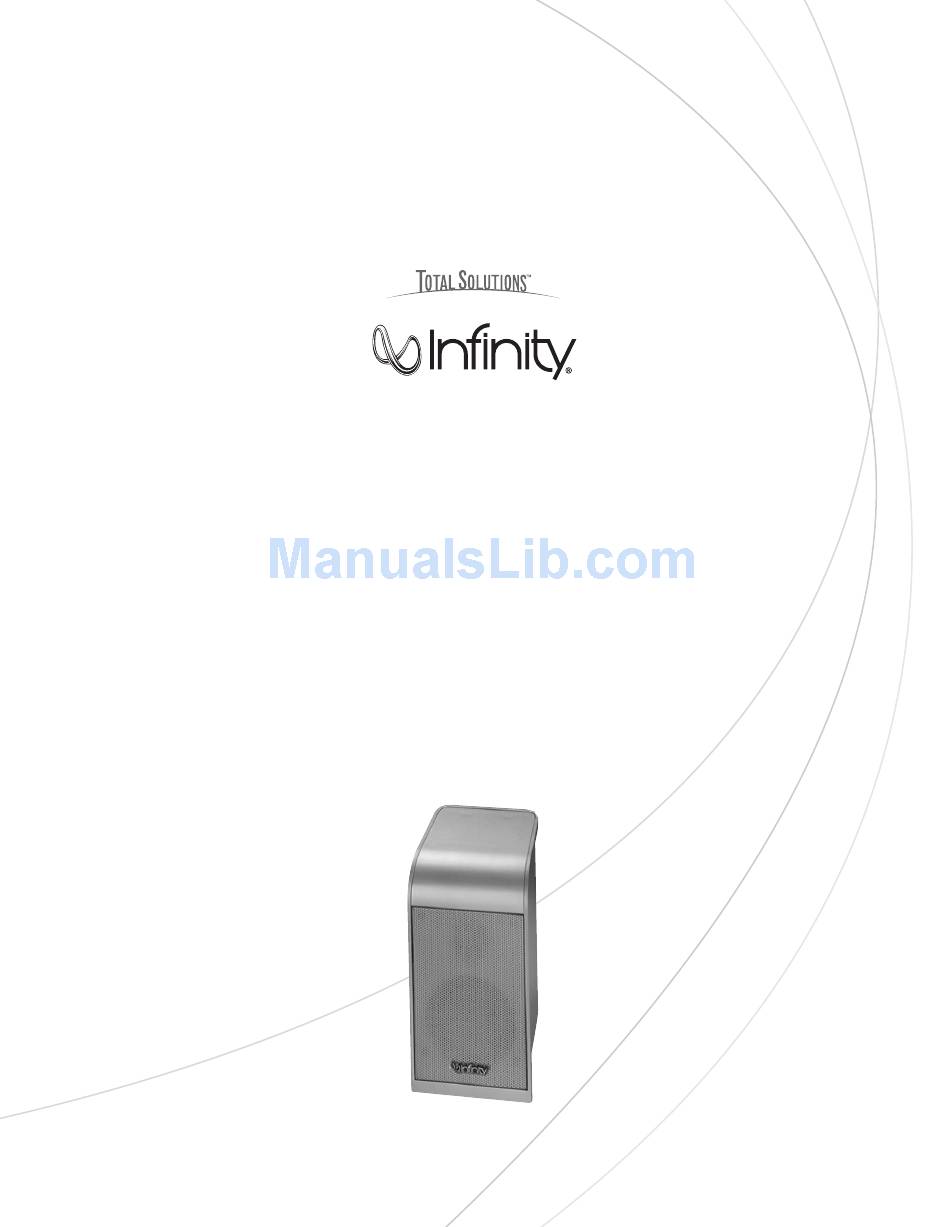

- Page 1 OTAL PEAKER OLUTIONS TSS-SAT500 Owner’s Guide...
-
Page 2: Table Of Contents
TSS-SAT500 O WNER ’ S UIDE Table of Contents Introduction Included Planning Your System Placement Wall-Mounting Connections Maintenance and Service Specifications TSS-SAT500... -
Page 3: Introduction
Mounting on Floor Stands An optional TSS-STAND500 floor stand is available, should you prefer to place your TSS-SAT500 satellites on the floor; see your dealer or visit www.infinitysystems.com for more information. In addition, there is a 1/4"-20 insert in each satellite that allows the satellite to be mounted to many third-party floor stands. -
Page 4: Wall-Mounting
OUNTING The TSS-SAT500 satellite is designed to be mounted on the wall. There is a wall bracket included.The speaker bracket will require four 1-1/2" #10 wood screws; each screw should be fastened to a wall stud. If a wall stud is unavailable, install an anchor appropriate for a 1-1/2"... -
Page 5: Connections
Figure 4. Wiring diagram shows polarity connections for one channel of a home theater system. AINTENANCE AND The TSS-SAT500 enclosure may be cleaned using a soft cloth to remove fingerprints or to wipe off dust. All wiring connections should be inspected and cleaned or remade periodically.The frequency of maintenance depends on... - Page 6 OTES TSS-SAT500...
-
Page 7: Specifications
(195mm x 89mm x 70mm) Weight: 1.2 lb (0.5kg) Infinity continually strives to update and improve existing products, as well as create new ones.The specifications and construction details in this and related Infinity publications are therefore subject to change without notice. - Page 8 Infinity Systems, 250 Crossways Park Drive, Woodbury, NY 11797 USA www.infinitysystems.com Infinity and Harman International are trademarks of Harman International Industries, Incorporated, registered in the United States and/or other countries. Total Solutions is a trademark of Harman International Industries, Incorporated.
