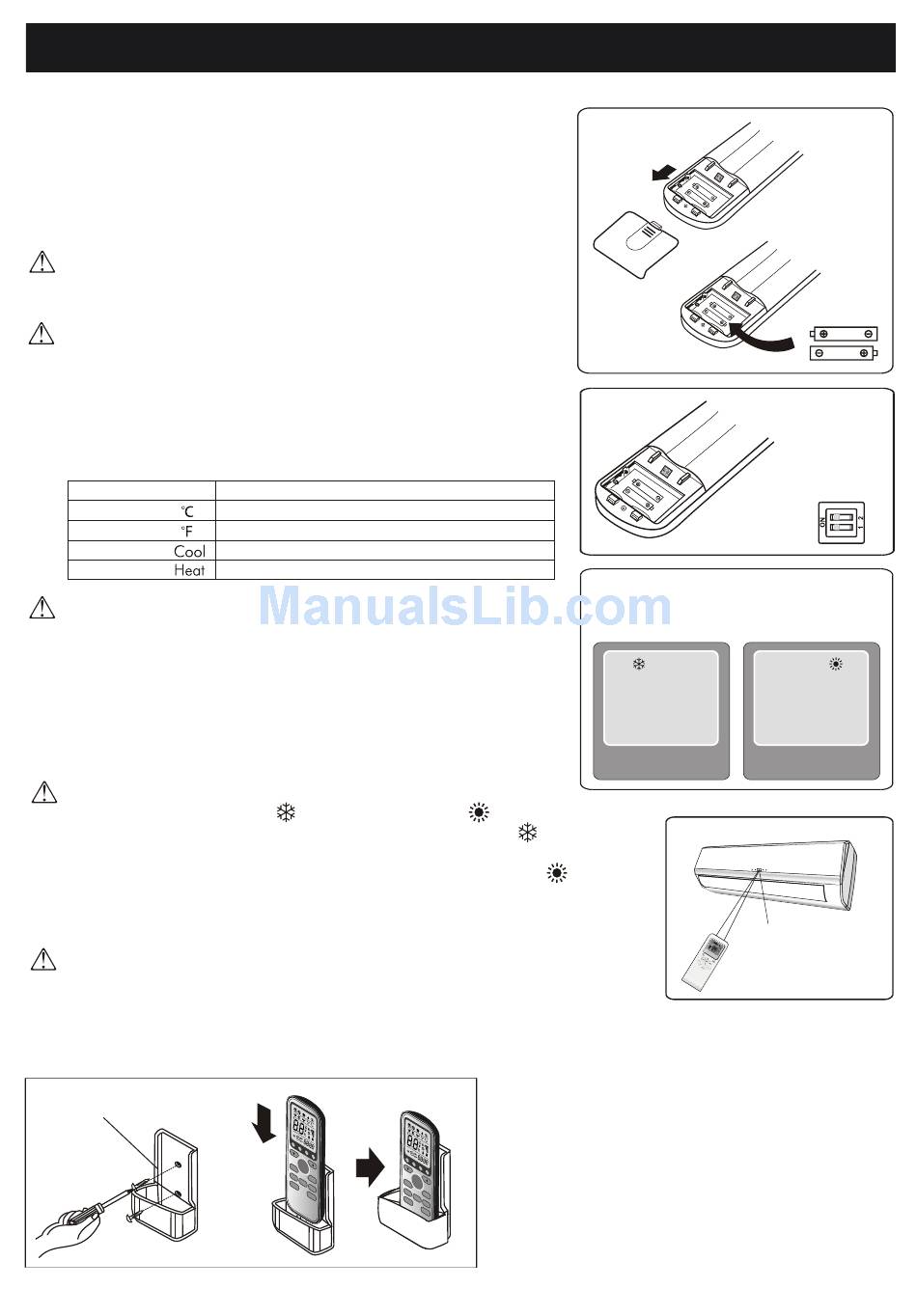

REMOTE CONTROL PROGRAMMING
Preliminary Instructions
How to Insert the Batteries
• See Diagram 1: Remove the cover from the battery
compartment by sliding it in the direction of the arrow.
• Insert the new batteries, ensuring that the (+) and (-)
symbols are correct.
• Replace the cover by sliding it into place.
Use 2 LRO 3 AAA (1.5V) batteries. Do not use
rechargeable batteries. Replace the old batteries with
new ones of the same type when the display is no
longer legible.
The remote control batteries must be disposed of in
accordance with the applicable laws in place in the
country of use.
See Diagram 2:
When you insert the remote control's batteries
for the first time or if you change them, you may see
a DIP switch under the back cover (select models).
DIP switch position
DIP 1 ON:
DIP 1 OFF:
DIP 2 ON:
DIP 2 OFF:
NOTE: Heating function not available on all units. After adjusting
the DIP switches, you will need to remove the batteries and re-insert
them using the above procedure to reset the remote control.
See Diagram 3:
When inserting the remote control's batteries for the first time or
if you change them, you will need to program the remote to
function in cooling or heating mode (if available).
Immediately after inserting the batteries, the remote's LCD display
will flash the COOL symbol
one at a time. If a button is pressed while the COOL symbol
is displayed, the remote will be set to operate the system in
cooling only mode. If a button is pressed while the HEAT symbol
is displayed, the remote will be set to operate the system in heating
only mode (if applicable).
NOTE: The remote will not be able to operate the
system in cooling only mode if it is set to heating
only mode. Also, it will not be able to operate the
the system in heating only mode if set to cooling
only.
Remote Control Holder
Function
The display will read in degrees Celsius.
The display will read in degrees Fahrenheit.
The remote control is set to cooling only mode.
The remote control is set to heating only mode.
and the HEAT symbol
Cooling Only
To Use
See Diagram 4:
• Direct the remote control toward the indoor unit
• Make sure no objects are between the remote
and the signal receiver.
• Select the desired function by pressing the
appropriate button on the remote control.
5
• Do not leave the remote exposed to direct
sunlight for extended periods of time.
• Keep the remote at least 1m away from other
electrical appliances, such as televisions or
microwave ovens.
It is recommended to use the supplied Remote Control Holder
for easy location and usage. The supplied holder may be mounted
to a wall as shown in Diagram 5.
8
Heating Only
Mode
Mode
Signal
Receiver
1
2
3
4
