Installation Instructions

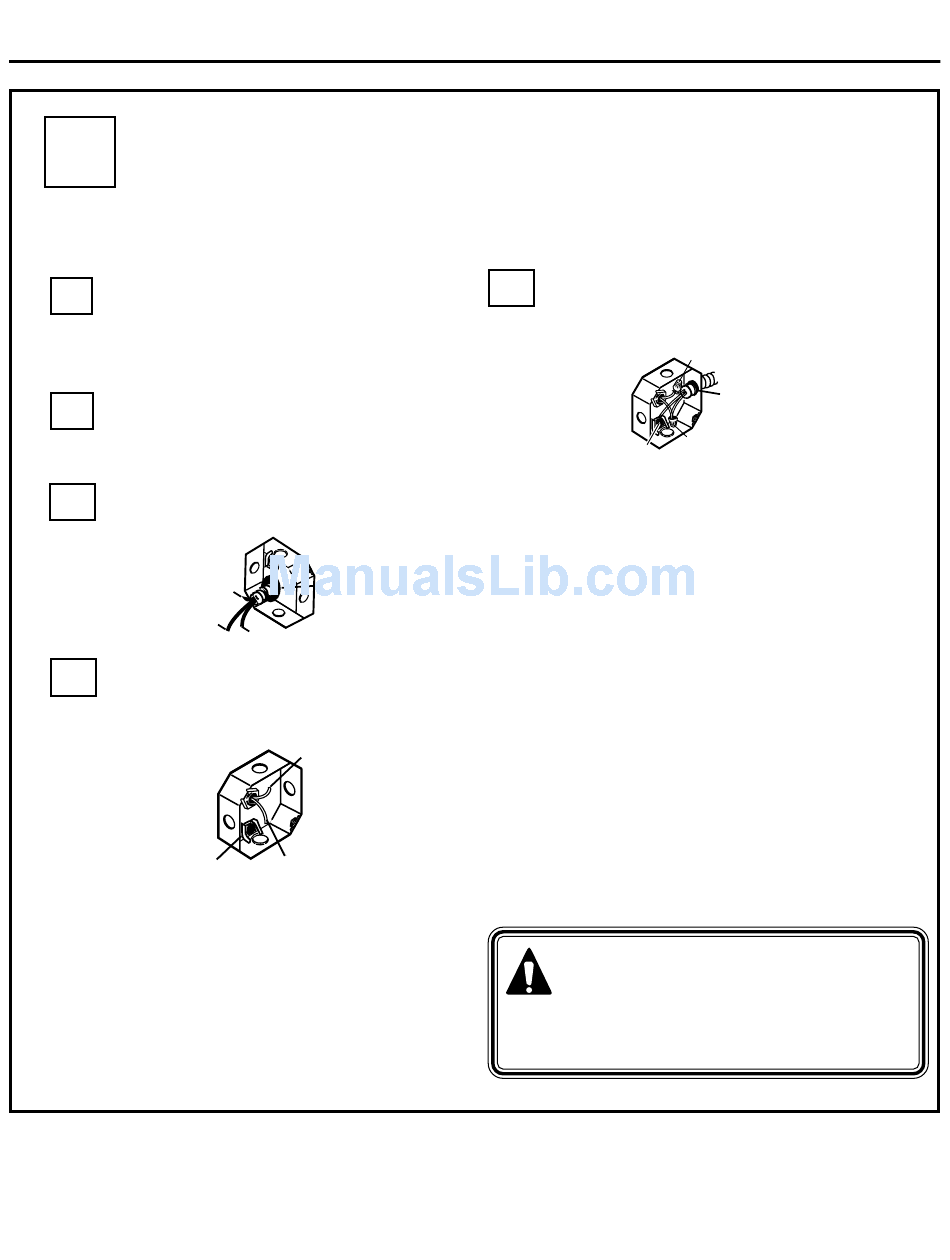

Installation—Electrical
C
Connections
When making the wire connections,
C1
use the entire length of conduit
provided. The conduit must not be
shortened.
With the cooktop in place, open the
C2
front of the cabinet door.
Insert the wires from the conduit
C3
through the opening of the junction
box.
Red
Ground
Connect the red and black leads
C4
from the cooktop conduit to the
corresponding leads in the junction
box.
Ground
wire
location
Strain
Relief
Clamp
Black
Red
Black
Once the connections are made,
C5
secure wires together using wire nuts.
Ground
GROUNDING INSTRUCTIONS:
The bare ground wire in the conduit
is connected to the cooktop frame.
Effective January 1, 1996, the National
Electrical Code will not permit grounding
through neutral. If used in new
construction after January 1, 1996 or in
a mobile home, recreational vehicle or if
local codes do not permit grounding
through the neutral white lead, attach
the appliance grounding lead (green or
copper) to the residence grounding
conductor (green or bare copper) in
accordance with local codes. When
connecting to a 3 conductor branch
circuit, if local codes permit, connect
the bare ground connector lead of the
cooktop to the branch circuit neutral
(gray or white in color).
IMPORTANT: If the cooktop is being
installed into a blind counter (one
with no cabinet opening below), wire
connections must be made before putting
the cooktop into the cutout opening
7
Red
Strain
Relief
Clamp
Black
.
