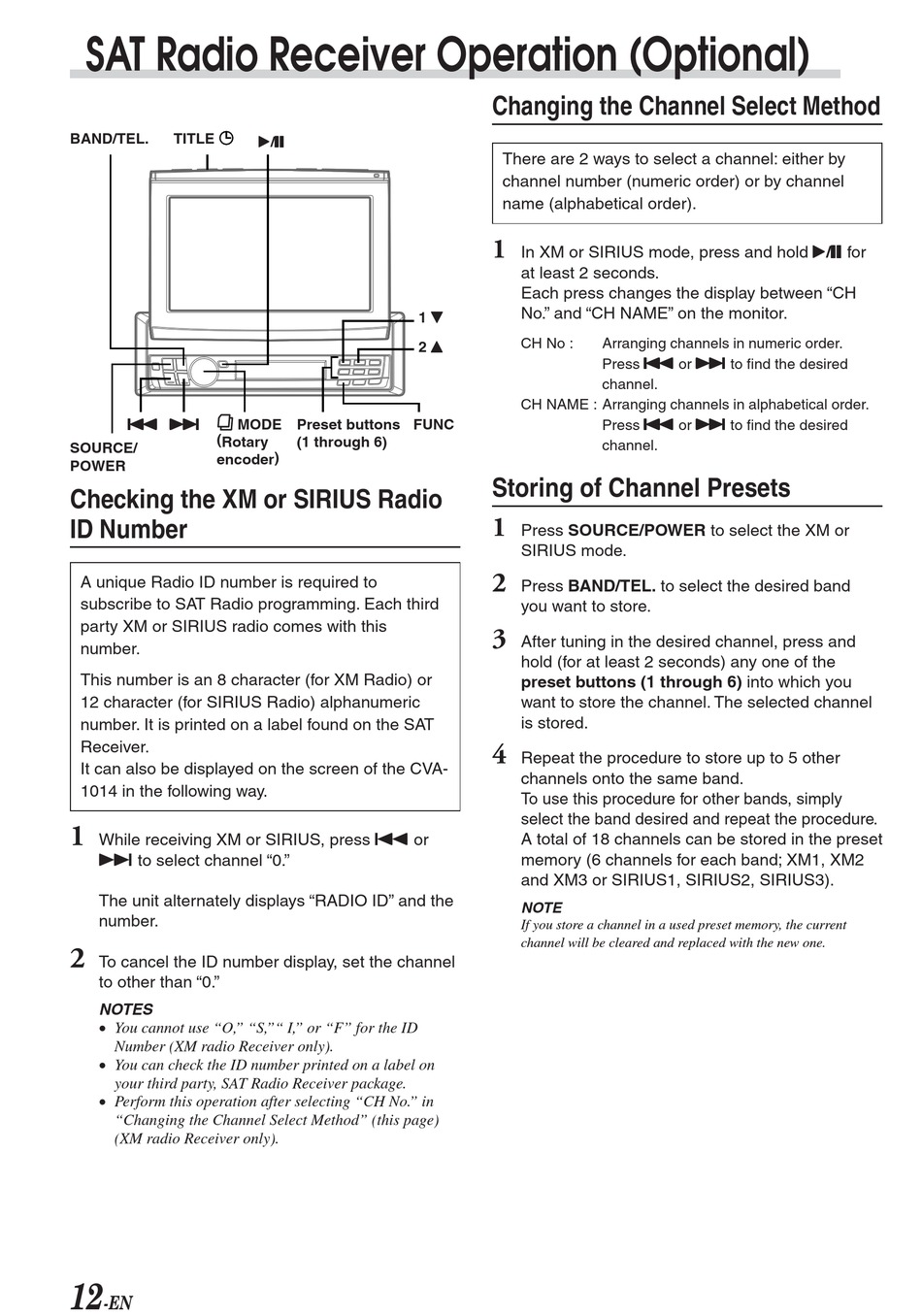

SAT Radio Receiver Operation (Optional)
BAND/TEL. TITLE
g g g f f f f
g g f MODE
( Rotary
SOURCE/
encoder )
POWER

Checking the XM or SIRIUS Radio

ID Number

A unique Radio ID number is required to
subscribe to SAT Radio programming. Each third
party XM or SIRIUS radio comes with this
number.
This number is an 8 character (for XM Radio) or
12 character (for SIRIUS Radio) alphanumeric
number. It is printed on a label found on the SAT
Receiver.
It can also be displayed on the screen of the CVA-
1014 in the following way.
1
While receiving XM or SIRIUS, press g or
f to select channel "0."
The unit alternately displays "RADIO ID" and the
number.
2
To cancel the ID number display, set the channel
to other than "0."
NOTES
• You cannot use "O," "S,"" I," or "F" for the ID
Number (XM radio Receiver only).
• You can check the ID number printed on a label on
your third party, SAT Radio Receiver package.
• Perform this operation after selecting "CH No." in
"Changing the Channel Select Method" (this page)
(XM radio Receiver only).
12
-EN
: : : : : /J J J J J
1 9 9 9 9 9
2 8 8 8 8 8
Preset buttons FUNC
(1 through 6)

Changing the Channel Select Method

There are 2 ways to select a channel: either by
channel number (numeric order) or by channel
name (alphabetical order).
1
In XM or SIRIUS mode, press and hold : : : : : /J J J J J for
at least 2 seconds.
Each press changes the display between "CH
No." and "CH NAME" on the monitor.
CH No : Arranging channels in numeric order.
g or f g g
Press g g
channel.
CH NAME : Arranging channels in alphabetical order.
g g
Press g g or f g
channel.

Storing of Channel Presets

1
Press SOURCE/POWER to select the XM or
SIRIUS mode.
2
Press BAND/TEL. to select the desired band
you want to store.
3
After tuning in the desired channel, press and
hold (for at least 2 seconds) any one of the
preset buttons (1 through 6) into which you
want to store the channel. The selected channel
is stored.
4
Repeat the procedure to store up to 5 other
channels onto the same band.
To use this procedure for other bands, simply
select the band desired and repeat the procedure.
A total of 18 channels can be stored in the preset
memory (6 channels for each band; XM1, XM2
and XM3 or SIRIUS1, SIRIUS2, SIRIUS3).
NOTE
If you store a channel in a used preset memory, the current
channel will be cleared and replaced with the new one.
f to find the desired f f
f
f f
f to find the desired f
