  • Page 1: Operation Manual

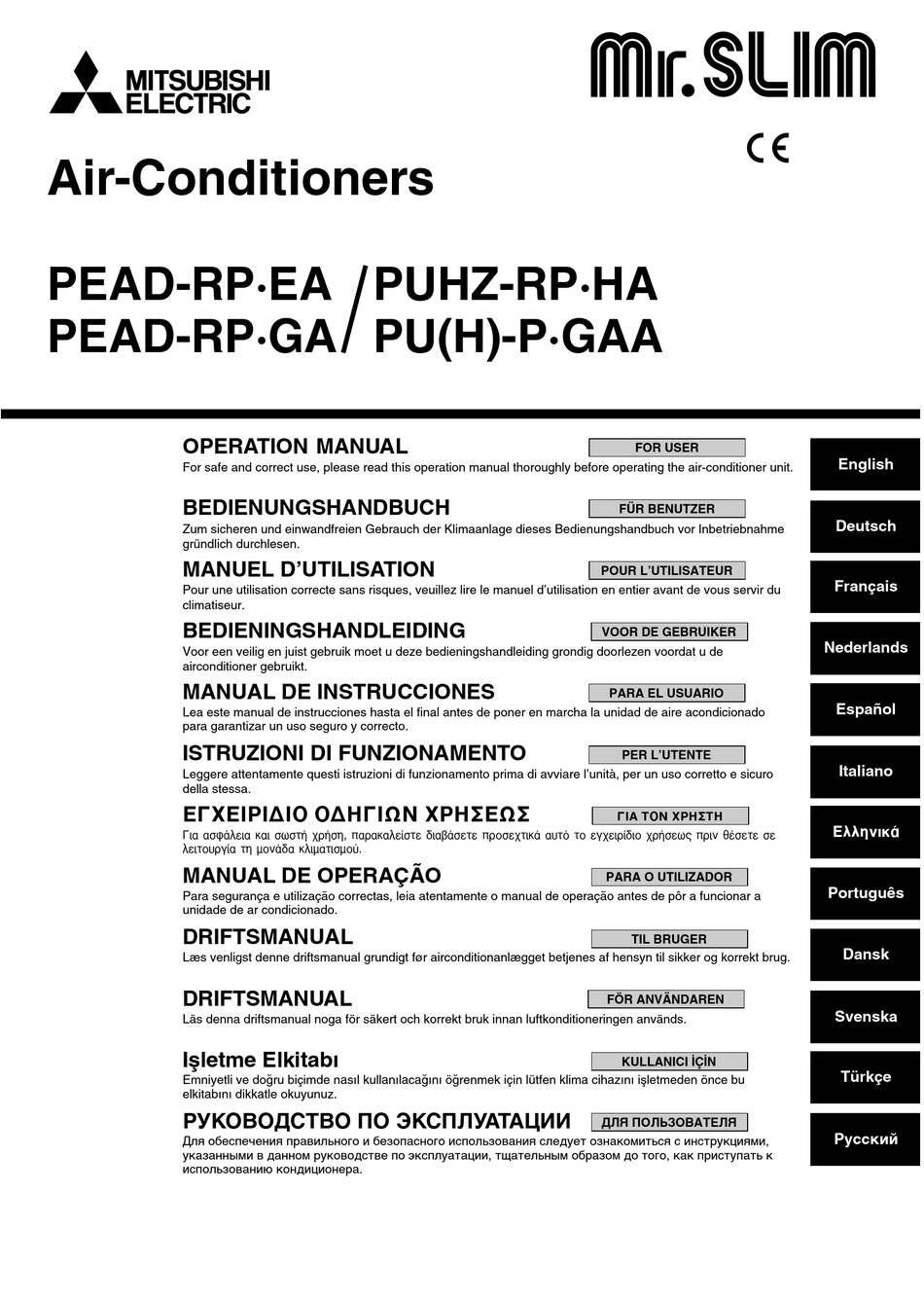

    Air-Conditioners PEAD-RP·EA PUHZ-RP·HA PEAD-RP·GA PU(H)-P·GAA OPERATION MANUAL FOR USER English For safe and correct use, please read this operation manual thoroughly before operating the air-conditioner unit. BEDIENUNGSHANDBUCH FÜR BENUTZER Deutsch Zum sicheren und einwandfreien Gebrauch der Klimaanlage dieses Bedienungshandbuch vor Inbetriebnahme gründlich durchlesen.
  • Page 2: Table Of Contents

    Contents 1. Safety Precautions ..................................2 2. Operation ....................................3 2.1. Switching the unit on/off ..............................3 2.2. Mode select ..................................4 2.3. Selecting a temperature ............................4 TEMP. 2.4. Selecting a fan speed ............................... 4 2.5. Using the timer .................................. 4 2.6.
  • Page 3: Operation

    2. Operation Remote controller-Button 1 [Room temperature adjustment] Button 2 [Timer/continuous] Button 3 [Selecting operation] Button 4 [Time selection] Button [Time-setting] Button CENTRALLY CONTROLLED 1Hr. ON OFF ˚C 5 [Louver] Button CLOCK CHECK FILTER 6 [Fan speed adjustment] Button CHECK MODE ˚C TEST RUN STAND BY...
  • Page 4: Mode Select

    2. Operation • Once the buttons have been set, pressing of the [ON/OFF] button only it stops to prevent any cool air from escaping during the defrosting can repeat the same operation thereafter. operation. • During operation, the operation lamp above the [ON/OFF] button lights •...
  • Page 5: Others

    2. Operation Display example of timer setting ˚C CLOCK The example shows a timer set for operation start ˚C at 8:00 and end at 17:00. TEMP. ON/OFF 1. Press the 2 2 2 2 2 [timer/continuous] button and bring up the C C C C C no dis- FILTER play 2.
  • Page 6: Care And Cleaning

    3. Care and cleaning 3.1. Cleaning the filters and the indoor unit Care and cleaning • Be sure to turn the ON/OFF switch to the OFF position before proceed- ing with care and handling of the unit. Cleaning the indoor unit •...
  • Page 7: Troubleshooting

    4. Troubleshooting Before you call out a repair man, check the following table to see whether there is a simple solution to your problem. Problem Solution Problem Solution Unit does not cool or heat very well. Clean the filter. The start and stop functions are not Wait about three minutes (operation available just after restarting the unit.
  • Page 8: Specification

    5. Specification PEAD-RP·EA/GA + PU(H)-P·GAA Indoor model RP1.6EA RP2EA RP2.5EA RP2.5GA RP3EA RP3GA RP4EA RP4GA RP5EA RP6EA Capacity (Cooling/Heating) <kW> 4.45/4.85 5.60/6.30 6.60/7.15 6.60/7.15 7.60/9.05 9.60/10.30 12.20/14.00 14.00/16.60 Total Input (Cooling/Heating) <kW> 3.35/3.18 1.71/1.73 2.53/2.20 2.65/2.36 2.74/2.50 3.83/4.00 3.68/3.67 4.87/4.74 5.81/5.90 Indoor power source (<V>/<Hz>) ~/N 220-230-240/50...
  • Page 9 This product is designed and intended for use in the residential, commercial and light-industrial environment. • Low Voltage Directive 73/23/ EEC The product at hand is • Electromagnetic Compatibility Directive 89/ based on the following EU regulations: 336/ EEC Please be sure to put the contact address/telephone number on this manual before handing it to the customer.
