Jonsered J630ES Parts Manual

Jonsered J630ES Parts Manual

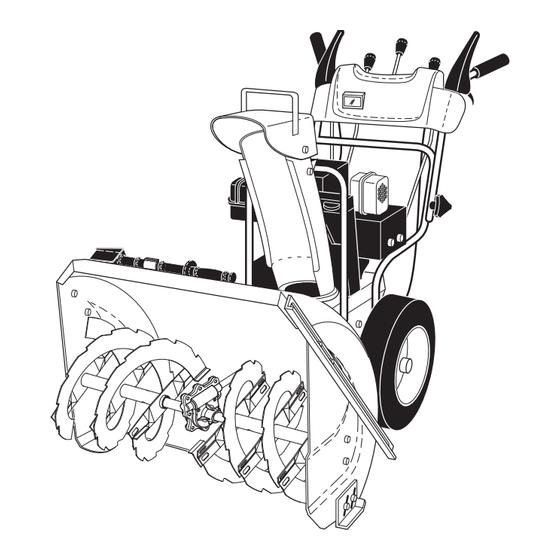

Jonsered j630es snow thrower part's manual
Hide thumbs Also See for J630ES:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual

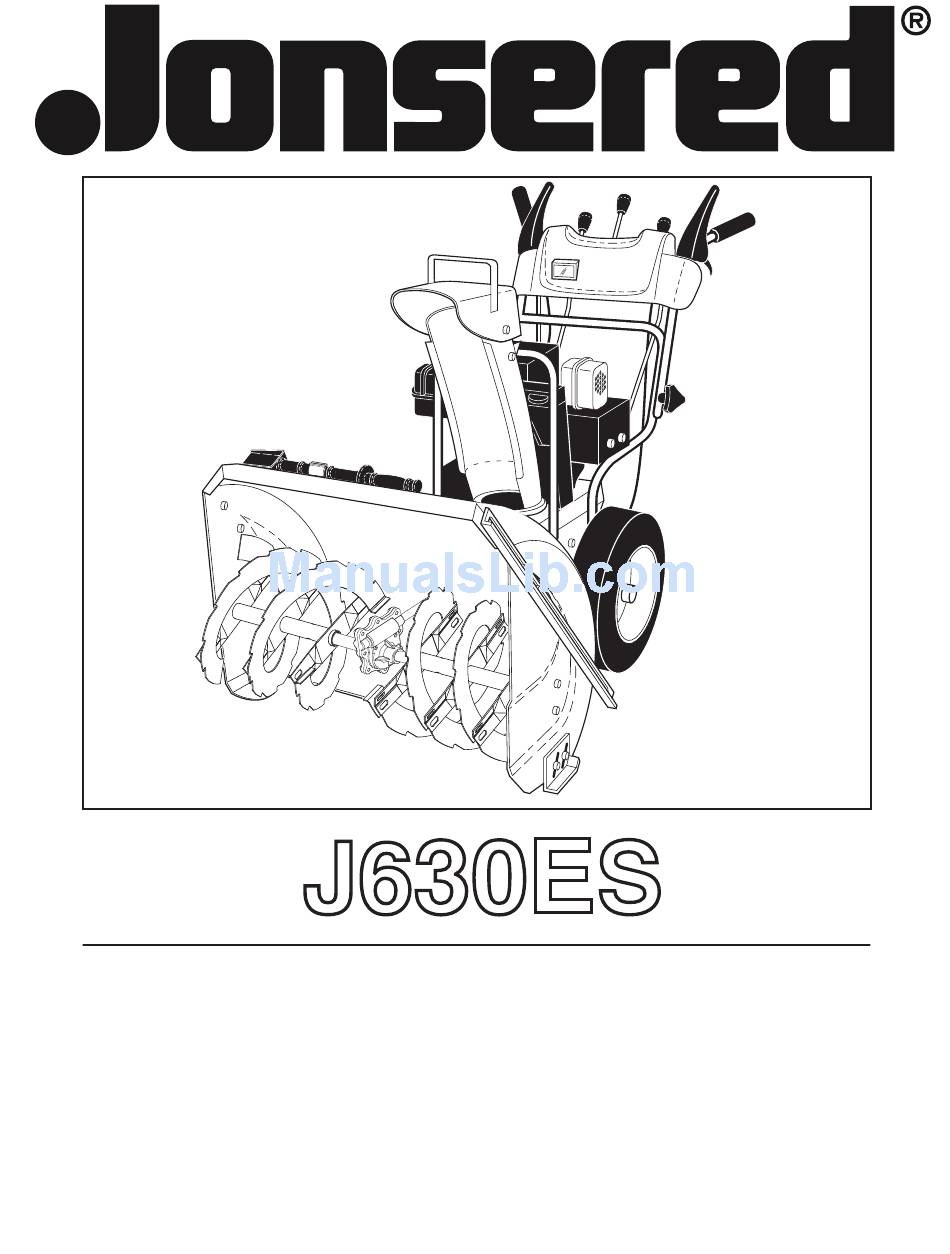

J6 30E S
Part's Manual
Gasoline containing up to 10% ethanol (E10) is acceptable for use in this machine.
The use of any gasoline exceeding 10% ethanol (E10) will void the product warranty.
585 49 64-27 Rev. 2

Advertisement

Table of Contents
loading

Related Manuals for Jonsered J630ES

Summary of Contents for Jonsered J630ES

  • Page 1 J6 30E S Part's Manual Gasoline containing up to 10% ethanol (E10) is acceptable for use in this machine. The use of any gasoline exceeding 10% ethanol (E10) will void the product warranty. 585 49 64-27 Rev. 2...

  • Page 2: Auger Housing / Impeller Assembly

    REPAIR PARTS SNOW THROWER - MODEL J630ES (96192006600) AUGER HOUSING / IMPELLER ASSEMBLY 2 (EXPLODED) 01.07.032-A...
  • Page 3 REPAIR PARTS SNOW THROWER - MODEL J630ES (96192006600) AUGER HOUSING / IMPELLER ASSEMBLY PART DESCRIPTION 532 18 41-05 IMPELLER 584 64 83-01 GEARBOX ASSEMBLY 532 18 89-09 BEARING 585 09 32-01 IMPELLER PULLEY 532 44 24-38 DISCHARGE BASE 532 18 40-95...
  • Page 4 REPAIR PARTS SNOW THROWER - MODEL J630ES (96192006600) AUGER HOUSING / IMPELLER ASSEMBLY PART DESCRIPTION 532 40 82-70 AUGER HOUSING 532 40 76-45 SCRAPPER BAR 872 27 05-05 CARRIAGE BOLT 5/16−18 X .625 532 15 53-77 NUT 5/16−18 3 (5x) 4 (5x) 01.07.003-A...
  • Page 5 REPAIR PARTS SNOW THROWER - MODEL J630ES (96192006600) AUGER HOUSING / IMPELLER ASSEMBLY PART DESCRIPTION 532 18 40-93 SKID PLATE LH 532 18 40-94 SKID PLATE RH 872 27 05-06 CARRIAGE BOLT 5/16−18 X .75 532 42 79-42 NUT 5/16−18 01.11.001-C...
  • Page 6 REPAIR PARTS SNOW THROWER - MODEL J630ES (96192006600) AUGER HOUSING / IMPELLER ASSEMBLY PART DESCRIPTION 532 18 47-47 DRIFT CUTTER BAR 872 27 05-06 CARRIAGE BOLT 5/16−18 X .750 532 17 92-46 PLASTIC WASHER 810 04 05-00 LOCKWASHER 5/16 532 12 86-38 NUT 5/16−18...

  • Page 7: Control Panel / Discharge Chute

    REPAIR PARTS SNOW THROWER - MODEL J630ES (96192006600) CONTROL PANEL / DISCHARGE CHUTE PART DESCRIPTION 532 44 36-80 CHUTE WELDMENT 532 18 45-34 DEFLECTOR WELDMENT 585 27 17-01 DEFLECTOR CONTROL ASSEMBLY 532 42 03-25 DEFLECTOR SEAL 532 41 42-80 KNOB BLACK...
  • Page 8 REPAIR PARTS SNOW THROWER - MODEL J630ES (96192006600) CONTROL PANEL / DISCHARGE CHUTE 01.09.010-C PART DESCRIPTION 532 42 82-72 LEVER/CABLE ROTATOR ASSEMBLY 817 54 10-08 SCREW 10-24 X .625 532 42 06-78 ROTATOR HEAD 532 40 59-32 ROTATOR PIVOT BRACKET...
  • Page 9 REPAIR PARTS SNOW THROWER - MODEL J630ES (96192006600) HANDLES PART DESCRIPTION 532 41 39-27 CONSOLE PANEL 532 41 77-60 SWITCH GRIP 532 17 52-62 SCREW HX WHSR HEAD .10-24 X 1.25 532 18 44-71 SCREW SHOULDER .10-24 X .62 532 17 86-68...
  • Page 10 REPAIR PARTS SNOW THROWER - MODEL J630ES (96192006600) HANDLES 01.08.021-A PART DESCRIPTION 585 19 88-02 CONTROL PANEL 581 77 98-01 LH CONTROL LEVER 581 77 97-01 RH CONTROL LEVER 584 80 90-01 INTERLOCK CONTROL ROD 585 00 47-03 INTERLOCK BRACKET 874 78 04-10 1/4-20 X .625 HEX HEAD SCREW...
  • Page 11 REPAIR PARTS SNOW THROWER - MODEL J630ES (96192006600) HANDLES PART DESCRIPTION 584 80 87-01 ROD IMPELLER CONTROL 584 80 88-01 ROD TRACTION CONTROL 532 18 04-45 SHIFTER ROD TOP 532 18 77-16 SHIFTER ROD BOTTOM 532 18 04-47 SPRING SLEEVE...
  • Page 12 REPAIR PARTS SNOW THROWER - MODEL J630ES (96192006600) HANDLES PART DESCRIPTION 532 42 10-69 PLOW HANDLE LH 532 42 10-70 PLOW HANDLE RH 532 42 91-48 PANEL BRACKET LH 532 42 91-49 PANEL BRACKET RH 532 41 45-15 HEATED HANDLE GRIP 874 78 05-12 CREW 5/16−18 X .750...
  • Page 13 REPAIR PARTS SNOW THROWER - MODEL J630ES (96192006600) DRIVE 01.03.002-C PART DESCRIPTION 532 40 49-23 AXLE ASSEMBLY (assy of 1a,1b) 532 40 43-07 AXLE SHAFT 532 18 42-06 ROLL PIN 3/16 X 1.50 532 40 26-91 SPROCKET 532 44 49-49...
  • Page 14 REPAIR PARTS SNOW THROWER - MODEL J630ES (96192006600) DRIVE ITEM 42 EXPLODED 14 15 01.02.013-G...
  • Page 15 REPAIR PARTS SNOW THROWER - MODEL J630ES (96192006600) DRIVE PART PART DESCRIPTION DESCRIPTION 532 19 88-75 SPEED SELECTOR ASSEMBLY 532 17 53-44 BEARING 532 42 88-67 SCREW 10-24 X .625 532 17 86-13 WHEEL HUB 532 43 70-74 END PLATE 874 76 05-14 SCREW 5/16-18-.875...

  • Page 16: Chassis / Engine / Pulleys

    REPAIR PARTS SNOW THROWER - MODEL J630ES (96192006600) CHASSIS / ENGINE / PULLEYS PART DESCRIPTION – – 580 42 61-03 COMPLETE LCT ENGINE PW2HK19850781DE 01.00.034-A 532 43 70-71 FRAME 532 15 04-06 BOLT 3/8-16 532 42 88-67 SCREW 5/16-18 X .750...
  • Page 17 REPAIR PARTS SNOW THROWER - MODEL J630ES (96192006600) CHASSIS / ENGINE / PULLEYS 01.21.020-J PART PART DESCRIPTION DESCRIPTION 532 43 07-84 IMPELLER BELT 532 85 10-84 SCREW 3/8-24 X 1.375 532 42 73-04 TRACTION BELT 532 05 92-89 WASHER 584 23 24-02...
  • Page 18 REPAIR PARTS SNOW THROWER - MODEL J630ES (96192006600) WHEELS 10 11 01.15.021-B PART DESCRIPTION 532 40 51-61 COVER 532 18 44-71 SHOULDER SCREW 812 00 00-45 RETAINER SPRING 581 64 50-01 WHEEL DRIVER 532 18 24-66 RETAINING RING 532 18 76-22...
  • Page 19 REPAIR PARTS SNOW THROWER - MODEL J630ES (96192006600) WHEELS PART DESCRIPTION 532 43 61-07 WHEEL ASSEMBLY LH 532 43 61-08 WHEEL ASSEMBLY RH 01.06.015-A PART DESCRIPTION 532 43 84-46 CABLE BRACKET LH 532 43 84-47 CABLE BRACKET RH 817 49 04-08 SCREW 1/4 -20 X .500...

  • Page 20: Bag Of Parts

    REPAIR PARTS SNOW THROWER - MODEL J630ES (96192006600) BAG OF PARTS PART DESCRIPTION 532 19 85-63 POWER CORD 532 16 96-75 RETAINER PIN 532 42 91-12 WRENCH 532 18 45-05 REMOTE SPRING 532 17 98-29 SHOULDER BOLT 1/4-20 532 19 17-30...
  • Page 21 REPAIR PARTS SNOW THROWER - MODEL J630ES (96192006600) DECALS KEY PART DESCRIPTION 532 18 10-37 DECAL, DANGER 532 18 10-35 DECAL, DANGER, DEFLECTOR 532 18 10-42 DECAL, DANGER 532 18 10-33 DECAL, INSTRUCTION 581 43 01-01 DECAL, SPEED CONTROL/TRIGGER 581 43 01-02 DECAL, REMOTE DEFLECTOR CONTROL/ TRIGGER 585 49 64-27 OWNER’S MANUAL, ENGLISH...
  • Page 22 REPAIR PARTS SNOW THROWER - MODEL J630ES (96192006600) COMPLETE ENGINE-580426103 *Included with part #1 Carburetor Repair Kit ILLUSTRATION FOR REFERENCE PURPOSES ONLY NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
  • Page 23 REPAIR PARTS SNOW THROWER - MODEL J630ES (96192006600) COMPLETE ENGINE-580426103 KEY PART KEY PART NO. NO. DESCRIPTION NO. NO. DESCRIPTION 532 42 92-54 CYLINDER HEAD ASSEMBLY 532 42 92-90 ELECTRIC STARTER BRACKET- 532 42 96-13 PUSH ROD KIT (291CC) SNOW (INCL.

  • Page 24: Limited Warranty

    LIMITED WARRANTY The Manufacturer warrants to the original consumer purchaser that this product as manufactured is free from defects in mate- rials and work man ship. For a period of two (2) years from date of purchase by the original consumer purchaser, we will repair or replace, at our option, without charge for parts or labor incurred in replacing parts, any part which we find to be defective due to materials or workmanship.

This manual is also suitable for:

96192006600
