Owner's Instruction and
Safety Manual
pet trailer

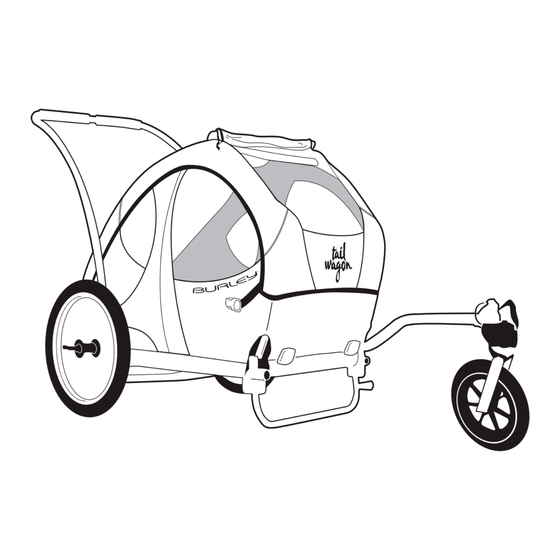

Burley Tail Wagon
Burley Tail Wagon
model shown
(Stroller Kit and Kickstand are Sold Separately)
Stroll
Bike

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pet Trailer and is the answer not in the manual?

Questions and answers

Summary of Contents for Burley Pet Trailer

  • Page 1 Owner’s Instruction and Safety Manual pet trailer Burley Tail Wagon ™ Burley Tail Wagon model shown ™ (Stroller Kit and Kickstand are Sold Separately) Stroll Bike...
  • Page 2: Table Of Contents

    Contents Owner’s Instruction Introduction and Safety Manual Safety Guidelines Parts Bag Contents Burley Tail Wagon ™ Tools Required Installing Wheel Guard Tube Opening Your Trailer Attaching Wheels Attaching Handle Installing Tow Bar Attaching Cover Attaching Tailgate Removing Floor Installing Safety Flag...
  • Page 3: Introduction

    9. Only use factory-supplies wheels, with the tires inflated to the pressure recommended on tire sidewall. Check Your Burley® trailer is the leading choice of refined bicycle the tires before each use. Do not use higher-pressure or trailer owners worldwide. Every effort has been made to knobby tires.
  • Page 4: Installing Wheel Guard Tube

    1. Rotate front tube upward and rear tube back until they meet on plastic saddles. FIGURE 1 2. Rotate frame locks and snap onto rear tube. FIGURE 2 To view a video clip of “Folding a Burley” go to: Front www.burley.com/support/tutorials.cfm. WARNING CHECK THAT THE FRAME LOCKS ARE PROPERLY ENGAGED BEFORE USING THE TRAILER.
  • Page 5: Attaching Wheels

    Attaching Wheels 1. Insert wheel axle assembly completely into trailer axle. FIGURE 3 2. Close quick release lever, with lever aimed at trailer rear. A properly adjusted quick release lever should leave an imprint on your palm when the lever is rotated to the closed position.
  • Page 6: Attaching Cover

    Attaching Cover 1. On trailer front, join buckle sections on cover corners to buckle sections below side windows. PHOTO 4 2. On trailer rear, hook O-rings on cover rear over side Side Window knobs. PHOTO 5 3. At top of frame, fasten cover snaps to frame. Buckle PHOTO 4: Trailer front side...
  • Page 7: Removing Floor

    Removing Floor 1. To remove for cleaning, lift floor at inside front and pull out Trailer Front of trailer. PHOTO 8 2. Remove fabric covering from floor base. 3. To install floor, insert rear of floor under nuts in trailer rear and under D-rings on trailer sides.
  • Page 8: Installing Safety Flag

    Installing Safety Flag Join pole sections together. On trailer’s left side, insert flag pole into hole in handle receiver by wheel axle. IMPORTANT DO NOT USE TRAILER WITHOUT SAFETY FLAG. Using Parking Brake Engage parking brake by pushing handle to the right. Exercise caution when disengaging brake, as it may spring to the left.
  • Page 9: Hitching Trailer To Your Bicycle

    Hitching Trailer to Your Bicycle The Burley Forged Standard Hitch is used Note: for bicycles with either nutted axles FIGURE 5 Hitch quick release assemblies FIGURES 6 & 7 1. Remove axle nut or rear quick release lever assembly from bike.
  • Page 10: Safety Checklists

    32˚F (0°C), as hitch flex connector can become brittle and possibly break, causing an accident resulting in serious injury. Please go to www.burley.com for updated product parts list, diagrams and available accessories Fabric Care Hand wash fabric parts with mild soap or detergent and warm water.
  • Page 11 B U R L E Y T A I L W A G O N O W N E R ’ S I N S T R U C T I O N A N D S A F E T Y M A N U A L...
  • Page 12: Warranty

    The Limited Warranty does not cover claims resulting from misuse, failure to follow the instructions, installation, improper maintenance and use, abuse alteration, involvement in an accident, and normal wear and tear. The Limited Warranty does not cover products which are used in rental operations and Burley will not be liable for any incidental or commercial damages relating to such use.
