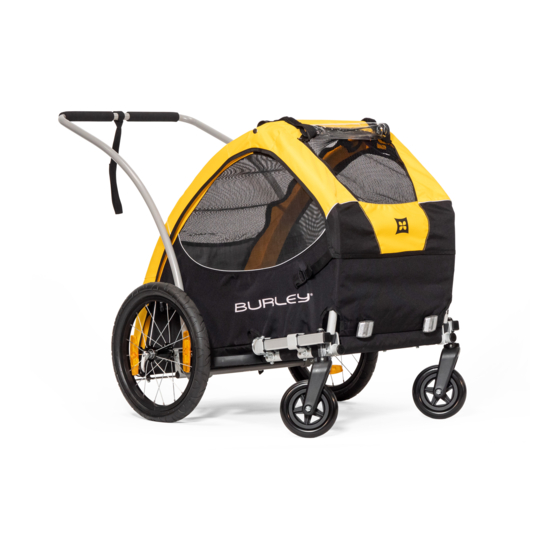

Burley Tail Wagon Owner's Instruction And Safety Manual
Hide thumbs
Also See for Tail Wagon:
- Owner's instructions manual (36 pages) ,
- Owner's instruction & safety manual (28 pages) ,
- Owner's instruction and safety manual (12 pages)
Related Manuals for Burley Tail Wagon
Summary of Contents for Burley Tail Wagon

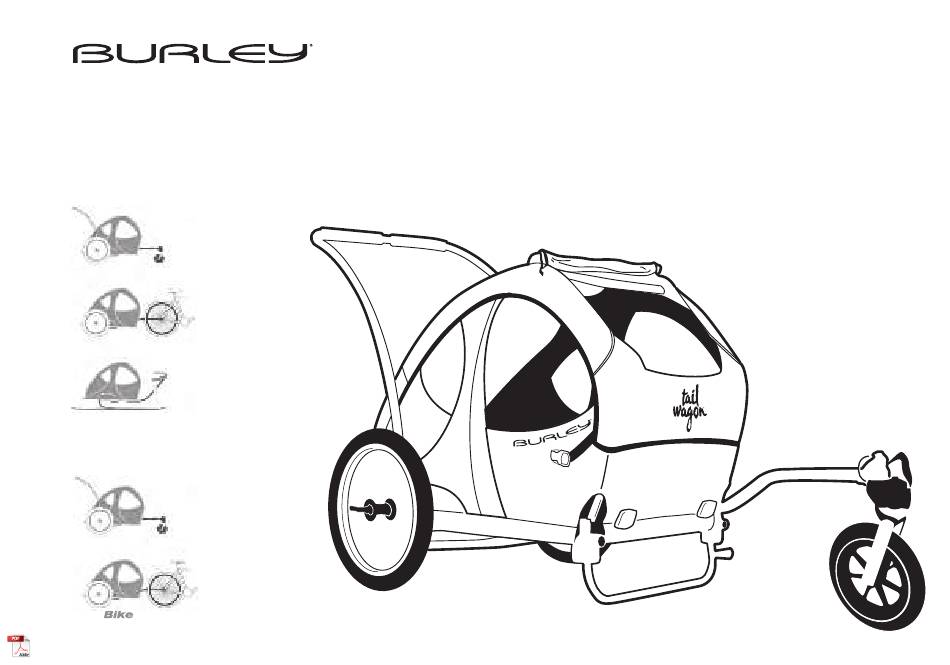

- Page 1 ™ ™ Burley Tail Wagon and Rover Owner’s Instruction and Safety Manual Tail Wagon ™ Stroll Bike Rover ™ Stroll Tail Wagon model shown ™...
- Page 2 ™ ™ Burley Tail Wagon and Rover Owner’s Instruction and Safety Manual pet trailer Contents Introduction Safety Guidelines Parts and Tool List Instructions Safety Checklists Maintenance and Storage Replacement Parts and Diagram Warranty...
- Page 3 (1) Red light with batteries 5. Never use your pet trailer for transporting people. (1) Hitch 6. Never pull your Burley trailer with a motorized vehicle. (1) Wheel guard tube: 7. Use only the factory-supplies wheels, with the tires inflated (2) screws to pressure recommended on tire sidewall.
- Page 4 For a complete parts list and product diagram, please go to (away from the trailer front), match tube holes and frame holes. www.burley.com. Insert and tighten provided screws securely. Photo 3 NOTE: Any reference to left or right is made in direction of travel, as if you were sitting inside trailer, looking forward.
- Page 5 Attaching Wheels Attaching Tow Bar Insert wheel axels into the axle receiver. Close securely, Slide tow bar through both receptacles on left side. Line up back with levers aimed to trailer rear. Inflate tires to pressure tow bar hole with rear receptacle hole. Insert the retaining pin recommended on tire side wall.
- Page 6 Attaching Cover Attaching Tailgate On front, fasten buckles together on sides. On rear, hook Snap buckle parts together on trailer sides under O-rings over side knobs. Fasten snaps on top. Photo 8 cover. Photo 9a (To help prevent unplanned exits use attachment shown in Photo 9b.) B U R L E Y P E T T R A I L E R O W N E R ’...
- Page 7 For cleaning, floor may be removed by lifting at front. Photo 10a Remove floor cover from base for cleaning Using Trailer as a Stroller (Tail Wagon Only) Reinsert floor rear under nuts in trailer rear and D-rings on sides. In front corners, snap floor under front nuts. Photo 10b Slide tow bar through both receptacles on left side.
- Page 8 7. Wrap safety strap twice around inside of chain stay and then into “BIKE” position. Tighten knob. Figure 2 over hitch body. Fasten hook to D-ring on tow bar Now attach trailer to bike, using Burley hitch. end. Figure 4 Hook fastened to...
- Page 9 Inspect fabric parts for rips, abrasion, or missing or damaged hardware Contact your Burley for repairs/replacement of any damaged or worn-out parts B U R L E Y P E T T R A I L E R O W N E R ’ S I N S T R U C T I O N A N D S A F E T Y M A N U A L...
- Page 10 2008 Tailwagon and Rover Replacement Parts and Diagram Tailwagon Rover Diagram # Description Warranty Part # Part # 960000 960000 Standard Hitch lifetime 960009 960009 Safety Flag 1 year 250144 250144 Handle Bar Assembly w/Tether lifetime 250130 250129 Side Panel/Bag with Windows (NOT SHOWN) 1 year 250128 250127 Cover (NOT SHOWN)
- Page 11 The Burley trailer owner must present the trailer for repair at place of purchase, with an original sales receipt or similar proof of purchase.
- Page 12 Copyright © 2007 by Burley Design LLC “Burley” is a registered trademark of Burley Design LLC “Tail Wagon,” and “Rover” are trademarks of Burley Design LLC 170052 manual Tail Wagon, Rover 08 Rev0 Rev 09/07...
