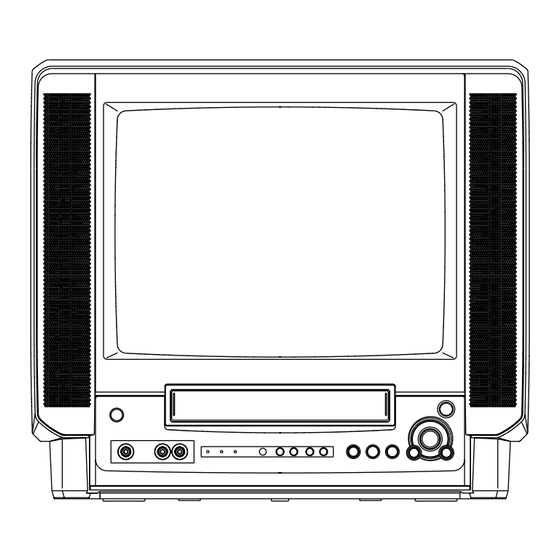

SERVICE MANUAL

INTEGRATED COLOR TV / VIDEO CASSETTE
RECORDER
POWER REQUIREMENTS ............
POWER CONSUMPTION ..............
WEIGHT .........................................
DIMENSIONS .................................
PICTURE TUBE .............................
TUNER SYSTEM ...........................
CHANNEL COVERAGE .................
TV SYSTEM ...................................
HORIZONTAL RESOLUTION .......
OPERATING TEMPERATURE ......
VIDEO RECORDING SYSTEM .....
VIDEO SIGNAL SYSTEM ..............
VIDEO HEAD .................................
USABLE CASSETTES ...................
SPECIFICATIONS
230V AC, 50Hz
55W
Standby 6W
Approx.12.8 kg (28.16 lbs.)
435 mm (W) x 370.5 mm (D) x
384.5 mm (H)
(17 1/4 x 14 5/8 x 15 1/4 in.)
14 in. (34 cm "V"), 90 degree
deflection
Frequency synthesized tuner
UHF: 21 to 69
I
240 lines
5°C to 40°C
Rotary 2 head helical scanning system
PAL colour signal, 625 lines, 50 fields
Azimuth 2 heads
VHS video cassettes
S/M Code No. 09-006-345-5N1
VX-G143
BASIC TAPE MECHANISM : OVD-6
TAPE SPEED ...................................
RECORDING/PLAYBACK TIME .....
VIDEO INPUT ...................................
VIDEO OUTPUT ..............................
VIDEO S/N .......................................
AUDIO INPUT ..................................
AUDIO OUTPUT ..............................
AUDIO TRACK .................................
•
Design and specifications are subject to change without
notice.
K
PAL
SP: 23.39 mm/sec.
LP: 11.69 mm/sec.
NTSC (playback SP only)
33.35 mm/sec.
PAL
SP: 4 hours 20 minutes max.
with E-260 tape
LP: 8 hours 40 minutes max.
with E-260 tape
NTSC (playback SP only)
3 hours max. with T-180 tape
1.0Vp-p, 75 ohm, unbalanced
1.0Vp-p, 75 ohm, unbalanced
53dB (nominal)
SCART: –3.8 dBs, 50K ohm
RCA: –3.8 dBs, 50K ohm
SCART: –3.8 dBs less than 1K ohm
1 track (mono)
