GREEN TEA
Centerset Lavatory Faucet
with Speed Connect™ Drain
Congratulations on purchasing your American Standard
faucet with Speed Connect drain, a feature found only on
American Standard faucets.
Speed Connect Drain*
• Fewer parts, installs in less time
• Never needs adjustment
• Guaranteed to seal properly the first time, every time.
*Your new American Standard faucet is designed to work only with the Speed Connect drain.
To ensure that your installation proceeds smoothly-please read these instructions carefully before you begin.
Recommended tools
Screwdriver
1

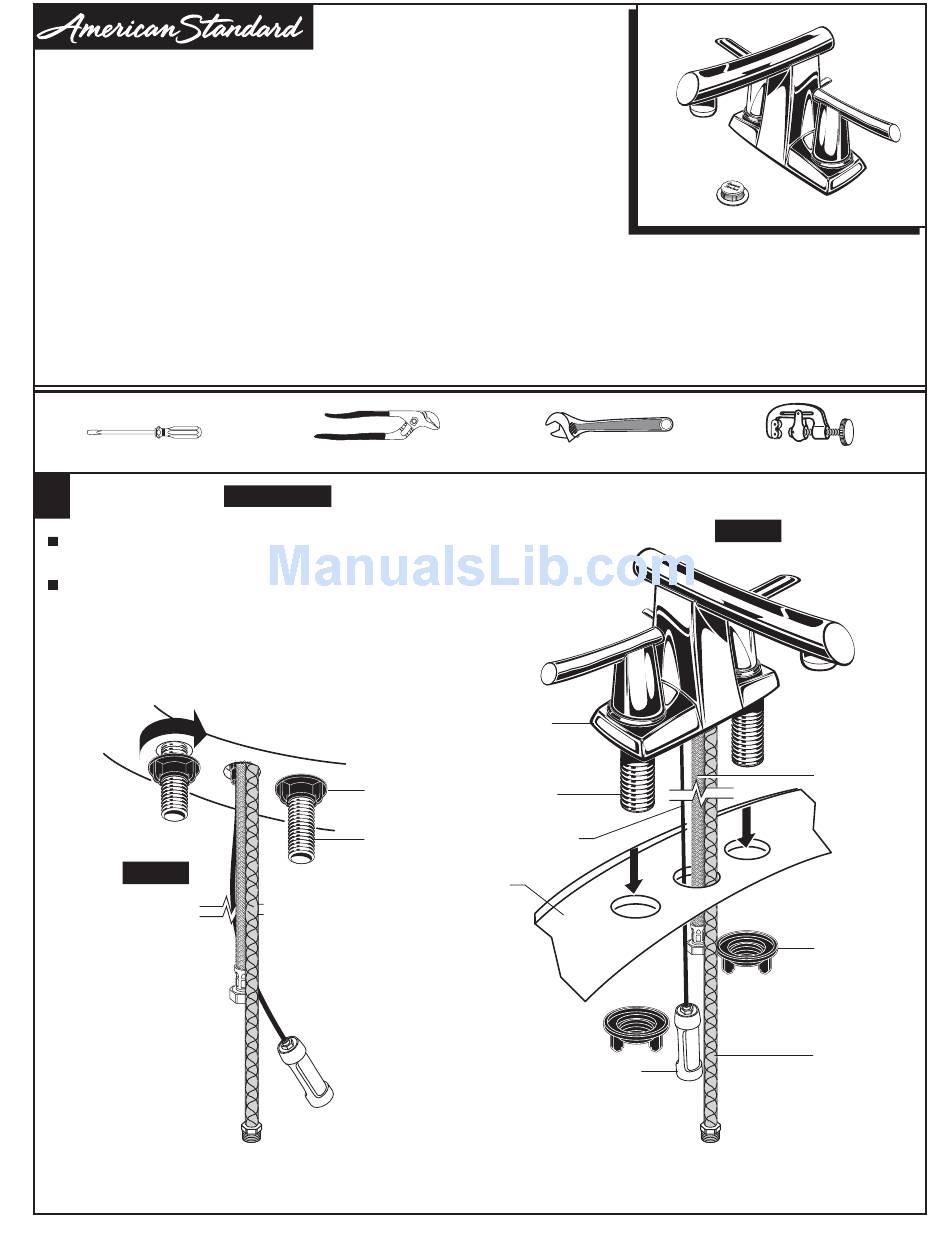

INSTALL FAUCET
Insert FAUCET (1) and CABLE CONNECTOR (2) FLEXIBLE INLET TUBE I (3)
and HOSE (4) through mounting holes of Sink or Mounting Surface.
Assemble LOCKNUTS (6) onto SHANKS (5) from under
side of Sink. Hand tighten firmly.
(HAND TIGHTEN)
Fig. B.
Channel Locks
Turn off hot and cold water
CAUTION
supplies before beginning.
Fig. B.
6
5
Installation
Instructions
7010.201
Adjustable Wrench
Fig. A.
1
5
POP-UP
CABLE
SINK OR
MOUNTING
SURFACE
1
Certified to comply with ANSI A112.18.1
M 9 6 8 5 9 9 R ev. 1. 2
Tubing Cutter
Fig. A.
2
3
6
4
Advertisement
Related Manuals for American Standard GREEN TEA 7010.201
Summary of Contents for American Standard GREEN TEA 7010.201
- Page 1 M 9 6 8 5 9 9 R ev. 1. 2 • Guaranteed to seal properly the first time, every time. *Your new American Standard faucet is designed to work only with the Speed Connect drain. To ensure that your installation proceeds smoothly-please read these instructions carefully before you begin.
- Page 2 POP-UP DRAIN Fig. A. Fig. B. Remove CLEAR PLASTIC COVER (1). Remove CARDBOARD SPACER (2) from under DRAIN DRAIN POP-UP (3). BODY Tighten TAILPIECE (4) on DRAIN BODY before Fig. B. installing DRAIN BODY. REMOVE FLANGE Fig. A. Fig. B. Thread FLANGE (1) counter-clockwise and remove FLANGE (1) and FOAM GASKET (2) from drain Fig.
- Page 3 ATTACH CABLE CONNECTOR Fig. A. Fig. B. Thread CABLE CONNECTOR (1) clockwise onto DRAIN BODY CONNECTION (2) and hand tighten. Fig. A. Your new POP-UP DRAIN installation is now complete. Fig. B. Note: Tailpeice on pop-up drain is 1-1/4” O.D. Fig.
-
Page 4: Care Instructions
TEST INSTALLED FITTING With HANDLES (1) in OFF position, turn on WATER SUPPLIES (2) and check all connections for leaks. Remove AERATOR (3) using KEY (3a) supplied. Operate both HANDLES (1) to flush water lines thoroughly. Replace AERATOR (3). CHECK DRAIN CONNECTIONS Operate POP-UP KNOB (4) and fill lavatory with water. -
Page 5: Troubleshooting Guide
Speed Connect™ Drain Troubleshooting Guide If sink does not hold water even though Stopper is in the “down” position: • Follow CABLE ADJUSTMENT PROCEDURE. If Stopper does not raise up fully or sink drains too slowly: • Follow CABLE ADJUSTMENT PROCEDURE. If you need to remove the Stopper: •... - Page 6 To install the stopper in “Unlocked” mode, insert the Stopper into the Drain so that the Plastic Loop is facing toward the front of the Sink and the American Standard logo is facing rear. Rotate Stopper slightly if necessary so that the Stopper slides all the way down.
- Page 7 GREEN TEA Centerset Lavatory Faucet with Speed Connect™ Pop-Up Drain A953051-0070A CHECK VALVE 7010.201 A912692-0070A SEAL M916570-YYY0A HANDLE KIT M922866-0070AA AERATOR M922372-0070A AERATOR KEY M962624-YYY0A M921371-0070A LIFT ROD & KNOB ADAPTER Replace the "YYY" with appropriate finish code CHROME M918331-0070A STAINLESS STEEL A918049-0070A ADAPTER...
