American Standard GREEN TEA T010.507 Installation Instructions

GREEN TEA
BATH/SHOWER TRIM KIT
Thank you for selecting American-Standard...the benchmark
of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--please
read these instructions carefully before you begin.
Recommended Tools
Plumbers' Putty or Caulking

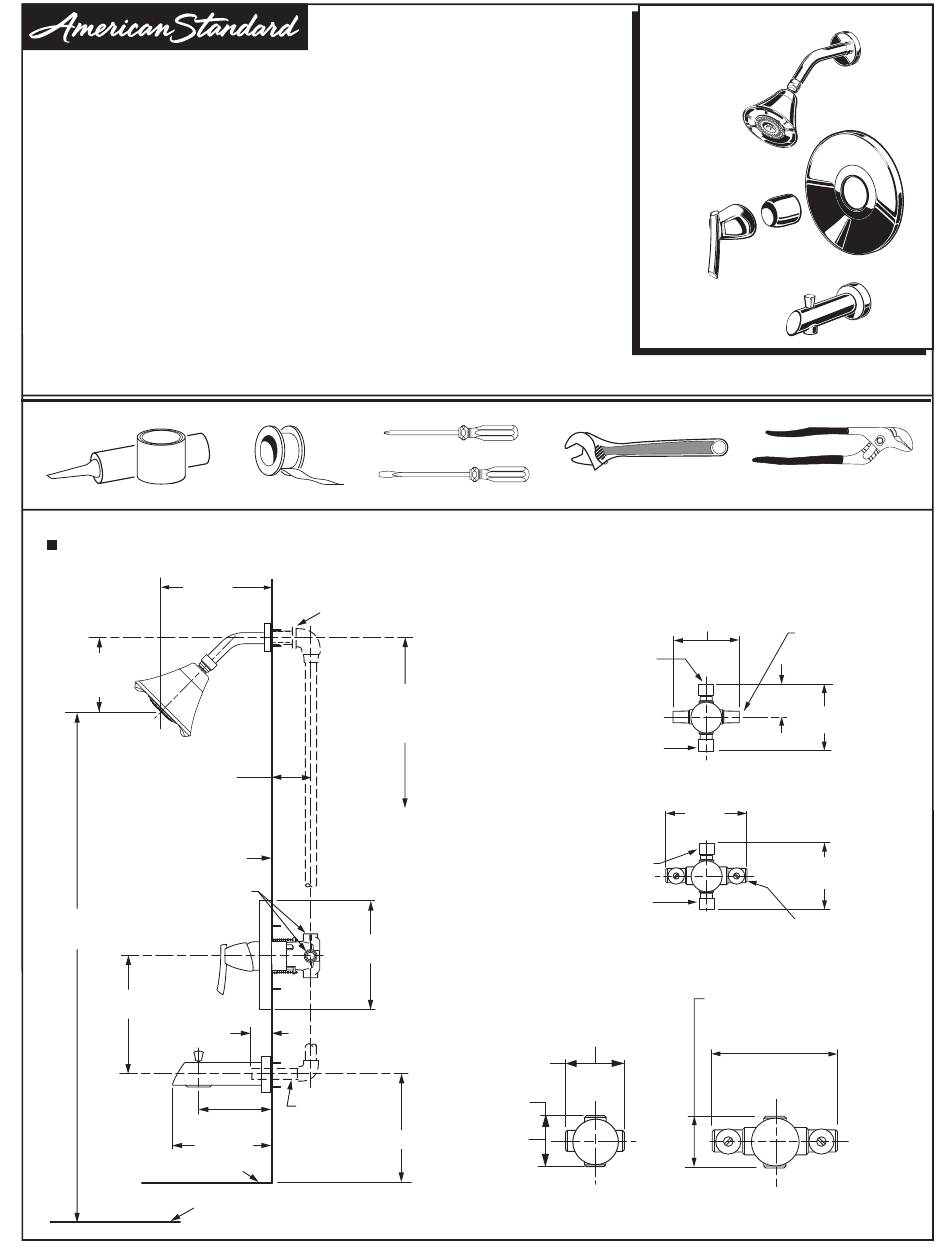

ROUGHING-IN DIMENSIONS (For reference only)
To assure proper positioning in relation to wall, note roughing-in dimensions.
8-1/2"
216mm)
REF.
137mm
(5/3/8")
REF.
1-5/8" TO 3"
(41mm TO 76mm)
FINISHED WALL
"SEE ILLUSTRATION "
74" FOR HEAD
CLEARANCE
(188 cm)
18" OPTIONAL
(457mm)
1-3/4" REF.
(44mm) REF.
4-5/8" REF.
5-7/8" REF.
(149mm)
TOP OF TUB RIM
BOTTOM OF TUB
Instructions
Teflon Tape
1/2" NPT
(12,7 mm) NPT
OPTIONAL TO FINISHED
FLOOR USUALLY
BETWEEN 65'' (1651mm)
AND 80'' (1880mm)
7-1/2" DIA.
(191mm)
1/2" COPPER
(117mm)
4" (102 mm)
Installation
T010.507
T010.508
Phillips Screwdriver
Flat Blade Screwdriver
SHR. 1/2" NOM.
COPPER SWEAT
SWEAT
INLETS
SWEAT
INLETS (STOPS)
SHR. 1/2" NOM.
COPPER SWEAT
TUB 1/2" NOM.
COPPER SWEAT
INLETS 1/2" NPT
3-3/8"
(98mm)
3-3/8"
(98mm)
OUTLETS
1/2" NPT
THREADED INLETS
T010.507
SHOWER ONLY
T010.508
BATH/SHR
Certified to comply with ANSI A112.18.1
Adjustable Wrench
INLETS
4-1/16"
(103mm)
(51mm)
TUB 1/2" NOM.
COPPER SWEAT
5-7/8"
(149mm)
3-3/8" (98mm)
OUTLETS 1/2" NPT
5-7/8"
(149mm)
INLETS
1/2" NPT
THREADED INLETS (STOPS)
M965432 REV. 1.1
Channel Locks
INLETS
1/2" NOM.
COPPER
SWEAT
2"
4-1/16"
(103mm)
4-1/16"
(103mm)
INLETS
1/2" NOM.
COPPER
SWEAT
