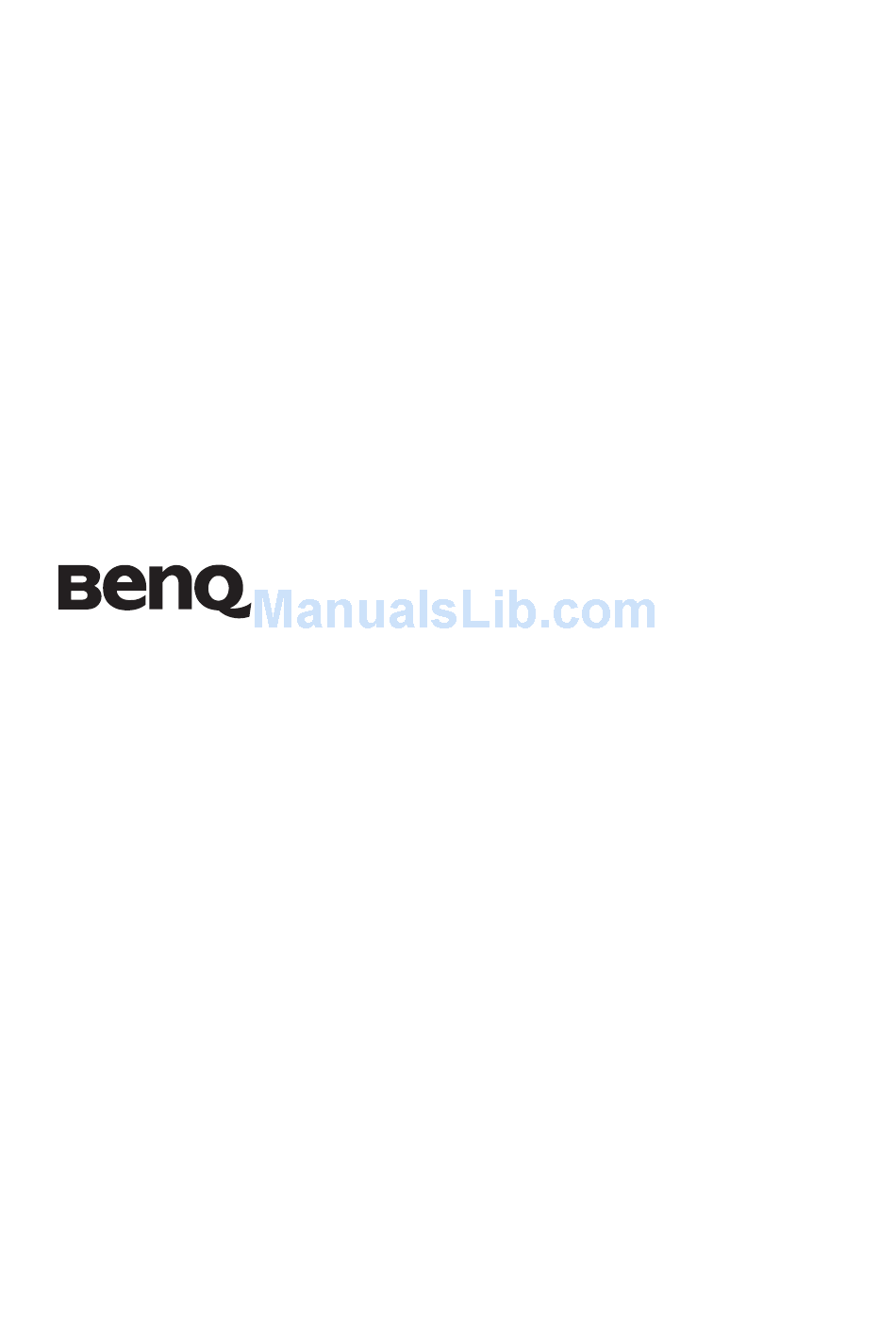

DC C700 Digital Camera
User Manual
Welcome

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DC C700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BenQ DC C700

Summary of Contents for BenQ DC C700

  • Page 1 DC C700 Digital Camera User Manual Welcome...
  • Page 2 Further, BenQ Corporation reserves the right to revise this publication and to make changes from time to time in the con- tents hereof without obligation of this company to notify any person of such revision or changes.

  • Page 3: Table Of Contents

    Table of Contents .............. 1 1. Touring Your Camera ..........1 1.1 Checking the package contents ............1 1.2 Camera components ............. 1 1.2.1 Front view .............. 2 1.2.2 Rear view ............2 1.2.3 LED indicators ..........3 2. Preparing Your Camera for Use ............
  • Page 4 ........14 3.3.3 Playback mode - the basics ........17 3.3.4 Playback mode menu settings ..............18 3.4 Setup mode ............18 3.4.1 Date/Time ............... 18 3.4.2 Format ..............18 3.4.3 Beeper ............18 3.4.4 Language ............. 18 3.4.5 Auto Off ............

  • Page 5: Touring Your Camera

    Touring Your Camera Checking the package contents Carefully unpack your kit box and ensure that you have the following items. User Manual Digital camera USB cable Lithium-ion rechargeable battery Hand strap Software CD-ROM Pouch AC power adapter Battery charger If any of the items are missing or appear to be damaged, contact your dealer. Save the packaging in case you need to ship your camera for service.

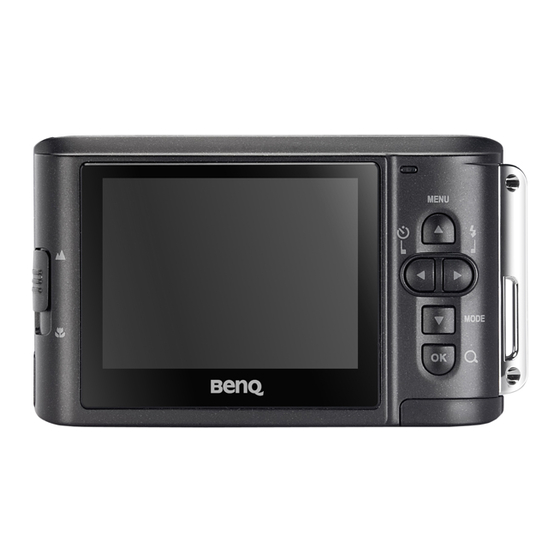

  • Page 6: Rear View

    1.2.2 Rear view Focus switch ] Normal mode ] Macro mode USB terminal Tripod socket Battery / SD memory card cover OK button ] Zoom button ] Arrow button (Down) MODE button ] Arrow button (Right) ] Flash button ] Arrow button (Left) ] Self-timer button ] Arrow button (Up) MENU button...

  • Page 7: Preparing Your Camera For Use

    Preparing Your Camera for Use Installing the battery We highly recommend that you use only the specified rechargeable lithium-ion battery for your camera. Make sure that the power of the camera is off before inserting or removing the battery. To insert the battery: 1.

  • Page 8: Inserting And Removing An Sd Memory Card (Optional Accessory)

    Inserting and removing an SD memory card (optional accessory) The camera is equipped with internal memory, allowing you to record video clips and capture images. You can also expand the memory capacity by using an optional SD (Secure Digital) memory card to store more files. 1.

  • Page 9: Using The Camera

    Using the Camera Capture mode 3.1.1 Getting started with capturing images 1. Slide the lens cover to turn on the camera. The camera sounds one beep when it is initiated. 2. Compose your image in the LCD monitor. 3. Press the shutter button. •...

  • Page 10: Capture Mode Lcd Monitor Information

    3.1.2 Capture mode LCD monitor information 01/07/2007 08:03 Internal memory/SD memory card indica- 10+2s ]10+2 sec. delay 10. Unsteady hold warning icon ] Status of internal memory 11. [ ]Exposure compensation 12. White balance ] Status of SD memory card [Blank]Auto Battery level ] Daylight...

  • Page 11: Choosing The Screen Language

    3.1.3 Choosing the screen language Follow the steps below to set the OSD (On-Screen Display) language. 1. Press the MENU button. 2. Press the [ ] button to select [Setup] menu. 3. Press the [ ] / [ ] button to select [Language], and then press the OK button.

  • Page 12: Using The Flash

    • To disable Macro photography, slide the focus switch back to the Normal mode • When using the Macro mode, the icon [ ] will be displayed on the LCD monitor. • In the Macro mode, the flash mode is automatically set to Flash off [ •...

  • Page 13: Using The Self-Timer

    3.1.8 Using the self-timer The self-timer can be used in situations such as group shots. When using this option, you should either mount the camera on a tripod (recommended) or rest it on a flat surface. The self-timer duration can be set as 2 , 10 seconds or 10+2 seconds. After the self-timer is set, the shutter automatically releases after 2 , 10 seconds or 10+2 seconds.
  • Page 14 5. To exit from the menu mode, use the [ ] / [ ] button to select [Exit] and press the OK button. • You may also press the [ ] button to quit directly. 3.1.10.1.1 Size This sets the size of the image that will be photographed. [3072 x 2304]: 3072 x 2304 pixels [2560 x 1920]: 2560 x 1920 pixels [1600 x 1200]: 1600 x 1200 pixels...
  • Page 15 • Spot lighted subjects, particularly against dark backgrounds • Imaging of printed text (white characters on black paper) • Scenes with low reflectivity, such as shots of green or dark foliage 3.1.10.1.5 White Balance When the brightness of the light changes, our eyes adapt the difference so that the white object remains white.

  • Page 16: Video Mode

    3.1.10.2.2 Preview Set to display a photographed image on the LCD monitor immediately after you have taken the shot. [ON]: Display quick view [OFF]: Do not display quick view 3.1.10.2.3 Date Print If you set the imprint function, your image will be displayed with the date information on it. [ON]: Date will be shown on the captured image.

  • Page 17: Video Mode Menu Settings

    3.2.3 Video mode menu settings 3.2.3.1 Video Output menu This menu is for the basic settings to be used when recording video clips. 3.2.3.1.1 For details, refer to 3.1.10.1.4 “EV” on page 10. 3.2.3.1.2 White Balance For details, refer to 3.1.10.1.5 “White Balance” on page 11. 3.2.3.1.3 Exit Select this option if you wish to exit from the menu mode.

  • Page 18: Playback Mode - The Basics

    3.3.3 Playback mode - the basics 3.3.3.1 Viewing images To play back still images one at a time: 1. Press twice the MODE button to enter Playback mode The last recorded image appears on the LCD monitor. 2. View and select your captured images by using the [ ] button.

  • Page 19: Thumbnail Display

    3.3.3.3 Thumbnail display This function allows you to view nine thumbnail images on the LCD monitor simultaneously so that you can quickly scan for a particular image. 1. Press twice the MODE button to enter Playback mode [ 2. Press the MENU button. 3.
  • Page 20 3.3.3.5 Protecting files This feature allows you to prevent captured images from being accidentally erased. 1. Press twice the MODE button to enter Playback mode ]. Then press the MENU button to enter [Playback] menu. 2. Select [Protect] by using the [ ] / [ ] button, and press the OK button.

  • Page 21: Playback Mode Menu Settings

    3.3.4 Playback mode menu settings 3.3.4.1 Playback menu By using the [Playback] menu you can create an on-camera slideshow or configure DPOF settings. You may also delete or protect one or all stored images. 1. Press twice the MODE button to enter Playback mode ].

  • Page 22: Setup Mode

    Setup mode You can select according to your preference for the camera settings in [Setup] of [Capture] / [Video] / [Playback] menu. Navigate the options you wish to configure by using the [ ] button. 3.4.1 Date/Time This sets the date and the time. For details, refer to 3.1.4 “Setting the date and time”...

  • Page 23: Pc Dependent Features

    PC Dependent Features Bundled software The camera is supplied with the following software. To install the software, refer to the information supplied with respective CDs. Ulead Photo Ulead® Photo Express™ 5.0 SE is a complete photo project software Express for digital images. Acquire photos effortlessly from digital cameras or scanners.

  • Page 24: Step 1: Connecting The Camera To Your Computer

    4.2.1 Step 1: Connecting the camera to your computer 1. Turn on the camera. 2. Connect one end of the USB cable to an available USB port on your computer. 3. Connect the other end of the USB cable to the USB terminal on the camera.

  • Page 25: Step 2: Connecting The Camera To Your Computer

    2. When the welcome screen appears, click “Install USB Driver”. Follow the on-screen instructions to complete the installation. 3. After the driver installation is completed, restart your computer. 4.3.2 Step 2: Connecting the camera to your computer 1. Turn on the camera. 2.

  • Page 26: Printer Mode

    printer will read the embedded information on the memory card and print your images as specified. To Set DPOF: 1. Press twice the MODE button to enter Playback mode ]. Then press the MENU button to enter the [Playback] menu. 2.
  • Page 27 Settings and printing image 1. Use the [ ] / [ ] button to select [PictBridge], then press the OK button. 2. To select the image you want to print, choose [Images] Printer from the PictBridge menu and press the OK button. * If you want to print one image, choose [Single] and press the OK button.

  • Page 28: Troubleshooting

    Troubleshooting Refer to the symptoms and solutions listed below before shipping your camera for service. If the problem persists, contact your local reseller or service center. Symptom Cause Solution The camera cannot be There is no battery or the battery is Insert the battery correctly.
  • Page 29 Symptom Cause Solution I cannot download The free space on the hard disk of Ensure that the hard disk has enough images. your computer is insufficient. space for running Windows and that the drive for loading image files has free space equal to or greater than the memory card in the camera.

  • Page 30: Specifications And Service Information

    Still image: JPEG (Exif 2.2, DCF, and DPOF compatible) Video: Motion JPEG Interface Digital out: USB 1.1 * Design and specifications are subject to change without notice. Technical Support For free driver updates, product information and news releases, visit the following web site: http://www.BenQ.com Specifications and Service Information...
