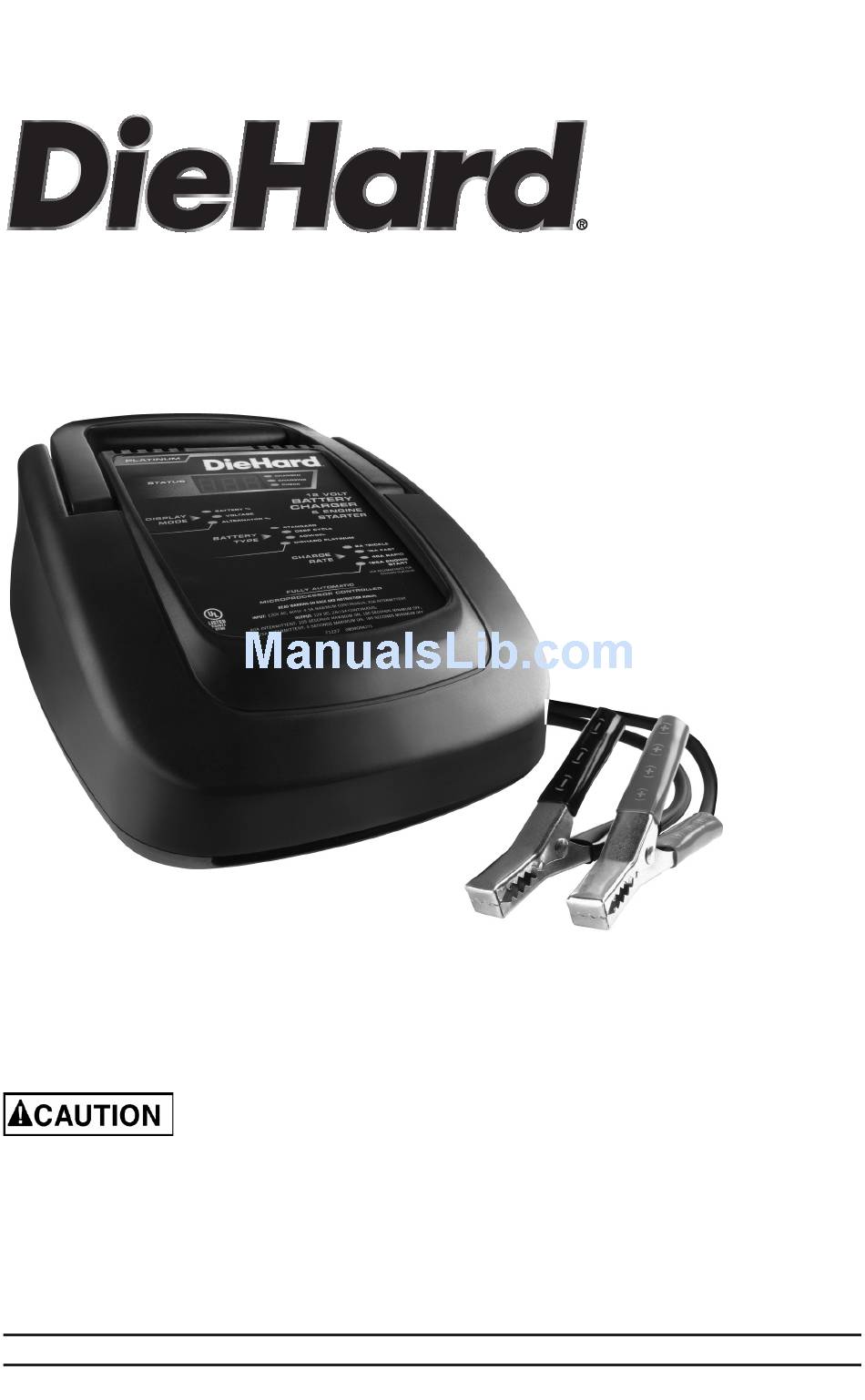

OPERATOR'S MANUAL
12v Battery charger
& Engine Starter
Model No.
28.71227
Read and follow all Safety
Rules and Operating Instructions
before Every Use of this Product.
SAvE ThESE INSTRUcTIONS.
Sears Brands Management corporation, hoffman Estates, IL 60179 U.S.A.
00-99-001011/0510

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 28.71227 and is the answer not in the manual?

Questions and answers

Related Manuals for DieHard 28.71227

Summary of Contents for DieHard 28.71227

  • Page 1 OPERATOR’S MANUAL 12v Battery charger & Engine Starter Model No. 28.71227 Read and follow all Safety Rules and Operating Instructions before Every Use of this Product. SAvE ThESE INSTRUcTIONS. Sears Brands Management corporation, hoffman Estates, IL 60179 U.S.A. 00-99-001011/0510...

  • Page 3: Table Of Contents

    3 years from the date of purchase, return it to any DieHard outlet in the United States for free replacement. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
  • Page 4 IMPORTANT: READ AND SAvE ThIS SAfETY AND INSTRUcTION MANUAL. SAvE ThESE INSTRUcTIONS – The 71227 offers a wide range of features to accommodate your needs. This manual will show you how to use your charger safely and effectively. Please read, understand and follow these instructions and precautions carefully, as this manual contains important safety and operating instructions.

  • Page 5: Important Safety Instructions

    IMPORTANT SAfETY INSTRUcTIONS - SAvE ThESE INSTRUcTIONS - This manual contains important safety and operating instructions RISK Of ELEcTRIc ShOcK OR fIRE. Keep out of reach of children. Do not expose the charger to rain or snow. Use only recommended attachments. Use of an attachment not recommended or sold by the battery charger manufacturer may result in a risk of fire, electric shock or injury to persons or damage to property.

  • Page 6: Personal Precautions

    1.12 This charger employs parts, such as switches and circuit breakers, that tend to produce arcs and sparks. If used in a garage, locate this charger 18 inches or more above floor level. PERSONAL PREcAUTIONS RISK Of EXPLOSIvE gASES. NEVER smoke or allow a spark or flame in the vicinity of a battery or engine. Remove personal metal items such as rings, bracelets, necklaces and watches when working with a lead-acid battery.

  • Page 7: Charger Location

    Clean the battery terminals before charging the battery. During cleaning, keep airborne corrosion from coming into contact with your eyes, nose and mouth. Use baking soda and water to neutralize the battery acid and help eliminate airborne corrosion. Do not touch your eyes, nose or mouth. Add distilled water to each cell until the battery acid reaches the level specified by the battery manufacturer.

  • Page 8: Follow These Steps When Battery Is Installed In Vehicle

    fOLLOW ThESE STEPS WhEN BATTERY IS INSTALLED IN vEhIcLE A SPARK NEAR ThE BATTERY MAY cAUSE A BATTERY EXPLOSION. TO REDUcE ThE RISK Of A SPARK NEAR ThE BATTERY: NEgATIvE gROUNDED SYSTEM Position the AC and DC cables to reduce the risk of damage by the hood, door and moving or hot engine parts.

  • Page 9: Follow These Steps When Battery Is Outside Vehicle

    fOLLOW ThESE STEPS WhEN BATTERY IS OUTSIDE vEhIcLE A SPARK NEAR ThE BATTERY MAY cAUSE A BATTERY EXPLOSION. TO REDUcE ThE RISK Of A SPARK NEAR ThE BATTERY: Check the polarity of the battery posts. The POSITIVE (POS, P, +) battery post usually has a larger diameter than the NEGATIVE (NEG, N, -) post.

  • Page 10: Assembly Instructions

    Recommended minimum AWG size for extension cord: • 100 feet long or less - use a 10 gauge extension cord. • Over 100 feet long - use an 8 gauge extension cord. ASSEMBLY INSTRUcTIONS Remove all cord wraps and uncoil the cables prior to using the battery charger. Included with your battery charger are two cord wrap cleats for storage of the battery cables.
  • Page 11 • Diehard Platinum – Set the button to DIEHARD PLATINUM. Select the DieHard Platinum battery type if your battery is a DieHard Platinum battery. NOTE: When DieHard Platinum is selected, the default charge rate will be 40A Rapid. •...

  • Page 12: Operating Instructions

    charge Rate Button Use this button to set the maximum charge rate. • 2A Slow charge Rate – Intended for charging small batteries such as those commonly used in garden tractors, snow mobiles and motorcycles. • 15A fast and 40A Rapid charge Rate –...
  • Page 13 CHARGED LED will stay on for longer periods of time as the battery becomes more fully charged. NOTE: The maintain mode technology utilized in DieHard chargers allows you to safely charge and maintain a healthy battery for extended periods of time.
  • Page 14 NOTE: During extremely cold weather, or if the battery is under 2 volts, charge the battery for 5 minutes before cranking the engine. If the engine fails to start, charge the battery for 5 more minutes before attempting to crank the engine again. After the engine starts, unplug the AC power cord before disconnecting the battery clips from the vehicle.
  • Page 15 If necessary, press the BATTERY TYPE button until the correct type is indicated. Read the voltage on the digital display or press the Display Mode button to set the tester to BATTERY % to read the voltage as a percent of charge. Tester and charger: When first turned on, the unit operates only as a tester, not as a charger.

  • Page 16: Calculating Charge Time

    general charging Notes fan: The charger is designed to control its cooling fan for efficient operation. Consequentially, it is normal for the fan to start and stop when maintaining a fully charged battery. The fan does not run in Tester Mode. Keep the area near the charger clear of obstructions to allow the fan to operate efficiently.

  • Page 17: Moving And Storage Instructions

    MOvINg AND STORAgE INSTRUcTIONS 14.1 Store the charger unplugged, in an upright position. The cord will still conduct electricity until it is unplugged from the outlet. 14.2 Store inside, in a cool, dry place (unless you’re using an on-board Marine Charger). 14.3 Do not store the clips on the handle, clipped together, on or around metal, or clipped to cables.
  • Page 18 PROBLEM POSSIBLE cAUSE REASON/SOLUTION The charger is making an Circuit breaker is cycling. The settings may be wrong. audible clicking sound. Check the charger settings. Battery is defective. Have the battery checked. Severely discharged The battery may not want battery, but otherwise it is a to accept a charge due to good battery.
  • Page 19 PROBLEM POSSIBLE cAUSE REASON/SOLUTION Short or no start cycle Drawing more than the Crank time varies with the when cranking engine. engine start rate. amount of current drawn. If cranking draws more than the engine start rate, crank time may be less than 5 seconds.

  • Page 20: Before Returning For Repairs

    BEfORE RETURNINg fOR REPAIRS 16.1 When a charging problem arises, make certain that the battery is capable of accepting a normal charge. Double check all connections, the AC outlet for a full 120 volts, the charger clips for correct polarity and the quality of the connections from the cables to the clips and from the clips to the battery system.
