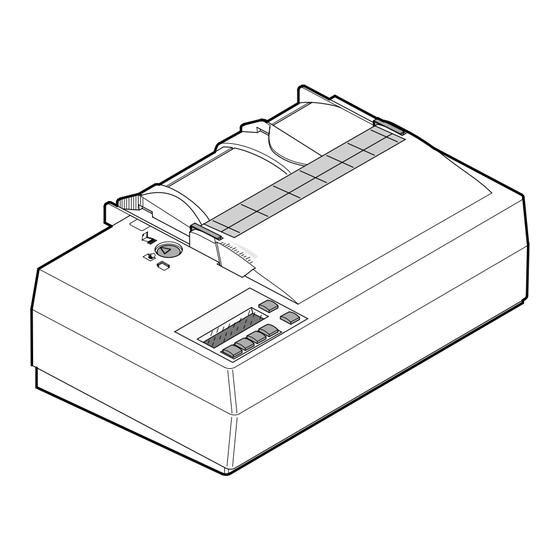

- Page 1 T2033 T2133 Addendum T2033S Maintenance Manual Matrix Printer Dr_ges.iso Base: Maintenance Manual MT 15x...
- Page 2 Spare parts and drawings Casing...
- Page 3 Spare parts and drawings item name T2033 T2133 T2033S Qty. status paper guide cpl. 054 099 054 100 054 928 casing, top cpl 054 731 054 732 054 948 jumber flat cable 10P 710 060 panel cpl. 046 970 rubber button, 4times (13x60)
- Page 4 Spare parts and drawings General arrangement (sheet 1)
- Page 5 Z=24/16 SF 052 273 shaft, rear 052 275 tractor shaft BG 054 829 054 830 054 829 sparepart group tractors LH and RH 054 803 support 054 038 light barrier sensor PE cpl. (T2033S incl. AFI sensor) 045 791 047 373...
- Page 6 Spare parts and drawings General arrangement (sheet 2)
- Page 7 Spare parts and drawings item name T2033 T2133 T2033S Qty. status serial Interface RS 232 047 669 — A/B/D serial Interface RS 232, RAM, Barcode 047 670 047 681 A/B/D serial Interface RS 232, RAM, Barcode, MT50-Emul. — — 047 691...
- Page 8 Spare parts and drawings Cutter...
- Page 9 Spare parts and drawings item name T2033 T2133 T2033S Qty. status casing cover — — 054 713 drive unit cpl. — — 054 946 logic board cpl. — — 047 623 A/B/D cut sensors LH / RH cpl. — —...
- Page 10 Spare parts and drawings Cut logic board T2033S Part no: 047 623 7-10...
- Page 11 Spare parts and drawings item name T2033 T2133 T2033S Qty. status cut logic board cpl. — — 047 623 A/B/D resistor 1RO-J 1.0W — — 709 124 capacitor 220U-T 40V- — — 708 568 Z-diode ZPY30 +-5 — — 704 595 diode UF4002 —...
- Page 12 Spare parts and drawings item name T2033 T2133 T2033S Qty. status diode LL4148 — — 709 816 IC 74LS05D — — 708 679 IC PC74HC14T SMD — — 710 692 IC 74LS74 — — 709 782 IC 74LS123 — —...
- Page 13 Spare parts and drawings 7.6.1 Cut double sensor T2033S Part no: 047 663 7.6.2 Connection intern Part no: 047 661 7.6.3 Connection extern Part no: 047 662 7-13...
- Page 14 Spare parts and drawings Driver AGA/APS T2x33/T2033S Part no: 047 617 130 mm X3/A X3/B 7-14...
- Page 15 Spare parts and drawings item name T2033 T2133 T2033S Qty. status driver board AGA/APS 047 617 resistor 1R24-F 0.60W 710 078 resistor 4R7-J 0.35W 708 415 IC L6219/DIL -motor driver- 710 122 connector PCB, FC. 10pin 2RW. 709 190 pin-connector 1x4...
- Page 16 Spare parts and drawings Logic board T2x33/T2033S Part no: 047 630 7-16...
- Page 17 Spare parts and drawings item name T2033 T2133 T2033S Qty. status logic board cpl. 047 630 A/B/D R-network 7x4K7-J 1/8W 704 672 R-network 5x4K7-G 1/8W 704 925 quarz 9.8304 MHZ HC18U 710 241 connector 2x3 705 414 connector 4 pol.
- Page 18 Spare parts and drawings Driver board cpl. T2x33/T2033S Part no: 047 620 7-18...
- Page 19 Spare parts and drawings item name T2033 T2133 T2033S Qty. status driver board cpl. 047 620 A/B/D heat/sink/secondary 052 293 isolating strip 15x25 046 338 throttle 40UH/4A 047 178 transformer 046 984 transmitter 047 502 solder aid 052 286 label -Tally- 029 794 resistor 180R-J 4.0 W...
- Page 20 Spare parts and drawings item name T2033 T2133 T2033S Qty. status resistor 39K-F OW25 Met 1206 710 258 resistor 470R-F OW25 Met 1206 710 259 resistor 1K0-J OW25 SMD 708 553 resistor 2K2-J OW25 SMD 708 554 resistor 6K8-J OW25 SMD...
- Page 21 Spare parts and drawings 7.10 Power Supply board T2x33/T2033S Part no: 047 725 7-25...
- Page 22 Spare parts and drawings item name T2033 T2133 T2033S Qty. status 103 power supply board cpl. 047 725 ground cable MT13x/9/24 046 343 line MT13x/24 046 518 line gnje MT13x/24 046 519 protective eyelet 054 052 resistor 680K-J 0.35W 704 188...
- Page 23 Spare parts and drawings PROM pedestal Jumper Function B5 open* No connection GND and Chassis GND and Chassis connected B5 closed B7 closed/B8 open* Connects TxD with Pin 2 of socket B7 open/B8 closed Connects RDY with Pin 2 of socket B9 closed/B10 open B7 open/B8 closed Connects RDY\ with Pin 2 of socket...
- Page 24 047 643 frame 053 024 locking screw 024 065 washer 3.2 706 032 firmware for cut T2033S 047 679 IC socket 32 pin dil 708 522 D-connector, female 25 P. 709 662 male connector 48 P. 709 745 modular IC socket 32 P.
- Page 25 Spare parts and drawings 7.11.2 Parallel Interface T2x33/T2033S Part no: 047 637/ 047 668/ 047 680 7-32...
- Page 26 047 680 A/B/D esd-shield 052 084 insulating foil 052 854 firmware standard T2x33 047 643 firmware for cut T2033S 047 679 screw B 3.5x13 DIN 7981 707 345 R-network 7x 1K0-G 1/8W 704 671 R-network 9x 1K0-G 1/8W 704 643...
- Page 27 Spare parts and drawings item name T2033 T2133 T2033S Qty. status capacitor 22U-M 16V- SMD 708 657 capacitor 33N-M 63V- SMD 708 664 diode D1FS4 SMD 708 683 diode BAS40 SMD 709 866 resistor 100R-J OW25 SMD 709 627 resistor 1K0-J OW25 SMD...
- Page 28 Spare parts and drawings 7.11.3 Serial I/O RS323/TTY T2x33/T2033S Part no: 047 671/ 047 682 7-36...
- Page 29 Spare parts and drawings The combined interface is equipped with a 25 pin DB25S connector. Connector Transmiss. Printer Signal Type passive active CHASSIS GROUND V.24 / TTY V.24 V.24 SIGNAL GROUND (GND) V.24 / TTY Receive Loop –R-Loop +R-Loop Receive Loop +R-Loop –R-Loop Transmission Loop...
- Page 30 T2033S Qty. status serial interface RS232/TTY 047 671 047 682 A/B/D esd-shield 052 277 insulating foil 052 854 firmware for cutter T2033S 047 679 firmware standard T2x33 047 643 frame 053 024 locking screw 024 065 washer 3.2 706 032 optocoupler HCPL-4200 recei.
- Page 31 Spare parts and drawings item name T2033 T2133 T2033S Qty. status diode MMBD7000L 709 721 resistor 47R-J OW25 SMD 710 005 resistor 100R-J OW25 SMD 709 627 resistor 220R-J OW25 SMD 709 723 resistor 1K0-J OW25 SMD 708 553 resistor 2K2-J OW25 SMD...
- Page 32 Spare parts and drawings 7.11.4 Serial Interface RS422/V.11 T2x33/T2033S Part no: 047 672/047 683 7-41...
- Page 33 RS422, RAM, barcode 047 672 047 683 A/B/D esd-shield 053 039 insulating foil 052 854 firmware standard T2x33 047 643 firmware cutter T2033S 047 679 frame 053 024 locking screw 024 065 washer 3.2 706 032 IC MC34050 709 736 resistor 100R-J 0.55W...
