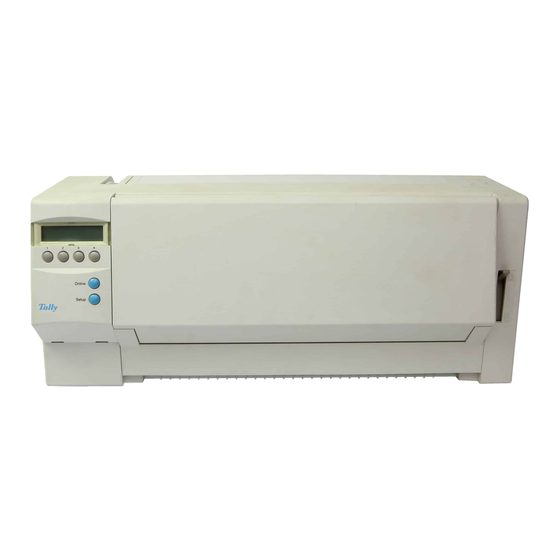

T2040
T2140
Maintenance Manual
Matrix Printer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T2040 and is the answer not in the manual?

Questions and answers

Related Manuals for Tally T2040

Summary of Contents for Tally T2040

  • Page 1 T2040 T2140 Maintenance Manual Matrix Printer...

  • Page 3: Table Of Contents

    Table of contents Table of contents Introduction ......1-1 Specifications ......2-1 Printer specifications .
  • Page 4 Table of contents Instructions for disassembly and assembly ..5-1 Replacing the casing parts ..... . 5-2 5.1.1 Replacing the upper part of casing .
  • Page 5 Table of contents Spare parts and schematics ....6-1 Housing/Panel ......6-2 General Arrangement –...

  • Page 7: Introduction

    Introduction Introduction This Matrix Printer has been developed for daily correspondence purposes in the office. It meets the highest possible technical standards, and with proper use, it should provide many years of trouble-free operation. High-performance print qualities as well as operation with fanfold paper and cut sheets can be chosen.

  • Page 9: Specifications

    Specifications Printer specifications Specifications Printer specifications Printer system Serial impact matrix printer Printhead with 24 needles ∅ 0.25 mm bidirectional printing Print speed and character matrices 400 cps / 10,0 cpi 12 x 12 (Data Print Quality) 480 cps / 12,0 cpi 12 x 10 600 cps / 15,0 cpi 08 x 08* 600 cps / 15,0 cpi 12 x 08 510 cps / 17,1 cpi 12 x 12...
  • Page 10 S EAN 128 Large Character Printing (LCP) US-Postnet Barcode * HRI = human readable index Emulations Standard – MTPL (Tally Printer Language) – Epson LQ-2550 – IBM Proprinter XL24e / IBM XL24 + AGM Optional on request Resolution 60 to 360 dpi horizontal...
  • Page 11 Specifications Printer specifications Power consumption <40 VA Approvals UL listed, ULc Certification, CE-Certification, FCC Class B Certification, VDE-GS Certification Narrow printer Wide printer Dimensions Width 424 mm 600 mm Height 300 mm 300 mm Depth 399 mm 399 mm Weight Narrow printer Wide printer 10.5 kg...

  • Page 12: Interface Specifications

    Interface specifications Specifications Interface specifications Parallel interface bidirectional Type of data 8-bit parallel interface (Centronics compatible) transmission IEEE-1284; Nibble mode Transmission rate Max. 30 KHz Signal status Low: 0.0 V to +0.4 V High: +2.4 V to +5.0 V Connection cable Material AWG no.

  • Page 13: Paper Specifications

    Specifications Paper specifications Paper specifications Tractor 1 Continuous paper, single part forms Weight 60 to 120 g/m (narrow printer) Width 76 to 254 mm (wide printer) 76 to 420 mm Form length 76 to 559 mm Multi part forms (to be tested individually!) Copies 1 + 5...
  • Page 14 Paper specifications Specifications Printing paper Recycling paper made of 100% waste paper (to DIN 19 309) can be processed. Set of forms Sets of forms may be used only if the top edge is bound. The binding edge should be as soft as possible. A wavy binding edge may hamper the smooth feeding of these sets.

  • Page 15: Functional Description

    Functional description Electronic functions Functional description Electronic functions The control electronic consists of 8 different assemblies. These are: Power supply Control board including parallel and serial interface Print head Head connection Panel board with LC display Paper feed motor Carriage motor Motor FAW (AGA/paper tray selection) PE + TOF SENSOR...

  • Page 16: Mechanical Functions Faw

    Mechanical functions FAW Functional description Mechanical functions 3.2.1 Function The motor FAW controls the pushbar which is used to select the functions. After switch-on, the carriage moves to the left-hand side of the printer and presses against the seesaw lever, thus pushing the seesaw outwards. This causes the see- saw to tilt, and the FAW motor proceeds to control paper tray selection.
  • Page 17 Functional description Mechanical functions FAW Pushbar in forward-most The gear shaft front has lifted the gear (82) from the left-hand side wall (away from position (position 1) the wall). Tractor 2 is driven as a result. FAW motor Position 1 Pushbar LF motor Gear (82)
  • Page 18 Mechanical functions FAW Functional description ⁄ Pushbar in position 3 The next step is 8.25 mm rather than 5.5 mm (i.e. in the middle of the 3rd and 4th markings). The gear (82) is close to the wall and engages with the gear (79) behind the white gear (78) which drives tractor 1.

  • Page 19: Single-Sheet Mode

    Functional description Mechanical functions FAW 3.2.4 Single-sheet mode The pushbar moves to position 6, at which point the tractors are idle, and the friction is switched on. The pushbar then moves to position 5. The gear (76) moves to posi- tion 2 (away from the side wall), thus rendering inactive the gear (77) used to drive tractor 3.

  • Page 21: Test Functions, Troubleshooting And Maintenance

    Test functions, troubleshooting and maintenance Key functions when turning on the printer Test functions, troubleshooting and maintenance Key functions when In order to test whether your printer is functioning properly, you can choose from a selection off different test functions. You can activate one of these functions by turning on the printer keeping a corresponding key or key combination pressed while turning on the printer.

  • Page 22: Testmode

    Testmode Test functions, troubleshooting and maintenance Testmode Various tests to check proper operation of the printer are available at any time. With these tests it is possible to check the print quality, proper operation of the print head and the mechanics, as well as efficient data transmission from the computer to the printer.

  • Page 23: Rolling Ascii

    Test functions, troubleshooting and maintenance Testmode 4.2.1 Rolling ASCII With the rolling ASCII test you can test whether your printer is functioning properly (independently from your computer). You can select either 80 or 136 characters per line. (For the narrow printer, only the ASCII test with 80 characters per line is displayed.) You can interrupt the test if you for example want to change the line density by pressing the Online key.

  • Page 24: Interface Test (Hex-Dump)

    Testmode Test functions, troubleshooting and maintenance 4.2.2 Interface test With the interface test (Hex-Dump or H-Dump) you can check data transfer from (Hex-Dump) computer to printer. The text which is being transmitted to the printer is printed in two parts. In the left part the text is printed in hexadecimal format, and in the right in ASCII format.

  • Page 25: Setting The Formlen Function

    Test functions, troubleshooting and maintenance Testmode 4.2.3 Setting the Formlen The Formlen function allows you to set the basic form length to meet your require- function ments. 12 inches are usual in Europe, as opposed to 11 inches in the USA. Put the printer into Testmode, press the key Next twice and select the Formlen menu.

  • Page 26: Setting The Paphand Function

    Testmode Test functions, troubleshooting and maintenance 4.2.5 Setting the Paphand The Paphand group of menus improves the possibilities for the trouble-free printing function of paper with properties likely to cause problems (perforations, carrier strips, etc.) or poor quality paper. Put the printer into Testmode and change to the parameter group Paphand CX-bid by pressing the key Next three times.
  • Page 27 Test functions, troubleshooting and maintenance Testmode 4.2.5.4 Rightzo Select the Rightzo menu (stands for right zone). Possible settings: On/Off Rightzo=Off Default setting: Online < > Exit Setup If this parameter is On, the print head moves out of the perforation zone on the right as long as the paper is being transported.

  • Page 28: Cx-Bid

    Testmode Test functions, troubleshooting and maintenance 4.2.6 CX-bid Select the CX-bid menu. Possible settings: On/Off CX-bid=On Default setting: < > Exit Online Setup CX-bid = ON sets the parallel interface of the printer to bidirectional mode (IEEE 1284). CX-bid = OFF sets the interface to compatibility mode in order to ensure reliable operation with special external boxes.

  • Page 29: Showon Function

    Test functions, troubleshooting and maintenance Showon function Showon function This function is used to check the values for print head distance, termperature and function. Display aaaaa bb ccc ddd eeeee Online Setup The meaning of the variables is: horizontal position of carriage; the value should be from 0 to approx. aaaaa 1760.

  • Page 30: Aga Test

    AGA test Test functions, troubleshooting and maintenance AGA test This test is used for checking the function of the AGA feature. After activating the AGA test the printer changes over to the rolling ASCII test. Se- lect the parameter ASCII136 or ASCII80 in accordance with the paper inserted (ASCII 136 is only displayed on the wide printer).

  • Page 31: Parallelity

    Test functions, troubleshooting and maintenance Parallelity Parallelity This test mode is used for checking and adjusting the parallelism of print head and platen. Make sure that the ribbon cassette and paper is removed from the printer. PARALLEL Online Setup After activating the parallelity mode the printer measures first the distance on the right side (yyy) than the distance on the left side (xxx).

  • Page 32: Troubleshooting

    Troubleshooting Test functions, troubleshooting and maintenance Troubleshooting Many of the faults and problems which may occur while using the printer are minor problems which you can solve yourself. The following chapter should help you to distinguish between a simple operating error and a major malfunction. This chapter provides information on the rectification of faults without the assistance of specially trained personnel.
  • Page 33 Test functions, troubleshooting and maintenance Troubleshooting Problems with the paper The paper is not fed in. feed 1. Check that the display shows the correct paperway, if necessary select the correct paperway (single sheet or fanfold) with the key Paper. See the reference manual on CD-ROM, section Paper path quick selection .

  • Page 34: Problems With The Print Quality

    Troubleshooting Test functions, troubleshooting and maintenance 4.6.1 Problems with the print quality Print is too pale 1. The print head to platen gap is not correctly set, refer to the reference manual on CD-ROM, section Setting the print head gap . For printers with the AGA = ON: Enter a correction value <0.

  • Page 35: Error Messages Via The Display

    Test functions, troubleshooting and maintenance Troubleshooting 4.6.2 Error messages via the display Load paper from ... The paper has run out during operation. The printer has been switched on, but no paper has been inserted. Insert paper in the active sheet feeder. The paper is not fed past the light barrier.

  • Page 36: Additional Display Messages

    Troubleshooting Test functions, troubleshooting and maintenance 4.6.3 Additional display These are not error messages, they give operating instructions and information messages from the printer to the user. Press any key To proceed press any key. Loading Default The factory-set parameters are loaded and are written into all menus. Only available in Epson Functions which have no meaning in this emulation have been selected.

  • Page 37: Maintenance

    Test functions, troubleshooting and maintenance Maintenance Maintenance The printer is designed to operate with minimal maintenance. It is recommended to check the ribbon from time to time and to clean the platen. Preventive maintenance is not necessary. Before cleaning, turn off the printer and disconnect the power cable. STOP Do not oil or grease the printer, especially the sliderails and shafts.

  • Page 38: Cleaning The Interior

    Maintenance Test functions, troubleshooting and maintenance 4.7.3 Cleaning the interior Remove paper and dust (ribbon deposits) with a soft brush. Check that any paper has been removed from the tractors. 4.7.4 Platen Remove the ribbon. Carefully clean the platen with platen roller cleaner (available from dealers).

  • Page 39: Ribbon

    Test functions, troubleshooting and maintenance Maintenance 4.7.5 Ribbon Check whether the ribbon is worn or damaged. The ribbon must be replaced if it is frayed, see reference manual on CD-ROM, section Replacing the ribbon cassette. The service life of the ribbon is 3,5 million characters for the narrow printer and 5 million characters for the wide printer.

  • Page 41: Instructions For Disassembly And Assembly

    Instructions for disassembly and assembly Instructions for disassembly and assembly This chapter provides the necessary information on disassembly and assembly* of the different printer components and elements. Caution: Switch off the printer and remove the power cord. STOP Attention: Give special attention on how the printer parts were mounted before. STOP Avoid touching the electronic components unless you are discharged on a protec- tive ground.

  • Page 42: Replacing The Casing Parts

    Replacing the casing parts Instructions for disassembly and assembly Replacing the casing parts 5.1.1 Replacing the upper Remove the front cover. — part of casing Remove the bottom cover tractor 1. —...
  • Page 43 Instructions for disassembly and assembly Replacing the casing parts Remove the upper cover rear. — Remove the rear cover. —...
  • Page 44 Replacing the casing parts Instructions for disassembly and assembly Use a screwdriver to unlock the casing aperture as shown in the illustration and — remove it. Use a screwdriver to unlock the panel as shown in the illustration and carefully —...
  • Page 45 Instructions for disassembly and assembly Replacing the casing parts Open the cable clamp A. — Disconnect the panel cable by pulling it out of plug B. — Use a screwdriver to unlock the upper casing as shown in the illustration, tilt it in an —...

  • Page 46: Replacing The Lower Part Of Casing

    Replacing the casing parts Instructions for disassembly and assembly 5.1.2 Replacing the lower Remove the upper part of the casing (see section 5.1.1). — part of casing Release the four rubber snaps (suspension) A of the print module, using special —...
  • Page 47 Instructions for disassembly and assembly Replacing the casing parts Press the connector together and unplug the cable A. — Lift the whole printer mechanic with both hands straight upward and put it carefully — on a stable place.

  • Page 48: Replacing The Print Head

    Replacing the print head Instructions for disassembly and assembly Replacing the print Remove the upper part of the casing (see section 5.1.1). — head Move the carriage A to the left. — Remove the ribbon cassette. — Lift the flap B. —...
  • Page 49 Instructions for disassembly and assembly Replacing the print head Pull out the printhead carefully. —...

  • Page 50: Replacing The Flap

    Replacing the flap Instructions for disassembly and assembly Replacing the flap Remove the upper part of the casing (see section 5.1.1). — Turn the flap A upwards to a vertical position beyond the snap point and pull off. — Be careful with the foils of the flap; if they are damaged, the paper feed may be disturbed.

  • Page 51: Replacing The Electronic Components

    Instructions for disassembly and assembly Replacing the electronic components Replacing the electronic components 5.4.1 Replacing the main Remove the casing parts (see section 5.1). — controller board Press the two latches A of the cover controller casing inwards. — (incl. casing) Lift the cover controller casing and press at point B inwards.

  • Page 52: Replacing The Power Supply

    Replacing the electronic components Instructions for disassembly and assembly Unplug the six connectors (cable CR-motor A, cable sensor PE B, Printhead cable — C [2x], cable FAW motor D, cable LF motor E, cable sensor HP F and cable panel G). 5.4.2 Replacing the power Remove the casing parts (see section 5.1).
  • Page 53 Instructions for disassembly and assembly Replacing the electronic components Unplug the connectors C (2x, cable power switch). — Screw out the grounding wire cable D with a phillips screwdriver. — Loosen the retaining clips carefully with a flat-nosed pliers and remove the power —...

  • Page 54: Replacing The Panel Board

    Replacing the electronic components Instructions for disassembly and assembly 5.4.3 Replacing the panel board Remove the panel (see section 5.1.1). — Use a screwdriver to unlock the two noses A and remove panel board. — 5-14...

  • Page 55: Replacing The Faw Motor

    Instructions for disassembly and assembly Replacing the FAW motor Replacing the Remove the casing parts (see section 5.1). — FAW motor Remove the main controller board (incl. casing, see section 5.4.1). — Press the seesaw A together at its axis B, move the top to the left and release the —...

  • Page 56: Replacing The Paper Transport Motor

    Replacing the paper transport motor Instructions for disassembly and assembly Replacing the paper Remove the casing parts (see section 5.1). — transport motor Remove the main controller board (incl. casing, see section 5.4.1). — Turn the paper transport motor A counter clockwise out of the holders B and —...

  • Page 57: Replacing Incremental Strip

    Instructions for disassembly and assembly Replacing incremental strip Replacing Remove the casing parts (see section 5.1). — incremental strip Remove the print head (see section 5.2). — Unhook the incremental strip on the right side. — Guide a small srewdriver into the hole A and press to the left. Remove the —...

  • Page 58: Replacing The Aga Sensor

    Replacing the AGA sensor Instructions for disassembly and assembly Replacing the AGA Remove the casing parts (see section 5.1). — sensor Remove the print head (see section 5.2). — Press on the back side of the AGA sensor case A carefully with an srewdriver and —...

  • Page 59: Replacing Timing Station Sensor

    Instructions for disassembly and assembly Replacing timing station sensor Replacing timing Remove the casing parts (see section 5.1). — station sensor Remove the print head (see section 5.2). — Remove the incremental strip (see section 5.7). — Remove the sensor holder A by pressing inwards the nose B and pulling upwards. —...

  • Page 60: Replacing The Home Position Sensor

    Replacing the home position sensor Instructions for disassembly and assembly 5.10 Replacing the home Remove the part of the casing (see section 5.1.1). — position sensor Remove the main controller board (incl. casing, see section 5.4.1). — Remove the home position sensor A by pressing catch B with a screwdriver. —...

  • Page 61: Replacing The Printhead Cable

    Instructions for disassembly and assembly Replacing the printhead cable 5.11 Replacing the Remove the casing parts (see section 5.1). — printhead cable Remove the main controller board (incl. casing, see section 5.4.1). — Remove the AGA and timing station sensor (see section 5.8 and 5.9). —...

  • Page 62: Replacing The Ribbon Drive

    Replacing the ribbon drive Instructions for disassembly and assembly 5.12 Replacing the Remove the casing parts (see section 5.1). — ribbon drive Remove the ribbon cassette. — Lift the flap (see section 5.2). — Unlock the torsion spring A and remove it. —...

  • Page 63: Replacing The Carriage

    Instructions for disassembly and assembly Replacing the carriage 5.13 Replacing the Remove the casing parts (see section 5.1). — carriage Remove the main controller board (incl. casing, see section 5.4.1). — Remove the AGA and timing station sensor (see section 5.8 and 5.9). —...
  • Page 64 Replacing the carriage Instructions for disassembly and assembly Unhook the spring bar C on the right side wall and remove it. Turn the adjusting — lever D until the two noses face the slots and remove it. Pull the carriage shaft E first to the right, lift it at the left side and pull it out of —...

  • Page 65: Replacing The Carriage Motor

    Instructions for disassembly and assembly Replacing the carriage motor 5.14 Replacing the Remove the casing parts (see section 5.1). — carriage motor Remove the ribbon cassette and the print head (see section 5.2). — Remove the main controller board (incl. casing, see section 5.4.1). —...

  • Page 66: Replacing The Printing Bar

    Replacing the printing bar Instructions for disassembly and assembly 5.15 Replacing the Remove the casing parts (see section 5.1). — printing bar Remove the flap (see section 5.3). — Use a screwdriver to release the clamp A. — Remove the printing bar B slightly forward and then to the right out of the left —...

  • Page 67: Replacing The Pe Sensor

    Instructions for disassembly and assembly Replacing the PE sensor 5.16 Replacing the Remove the casing parts (see section 5.1.1 and 5.1.2). — PE sensor Remove the main controller board (incl. casing, see section 5.4.1). — Remove the flap (see section 5.3). —...

  • Page 68: Replacing The Friction Drive

    Replacing the Friction Drive Instructions for disassembly and assembly 5.17 Replacing the Friction Drive 5.17.1 Replacing the friction Remove the casing parts (see section 5.1). — drive shaft front Remove the print head (see section 5.2). — Remove the flap (see section 5.3). —...

  • Page 69: Replacing The Lower Friction

    Instructions for disassembly and assembly Replacing the Friction Drive 5.17.2 Replacing the lower friction Remove the two/three (narrow/wide printer) springs C. — Pull each of the two/three (narrow/wide printer) latches D forward and remove it by — pulling up. Start on the right end. Remove the two/three (narrow/wide printer) roller springs E and the friction axles F.

  • Page 70: Replacing The Tractor

    Replacing the tractor Instructions for disassembly and assembly 5.18 Replacing the Remove the casing parts (see section 5.1). — tractor Unlock the tractors and pull them as soon as possible to the left. — Press the holder B on the right side back slightly and move the shaft A upwards. —...
  • Page 71 Instructions for disassembly and assembly Replacing the tractor Release the circlip C at the right side. — Press the holder E on the right side back slightly and move the shaft D upwards. — To take out the shaft D and the tractors, first move the shaft to the right, then —...

  • Page 72: Replacing The Switch Paper Guide

    Replacing the switch paper guide Instructions for disassembly and assembly 5.19 Replacing the Remove the casing parts (see section 5.1). — switch paper guide Remove Main Controller Board (incl. casing, see section 5.4.1). — Remove the tractor (see section 5.18). —...

  • Page 73: Replacing The Paper Transport

    Instructions for disassembly and assembly Replacing the paper transport 5.20 Replacing the paper transport Make sure that the position of the push bar – selected paper path – is not Tractor 2. STOP 5.20.1 Replacing the paper Remove the casing parts (see section 5.1). —...

  • Page 74: Replacing Driving Shaft

    Replacing the paper transport Instructions for disassembly and assembly 5.20.2 Replacing driving shaft Unlock driving shaft B by pressing the holer C. — Move the driving shaft B first to the right, then remove it. — Make sure that the position of the push bar – selected paper path – is not Tractor 2. 5-34...

  • Page 75: Replacing The Side Walls

    Instructions for disassembly and assembly Replacing the side walls 5.21 Replacing the side walls Make sure that the position of the push bar – selected paper path – is not Tractor 2. 5.21.1 Replacing the left side Remove all parts as described in 5.1 to 5.20. —...

  • Page 76: Replacing The Right Side Wall

    Replacing the side walls Instructions for disassembly and assembly 5.21.2 Replacing the right side Remove all parts as described in 5.1 to 5.20. — wall Press the three holders as described in section 5.21.1 and remove the right side — wall.

  • Page 77: Spare Parts And Schematics

    Spare parts and schematics Spare parts and schematics The spare parts lists show: 1. The position of the part in the explosion drawing (item). 2. The name of the part. 3. The part number and the printer type where it belongs to; first column = narrow printer second column = wide printer...

  • Page 78: Housing/Panel

    Housing/Panel Spare parts and schematics Housing/Panel...
  • Page 79 Spare parts and schematics Housing/Panel Part No Part No Item Name narrow printer wide printer Class Qty. Casing, upper 060 207 060 206 Casing below 060 239 060 238 Upper cover rear 060 269 060 268 Cover II, tear edge 054 040 054 039 Cover rear...
  • Page 80 General Arrangement – sheet 1 Spare parts and schematics General Arrangement – sheet 1...

  • Page 81: General Arrangement - Sheet 1

    Spare parts and schematics General Arrangement – sheet 1 Part No Part No Item Name narrow printer wide printer Class Qty. Print head NDK 9/24 055 400 A/B/E Sensor timing station 060 481 Printhead cable compl. 060 478 060 479 Sensor AGA compl.
  • Page 82 General arrangement – sheet 2 Spare parts and schematics General arrangement – sheet 2...

  • Page 83: General Arrangement - Sheet 2

    Spare parts and schematics General arrangement – sheet 2 Part No Part No Item Name narrow printer wide printer Class Qty. Push bar FAW 060 252 Slide FAW 060 253 Toothed wheel Z84/10 060 311 BG switch lever seesaw compl. 060 499 Toothed wheel Z24/16 052 273...

  • Page 84: Power Supply

    Power supply Spare parts and schematics Power supply 120 V 047 832 220–240 V 047 831...
  • Page 85 Spare parts and schematics Power supply...
  • Page 86 Power supply Spare parts and schematics Part No Part No Item/Position Name narrow printer wide printer Class Qty. Power unit 220-240 V compl. 047 831 A/B/D Power unit 120 V compl. 047 832 A/B/D R8 R14 Resistor 10R-J 0W25 711 374 R6 R18 R19 R26 R27 Resistor 330K-J 0W5 710 163...

  • Page 87: Controller

    Spare parts and schematics Controller Controller PROM version 047 806 FLASH version 047 888 Firmware must be ordered separately. PROM version: 047 914 FLASH version: 047 952 6-11...
  • Page 88 Controller Spare parts and schematics Jumper settings Jumper Controller Controller PROM-version FLASH-version 047 806 047 888 FLASH 4 Mbit 8 Mbit 4 Mbit with IC socket ZG* (option) with IC socket * not assembled 6-12...
  • Page 89 Spare parts and schematics Controller 6-13...
  • Page 90 Controller Spare parts and schematics 6-14...
  • Page 91 Spare parts and schematics Controller 6-15...
  • Page 92 Controller Spare parts and schematics 6-16...
  • Page 93 Spare parts and schematics Controller 6-17...
  • Page 94 Controller Spare parts and schematics 6-18...
  • Page 95 Spare parts and schematics Controller Part No Part No Item/Position Name PROM-version FLASH-version Class Qty. Controller compl. without firmware 047 806 047 888 A/B/D ASIC PPC 047 803 C10 C43 C50 C51 C52 C56 Capacitor 330P-K 100V 710 331 C32 C33 C57 Capacitor 330P-M 63V 710 877 C62 C63 C69...
  • Page 96 Controller Spare parts and schematics Part No Part No Item Name PROM-vers. FLASH-vers. Class Qty. IC17 IC 74LS373 709 923 IC11 IC TS93C46M EEPROM 709 947 IC D431000GW12LL SRAM 710 021 IC15 IC L6219/DIL - motor driver 710 122 IC16 IC L4972AD switched mode reg.

  • Page 97: Panel Board

    Spare parts and schematics Panel board Panel board 060 477 Clamp panel cable 054 589 6-21...
  • Page 98 Panel board Spare parts and schematics 6-22...
  • Page 99 Spare parts and schematics Panel board Part No Part No Item/Position Name narrow printer wide printer Class Qty. Panel board, compl. 060 477 Frame LCD 053 555 C11 C12 Capacitor 10U-M 16V 709 818 C1 C2 C3 C4 C5 C7 Capacitor 100P-M 63V 709 999 C8 C9...

  • Page 100: Head Connection

    Head connection Spare parts and schematics Head connection Narrow printer 060 478 Wide printer 060 479 6-24...
  • Page 101 Spare parts and schematics Head connection 6-25...
  • Page 102 Head connection Spare parts and schematics Part No Part No Item/Position Name narrow printer wide printer Class Qty. Printhead cable compl. 060 478 060 479 C1 C2 C4 C5 C6 Capacitor 220N-K 16V 711 412 R8 R12 Resistor 10K-J 0W125 709 997 Resistor 1M0-J 0W125 710 091...

  • Page 103: Recommended Spare Parts

    Spare parts and schematics Recommended spare parts Recommended spare parts Part No Part No Item Name narrow printer wide printer Class Qty. Panel board 060 477 Power switch 710 330 Power unit 220-240 V 047 831 A/B/D Power unit 120 V 047 832 A/B/D Panel cable...
  • Page 105 “All rights reserved. Translations, reprinting or copying by any means of this manual complete or in part or in any different form requires our explicit approval. We reserve the right to make changes to this manual without notice. All care has been taken to ensure accuracy of information contained in this manual. However, we cannot accept responsibility for any errors or damages resulting from errors or inaccuracies of information herein.”...
  • Page 106 8301 South, 180th Street A-1232 Wien Kent, WA 98032 Austria U.S.A. Tel.: +43 1 86340 0 Phone: +1 425 25155 00 Fax: +43 1 86340 0 240 Fax: +1 425 25155 20 http://www.Tally.co.at http://www.Tally.it © June 1998 Tally GmbH 379 586a...
  • Page 107 ADDENDUM T2040 Assembling the FAW T2140 Place the empty side plate so that the outside faces down and the bottom edge — towards you. – Insert the toothed wheel A (item 96*) positioned under the push bar. – If necessary, attach the slide FAW B (item 71) and the position ruler C (item 95) to the push bar D (item 70).
  • Page 108 90 to the side plate. – Finally, mount the transverse connection plate (item 52a) and complete the left side plate. © September 1998 Tally GmbH 379 614a...
