Amped Wireless R20000G Setup Manual

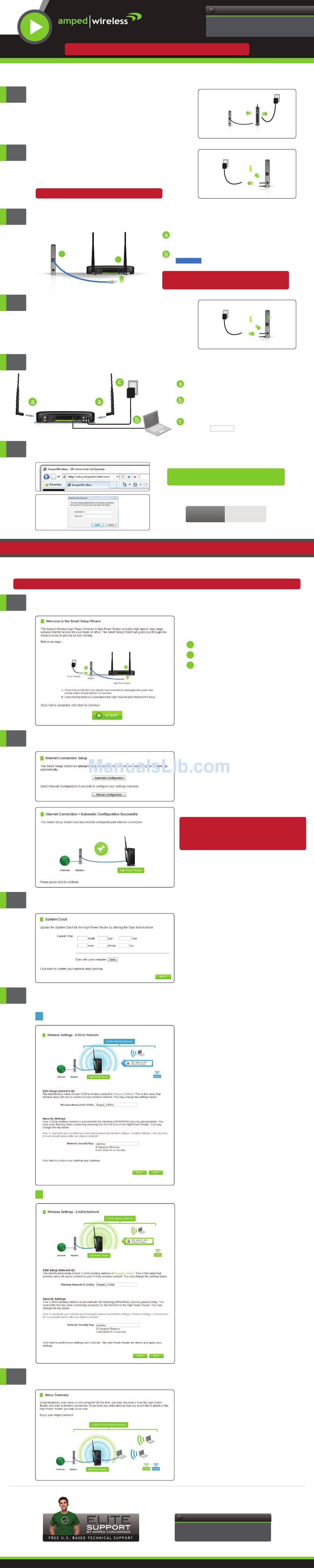

SETUP GUIDE

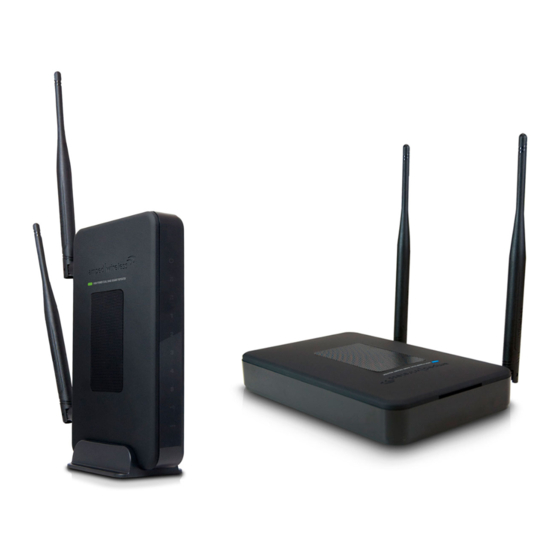

High Power Wireless-N 600mW Gigabit Dual Band Router
Disconnect & Power Off your Existing Router
1
(If you have one)
Disconnect your existing router from your computer, your
broadband modem and its power outlet. If you do not have
an existing router please continue to Step 2.
2
Power Off your Modem
Power off the modem by disconnecting the modem's power
adapter from the power outlet. If your modem has a backup
battery, remove the backup battery from your modem.
Do NOT power on your modem until Step 4.
3
Connect the High Power Router to your Modem
a
Modem
4
Power On your Modem
Plug in the power adapter and reinsert the backup battery
(if available) to power on the modem.
Allow a minute or two for the modem to initiate.
5
Power On the High Power Router and Connect it to your Computer
6

Open your Web Browser

NOTE: IF YOU HAVE PROBLEMS ACCESSING THE WEB MENU
Disable any third party firewalls that your computer may have on (e.g., Norton/ZoneAlarm/Windows Defender).
Check to see that your computer is NOT connected to any wireless networks.
Accessing the setup menu does not require Internet access. The menu is served from the Router.
7

Welcome to the Smart Setup Wizard

8

Configure your Internet Connection

9

Set the System Clock

10
Configure your Wireless and Security Settings
5.0GHz Wireless Settings
2.4GHz Wireless Settings
11

Setup Summary

If you have any problems during the installation process, please contact Amped Wireless Elite Support for further assistance.
— R E A D
b
High Power Router
IF YOU HAVE PROBLEMS ACCESSING THE WEB MENU...
?
Phone: 888-573-8820
Email: techsupport@ampedwireless.com
Web: www.ampedwireless.com/support
F I R S T —
Use the included blue Ethernet cable and
connect one end of the cable to your modem.
Connect the other end of the cable to the blue
port on the High Power Router.
Modem
Do NOT connect the power adapter
to the High Power Router at this time.
Attach the two included Antennas.
Connect the included grey Ethernet cable to
an available network port on your computer.
Attach the Power Adapter to the High Power
Router's
PWR
Enter the setup web address into your browser:
http://setup.ampedwireless.com
If the URL fails to open, then try: http://192.168.3.1
When prompted, enter the login and password:
LOGIN:
PASSWORD:
The Smart Setup Wizard will guide you
through the following settings:
1 Internet Connection Settings
System Clock
2
Wireless Settings
3
Click Start to begin.
Automatically configure your Internet settings
by clicking on Automatic Configuration.
More advanced users may choose to
configure their connection manually by
selecting Manual Configuration.
If your Internet provider requires that you
login before accessing the Internet, you will
need to do so under Manual Configuration.
If there is a problem with the Automatic
Configuration, the wizard will notify you of the
issue. If you continue to have problems, contact
our support department at 888-573-8820.
If the Automatic Configuration was successful,
you will be directed to a Configuration
Successful page.
Click Next to continue.
The System Clock is used for system logs
and setting schedules for Internet access.
Click Sync to synchronize the System Clock
with the time on your computer.
Click Next to continue.
The default ID of your 5.0GHz wireless network is:
Amped_5.0GHz
To change it, enter a new name in the SSID
field. Users connecting wirelessly to the Router
will use this ID to identify your 5.0GHz wireless
network.
The default Security Key (WPA/WPA2) of your
5.0GHz wireless network is:
To change it, enter a new key in the Security Key
field. The key must be at least 8 characters long.
Click Next to apply your settings and continue
with the settings for your 2.4GHz network.
The default ID of your 2.4GHz wireless network is:
Amped_2.4GHz
To change it, enter a new name in the SSID
field. Users connecting wirelessly to the Router
will use this ID to identify your 2.4GHz wireless
network.
The default Security Key (WPA/WPA2) of your
2.4GHz wireless network is:
To change it, enter a new key in the Security Key
field. The key must be at least 8 characters long.
Click Next to apply your settings. The High
Power Router will reboot. This process may take
up to 1 minute. The page will automatically
reload after the countdown. If it does not, you
may need to refresh the page manually or check
your connection to the router.
Congratulations, the High Power Router is
now successfully configured, and your settings
are now saved. You may now connect additional
devices directly to the 4 wired ports on the
back panel, or connect wirelessly to the
High Power Router.
?
Need Help? Give us a call.
Phone: 888-573-8820
Email: techsupport@ampedwireless.com
Web: www.ampedwireless.com/support
Need Help? Give us a call.
R20000G
Modem Existing Router
Remove
Backup battery
Modem
Reinsert
Backup battery
Modem
port and a power outlet.
admin
admin
wireless
wireless
v032012
