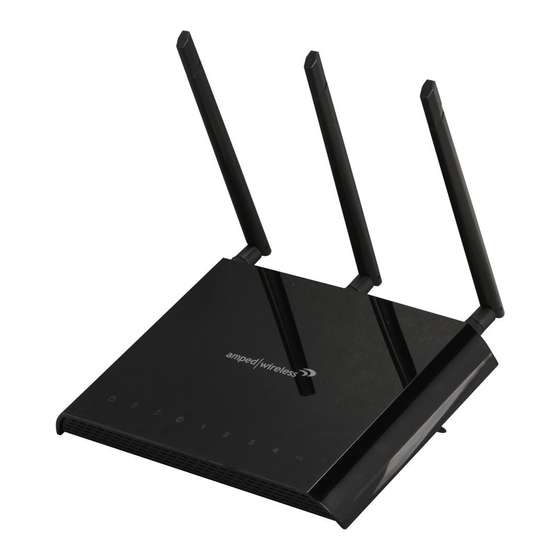

Amped Wireless RTA15 User Manual

High power 700mw dual band ac wi-fi router
Hide thumbs Also See for RTA15:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Setup Manual
User's Guide
High Power 700mW Dual Band AC
Wi-Fi Router
RTA15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RTA15 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Amped Wireless RTA15

Summary of Contents for Amped Wireless RTA15

  • Page 1 User’s Guide High Power 700mW Dual Band AC Wi-Fi Router RTA15...

  • Page 2: Table Of Contents

    RTA15 USER’S GUIDE CONTENTS INTRODUCTION ............3 Wireless Coverage Controls (2.4GHz) ......34 GETTING STARTED ............4 Access Schedule (2.4GHz) ..........35 Package Contents ............4 NETWORK SETTINGS ..........36 LED Indicators ..............5 Local Network (LAN) ............. 36 Back Panel Description ........... 6 IPv6 Local Network (LAN) ..........
  • Page 3 RTA15 USER’S GUIDE Denial of Service ............60 Upgrade Firmware ............69 QUALITY OF SERVICE ..........61 Save and Reload Settings ..........70 ROUTING SETUP ............62 Password Settings ............71 MANAGEMENT FEATURES ......... 63 TECHNICAL SPECIFICATION .........72 System Status..............64 DEFAULT SETTINGS ............73...

  • Page 4: Introduction

    USER’S GUIDE INTRODUCTION Thank you for purchasing this Amped Wireless product. At Amped Wireless we strive to provide you with the highest quality products through innovation and advanced technology. We pride ourselves on delivering products that outperform the competition and go beyond your expectations. If you have any questions please feel free to contact us.

  • Page 5: Getting Started

    RTA15 USER’S GUIDE GETTING STARTED Package Contents Check to make sure you have all the contents within your package:  High Power 700mW Dual Band AC Wi-Fi Router  Three Detachable 5dBi High Gain Antennas  RJ-45 Ethernet Cable ...

  • Page 6: Led Indicators

    RTA15 USER’S GUIDE LED Indicators (From bottom to top) Power: Indicates when the Router is powered on. The LED will remain on. WPS: Wi-Fi Protected Setup activity. When the WPS mode is activated the Power LED blinks as it awaits a connection.

  • Page 7: Back Panel Description

    RTA15 USER’S GUIDE Back Panel Description Antenna Connectors (1-3): RJ-SMA antenna connectors. Attach the included high gain antennas to these connectors according to their respective numbers. (Mismatching the antennas with the wrong antenna connector port will negatively impact wireless performance.) USB Port: Attach USB storage devices, such as USB flash drives and external hard drives, for file sharing.

  • Page 8: Basic Setup Guide

    RTA15 USER’S GUIDE BASIC SETUP GUIDE Setup Preparations Disconnect and power off your existing router. Disconnect your existing router from your computer, your broadband modem and its power outlet. If you do not have an existing router please continue to the next step.
  • Page 9 RTA15 USER’S GUIDE Connect the Router to your Modem Do NOT connect the power adapter to the Router at this time. a) Use the included Ethernet cable and connect one end of the cable to your modem. b) Connect the other end of the cable to the blue “Modem” port on the Router.
  • Page 10 RTA15 USER’S GUIDE Power on your Modem Plug in your modem’s power adapter and backup battery (if available):...
  • Page 11 RTA15 USER’S GUIDE Attach the Antennas to their Specific Connectors on the Router Attach the three included Antennas to their corresponding numbers: a) Antenna 1 (5.0GHz only) to Antenna Port 1 b) Antenna 2 (2.4 and 5.0GHz) to Antenna Port 2 Antenna 3 (2.4GHz only) to Antenna Port 3...
  • Page 12 RTA15 USER’S GUIDE Power On the Router and Connect it to your Computer a) Connect the included grey Ethernet cable to an available port on your computer or connect to the Router’s Wi-Fi Network: Amped_RTA15_2.4 or Amped_RTA15_5.0. Password: wireless b) Attach the Power Adapter to the Router’s PWR port and a power outlet.
  • Page 13 RTA15 USER’S GUIDE Open your Web Browser to Access the Setup Wizard Open your web browser. b. Type in: http://setup.ampedwireless.com into the web address bar. If the web menu fails to open, type in the following IP address into your web address bar: http://192.168.3.1...
  • Page 14 RTA15 USER’S GUIDE Welcome to the Dashboard The Dashboard will provide you with the current status of the Router. If the Dashboard display shows that you are connected to the Internet then you’re done. You may begin to browse the web. If there is a problem...
  • Page 15 RTA15 USER’S GUIDE Confirm that your Router is connected to your Modem and that your antennas are attached to their corresponding antenna connectors. Click Next to begin.
  • Page 16 RTA15 USER’S GUIDE Configure your Internet Connection Configure your Internet settings using the Automatic Configuration settings. The wizard will check the connection to your modem and attempt to automatically configure your Internet connection settings. If there is a problem with the connection, the wizard will provide you with information regarding the problem.
  • Page 17 RTA15 USER’S GUIDE If there was a problem with the Automatic Configuration, the wizard will notify you of the issue. If you continue to have problems, contact our support department at 888-573-8820. If the Automatic configuration was successful, you will be directed to a Configuration Successful page.
  • Page 18 RTA15 USER’S GUIDE Configure your Wireless and Security Settings 5.0GHz Wireless Settings: The default SSID of the 5GHz wireless network is “Amped_RTA15_5.0” To change it, enter a new name in the SSID field. Users connecting wirelessly to the Router will use this ID to identify your wireless network.
  • Page 19 RTA15 USER’S GUIDE 2.4GHz Wireless Settings: The default SSID of the 2.4GHz wireless network is “Amped_RTA15_2.4” To change it, enter a new name in the SSID field. Users connecting wirelessly to the Router will use this ID to identify your wireless network.
  • Page 20 At this time, you may disconnect from the Router and start a wireless connection. If you have any wired devices that you would like to attach to the Router you may do so now as well. Enjoy your Amped Wireless network.

  • Page 21: 5.0Ghz Wi-Fi Settings

    RTA15 USER’S GUIDE 5.0GHz WI-FI SETTINGS 5.0GHz Wi-Fi Settings: Basic Settings (5.0GHz) The Basic Settings page allows you to adjust settings for your 5.0GHz local wireless network. Disable 5.0GHz Wireless Connections: Disabling will turn off all 5.0GHz Wi-Fi activity. Users will no longer be able to connect wirelessly to your 5.0GHz network.
  • Page 22 RTA15 USER’S GUIDE Wireless Network ID (SSID): The name of your 5.0GHz wireless network. Channel Number: Wi-Fi networks operate on specific wireless channels. Some network channels may have more interference than others. If your performance is unstable, try a different channel number. If you are using a repeater with this network, it is recommended you set a static channel, instead of using "Auto."...

  • Page 23: Basic Settings: Guest Networks (5.0Ghz)

    RTA15 USER’S GUIDE 5.0GHz Wi-Fi Settings: Basic Settings: Guest Networks (5.0GHz) Guest Networks: You may add additional names (SSID) to your Wireless Network with different characteristics for each SSID. Each additional Network or SSID can have its own security, band and data rate settings. You may...

  • Page 24: Security Settings (5.0Ghz)

    RTA15 USER’S GUIDE 5.0GHz Wi-Fi Settings: Security Settings (5.0GHz) The Security page allows you to change the type of wireless security settings for your 5.0GHz wireless network. Using the drop down menu, you can select which network you wish to configure and may adjust the security settings below.

  • Page 25: Advanced Settings (5.0Ghz)

    RTA15 USER’S GUIDE 5.0GHz Wi-Fi Settings: Advanced Settings (5.0GHz) Advanced Wireless Settings should only be adjusted by technically advanced users. It is not recommended that novice users adjust these settings to avoid degrading wireless performance. Fragment Threshold: The default and recommended setting is at 2346, meaning the Router will never fragment any frames that it sends to wireless users.

  • Page 26: Wi-Fi Protected Setup - Wps (5.0Ghz)

    RTA15 USER’S GUIDE 5.0GHz Wi-Fi Settings: Wi-Fi Protected Setup – WPS (5.0GHz) WPS is a Wi-Fi feature created to make Wi-Fi setup simple and easy. Some wireless routers and adapters support this feature with varying names (i.e. one touch setup or WPS).

  • Page 27: Wireless Coverage Controls (5.0Ghz)

    RTA15 USER’S GUIDE 5.0GHz Wi-Fi Settings: Wireless Coverage Controls (5.0GHz) Adjust the output power of the Router to control the coverage distance of your 5.0GHz wireless network. For a smaller coverage area, you can select a lower output power. For the maximum wireless coverage, select the...

  • Page 28: Access Schedule (5.0Ghz)

    RTA15 USER’S GUIDE 5.0GHz Wi-Fi Settings: Access Schedule (5.0GHz) Access Schedules will enable or disable your 5.0GHz wireless access at a set time based on your predefined schedule. This feature is often used for restricting access to all users (such as children, employees, guests) during specific times of the day for parental control or security reasons.

  • Page 29: 2.4Ghz Wi-Fi Settings

    RTA15 USER’S GUIDE 2.4GHz WI-FI SETTINGS 2.4GHz Wi-Fi Settings: Basic Settings (2.4GHz) The Basic Settings page allows you to adjust settings for your 2.4GHz local wireless network. Disable 2.4GHz Wireless Connections: Disabling will turn off all 2.4GHz Wi-Fi activity. Users will no longer be able to connect wirelessly to your 2.4GHz network.
  • Page 30 RTA15 USER’S GUIDE Channel Number: Wi-Fi networks operate on specific wireless channels. Some network channels may have more interference than others. If your performance is unstable, try a different channel number. If you are using a repeater with this network, it is recommended you set a static channel, instead of using "Auto."...

  • Page 31: Basic Settings: Guest Networks (2.4Ghz)

    RTA15 USER’S GUIDE 2.4GHz Wi-Fi Settings: Basic Settings: Guest Networks (2.4GHz) Guest Networks: You may add additional names (SSID) to your Wireless Network with different characteristics for each SSID. Each additional Network or SSID can have its own security, band and data rate settings. You may...

  • Page 32: Security Settings (2.4Ghz)

    RTA15 USER’S GUIDE 2.4GHz Wi-Fi Settings: Security Settings (2.4GHz) The Security page allows you to change the type of wireless security settings for your 2.4GHz wireless network. Using the drop down menu, you can select which network you wish to configure and may adjust the security settings below.

  • Page 33: Advanced Settings (2.4Ghz)

    RTA15 USER’S GUIDE 2.4GHz Wi-Fi Settings: Advanced Settings (2.4GHz) Advanced Wireless Settings should only be adjusted by technically advanced users. It is not recommended that novice users adjust these settings to avoid degrading wireless performance. Fragment Threshold: The default and recommended setting is at 2346, meaning the Router will never fragment any frames that it sends to wireless users.

  • Page 34: Wi-Fi Protected Setup - Wps (2.4Ghz)

    RTA15 USER’S GUIDE 2.4GHz Wi-Fi Settings: Wi-Fi Protected Setup – WPS (2.4GHz) WPS is a Wi-Fi feature created to make Wi-Fi setup simple and easy. Some wireless routers and adapters support this feature with varying names (i.e. one touch setup or WPS).

  • Page 35: Wireless Coverage Controls (2.4Ghz)

    RTA15 USER’S GUIDE 2.4GHz Wi-Fi Settings: Wireless Coverage Controls (2.4GHz) Adjust the output power of the Router to control the coverage distance of your 2.4GHz wireless network. For a smaller coverage area, you can select a lower output power. For the maximum wireless coverage, select the...

  • Page 36: Access Schedule (2.4Ghz)

    RTA15 USER’S GUIDE 2.4GHz Wi-Fi Settings: Access Schedule (2.4GHz) Access Schedules will enable or disable your 2.4GHz wireless access at a set time based on your predefined schedule. This feature is often used for restricting access to all users (such as children, employees, guests) during specific times of the day for parental control or security reasons.

  • Page 37: Network Settings

    RTA15 USER’S GUIDE NETWORK SETTINGS Network Settings: Local Network (LAN) These settings are for your local network only and do not apply to your Internet / ISP connection. IP Address: The IP address of the Router. Subnet Mask: The subnet of the Router.
  • Page 38 RTA15 USER’S GUIDE DHCP Lease Time: The amount of time each device is given a specific IP is decided by the DHCP lease time. After the Lease Time expires, the DHCP server will assign another IP address to the device.

  • Page 39: Ipv6 Local Network (Lan)

    RTA15 USER’S GUIDE Network Settings: IPv6 Local Network (LAN) These settings are for your IPv6 local network only and do not apply to your Internet / ISP connection. The LAN IPv6 Link- Local Address is the IPv6 Address that you use to access the web-based management interface.
  • Page 40 RTA15 USER’S GUIDE The IPv6 Local IP Address is the IPv6 Address that you use to access the web-based management interface. If you change the LAN IPv6 Address here, you may need to adjust your PC’s network settings to access the network again.

  • Page 41: Internet Network (Wan)

    RTA15 USER’S GUIDE Network Settings: Internet Network (WAN) The Basic Setup Wizard will assist you in setting up your Internet connection. However, in the case that you wish to adjust settings manually, the options on this page provides you with the tools to do this easily.
  • Page 42 RTA15 USER’S GUIDE If for some reason you do not get an IP address and you know that your Internet provider uses DHCP, try resetting your modem. Remove the power adapter from the modem as well as the backup battery (if available).

  • Page 43: Ipv6 Internet Network (Wan)

    RTA15 USER’S GUIDE Network Settings: IPv6 Internet Network (WAN) The Basic Setup Wizard will assist you in setting up your Internet connection. However, in the case that you wish to adjust settings for IPv6 connections, the options on this page provides you with the tools to do this easily.
  • Page 44 RTA15 USER’S GUIDE not use a stateful address configuration protocol. Stateless autoconfiguration does not require any sort of central management, and is therefore preferable in networks where no management is readily available, such as a typical home network. Tunnel 6to4: Enabling this feature, enables encapsulation of IPv6 packets into IPv4 for transport across an IPv4 network.

  • Page 45: Advanced Settings

    RTA15 USER’S GUIDE Network Settings: Advanced Settings These settings apply to the Local Network and your Internet Connection Network. If you are not familiar with these settings, please refer to a network administrator to avoid putting your network at risk.
  • Page 46 RTA15 USER’S GUIDE Enable Web Server Access on WAN (Remote Management): Allows access to the Web Menu over the Internet Enable IPsec pass through on VPN connection: Allows the IP security protocol suite to pass through on a VPN connection.

  • Page 47: Smart Features

    RTA15 USER’S GUIDE SMART FEATURES The Router provides your network with Smart Features that helps to provide convenience and protection for your wired and wireless network. The Smart Features allows you to control access of your wireless network through: on/off schedules, specific user authorizations, and wireless coverage control.

  • Page 48: Block Websites

    RTA15 USER’S GUIDE Smart Features: Block Websites To block a website, you must first enable URL filtering. After it has been enabled, you can begin adding as many websites as you wish into the URL Address field. Note: If you wish to block www.google.com, simply type in "google"...

  • Page 49: User Access (Mac Address Filtering)

    RTA15 USER’S GUIDE Smart Features: User Access (MAC Address Filtering) User Access allows you to deny access or allow access to specific users connecting to the network. Each networking device has a unique address called a MAC address (a 12 digit hex number).

  • Page 50: User Access (Ip Address Filtering)

    RTA15 USER’S GUIDE Smart Features: User Access (IP Address Filtering) User Access (IP Filtering) is similar to User Access (MAC filtering) except that the Router uses the local IP address to filter the specific data from the specified network protocol. For example, if you chose to block...

  • Page 51: Usb Storage

    RTA15 USER’S GUIDE USB STORAGE USB Storage: Local Sharing Share a USB storage device with computers on the local network of the Router. Insert a USB storage device, such as a flash drive or external hard drive, to the USB port on the back of the Router and follow the directions below for your operating system.
  • Page 52 RTA15 USER’S GUIDE Windows 7 and Vista To access the drive from your Windows desktop: Note: If the USB drive does not appear automatically under your Networked devices (Windows 7, Vista or Mac OS X), you will need to Map the Network Drive.
  • Page 53 RTA15 USER’S GUIDE Windows XP To access the drive from your Windows desktop: Note: If the USB drive does not appear automatically under your Networked devices (Windows 7, Vista or Mac OS X), you will need to Map the Network Drive.
  • Page 54 RTA15 USER’S GUIDE Mac OS X To access the drive from your Mac desktop: Note: If the USB drive does not appear automatically under your Networked devices, you will need to Map your Network Drive (Instructions below). Open Finder. b. On the left hand menu, under Shared, click AMPED_USB.

  • Page 55: Usb Storage: Ftp Server

    RTA15 USER’S GUIDE USB Storage: FTP Server Share a USB storage device with computers remotely over the Internet. A FTP server allows you to access files through the use of an FTP client remotely over the Internet. Insert a USB storage device, such as a flash drive or external hard drive, to the USB port on the back of the Router.

  • Page 56: Firewall Settings

    RTA15 USER’S GUIDE FIREWALL SETTINGS The Router’s Firewall is designed to prevent unauthorized users from accessing your network. This section will go over the different features of the Firewall and how to configure them.

  • Page 57: Port Filtering

    RTA15 USER’S GUIDE Firewall Settings: Port Filtering Port Filtering is a security measure that prevents users from using specific ports for reasons other than what those ports were originally intended for. For example, TCP port 21 is traditionally used for FTP. However, there is nothing stopping a user from using port 21 for purposes other than FTP access.

  • Page 58: Port Forwarding

    RTA15 USER’S GUIDE Firewall Settings: Port Forwarding Port Forwarding is a rule that tells the Router that if a specific type of request comes in on a specific port, then that request should be forwarded to a specific device on the private network.

  • Page 59: Dmz (Demilitarized Zone)

    RTA15 USER’S GUIDE Firewall Settings: DMZ (Demilitarized Zone) A DMZ is a network location or IP Address that is not protected by the firewall. When enabling DMZ, it is important to note that the device on the IP Address designated as part of the DMZ does not have any protection from the Router’s firewall.

  • Page 60: Virtual Lan

    RTA15 USER’S GUIDE Firewall Settings: Virtual LAN A VLAN has the same attributes as a physical local area network (LAN) but it allows for devices to be grouped together even if they are not located on the same physical network switch. The benefit of a VLAN is that it allows network traffic to flow more efficiently for computers or network devices that are within sections of mutual interest.

  • Page 61: Denial Of Service

    RTA15 USER’S GUIDE Firewall Settings: Denial of Service A Denial of Service attack is an attempt by a user (or users) to make a server’s or network’s services unavailable. The user sends a server multiple requests with false return addresses.

  • Page 62: Quality Of Service

    RTA15 USER’S GUIDE QUALITY OF SERVICE QoS prioritizes and guarantees network performance for a specific IP Address range or MAC Address. QoS is often used for applications that require steady bandwidth. Common applications include VoIP phones, video streaming applications (i.e. DVRs, network cameras, video on demand), online gaming and servers.

  • Page 63: Routing Setup

    RTA15 USER’S GUIDE ROUTING SETUP Dynamic Routing allows the Router to automtically learn network destinations for devices/networks that are directly connected to the router. RIP and RIP2 are routing protocols that may be used for the router to learn routes from other routers running those same protocols.

  • Page 64: Management Features

    RTA15 USER’S GUIDE MANAGEMENT FEATURES The Management Features on the Router allows you to view the status of the system, your Internet connection, wireless network and local area network. The Network Statistics page provides detailed traffic data for each connection type.

  • Page 65: System Status

    RTA15 USER’S GUIDE Management: System Status The System Status provides you with a snapshot of your Router’s current connections and settings. The System Information section provides you with the router’s firmware version and build. This is used to help our support department determine what firmware version your device is running.

  • Page 66: Network Statistics

    RTA15 USER’S GUIDE Management: Network Statistics Network statistics shows the data activity for each connection type on the Router (Internet, Wireless and Wired). The Wireless Connection statistics shows all data activity for both the 2.4GHz and 5.0GHz wireless networks separately.

  • Page 67: Dynamic Dns Settings

    RTA15 USER’S GUIDE Management: Dynamic DNS Settings The Dynamic Domain Name System (DDNS) is a method to keep a web domain name, or web address, linked to a changing IP address as most Internet Providers do not provide static IP addresses.

  • Page 68: System Clock

    RTA15 USER’S GUIDE Management: System Clock Maintain the internal clock for the Router by syncing with your computer’s time. Your system clock settings need to be accurate in order for logs and wireless access schedules to work correctly.

  • Page 69: System Logs

    The System Log is useful for viewing the activity and history of your Router. The System Log is also used by Amped Wireless technicians to help troubleshoot your router when needed. It is recommended that you enable all logs in the event that troubleshooting is required.

  • Page 70: Upgrade Firmware

    USER’S GUIDE Management: Upgrade Firmware Amped Wireless continuously updates the firmware for all products in an effort to constantly improve our products and their user experiences. Check the Downloads page for your product frequently to see if there are any updates.

  • Page 71: Save And Reload Settings

    RTA15 USER’S GUIDE Management: Save and Reload Settings Saving your current settings allows you to back-up your current settings which may be reloaded at a later time. This feature may be useful for testing new features and settings without having to worry about returning to a stable platform.

  • Page 72: Password Settings

    RTA15 USER’S GUIDE Management: Password Settings The default settings for the Router are: Login: admin Password: admin If you wish to enable a password to protect unauthorized access to the web menu and Basic Setup Wizard, you may enter one here.

  • Page 73: Technical Specification

    RTA15 USER’S GUIDE TECHNICAL SPECIFICATION  1 x Detachable High Gain Wireless Standard: 802.11a/b/g/n/ac Frequency Band: 2.4 GHz, 5.0GHz 5.0GHz 5dBi Antenna  1 x Detachable High Gain Wireless Speed: 2.4GHz: 300Mbps (Tx/Rx) 5.0GHz: 867Mbps (Tx/Rx) Dual Band Antennas  3 x Reverse SMA Connector Amplifier: 2 x 2.4GHz 700mW Amplifiers...

  • Page 74: Default Settings

    RTA15 USER’S GUIDE DEFAULT SETTINGS The default settings for your Router are listed here. If for some reason you need to return your Router back to default settings, hold down the Reset button on the back panel for 10 seconds. The Router will reset back to factory settings as listed below: IP Address: 192.168.3.1...

  • Page 75: Troubleshooting And Support Information

    RTA15 USER’S GUIDE TROUBLESHOOTING AND SUPPORT INFORMATION We are here to help. If you have any issues with your Router please contact us. To contact Amped Wireless’ Technical Support use one of the following methods: Phone: 888-573-8820 Email: techsupport@ampedwireless.com Web:...

  • Page 76: Troubleshooting

    RTA15 USER’S GUIDE Troubleshooting The tips in this guide are listed in order of relevance. Try solution (a) before trying solution (b), etc. Troubleshooting: Web Menu Issues I entered setup.ampedwireless.com and it failed to open the Web Menu. Make sure your computer is connected to the Router using the included Ethernet cable. Do not try to connect with a wireless connection.
  • Page 77 RTA15 USER’S GUIDE I have entered setup.ampedwiress.com but I cannot enter the Web Menu. I am prompted for a login and password but it does not let me continue. Check that you are using the right login and password. If this is your first time accessing the Web Menu, use the default login and password: (Login: admin, PW: admin) b.
  • Page 78 RTA15 USER’S GUIDE Troubleshooting: Internet Connection Issues The Basic Setup Wizard could not automatically configure my Internet connection. Reset your modem by holding down the reset button located on the back of the modem for approximately five seconds. Try the automatic configuration again.
  • Page 79 RTA15 USER’S GUIDE I have gone through the Setup Wizard and I do not have Internet. Detach the power adapter and disconnect all computers from the Router. Turn off the power to your modem and remove the backup battery (if available).
  • Page 80 RTA15 USER’S GUIDE My Internet connection is unstable and drops intermittently. Power off your computer, the Router and your modem. Power on your modem and wait 2 minutes. Power on the Router and wait 1 minute for the router to initialize.
  • Page 81 RTA15 USER’S GUIDE My Internet connection is abnormally slow. Check with your Internet provider to ensure that they are not experiencing system wide issues. b. Check with speedtest.net to see the speed of your Internet provider. Connect directly to your modem with your computer and check speedtest.net again.
  • Page 82 RTA15 USER’S GUIDE Troubleshooting: Local Network Issues My computer is getting an IP address of 169.254.x.x and Windows says “Limited or no Connectivity.” Make sure the Router is powered on. b. Check that your computer’s network adapter is enabled and is set to “Obtain IP Address Automatically.”...
  • Page 83 RTA15 USER’S GUIDE Troubleshooting: Wireless Issues I am only getting 3 or 4 wireless signal bars on my wireless computer and I am within 10 feet of the wireless router. Step back at least 10 feet from the Router and check your signal again. The Router emits high power, long range Wi-Fi signals that may confuse your wireless adapter signal reading at close range.
  • Page 84 RTA15 USER’S GUIDE b. Check if other computers are experiencing the same issue. If not, the wireless adapter in your computer may be experiencing problems or maybe older and have poor wireless performance. Avoid placing the Router near or around Microwaves and 2.4GHz wireless phones.
  • Page 85 RTA15 USER’S GUIDE Do not use Internet websites (i.e. speedtest.net or other websites) to test your wireless speeds. Speed test websites measure your Internet connection speed, which is controlled by your Internet provider. Wireless speeds are for your local network and not your Internet connection. To test wireless speeds, a local test or file transfer will be required to test the true wireless speed.
  • Page 86 RTA15 USER’S GUIDE I cannot connect my Windows XP computer to the wireless network. I enter my wireless password and I see an error. Make sure your computer has the latest Windows Service Pack. Windows Service Pack 1 does not support WPA security.
  • Page 87 RTA15 USER’S GUIDE Troubleshooting: USB Storage Issues I cannot access my USB storage device after I plug it into the router. Follow the instructions below for your operating system. Windows 7 and Vista To access the drive from your Windows desktop: Note: If the USB drive does not appear automatically under your Networked devices (Windows 7, Vista or Mac OS X), you will need to Map the Network Drive.
  • Page 88 RTA15 USER’S GUIDE Windows XP To access the drive from your Windows desktop: Note: If the USB drive does not appear automatically under your Networked devices (Windows 7, Vista or Mac OS X), you will need to Map the Network Drive.
  • Page 89 RTA15 USER’S GUIDE To Map the network drive: Open Finder. b. From the menu on the top of the desktop, select Go. Select Connect To Server from the drop down menu. d. Enter the address of the network drive: Amped_USB...
  • Page 90 Make sure your UBS storage device is not corrupted and is working properly and try again. Additional USB Storage troubleshooting tips may be available online at the Amped Wireless Elite Support Center. Please check the Elite Support Center for the latest updates and features for USB Storage support.

  • Page 91: Warranty And Regulatory Information

    The Amped Wireless (A division of Newo Corporation, Inc.) Limited Warranty Warranty Period: The Amped Wireless Limited Warranty is for one (1) year from the date of purchase for new products. Refurbished products carry the Limited Warranty for thirty (30) days after the date of purchase.
  • Page 92 (b) the product or its software or firmware has been altered or modified, (c) the product has not been used and installed in accordance to Amped Wireless’ instructions, (d) the product has been subjected to misuse, or negligence. Amped Wireless does not guarantee the continued availability of a third party’s service for which this product’s use or operation may require.
  • Page 93 Amped Wireless. The bearer of cost related to shipping repaired or replaced product back to the purchaser will be at the sole discretion of Amped Wireless and determined based on the details of each RMA case. Customers outside of the United States of America are responsible for all shipping and handling costs including custom duties, taxes and all other related charges.
  • Page 94 USER’S GUIDE Regulatory Information FCC Statement and Declaration: Amped Wireless declares that this device complies with Part 15 of the FCC Rules and Regulations. Operation of this device is subject to the following two (2) conditions: (1) This device may not cause harmful interference.
  • Page 95 RTA15 USER’S GUIDE Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Caution and Safety Notices: Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment.
  • Page 96 RTA15 USER’S GUIDE Industry Canada Statement: This Class B digital apparatus complies with RSS-210 and ICES-003 of the Industry Canada Rules. Operation of this device is subject to the following two (2) conditions: (1) This device may not cause harmful interference (2) This device must accept any interference received, including interference that may cause undesired operation.
  • Page 97 RTA15 USER’S GUIDE Déclaration d’Industrie Canada : Cet appareil numérique de classe B est conforme aux réglementations RSS- 210 et ICES-003 d’Industrie Canada. Le fonctionnement de cet appareil est sujet aux deux conditions suivantes: (1) Cet appareil ne peut pas causer de brouillage préjudiciable (2) Cet appareil doit accepter toute interférence reçue, y compris les interférences pouvant provoquer un...

  • Page 98: Tech Support

    888-573-8820 e-mail techsupport@ampedwireless.com www.ampedwireless.com Amped Wireless A Division of Newo Corporation Copyright © 2013 Amped Wireless / Newo Corporation. All rights reserved. Amped Wireless, Newo Corporation, and the Amped Wireless Logo are registered trademarks or trademarks of Newo Corporation.
