Instructions for
Installation and Use
GB
GB
GB
GB
GB
English, 2
FIU20IX/1
FIU20WH/1
FIU20BK/1

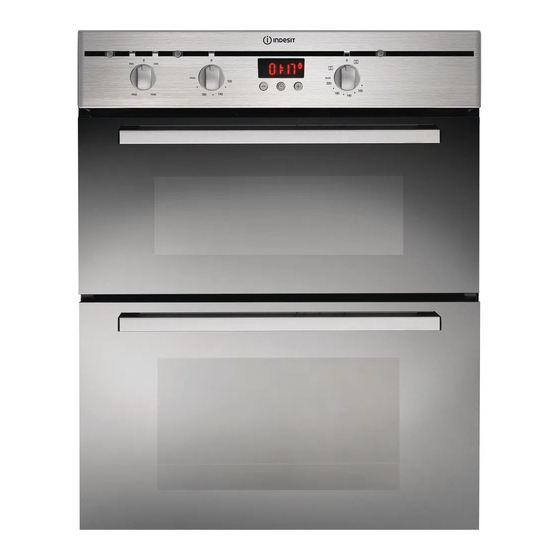

FIMU 23 IX
FIMU 23 (BK)
FIMU 23 (WH)
Electric built under
Contents
Introduction, 2
Safety Information, 3-4
Features, 5
Controls, 6
Convection Oven, 11
Care and Cleaning, 18-20
Installation, 21-22
You must read these instructions prior to using
your appliance and retain them for future use.
double oven
GB
Advertisement
Table of Contents
Related Manuals for Indesit FIMU 23 (BK)
Summary of Contents for Indesit FIMU 23 (BK)
-
Page 1: Table Of Contents
English, 2 FIU20IX/1 FIU20WH/1 FIU20BK/1 FIMU 23 IX FIMU 23 (BK) FIMU 23 (WH) Electric built under double oven Contents Introduction, 2 Safety Information, 3-4 Features, 5 Controls, 6 The electronic programmer, 7 Grill Pan and Handle, 8 Operation when using the Top Oven for Grilling, 9... -
Page 2: Introduction
Introduction Your new appliance is guaranteed* and will give lasting service.This guarantee is only applicable if the appliance has been installed in accordance with the installation instructions detailed in this booklet. To help make best use of your cooking equipment, please read this booklet carefully. -
Page 3: Safety Information
Safety Information • WARNING: The appliance and its accessible parts become hot during use. • Care should be taken to avoid touching heating elements. • Children less than 8 years of age shall be kept away unless continuously supervised. • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental... -
Page 4: For Your Safety
For Your Safety When used properly your appliance is completely safe but as with any electrical product there are certain precautions that must be observed. PLEASE READ THE PRECAUTIONS BELOW BEFORE USING YOUR APPLIANCE. Always • Always make sure you remove all packaging and literature from inside the oven and grill compartments before switching on for the first time. -
Page 5: Features
Features WARNING: DO NOT TOUCH THE GLASS DOORS WHEN THE OVEN IS IN USE AS THESE AREAS CAN BECOME HOT. TEMPERATURE TOP OVEN/GRILL THERMOSTAT PILOT LIGHT PILOT LIGHT GRILL SETTING CONTROL GRILL ELEMENT GRILL PAN OVEN LIGHT CATALYTIC SIDE LINERS & WIREWORK SHELF SUPPORTS INNER DOOR... -
Page 6: Controls
Controls TOP OVEN/GRILL PILOT LIGHT Cooling Fan A gentle flow of air will be blown below the control panel when the grill control is used and after a short period of time when the ovens are used. Note: Whenever the appliance has been used, the cooling fan may run on or restart itself after all the controls have been turned off. -
Page 7: The Electronic Programmer
The electronic programmer DISPLAY •• •• END OF COOKING icon DURATION icon DECREASE TIME button SET TIME button ! The Main Oven (only) can be controlled by the automatic timer. ! Never operate the grill or top oven when the main oven is set to cook automatically because the oven cavity can become warm and this may cause bacterial growth in food. -
Page 8: Grill Pan And Handle
Grill Pan and Handle Using the grill pan kit The grill pan handle is detachable from the pan to facilitate cleaning and storage. Fix the pan handle securely before use: 1. Fit the handle to the grill pan so that the external ‘hooks’... -
Page 9: Operation When Using The Top Oven For Grilling
Operation when using the Top Oven for Grilling TOP OVEN/GRILL THERMOSTAT TIMER PILOT LIGHT PILOT LIGHT B TOP OVEN TEMPERATURE CONTROL A GRILL SETTING CONTROL Place the oven shelf in the correct position Step 1 (see Grilling Guide). Locate the grill pan on the oven shelf, centrally under the grill element. -
Page 10: Using The Top Oven As A Convection Oven
Using the Top Oven as a Convection Oven The top oven should be used to cook small quantities of food. The oven is designed so that the grill element operates at a reduced heat output, this is combined with a heating element situated underneath the floor of the oven. -
Page 11: Operation When Using The Top Oven As A Convection Oven
Operation when using the Top Oven as a Convection Oven TOP OVEN/GRILL THERMOSTAT PILOT LIGHT PILOT LIGHT A GRILL SETTING CONTROL Place the shelf in the correct position (see Step 1 Oven Temperature Charts). Select the required cooking temperature Step 2 (100-220°C) using control (B) (see Top Oven Temperature Charts). -
Page 12: Using The Main Oven For Fan Cooking
Using the Main Oven for Fan Cooking Since a circulaire fan oven heats up more quickly and generally cooks food at a lower temperature than a conventional oven, pre-heating is often unnecessary. For guides on "pre-heating", "cooking temperatures" and "cooking times" see "Oven Temperature Charts"... -
Page 13: Using The Main Oven For Other Functions
Using the Main Oven for Other Functions FAN ONLY SETTING DEFROSTING FROZEN MEAT & POULTRY Joints of meat and whole birds should be defrosted slowly, preferably in a refrigerator (allowing 5-6 hours per lb.) or at room temperature (allowing 2-3 hours per lb.). -
Page 14: Temperature Conversion Chart
Temperature Conversion Chart The chart below gives details of comparisons of oven settings for gas conventional ovens and fan oven in degrees °F and °C Gas Mar ½ Conventional Oven Fan Oven... -
Page 15: Oven Temperature Chart - Meat
Oven Temperature Chart - Meat Beef Lamb Pork Veal Chicken/Turkey up to 4kg (8lb) Turkey up to 5.5kg (12lb) Turkey over 5.5kg (12lb) Casserole Cooking Beef/ Lamb 170/180 (Slow Roasting) Beef/ Lamb 190/200 (Foil Covered) Pork 170/180 (Slow Roasting) Pork 190/200 (Foil Covered) Veal... -
Page 16: Oven Temperature Charts - Baking
Oven Temperature Charts - Baking Baking Scones Small Cakes Victoria Sandwich Sponge Sandwich (Fatless) Swiss Roll Semi-rich Fruit cakes Rich Fruit Cakes Shortcrust Pastry Puff Pastry Yorkshire Pudding Individual Yorkshire Pudding Milk Pudding Baked Custard Bread Meringues Baking Food Scones Small Cakes Victoria Sandwich Sponge Sandwich (Fatless) -
Page 17: Cooking Results Not Satisfactory
Cooking Results Not Satisfactory GRILL Uneven cooking front to back Ensure that the grill pan is positioned centrally below the grill element. Fat splattering Ensure that the grill pan is not lined with foil. Ensure that the grill setting control (A) is not set too high. -
Page 18: Care And Cleaning
Care and Cleaning Warning: Before cleaning, please ensure that the electricity supply to the appliance is switched off and the appliance is fully cold. ! Never use steam cleaners or pressure cleaners on the appliance. Clean the glass part of the oven door using a sponge and a non-abrasive cleaning product, then dry thoroughly with a soft cloth. - Page 19 Care and Cleaning 3. OVEN DOORS CONTROL PANEL OVEN DOORS (a) Control Panel Regularly wipe with a clean, damp cloth and polish with a clean, dry cloth. (b) Inner Door Panels & Glass Open the door fully. The glass panel may now be washed.
- Page 20 Care and Cleaning Take particular care not to damage the inner surface of the door inner glass that is coated with a heat reflective layer. Do not use scouring pads, or abrasive powder, which will scratch the glass. Ensure that the glass panel is not subjected to any sharp mechanical blows.
-
Page 21: Installation
Installation Electrical Requirements For your own safety, we recommend that your cooker is installed by a competent person such as one who is registered with NICEIC (National Inspection Council for Electrical Installation Contracting). The cooker should be installed in accordance with the latest edition of the IEE Regulations. - Page 22 Installation A minimum distance of 25mm should be maintained between the front face of the cabinet side and the front face of the plinth. 597mm min 720mm min 570mm 150mm min 170mm max...
-
Page 23: If Something Goes Wrong
If Something Goes Wrong? Before calling a Service Engineer, please check through the following lists. THERE MAY BE NOTHING WRONG. Problem Check l h o o r or m ll mo This is normal and should cease after a short period. moke he r ll o e or he r... -
Page 24: If It Still Won't Work/ Disposal Of The Appliance
If it Still Won't Work Contact the Service Office If something is still wrong with your appliance after you have been through the 'Something Wrong' list: 1. Switch off and unplug the appliance from the mains. 2. Call your nearest Service Office or local importer. When you contact us we will want to know the following: 1. -
Page 25: Guarantee Information
THIS GUARANTEE WILL NOT APPLY IF THE APPLIANCE HAS BEEN USED IN COMMERCIAL OR NON- DOMESTIC PREMISES. Indesit also offers you a free 5 year parts guarantee. This additional guarantee is conditional on you registering your appliance with us and the parts being fitted by one of our authorised engineers. There will be a charge for our engineer’s time. -
Page 26: Service Information
No one is better placed to care for your Indesit appliance during the course of its working life than us – the We are the largest service team in the UK and Ireland offering you access to 400 skilled telephone advisors and 1000 fully qualified engineers on call to ensure you receive fast, reliable, local service. - Page 28 02/2011 - 195069915.02 XEROX FABRIANO...
