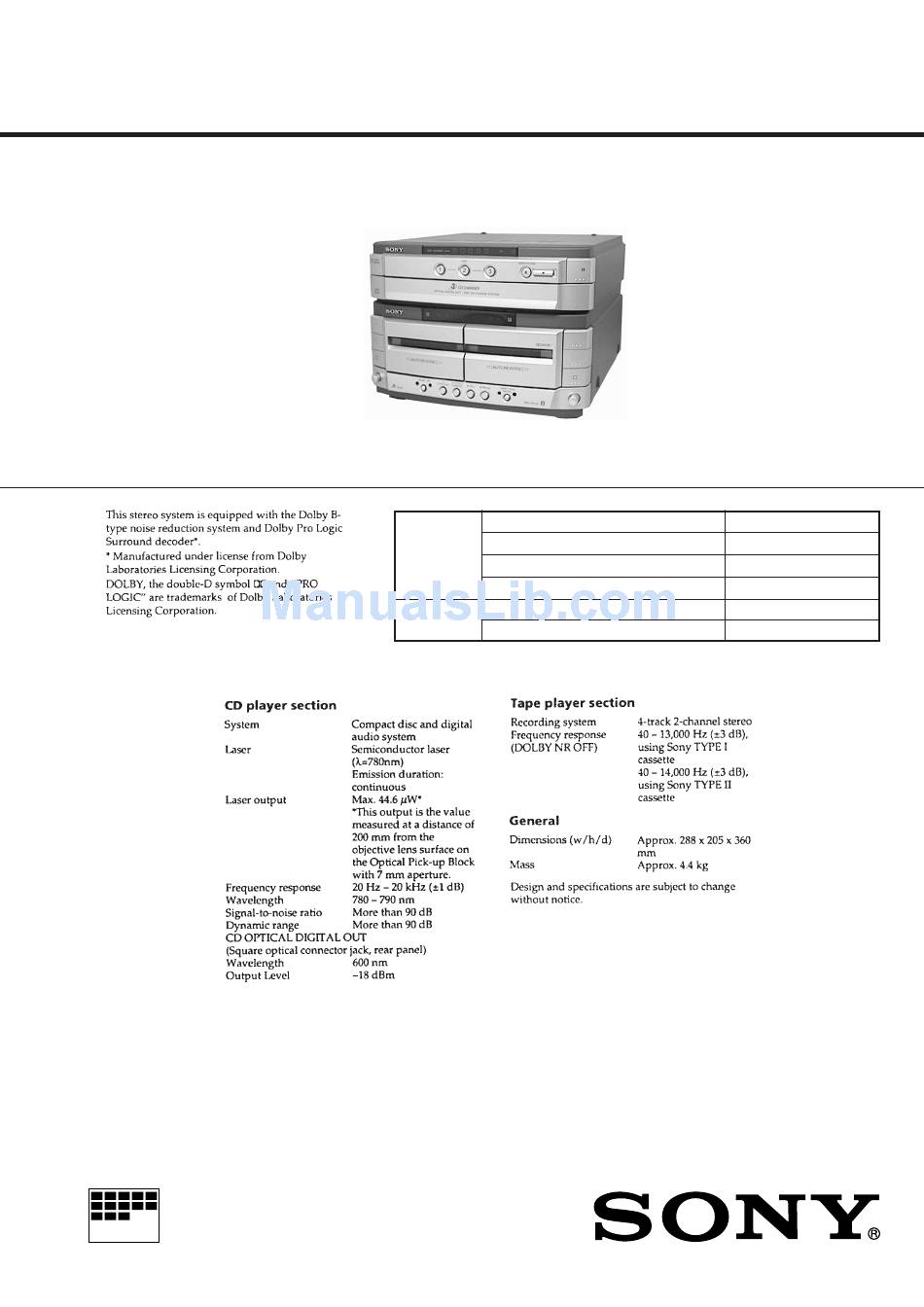

SERVICE MANUAL
HTC-W555 is the deck and CD
section in MHC-W555/W777.
MICROFILM
HTC-W555
Model Name Using Similar Mechanism
CD Mechanism Type
CD
SECTION
Base Unit Type
Optical Pick-up Type
TAPE
Model Name Using Similar Mechanism
DECK
Tape Transport Mechanism Type
SECTION
SPECIFICATIONS
– 1 –
AEP Model
UK Model
E Model
Australian Model
Chinese Model
Tourist Model
HCD-H991AV
CDM38-5BD29A
BU-5BD29AL
KSS-213B/S-N
NEW
TCM-230AWR1
COMPACT DISC DECK
