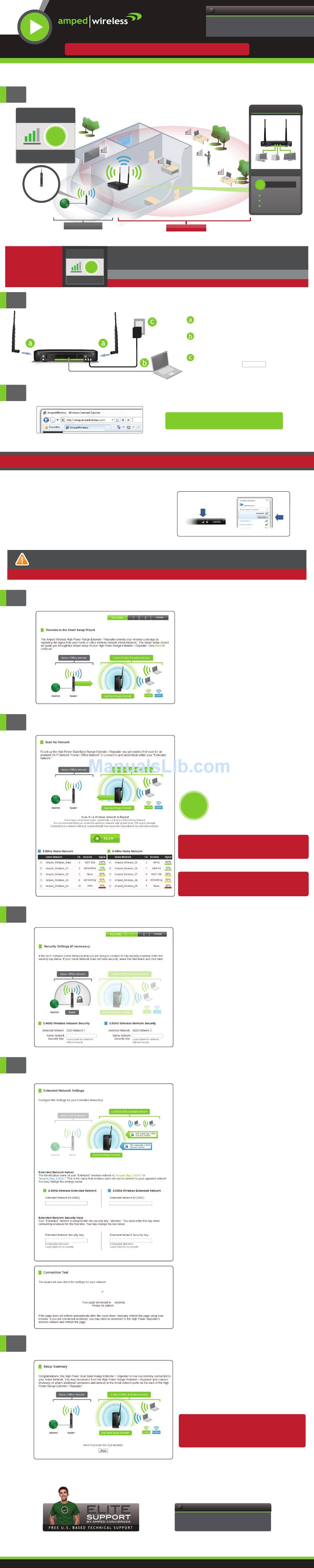

SETUP GUIDE
High Power Wireless-N 600mW Gigabit Dual Band Range Extender / Repeater
Find an optimal setup location between your wireless router and
1
your wireless dead zone
RECOMMENDED
SIGNAL STRENGTH
>70%
2.4GHz and 5.0GHz
(if available)
Single or Dual Band
Wireless Router
Internet
Home/Office Network
IMPORTANT:
2
Connect your Mac or PC to the Dual Band Range Extender
3
Open your web browser
Recommended browsers: Google Chrome, Safari or Internet Explorer (8.0 and up). Do not use Firefox.
Disconnect your PC from wireless networks, open your browser and try again.
Windows 7 & Vista
1) Click on the Wireless icon to see available wireless networks
(For Vista, click Start > Connect To).
2) Select your current wireless network and click Disconnect.
3) Power the Dual Band Range Extender off and back on and try
http://setup.ampedwireless.com again.
If you are still having trouble accessing the Web Menu, disconnect the cable from your computer to the Range Extender.
Connect wirelessly using the SSID:
Accessing the Smart Setup Wizard does not require Internet access. The menu is served from the Dual Band Range Extender.
4
Welcome to the Smart Setup Wizard
5
Scan for a Wireless Network to Repeat
6
Home Network Security Settings (If necessary)
7
Configure Settings for your Extended Networks
8

Setup Summary

If there was a problem with your configuration, the Smart Setup Wizard will inform you to restart the Wizard and select
another network to repeat. If you continue to experience problems, please contact Amped Wireless Elite Support.
— R E A D
RECOMMENDED
PLACE THE DUAL BAND RANGE EXTENDER / REPEATER IN A LOCATION
SIGNAL STRENGTH
WHERE IT CAN RECEIVE A STRONG SIGNAL FROM YOUR WIRELESS ROUTER
>70%
This can be done before or after setup is complete. The Dual Band Range Extender / Repeater will save your settings.
2.4GHz and 5.0GHz
(if available)
If you are connecting to a dual band router, both 2.4GHz and 5.0GHz connections should be greater than 70%.
IF YOU HAVE PROBLEMS ACCESSING THE WEB MENU...
(example)
Amped_Rep_2.4GHz
3
?
Phone: 888-573-8820
Email: techsupport@ampedwireless.com
Web: www.ampedwireless.com/support
F I R S T
Dead Zone
Attach the two included antennas.
Connect the included network cable to an
available network port on your computer.
Attach the Power Adapter to the Dual Band
Range Extender's
available power outlet.
Enter the setup web address into your browser:
http://setup.ampedwireless.com
If the URL fails to open try: http://192.168.1.240
or Amped_Rep_5.0GHz and Password:
The wizard will guide you through the setup of
your Dual Band Range Extender.
Click Next to begin.
Click Scan to begin scanning for nearby wireless
networks (2.4GHz and 5.0GHz).
Highlight and select the wireless network(s)
that you wish to repeat. If you have a dual band
router, select BOTH the 2.4GHz and 5.0GHz
network names.
>70%
If you are connecting to a 2.4GHz and a 5.0GHz
network, BOTH networks must have greater than
70% signal strength.
Click Next to continue.
If you do not see your desired wireless networks,
move the Dual Band Range Extender closer to the
router and scan again as it may be out of range.
If your wireless home network(s) has security
enabled, you will need to enter the security
key here. If you selected a dual band network
to repeat, you will need to enter both security
keys here.
If your wireless home network(s) does not have
security enabled, leave the security field blank.
Click Next to continue.
The Dual Band Range Extender will create two
extended networks: a 2.4GHz Extended Network
and a 5.0GHz Extended Network.
The IDs of your Extended Networks are:
Amped_Rep_2.4GHz
To change them, enter a new name in the SSID field.
Users connecting wirelessly to the Dual Band Range
Extender will use this ID to identify your Extended
Network.
The default Security Key (WPA/WPA2 Mixed
Mode) for both (2.4GHz and 5.0GHz) Extended
Networks is:
To change it, enter a new key in the Security Key
field. The key must be at least 8 characters long.
Click Next to apply your settings. The Dual Band
Range Extender will reboot.
The Setup Wizard will now check if your
settings are correct.
2 minutes. Do not refresh the web page. The
page will automatically reload with the
connection status.
incorrectly, the wizard will inform you to
re-enter your settings.
Congratulations, the Dual Band Range Extender
is now successfully configured. Your settings are
now saved. You may now detach the Ethernet
cable from your computer and connect wire-
lessly to the Dual Band Range Extender.
Print the Setup Summary details and save it
for future reference.
If you haven't already positioned your Dual Band
Range Extender in an optimal location, you may do
so now. All Range Extender settings are saved and
can be safely powered off for relocation.
You may also attach additional wired network
devices to the wired ports on the back of the
Dual Band Range Extender.
?
Need Help? Give us a call.
Phone: 888-573-8820
Email: techsupport@ampedwireless.com
Web: www.ampedwireless.com/support
Need Help? Give us a call.
—
SR20000G
Dual Band Range Extender
Network Bridge
Connect up to
5
G I G A B I T
wired devices
PCs/Laptops
Network Storage
A/V Devices
port and an
PWR
Wireless Network
Wireless Network
wireless and try again.
Recommended Signal
Select the wireless network with
a signal strength greater than 70%
for the most reliable connection.
Connecting to a weak signal may result in
slower speeds or intermittent connectivity.
Amped_Rep_5.0GHz
and
wireless
This process may take up to
If your settings were entered
and more!
