TOTALINE P710U-21PHP Installation Instructions Manual

Universal Application Programmable Thermostat
NOTE: Read the entire instruction manual before starting the
installation.
TABLE OF CONTENTS
SAFETY CONSIDERATIONS
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
INSTALLATION CONSIDERATIONS
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Step 1 — Thermostat Location
Step 2 — Install Thermostat
Step 3 — Set Thermostat Configuration
Step 4 — Thermostat Operation
Step 5 — Check Thermostat Operation
WIRING DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SAFETY CONSIDERATIONS
Improper installation, adjustment, alteration, service, maintenance,
or use can cause explosion, fire, electrical shock, or other
conditions which may cause death, personal injury, or property
damage. Consult a qualified installer, service agency, or your
distributor or branch for information or assistance. The qualified
installer or agency must use factory- -authorized kits or accessories
when modifying this product. Refer to the individual instructions
packaged with the kits or accessories when installing.
Installation Instructions
Designed and Assembled
in the USA.
. . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . .
Follow all safety codes. Wear safety glasses, protective clothing,
and work gloves. Have a fire extinguisher available. Read these
instructions thoroughly and follow all warnings or cautions
included in literature and attached to the unit. Consult local
building codes and the current editions of the National Electrical
Code (NEC) NFPA 70.
In Canada, refer to the current editions of the Canadian Electrical
Code CSA C22.1.
Recognize safety information. This is the safety- -alert symbol
When you see this symbol on the unit and in the instructions or
manuals, be alert to the potential for personal injury.
Understand the signal words DANGER, WARNING, and
CAUTION. These words are used with the safety- -alert symbol.
DANGER identifies the most serious hazards which will result in
severe personal injury or death. WARNING signifies a hazard
which could result in personal injury or death. CAUTION is used
to identify unsafe practices which may result in minor personal
injury or product and property damage. NOTE is used to highlight
suggestions which will result in enhanced installation, reliability, or
operation.

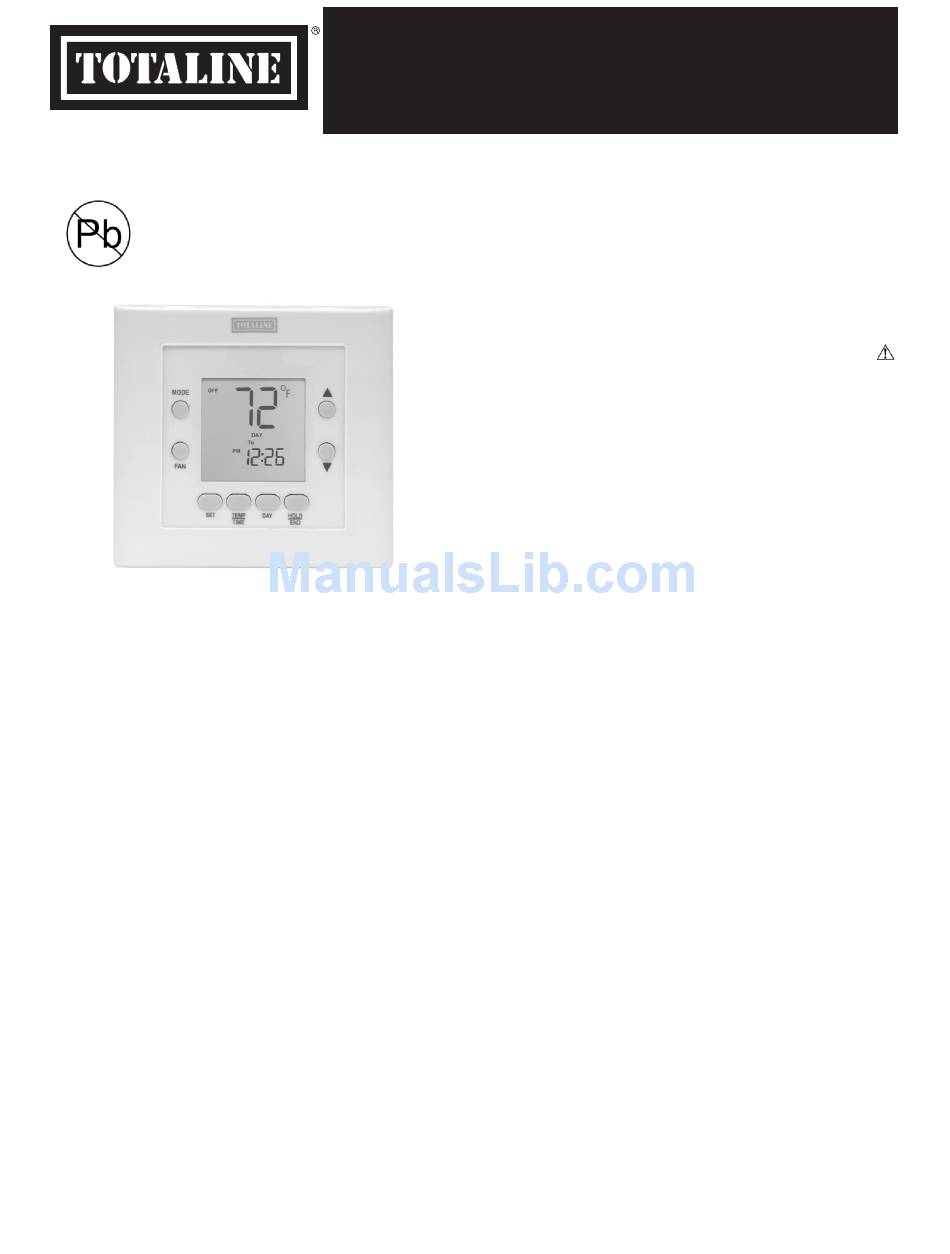

The TOTALINE Universal Application programmable thermostat
A13408
can be configured for both AC and HP applications. Both modes
are dual- -powered, operating from either 24VAC or two alkaline
AA batteries. Configuration and program schedules are stored in
non- -volatile memory, preserving this information during power
loss and battery removal. Features include simplified 5/2
programming, large backlit display, and modern styling.
When AC application is selected, one stage of heating and one
PAGE
stage of cooling are provided.
1
When HP application is selected, two stages of heating and one
1
stage of cooling are provided.
1
INSTALLATION CONSIDERATIONS
2
The P710U- -21PHP, whether configured for A/C or HP
2
application, may be wired with or without connecting a common
wire between the indoor equipment and the thermostat. However, it
2
is recommended to use a common wire whenever possible.
2
Without a common wire, batteries must be installed. However,
3
battery power will be supplemented by "power stealing."
3
This means the thermostat will steal a small amount of power from
the equipment to which it is connected. This will also keep it
4
powered while changing the batteries.
NOTE:
Not all HVAC equipment is compatible with
power- -stealing type thermostats. Consult the system equipment
Installation Instructions before applying this thermostat in a power
stealing manner.
If both batteries and 24VAC operation are used (batteries installed
and the common wire connected), indefinite clock operation is
provided. The battery will be used only during AC power loss,
preserving battery life.
P710U- -21PHP
Universal Application
Programmable Thermostat
INTRODUCTION
.
