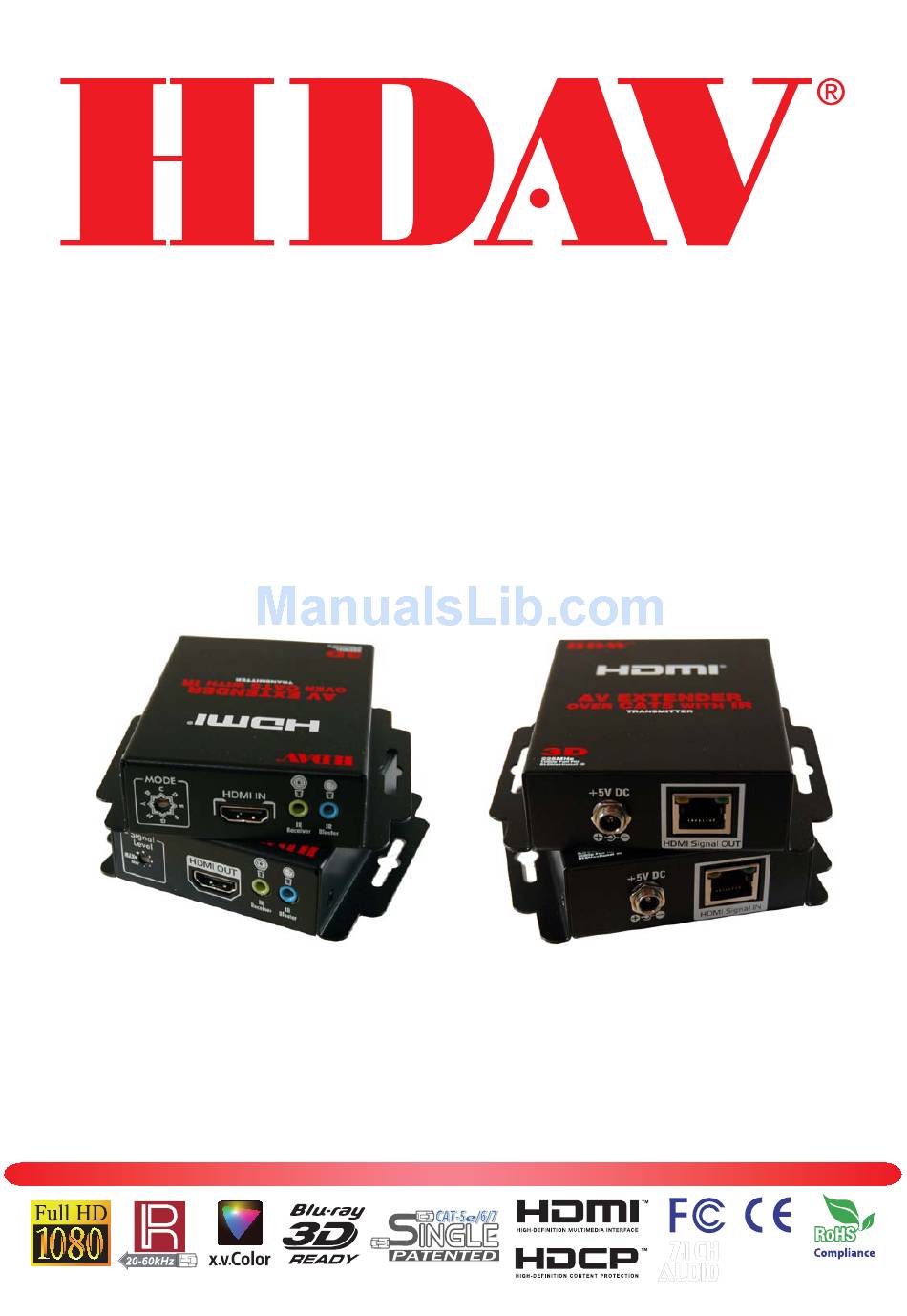

Page 1: User Manual
HDMI Extender over Single Cat.X with Bi-directional IR User Manual (HDMI-C5S4IR) [Must be used with Solid CAT5e or CAT6 Cable] All information is subject to change without notice. All names & trademarks are property of their respective owners. Rev.1101 7.1 CH 7.1 CH... -
Page 2: Table Of Contents
However, like all electronic equipments, the HDMI-C5S4IR should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Introduction
60m (200ft) in HDTV 1080i format, 40m (130ft) in HDTV 1080p format, and 20m (65ft) in HDTV 1080p with 36-bit color depth. HDMI-C5S4IR also supports the most advanced 3D video format complaint with HDMI 1.4 specification and therefore guarantees the highest 3D video compatibility on the market. With only one cost effective Cat.5/5e/6 cable, users can readily extend HDTV sources from DVD players, Blu-ray Disc... -
Page 4: Specifications
Specifications Model Name HDMI-C5S4IR Technical Role of usage Transmitter [TX] Receiver [RX] HDMI compliance HDMI 1.4a HDCP compliance Video bandwidth Single-link 225MHz [6.75Gbps] Video support 480i / 480p / 720p / 1080i / 1080p60 HDMI over UTP Full HD (1080p)-40m (130ft) [CAT5e] / 50m (165ft) [CAT6]... -
Page 5: Panel Descriptions
IR Blaster: Infrared 3.5mm socket for plugging in the extension cable of IR blaster Rear Panel +5V DC: Connect to 5V DC power supply. HDMI Signal OUT: Plug in a Cat-5/5e/6 cable that needs to be linked to the transmitting unit HDMI-C5S4IR-TX. -
Page 6: Front Panel
Front Panel +5V DC: Connect to 5V DC power supply. HDMI Signal IN: Plug in a Cat-5/5e/6 cable that needs to be linked to the receiving unit HDMI-C5S4IR-RX. Rear Panel Signal Level: Adjust the 8-level equalization control to the received HDMI signals. The HDMI signal level varies from MAX (strongest) to MIN (weakest) for respective transmission length from longest possible range to short distance. -
Page 7: Ir Pass-Through
IR PASS-THROUGH IR Extenders IR Blaster IR Receiver IR Sockets plug in the IR blaster to emit all IR command signals received from the IR receiver from the other IR Blaster: enf to control the devices corresponding to the IR signals. IR Receiver: plug in the IR receiver to receive all IR command signals from the IR remote controls of the corresponding devices. -
Page 8: Hardware Installation
3. Set " MODE " on the transmitting unit HDMI-C5S4IR-TX at H . 4. Turn on the HDMI-C5S4IR-TX. 5. The LED on the RJ45 of HDMI-C5S4IR-TX will dim and light again, which indicates the EDID learning procedure is complete. 6. Unplug the HDMI cable from the display and follow the instruction in [Hardware Installation] to set up the... -
Page 9: Pin Definition
PIN DEFINITION HDMI Type A (Receptacle) HDMI Pin 1 TMDS Data2+ Pin 8 TMDS Data0 Shield Pin 15 Pin 2 TMDS Data2 Shield Pin 9 TMDS Data0– Pin 16 Pin 3 TMDS Data2– Pin 10 TMDS Clock+ Pin 17 DDC/CEC Ground Pin 4 TMDS Data1+ Pin 11... -
Page 10: Notice
NOTICE 1. When adjusting the signal level on the Receiving unit, please dial the rotary control switch from MIN to MAX and stop turning the rotary switch whenever the audio/video is playing normally. Inappropriate signal level setting may cause overpowering issue that would shorten the product life significantly! 2.
