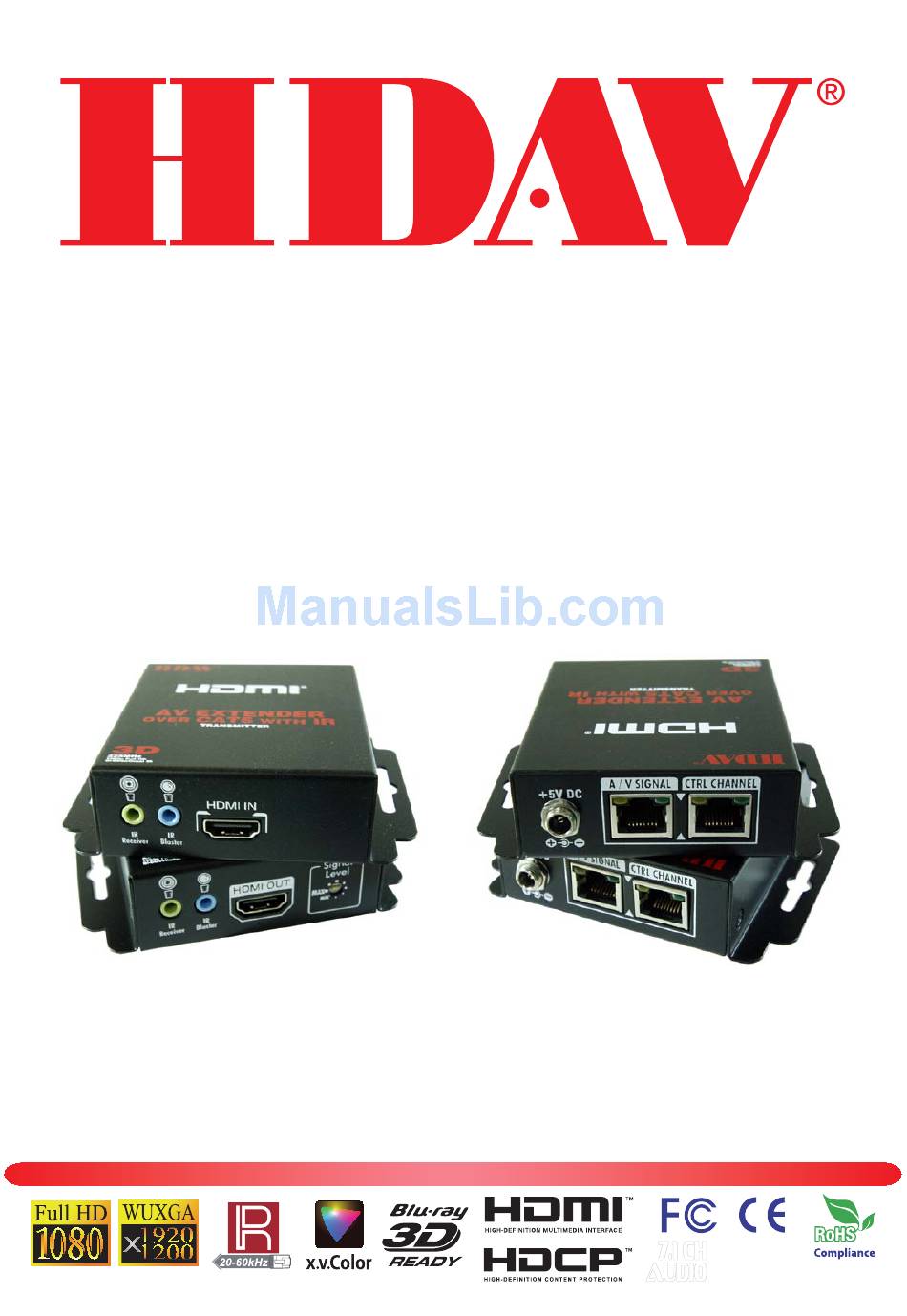

TM
HDMI
Audio & Video Dual CAT5/RJ45
Extender Kit With Bi-Directional IR
Pass-Through And Phantom Power
User Manual
(HDMI-C5IRB)
[Must be used with Solid CAT5e or CAT6 Cable]
All information is subject to change without notice.
All names & trademarks are property of their respective owners.
Rev.1012
7.1 CH
7.1 CH
AUDIO
AUDIO
Made in Taiwan
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hdav HDMI-C5IRB
Summary of Contents for Hdav HDMI-C5IRB
- Page 1 Audio & Video Dual CAT5/RJ45 Extender Kit With Bi-Directional IR Pass-Through And Phantom Power User Manual (HDMI-C5IRB) [Must be used with Solid CAT5e or CAT6 Cable] All information is subject to change without notice. All names & trademarks are property of their respective owners.
-
Page 2: Table Of Contents
However, like all electronic equipments, the HDMI-C5IRB should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Introduction
PS3, PC, and any other kinds of sources compliant with TMDS to distant display monitors including HDMI or DVI enabled TV sets or LCD PC monitors. The HDMI-C5IRB also features with embedded IR input and output on both Transmitting and Receiving units so users can control the source device or HDMI display at romote site via IR remote in di-directional IR pass-through. -
Page 4: Specifications
Specifications Model Name HDMI-C5IRB Technical Role of usage Transmitter [TX] Receiver [RX] HDMI compliance HDCP compliance Video bandwidth Single-link 225MHz [6.75Gbps] Video support 480i / 480p / 720p / 1080i / 1080p60 HDMI over UTP Full HD (1080p)-40m (130ft) [CAT5e] / 50m (165ft) [CAT6]... -
Page 5: Panel Descriptions
PANEL DESCRIPTIONS Transmitting unit of HDMI-C5IRB Front Panel IR Receiver: 3.5mm infrared socket for plugging in the extension cable of IR receiver IR Blaster: 3.5mm infrared socket for plugging in the extension cable of IR blaster HDMI IN: Connects to a HDMI source with a HDMI male-male cable Rear Panel +5V DC: Connect to 5V DC power supply unit either at the Transmitting Unit or the Receiving Unit. -
Page 6: Front Panel
Receiving Unit of HDMI-C5IRB Front Panel +5V DC: Connect to 5V DC power supply unit either at the Receiving Unit or the Transmitting Unit. Powered at one end is enough to supply the whole extender set. A / V SIGNAL: Connect a Cat-5/5e/6 cable to the AUDIO/VIDEO port on the Transmitting unit... -
Page 7: Ir Pass-Through
IR PASS-THROUGH IR Extenders IR Blaster IR Receiver IR Sockets plug in the IR blaster to emit all IR command signals received from the IR receiver from the other IR Blaster: enf to control the devices corresponding to the IR signals. IR Receiver: plug in the IR receiver to receive all IR command signals from the IR remote controls of the corresponding devices. -
Page 8: Supported Ir Data Format
Supported IR Data Format Data Format Suitable Not Recommended TOSHIBA MICOM CODE GRUNDIG CODE SONY 12 BIT CODE SONY 15 BIT CODE SONY 20 BIT CODE RCA CODE RCM CODE MATSUSHITA CODE ... -
Page 9: Hardware Installation
HARDWARE INSTALLATION 1. Connect a HDMI or DVI source (e.g., a Blu-ray Disc player) to the Transmitting Module. 2. Connect a HDMI or DVI display (e.g., a HDTV) to the Receiving Module. 3. Connect two solid Cat-5/5e/6 UTP/STP cable between the Transmitting and Receiving Modules. 4. -
Page 10: Notice
NOTICE 1. When adjusting the signal level on the Receiving unit, please dial the rotary control switch from MIN to MAX and stop turning the rotary switch whenever the audio/video is playing normally. Inappropriate signal level setting may cause overpowering issue that would shorten the product life significantly! 2. -
Page 11: Rj45 / Cat5 Pin Definition
RJ45 / CAT5 PIN DEFINITION Audio/Video Port Control Channel Port...
