Hdav HD-C5 User Manual

Hdmi audio & video dual cat5 /rj45 extender kit

Advertisement






HDMI Audio & Video
Dual CAT5



[Must be used with Solid CAT5e or CAT6 Cables]

All names & trademarks are property of their respective owners.


/RJ45 Extender Kit

User Manual
(HD‐C5)
All information is subject to change without notice.
Rev.1103





Made in Taiwan

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD-C5 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hdav HD-C5

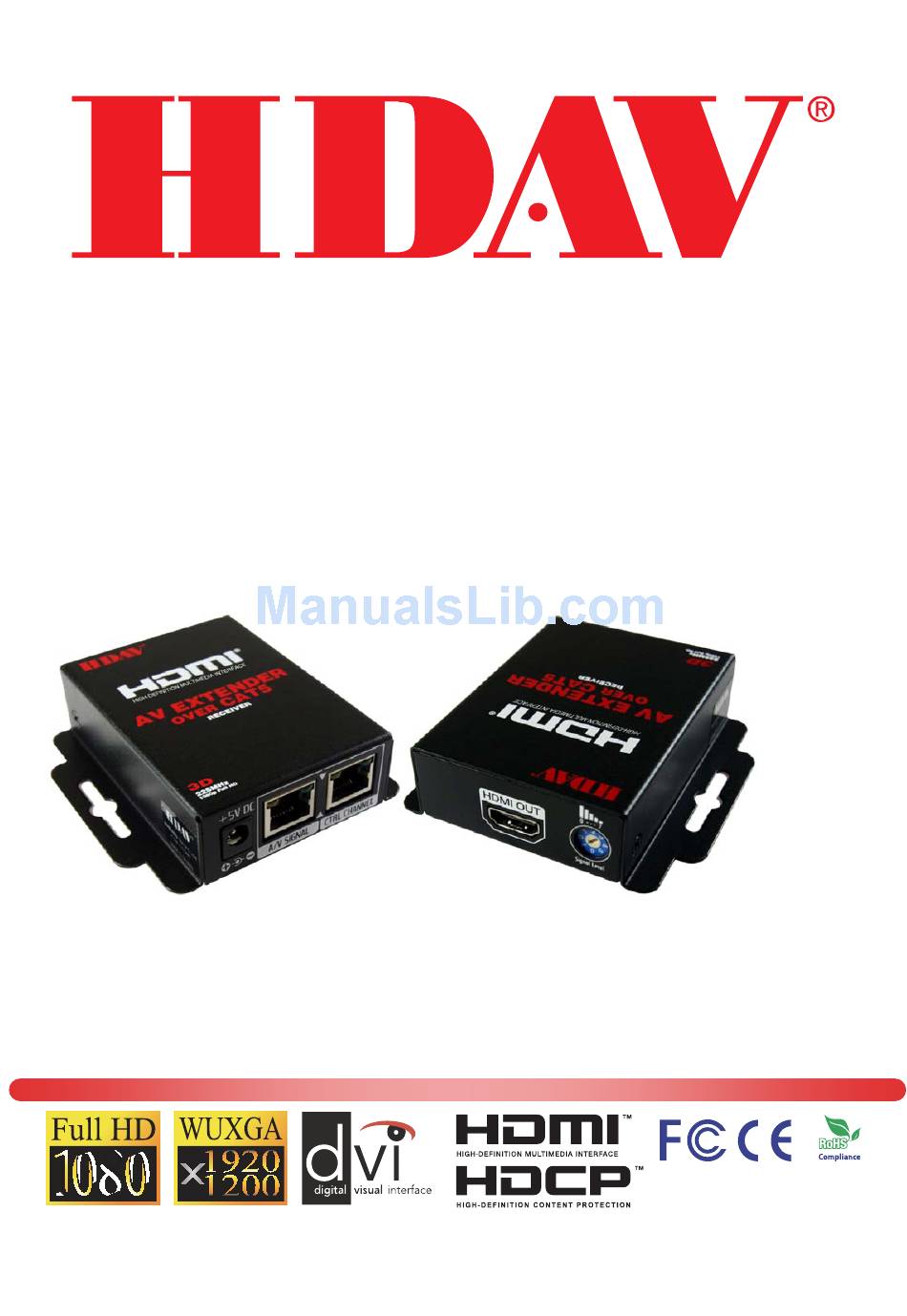

  • Page 1             HDMI Audio & Video  Dual CAT5 /RJ45 Extender Kit      User Manual  (HD‐C5)          [Must be used with Solid CAT5e or CAT6 Cables]    All information is subject to change without notice.  All names & trademarks are property of their respective owners.  Rev.1103            Made in Taiwan ...
  • Page 2 Safety and Notice         The HD‐C5 HDMI Audio & Video Dual CAT5 /RJ45 Extender Kit has been tested for conformance    to safety regulations and requirements, and has been certified for international use. However, like all  electronic  equipments,  the  HD‐C5  should  be  used  with  care.  Please  read  and  follow  the  safety  instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.    Follow all instructions and warnings marked on this unit.  Do not attempt to service this unit yourself, except where explained in this manual.  Provide proper ventilation and air circulation and do not use near water.  Keep objects that might damage the device and assure that the placement of this unit is on a  stable surface.  Use only the power adapter and power cords and connection cables designed for this unit.  Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device  before cleaning.  Table of Contents     ◇ I n t r o d u c t i o n … … … … … … … … … … … … … … … … . … … … … … … … … p . 2 ◇...
  • Page 3 INTRODUCTION The  HD‐C5  HDMI  Audio  &  Video  Dual  CAT5 /RJ45  Extender  Kit  boosts  up  your  audio  and  video    transmission  distance  up  to  60m  (200ft)  in  HDTV  1080i  format.  With  two  low  cost  Cat‐ 6  cables,        users can readily extend HDTV sources from DVD players, Blu‐ray Disc player, PS3, PC, and any other  kinds of sources compliant with TMDS to distant display monitors including HDMI or DVI‐enabled TV ...
  • Page 4 Specifications & Package Contents Model Name  HD‐C5     Technical  Role of usage  Transmitter [TX]  Receiver [RX]  HDMI Deep Color & 3D  HDMI compliance  Yes  HDCP compliance  Video bandwidth  Single‐link 225MHz [6.75Gbps]  Video support  480i / 480p / 720p / 1080i / 1080p60  Full HD (1080p)‐40m (130ft) [CAT5e] / 50m (165ft) [CAT6]  HDMI over CAT5 /RJ45  transmission [8‐bit]  HD (720p/1080i)‐50m (165ft) [CAT5e] / 60m (200ft) [CAT6]  Surround sound (up to 7.1ch) or stereo digital audio  Audio support  8‐level digital rotary switch for signal level control at receiver  Signal equalization  Input TMDS signal  1.2 Volts [peak‐to‐peak]  Input DDC signal  5 Volts [peak‐to‐peak, TTL]  [1] Human body model — ±19kV [air‐gap discharge] & ±12kV [contact discharge]  ESD protection  [2] Core chipset — ±8kV  PCB stack‐up  4‐layer board [impedance control — differential 100Ω; single 50Ω]  1x HDMI  2x RJ‐45  Input  2x RJ‐45  1x HDMI  Output  HDMI source control ...
  • Page 5: Panel Description

    PANEL DESCRIPTION   Input Panel — Transmitting Unit of HD‐C5    HDMI IN: Connect to a HDMI source with a HDMI male‐male cable here        Output Panel — Transmitting Unit of HD‐C5     A/V SIGNAL:  Plug in a Cat‐ 6 cable that needs to be linked to the A/V SIGNAL port on the        receiving unit of HD‐C5.  CTRL CHANNEL:  Plug in a Cat‐ 6 cable that needs to be linked to the CTRL CHANNEL port on          the receiving unit of HD‐C5.  ...
  • Page 6 Input Panel — Receiving Unit of HD‐C5  A/V SIGNAL:  Plug in a Cat‐ 6 cable that needs to be linked to the A/V SIGNAL port on the        transmitting unit of HD‐C5.  CTRL CHANNEL:  Plug in a Cat‐ 6 cable that needs to be linked to the CTRL CHANNEL port on        the transmitting unit of HD‐C5.  +5V DC: Connect to 5V DC power supply unit.        Output Panel — Receiving Unit of HD‐C5    HDMI OUT: Connect to a HDMI display with a HDMI male‐male cable here.  Signal Level:  Adjust the 8‐level equalization control to the received HDMI signals. The HDMI  signal level varies from 0 (strongest) to 7 (weakest) for respective transmission  length from longest possible range to short distance. It is recommended to  switch from 7 to 0 to find the optimal visual experience. ...
  • Page 7: Hardware Installation

    HARDWARE INSTALLATION   1. Connect a HDMI or DVI source (such as a Blu‐ray Disc player) to the transmitting unit of HD‐C5.  2. Connect a HDMI or DVI display (such as a LCD HDTV) to the receiving unit of HD‐C5.  3. Connect two Cat‐ 6 cables between the transmitting and receiving units via A/V SIGNAL and        CTRL CHANNEL ports respectively.  4. Make sure these two Cat‐ 6 cables are tightly connected and not loose.        5. Plug in 5V DC power supply unit to the power jack on the receiving unit on HD‐C5.  6. If you see flickering or blinking image on the display, try to adjust the rotary control switch to  improve  the  cable  skew.  0  stands  for  the  strongest  HDMI  signal  level  for  longest  possible  transmission  length  while  7  stands  for  the  weakest  HDMI  signal  level  for  short  transmission  length. Try adjusting the signal level from 7 to 0 to find the optimal setting for the HDMI over ...
  • Page 8 NOTICE 1. If  the  DVI  or  HDMI  device  requires  the  EDID  information,  please  use  EDID  Reader/Writer  to  retrieve and provide EDID information of the DVI or HDMI display.  2. All  HDMI  over  CAT5  transmission  distances  are  measured  using  Belden  1583A  CAT5e  125MHz  UTP cable and ASTRODESIGN Video Signal Generator VG‐859C.  3. The  transmission  length  is  largely  affected  by  the  type  of  Cat‐5 6 ...
