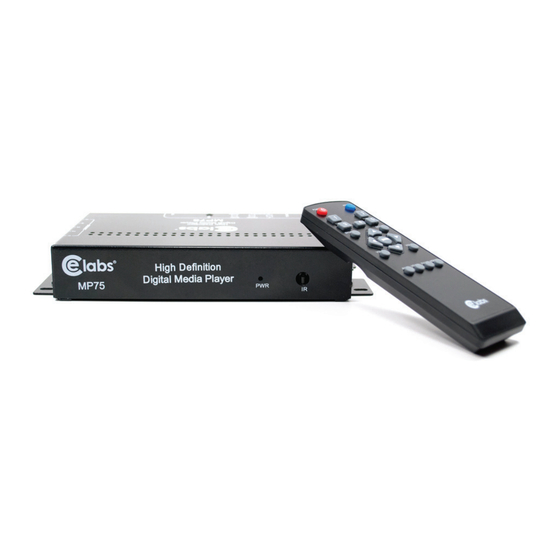

MP75
HD Media Player

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP75 and is the answer not in the manual?

Questions and answers

Related Manuals for CE Labs MP75

Summary of Contents for CE Labs MP75

  • Page 1 MP75 HD Media Player...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Caution 2. Features and Specifications 3. Unit and Accessories 4. Functions of Buttons on the Remote Control 5. Media Player’s Connections 6. How to Play Multimedia Files 6.1 How to play video files 6.2 How to play audio files 6.3 How to play pictures 7.

  • Page 3: Caution

    CAUTION 1. Caution Please do not use this product in high temperature or humidity areas. Keep the Media Player away from magnetic devices, since it might effect data transfer of the product. Please do not move or strike the Media Player while it is working. Please use the power adapter included.

  • Page 4: Features And Specifications

    FEATURES AND SPECIFICATIONS Features 2.1.1 The MP75 can be connected to a SD or HD TV and play Multimedia Files such as: Movies, Music, and Pictures. Supports multiple Storage Devices: SD Memory Cards and multiple USB Storage Devices. The MP75 has an integral security bracket for the SD card. The bracket serves as a support shelf to prevent damage to the card as well as providing a means to attach the SD card to the unit via a cable tie.

  • Page 5: Unit And Accessories

    On or Off Home: Go to Home Menu Page Numbers: Press to emulate GPIO pushbuttons Browser: Navigate the attached memory device Setup: Change MP75 Parameters Arrows: Navigate Menu Options Vol: Volume Up or Down Output: AV, VGA, YUV, HDMI IR Remote...

  • Page 6: Media Player's Connections

    (2) Plug in the Power Adapter (3) Turn on the TV and set the TV to AV input (4) Set the MP75 to NTSC (A/V) output (5) Insert the media card. Note: Please connect only one video output cable at a time.
  • Page 7 (2) Plug in the Power Adapter (3) Turn on the TV and set the TV to VGA Video input (4) Set the MP75 to VGA output (5) Insert the media card Note: Please connect only one video output cable at a time.

  • Page 8: How To Play Multimedia Files

    • Push button content should be placed into numbered folders While music files are playing, the MP75 will output a graphics screens with a title of the media, and equalizer display, and a progress bar. There are no options to advance to a next file. You may select an alternative music title by pressing a GPIO push button associated with a folder that contains the desired content.

  • Page 9: How To Play Pictures

    The setup for pushbuttons is easy. Using a PC, simply create 5 folders on the SD card or USB drive to be used with the MP75. The folders must be named with the numbers 1, 2, 3, 4, and 5. Once created, load the media that you wish to associate with each button in the corresponding folder.

  • Page 10: System Setup

    SYSTEM SETUP Press the SETUP button on the remote. The screen shown here will appear. 1 To press to select item to change 2 Press ENTER to change the setup. Press HOME to return to previous menu. 3 Keep pressing HOME to exit from the SETUP screen.

  • Page 11: Faq

    Before the direct access buttons are active, you must stop playback and remove the memory card from the MP75. Change to the desired output and reinsert the memory card.
  • Page 12 WARRANTY Cable Electronics, Inc. warrants this product to be free from defects in material and workmanship, under normal use and service, for a period of one year from the purchase by the original purchaser. If this product is defective or malfunctions, Cable Electronics will replace or repair this unit (at their option) within a reasonable time.
