CE Labs MP800 Quick Start Manual

Uhd media player
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

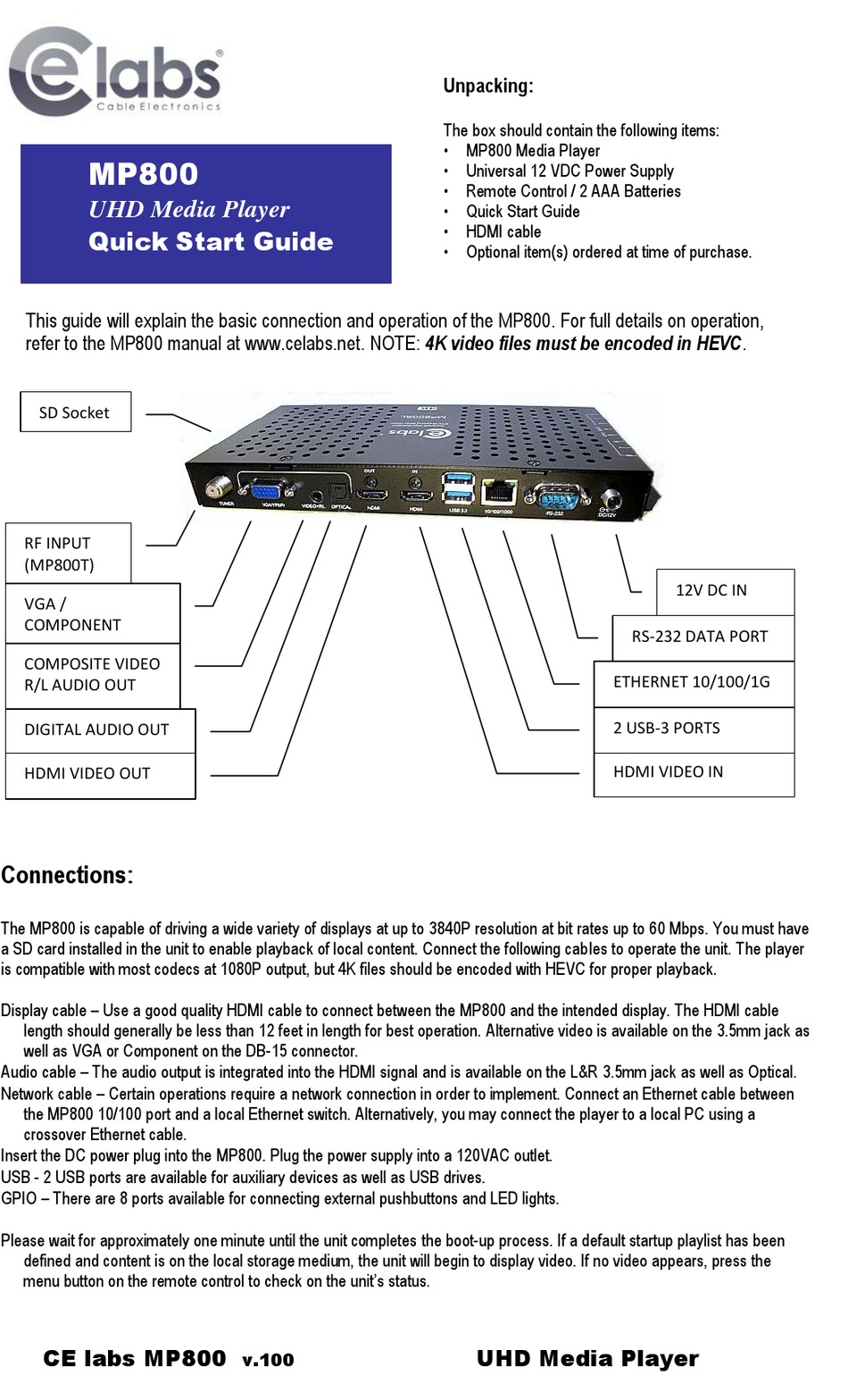

MP800
UHD Media Player
Quick Start Guide
This guide will explain the basic connection and operation of the MP800. For full details on operation,
refer to the MP800 manual at www.celabs.net. NOTE: 4K video files must be encoded in HEVC.
SD Socket
RF INPUT
(MP800T)
VGA /
COMPONENT
COMPOSITE VIDEO
R/L AUDIO OUT
DIGITAL AUDIO OUT
HDMI VIDEO OUT

Connections:

The MP800 is capable of driving a wide variety of displays at up to 3840P resolution at bit rates up to 60 Mbps. You must have
a SD card installed in the unit to enable playback of local content. Connect the following cables to operate the unit. The player
is compatible with most codecs at 1080P output, but 4K files should be encoded with HEVC for proper playback.
length should generally be less than 12 feet in length for best operation. Alternative video is available on the 3.5mm jack as
well as VGA or Component on the DB-15 connector.
the MP800 10/100 port and a local Ethernet switch. Alternatively, you may connect the player to a local PC using a
crossover Ethernet cable.
defined and content is on the local storage medium, the unit will begin to display video. If no video appears, press the

Menu:

menu button on the remote control to check on the unit's status.
CE labs MP800
v.100

Unpacking:

The box should contain the following items:
• MP800 Media Player
• Universal 12 VDC Power Supply
• Remote Control / 2 AAA Batteries
• Quick Start Guide
• HDMI cable
• Optional item(s) ordered at time of purchase.
UHD Media Player
12V DC IN
RS-232 DATA PORT
ETHERNET 10/100/1G
2 USB-3 PORTS
HDMI VIDEO IN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP800 and is the answer not in the manual?

Questions and answers

Related Manuals for CE Labs MP800

Summary of Contents for CE Labs MP800

  • Page 1 Connections: The MP800 is capable of driving a wide variety of displays at up to 3840P resolution at bit rates up to 60 Mbps. You must have a SD card installed in the unit to enable playback of local content. Connect the following cables to operate the unit. The player is compatible with most codecs at 1080P output, but 4K files should be encoded with HEVC for proper playback.

  • Page 2: Network Setup

    CE Labs QS Pro Designer 7X® The MP8000 may be remotely controlled from within a LAN (restricted to local sub-net) via the CE labs QS Pro Designer 7X® software. This application allows you to scan your network to discover installed players or you can manually add them. Once the player is input, the software can be used to check status, set video resolution, add or delete content, create playlists, publish content to a SD card, etc.
  • Page 3 The unit has ventilation holes on the top of the chassis. Theses should remain uncovered during operation. There are no ventilation openings on the bottom of the chassis, so it may be attached directly to a shelf or monitor. CE labs MP800 UHD Media Player...
  • Page 4 This allows you to send your videos, pictures, layouts, etc. to a SD card plugged into your computer. The proper folders will be created on the SD card. Remove the SD card from the PC and insert into the MP800. The new content published to the SD card will begin to play automatically.
