Your model is equipped with the newest TQi 2.4GHz transmitter
with Traxxas Link ™ Model Memory. The transmitter has two
channels for controlling your throttle and steering. The receiver
inside the model has 5 output channels. Your model is equipped
with one servo and an electronic speed control.

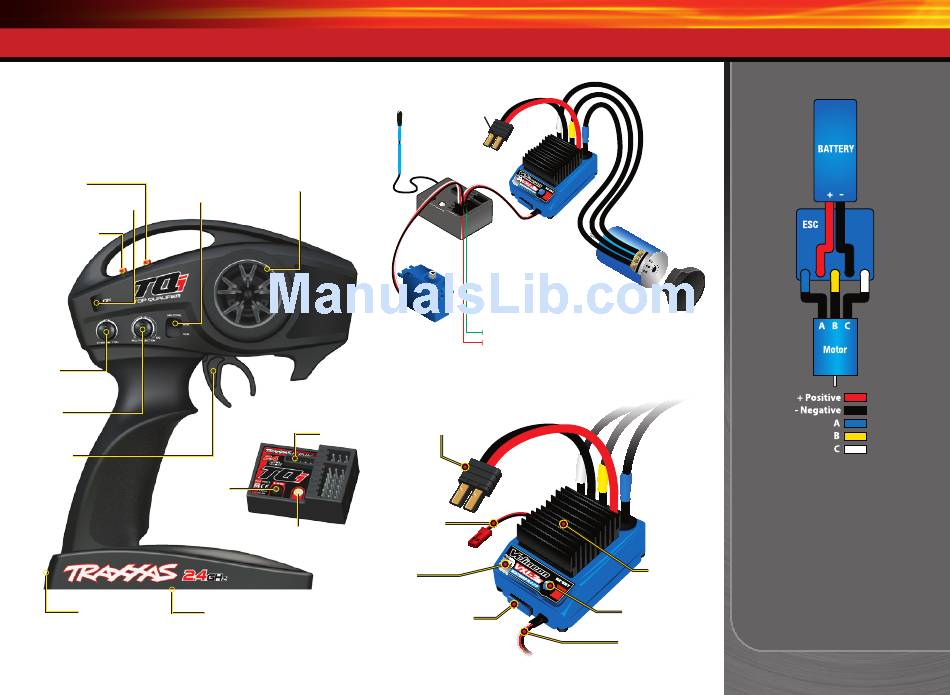

TRANSMITTER AND RECEIVER

Set Button Throttle Neutral
Adjust
Red/Green Status LED
see page 30 for more info
Menu Button
Steering
Trim
Multi-Function
Knob
Throttle
Trigger
Link
Button
Power Switch Battery Compartment
** Accessory sensor port for use with TQi Docking Base (see Traxxas.com and included materials for more information)
TRAXXAS TQ

MODEL WIRING DIAGRAM

Traxxas High-Current
Connector (Male)
to Battery
Antenna
Receiver
Steering Wheel
Channel 1
Steering Servo
* Not used
VXL-3s ELECTRONIC SPEED CONTROL
Traxxas High-Current
Connector (Male)
Sensor Expansion
to Battery
Port **
Cooling Fan
Connector
LED
(for optional use)
LED
Auxiliary Port
(for optional use)
RADIO & VELINEON POWER SYSTEM
i
Brushless Motor
(see side bar for proper
Channel 2
Electronic
Speed Control
V/T - Voltage/Temp Senor Port**
RPM - RPM Sensor Port**
BATT/
CH5 - Battery/Channel 5*
CH4 - Channel 4*
CH3 - Channel 3*
CH2 - Speed Control
CH1 - Steering Servo
CH1 - Channel 1*
** Accessory sensor port for use with TQi Docking Base
(see Traxxas.com and included materials for more information)
EZ-Set Button
(On/Off Button)
Receiver cable
(RX wire)
ESC/Motor Wiring Diagram
Velineon
motor wiring)
Motor Cap
to Motor
Heat Sink
SLASH 4x4 • 11
