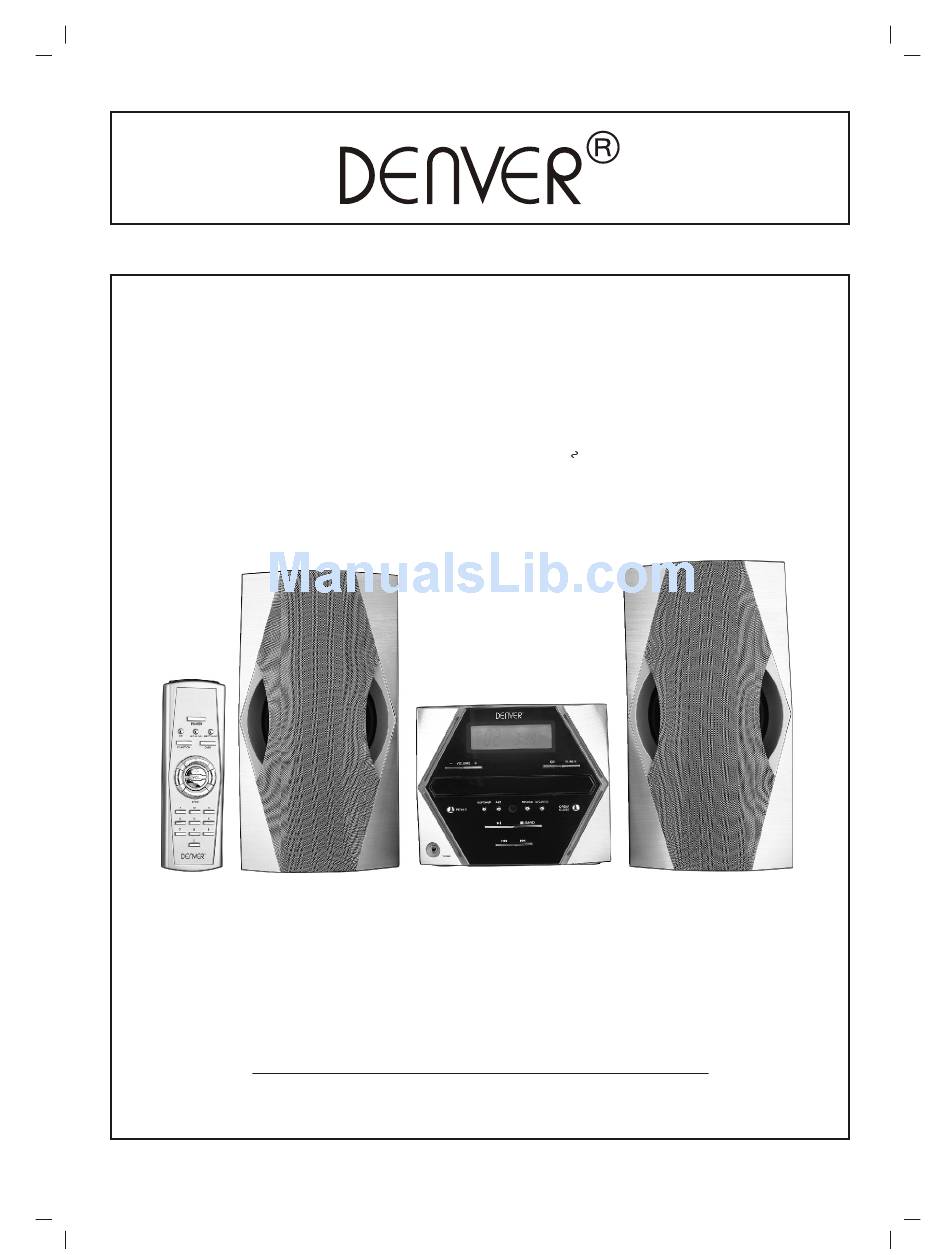

- Page 1 INSTRUCTION MANUAL BETJENINGSVEJLEDNING BRUKSANVISNING BEDIENUNGSANLEITUNG MANUAL DE INSTRUCOES MCA - 150 www.denver-electronics.com Copyright. All rights reserved.
-
Page 2: For Safe And Efficient Operation
INSTRUCTION MANUAL DENVER MCA-150 WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION Use of controls or adjustments or performance of procedures CLASS 1 LASER PRODUCT other thanthose specified herein may result in hazardous... -
Page 3: Power Supply
POWER SUPPLY ANTENNA RESET OHMS LOOP ~ AC IN AC power operation The unit is not disconnected from the mains Connect one end of the mains lead to the (AC unless the mains lead is unplugged from the AC ~IN) socket and the other end to an AC outlet. outlet. - Page 4 15 16 17 18 LIGHT POWER ANTENNA ON OFF RESET OHMS LOOP ~ AC IN English-3 English-3...
-
Page 5: Remote Control
CONTROLS 1. Volume button (VOLUME 13. CD Open/close (OPEN/CLOSE) 2. Volume button (VOLUME 14. Random button (RANDOM) 3. LCD display (back light) 15. Play/Pause button (PLAY/ PAUSE 4. CD function button (CD) 16. CD/RW Skip / Tuning up button ( SKIP) 5. -
Page 6: Control Operation
CONTROL OPERATION Operation Button Name Volume down button Press the VOLUME key to decrease the volume. ( VOLUME MAXIMUM 80db 70db Volume up button Press the VOLUME key to Increase the volume. ( VOLUME 40db 42db 44db 78db 80db MAXIMUM CD function button Press CD key to CD function. - Page 7 CONTROL OPERATION Operation Button Name OPEN/CLOSE button Press the OPEN/CLOSE button to open and close ( OPEN/CLOSE ) the disc tray. Random button Press the RANDOM button, the tracks on the disc can ( RANDOM ) be played in random order automatically. CD Play back start and Pause (temporary stop) Play/ Pause button function.
- Page 8 OPERATION OF REMOTE HANDSET Operation Button Name Power button M/clk adj button PREFERENCES CONTROL OPERATION. EQ button Rept/m-up button SKIP / Tuning down button Play/ Pause button Volume button SKIP / Tuning up button Volume button Stop / Band button There are 2 deferent function mode, CD and TUNER.
-
Page 9: General Operation
GENERAL OPERATION To open and close the power Compact discs - Both 8cm and 12cm discs can be played in this unit. NOTE: Place only one disc at a time in the CD POWER compartment. - Only discs bearing the logo as shown can be played in this unit. -
Page 10: Speaker Connection
SPEAKER CONNECTION There is no distinction between the right and the left speakers. Right speaker Left speaker INPUT INPUT Black Caution: Do not mistake the right and the left channels. the right speaker is the one on the right side when you face the unit. -
Page 11: Compact Disc Operation
COMPACT DISC OPERATION CD PLAY Press the "PLAY" button to play. To control the sound. VOLUME OPEN/ CLOSE Open the disc tray Press and release repeatedly /BAND Label facing up OPEN/ CLOSE Press STOP . Close the disc tray 2 TO CD POWER TUNER To OFF... -
Page 12: Track Skip
PAUSE 1. Press the PLAY/PAUSE button during play. Play will temporarily stop, and PAUSE indicator will show. /BAND 2. Press the PLAY/PAUSE button again to resume play. Pause indicator will go off. TRACK SKIP 1. Press and release the SKIP button repeatedly during play to quickly locate the beginning of a track. -
Page 13: Programmed Play
PROGRAMMED PLAY With programmed play, up to 20 tracks on a disc can be memorized and played in any order. Press M/CLKADJ button, the For example to program track 7, 12 " MEMORY " indicator will show. 1 In stop state, Press M/CLKADJ button, the MEMORY indicator will flash. -
Page 14: Radio Operation
RADIO OPERATION 3 Tune in a station. In tuner mode, when the TUNING button is pressed for more than 0.5 seconds, scanning will start automatically and the tuner will stop at the first receivable 1 To RADIO. broadcast station. TUNER 4 To control the sound. -
Page 15: Clock Operation
CLOCK OPERATION After connecting the power, press " M/CLKADJ " button and at the some time, display " 24H " indicator will flash, Press " " or " " button to select "12H" or "24H", again press " M/CLKADJ " button, and pressthe " "... -
Page 16: Specifications
: FM : 87.5-108MHz (W) x (D) x (H) AM : 522-1620KHz weight (approx) : 4.3kg Aerials : FM wire ANT AM loop ANT Specifications subject to change without notice. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN www.denver-electronics.com English-15... - Page 17 SUBJECT TO MODIFICATION WITHOUT NOTICE!
