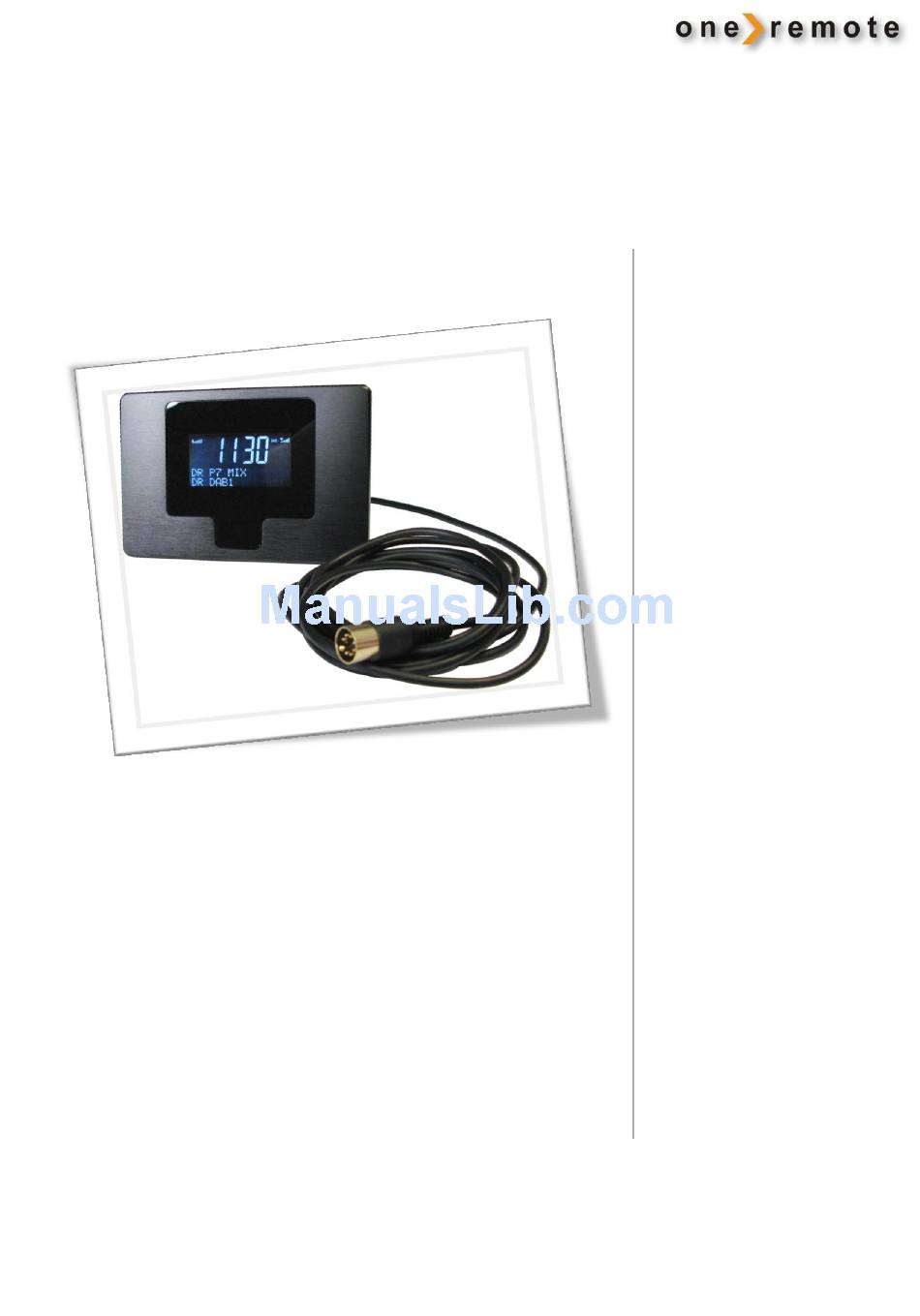

- Page 1 OneRemote DAB/ FM Tuner Type 30012646 Operable with B&O Remotes Only User Manual 30012646u1uk...
-
Page 2: Translation Table
Set as preset 8 Set as preset 9 Set as preset 9 Set as preset 10 Set as preset 10 Not all Bang & Olufsen equipment responds to numeric commands. Using the Direct Mode option is recommended. www.oneremote.dk Page 1... -
Page 3: Table Of Contents
Direct or CableLink mode ..................page Factory settings ....................... page Installation ......................page Connection to B&O Equipment ................page Antenna connection ....................page Automatic power on and off ..................page Option programming ....................page Source & Option selection ..................page www.oneremote.dk Page 2... -
Page 4: Getting Started
Thus the tuner is Beolink compatible. Direct Mode or CableLink Mode The OneRemote DAB/FM tuner is connected to Bang & Olufsen equipment via the 7-pin DIN cable with or without adaptor, and through option programming it may be controlled as follows: 1. -
Page 5: Installation
Connection to Bang & Olufsen Equipment This OneRemote DAB/FM tuner may be connected to any Bang & Olufsen BeoSound, BeoCenter, BeoMaster, BeoSystem or BeoVision TV and controlled with a Bang & Olufsen remote control terminal, but it may also be connected to equipment of any other brand and still be controlled with the Bang &... -
Page 6: Antenna Connection
Antenna Connection The OneRemote DAB/FM tuner may be connected to any antenna designed for FM and the DAB reception. If the FM signal strength is not sufficient the reception will be noisy. If the DAB signal strength is not sufficient the reception is varying from disturbing ”bubbles”... -
Page 7: Option Programming
The tuner is powered up or the tuner is searching for a signal to set the clock. Intermittently turned off The LED turns off very briefly as a command handshake indicator. *1 If using a Beolink1000 remote control, LIGHT must be replaced with SHIFT-LINK. www.oneremote.dk Page 6... -
Page 8: Source & Option Selection
The following tables show the available input sockets on various Bang & Olufsen audio and video products, how to select them using a remote control terminal and what the corresponding option program of the One Remote DAB/FM tuner should be. The OneRemote DAB/ FM tuner has to be programmed with the right option to operate correctly: Selected Direct... - Page 9 ATAPE Input Socket Selected Direct CableLink Remarks Source Option Option DIN in/ out. BeoSound 3000 A.AUX BeoSound 3200 SHIFT RADIO DIN in/ out. A.MEM ATAPE DIN in/ out. N.MUSIC A.MEM2 SHIFT ATAPE DIN in/ out. N.RADIO PHONO www.oneremote.dk Page 8...
- Page 10 Input with control data via N.RADIO cable. No numeric data via PHONO cable. Input Socket Selected Direct CableLink Remarks Source Option Option Input with control data via BeoCenter 8000 TAPE2 N.MUSIC cable. No numeric data via A.MEM2 cable. SHIFT A.TAPE www.oneremote.dk Page 9...
- Page 11 Remarks Source Option Option Input with control data via BeoCenter 9300 PHONO N.RADIO cable. No numeric data via PHONO cable. Input with control data via TAPE2 N.MUSIC cable. No numeric data via A.MEM2 cable. SHIFT A.TAPE A.AUX www.oneremote.dk Page 10...
- Page 12 The Beolink Converter 1611 must be wired with a Masterlink cable to a single B&O TV or Audiomaster. The receiver must be connected using a 39207432 ASNUT adaptorcable. The receiver must be connected using a 39207434 VSNUT adaptorcable. www.oneremote.dk Page 11...
- Page 13 All newer TV-models may be connected via the AV input sockets too…………… connection to an AV Input on the TV using the OneRemote Adaptor, type 39207496. Check the TV user guide for setting up the AV inputs. www.oneremote.dk Page 12...
- Page 14 Page 13...
- Page 15 Page 14...
- Page 16 Page 15...
