Summary of Contents for OneRemote iRadio 2

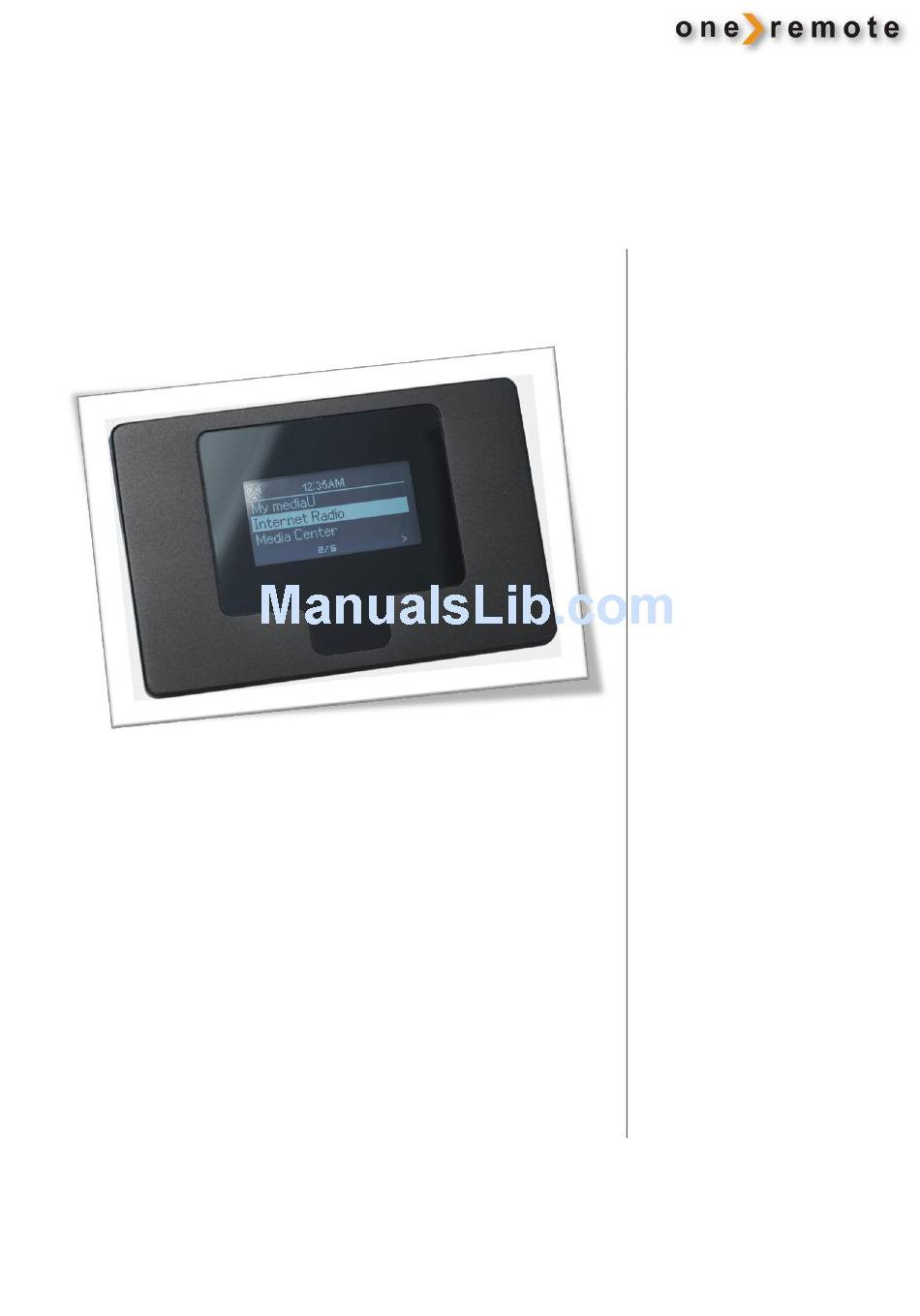

- Page 1 OneRemote Internet Tuner iRadio2 Type 30012645 Controlled by B&O Remotes Only User Manual 30012645u2uk...
-
Page 2: Everyday Control With Beo4, Beo5, Beo6
Mode – Internet/ UPnP 0 – 9 Select a preset program. 0 – 9 Select a preset program. Up to 250 channels can be stored in memory. A preset channel is selected by entering one, two or three digits. www.oneremote.dk... -
Page 3: Table Of Contents
Option Programming ..............................8 Source & Option Selection ............................9 Connection via a BeoLink Converter 1611/ 1612.......................15 Connection via a BeoLink Active in any Link Room ....................16 Connection to a 21 Pin AV Socket on any Bang & Olufsen TV..................17 www.oneremote.dk... - Page 4 IRadio is equipped with a 7 pin DIN DataLink cable for connection to Bang & Olufsen equipment. Thus an adaptor cable is required for connection to equipment not having a DIN input socket. See below examples and the Option Programming section page 8. www.oneremote.dk...
-
Page 5: Getting Started
Thus the iRadio2 is BeoLink compatible. Direct Mode or CableLink Mode The OneRemote iRadio2 tuner is connected to Bang & Olufsen equipment via the 7-pin DIN cable with or without adaptor, and through option programming it may be controlled as follows: 1. -
Page 6: Functions
MediaU account as described above. Media Center UPnP, Play Music from PCs on the LAN. 1. Select Main Menu with 2. Select Mediacenter/ UPnP 3. Show lists with accessible files withS 4. Select the desired file. www.oneremote.dk... -
Page 7: Installation
Language. 1. Select Main Menu with 2. Select /Configuration/Language withS 3. Select the desired display language. Factory Settings. 1. Select Main Menu with 2. Select /Configuration/Reset to Default withS 3. Select YES to reset iRadio2 to the factory settings. www.oneremote.dk... -
Page 8: Iradio2 Connection To Bang & Olufsen Equipment
Connection to Bang & Olufsen Equipment This OneRemote iRadio2 tuner connects to ALL Bang & Olufsen equipment having a vacant audio input, like BeoSound, BeoCenter, BeoMaster, BeoSystem or BeoVision TV, and it is controlled by a Bang & Olufsen remote control terminal. -
Page 9: Option Programming
0- 9, w or is received. The tuner is ready for control. Intermittently turned off The LED turns off very briefly as a command handshake indicator. *1 If using a Beolink1000 remote control, LIGHT must be replaced with SHIFT-LINK. www.oneremote.dk... -
Page 10: Source & Option Selection
The following tables show the available input sockets on various Bang & Olufsen audio and video products, how to select them using a remote control terminal and what the corresponding option program of the One Remote iRadio2 tuner should be. The OneRemote iRadio2 tuner has to be programmed with the right option to operate correctly: Input Source Selected... - Page 11 Direct CableLink Remarks Socket Option Option BeoSound 4 The input is RCA phono sockets. Use a OneRemote adaptor cable, type 39207438. If the MasterLink socket is MasterLink not used, the iRadio2 tuner might be connected and operated via a BeoLink Converter.
- Page 12 In the CableLink mode numeric commands are not accepted. If the MasterLink socket is MasterLink not used, the iRadio2 tuner might be connected and operated via a BeoLink Converter. See page 15 for details on connection of the BeoLink Converter 1611. www.oneremote.dk...
- Page 13 In the CableLink mode numeric commands are not accepted. Input Socket Source Selected Direct CableLink Remarks Option Option In the CableLink mode numeric BeoMaster 3300 commands are not accepted. In the CableLink mode numeric commands are not accepted. BeoMaster 5500 www.oneremote.dk...
- Page 14 Option Option In the CableLink mode numeric BeoCenter 8000 TAPE2 commands are not accepted. Input Socket Source Selected Direct CableLink Remarks Option Option In the CableLink mode numeric BeoCenter 8500 TAPE2 commands are not accepted. BeoCenter 9000 BeoCenter 9500 www.oneremote.dk...
- Page 15 The input is a scart socket, BeoSystem 3 21 pin AV socket. Use a OneRemote adaptor cable, type 39207496. The input is RCA phono sockets. Use a OneRemote adaptor cable, type 39207438. uetc. If the MasterLink socket is MasterLink not used, the iRadio2 tuner...
-
Page 16: Connection Via A Beolink Converter 1611/ 1612
Connection via a BeoLink Converter 1611/ 1612. The OneRemote iRadio2 tuner may be connected to a Bang & Olufsen stand-alone audio or video master, TV, via a BeoLink Converter using MasterLink and the AAL inputs. Connected to an audio master and programmed as a ”video source” the iRadio2 may be selected as that, VMEM as an example. -
Page 17: Connection Via A Beolink Active In Any Link Room
Connection via a BeoLink Active in any Link Room The OneRemote iRadio2 tuner may be connected to a Bang & Olufsen BeoLink Active with a vacant ‘PC’ socket. Thus active speakers in any link room allow for the installation of the iRadio2 tuner and the opportunity of having a local radio source controlled directly with the Bang &... -
Page 18: Connection To A 21 Pin Av Socket On Any Bang & Olufsen Tv
Remarks Socket Option Option The input is a scart socket, a All B&O TV models Scart 21 pin AV socket. Use a OneRemote adaptor cable, BeoVision 10 AV1 - AV6 type 39207496. BeoVision 8 NOT the BeoVision 7 DECODER BeoVision 6...
