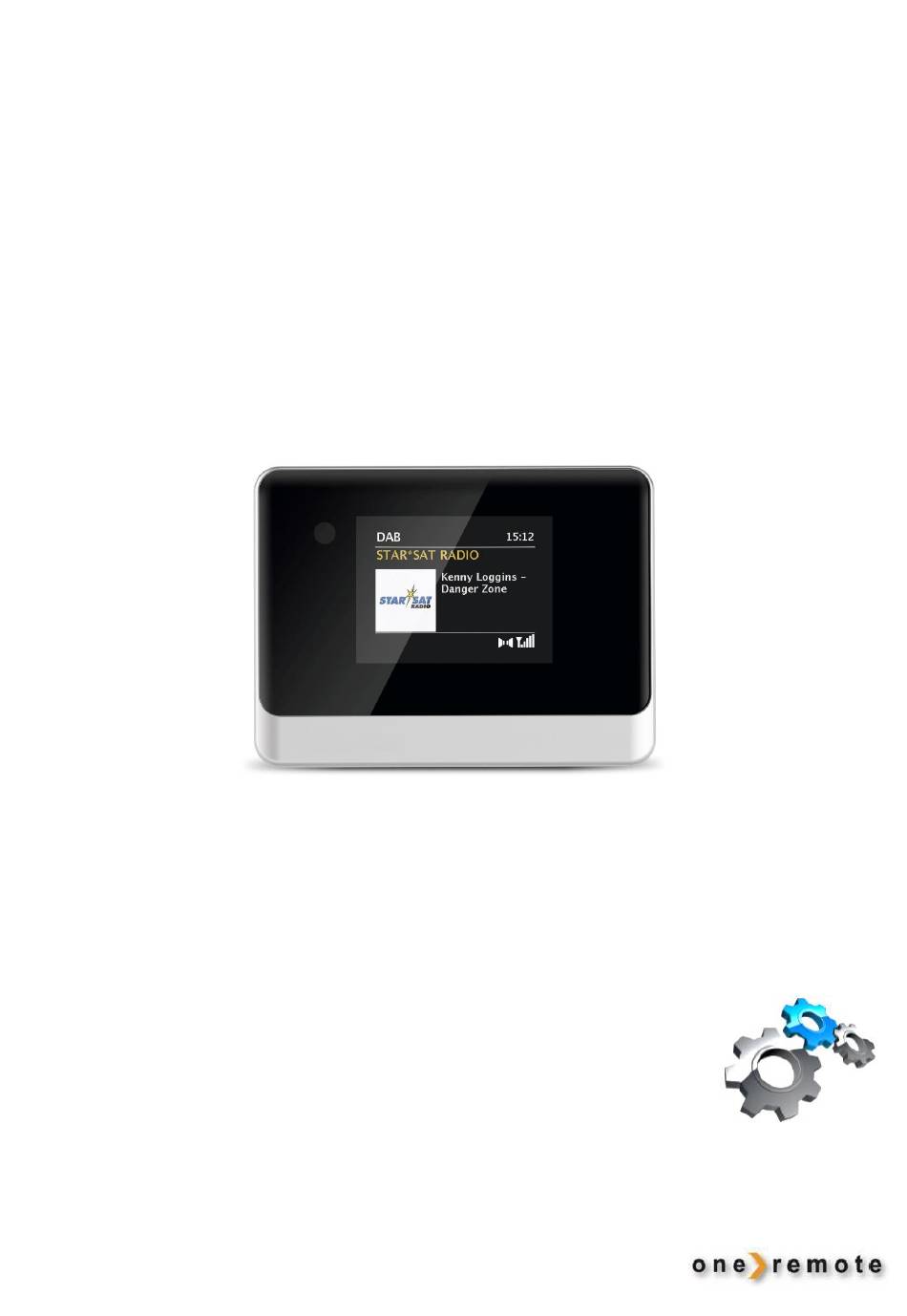

- Page 1 OneRemote DabWiFi5 Advanced Tuner for Bang & Olufsen Systems Handling DAB/DAB+ – FM - Bluetooth - Internet Radio Spotify Connect- Music Player Setup Guide Control with Bang & Olufsen Remotes 3001.2024.UK.S2...
- Page 2 www.oneremote.dk...
-
Page 3: Table Of Contents
Contents THIS GUIDE..............................5 The DabWiFi5 must be setup to the Bang & Olufsen system ..................... 5 CONNECT DABWIFI5 WITH DEFAULT PERSONALITY..............6 VOLUME ................................7 INSTALLATION ............................. 7 CONNECTIONS .............................. 8 Antenna connection ................................8 OPTIONS ................................. 9 Source Key .................................. - Page 4 The BeoLink Converter connected to a Bang & Olufsen TV ..................25 BEOLINK ACTIVE – CONNECTION VIA A BEOLINK ACTIVE IN ANY LINK ROOM ....26 Connect the DabWiFi5 tuner via the PC input socket ....................26 LINKSYSTEMS - BANG & OLUFSEN CABLE CONNECTIONS............27 Cables and snuts for the DabWiFi5 tuner .........................
-
Page 5: This Guide
This guide covers the connection of the DabWiFi5 tuner to a Bang & Olufsen system. Check the User Guide for the DabWiFi5 tuner for the daily control with a Bang & Olufsen remote. THE DABWIFI5 MUST BE SETUP TO THE BANG & OLUFSEN SYSTEM When the DabWiFi5 tuner’s location in the Bang &... -
Page 6: Connect Dabwifi5 With Default Personality
Some Bang & Olufsen devices only have a single input socket. This socket might be activated via other commands than y / b. In these cases the personality of the DabWiFi5 can be changed for it to power up on the suitable command like AAUX or CD or other else. -
Page 7: Volume
BeoSound, BeoCenter, BeoMaster or a BeoVision TV and is controlled with a Bang & Olufsen remote. DabWiFi5 may also be connected to equipment of all other brands, but it can only be controlled with a Bang & Olufsen remote. -
Page 8: Connections
CONNECTIONS ANTENNA CONNECTION The OneRemote DabWiFi5 tuner needs an antenna signal of sufficient strength and quality. If both DAB and FM channels are received the antenna shall provide a signal containing both frequencies. • If the FM signal does not provide a sufficient strength the reception is noisy and very poor. -
Page 9: Options
When DabWiFi5 is connected to power, a blue light on the front is flashing for 8 seconds. Only while the light flashes blue, is it possible to program an option. If missed or if there is a need to entering further options, power must be removed for 20 seconds. -
Page 10: Source Key
From the factory the DabWiFi5 has the personality of an ATAPE/AMEM device. Thus, is can be connected to an input socket of a Bang & Olufsen device that is selected when pressed on the Bang & Olufsen remote. If there is no socket available on the Bang & Olufsen device selected with , the DabWiFi5 must be option programmed to have another personality. -
Page 11: Special Options
SPECIAL OPTIONS Below special options are available for the DabWiFi5 tuner. Options may be programmed only at booting of the DabWiFi5, while the blue lamp is flashing. Factory Option CONTROL L991w Disable Power Off control. Always ON. L990w Enable Power Off with Remote. -
Page 12: Connect The Dabwifi5 Tuner To Beolab 3500
CONNECT THE DABWIFI5 TUNER TO BEOLAB 3500 A BeoLab 3500 in a link system may access a DabWiFi5 tuner connected to a Bang & Olufsen radio or TV in the same link system. As an example, the DabWiFi5 tuner may be connected to an ATAPE input socket on a radio or a VAUX socket on a TV. -
Page 13: Bang & Olufsen Equipment And Oneremote Options
The OneRemote DabWiFi5 tuner must be programmed with the correct option to operate in the actual Bang & Olufsen environment. Options may be programmed only at booting of the DabWiFi5, while the blue lamp is flashing. B&O Device Input Socket Source selected with B&O Remote. -
Page 14: Beosound 4
RCA IN Use a OneRemote adaptor cable, BEOSOUND 4 type 39207438. The DabWiFi5 may be added as an audio MasterLink source in a MasterLink system. If the MasterLink socket in a BeoSound 4 is vacant, the DabWiFi5 may be added via a BeoLink Converter 1611 and controlled as described below. -
Page 15: Beosound 9000
B&O Device Input Socket Source selected with B&O Remote. Remarks BEOSOUND 9000 B&O Device Input Socket Source selected with B&O Remote. Remarks BEOSOUND 3000 3200 www.oneremote.dk... -
Page 16: Beosound Ouverture
Input Socket Source selected with B&O Remote. Remarks BEOSOUND OUVERTURE If the MasterLink socket is not in use, the DabWiFi5 Masterlink tuner might be connected and operated via a BeoLink Converter, using this socket. The DabWiFi5 can then be accessed using or another video source. -
Page 17: Beocenter 2300
B&O Device Input Socket Source selected with B&O Remote. Remarks BEOCENTER 2300 See the chapter ”Advanced connection to AUX/TV socket”. B&O Device Input Socket Source selected with B&O Remote. Remarks TP/ ATAPE BEOMASTER 3300 www.oneremote.dk... -
Page 18: Beomaster 3500 4500
Source selected with B&O Remote. Remarks BEOMASTER 3500 4500 See the chapter ”Advanced connection to AUX/TV socket”. B&O Device Input Socket Source selected with B&O Remote. Remarks BEOMASTER 5500 AUX/ TV See the chapter ”Advanced connection to AUX/TV socket”. www.oneremote.dk... -
Page 19: Beomaster 6500 7000
AUX/TV socket”. B&O Device Input Socket Source selected with B&O Remote. Remarks TAPE2 BEOCENTER 8000 B&O Device Input Socket Source selected with B&O Remote. Remarks TAPE2 BEOCENTER 8500, 9000, AUX/ TV See the chapter ”Advanced 9500 connection to AUX/TV socket”. www.oneremote.dk... - Page 20 B&O Device Input Socket Source selected with B&O Remote. Remarks PHONO BEOCENTER 9300 TAPE2 AUX/ TV See the chapter ”Advanced connection to AUX/TV socket”. www.oneremote.dk...
