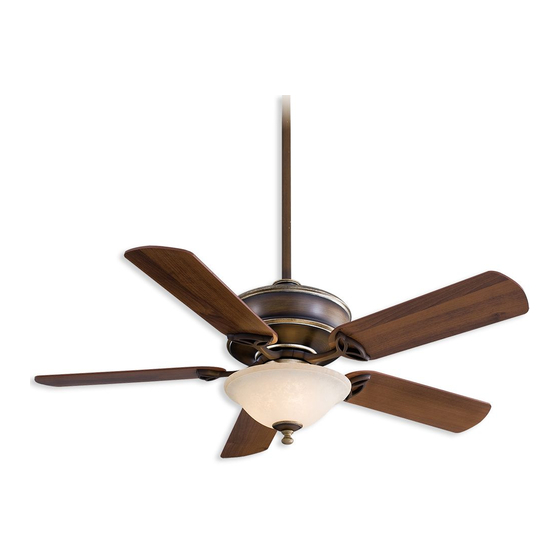

Minka-Aire Bolo Instruction Manual Warranty Certificate

Ceiling fans
Hide thumbs
Table of Contents

Advertisement

Quick Links

Bolo
TM
BY
INSTRUCTION MANUAL WARRANTY CERTIFICATE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bolo and is the answer not in the manual?

Questions and answers

Related Manuals for Minka-Aire Bolo

Summary of Contents for Minka-Aire Bolo

  • Page 1 Bolo INSTRUCTION MANUAL WARRANTY CERTIFICATE...
  • Page 2 Manual design and all elements of manual design are protected by U.S. Federal and/or State Law, including Patent, Trademark and/or Copyright laws.
  • Page 3 Minka-Aire warrants to the original owner that this fan will be free from defects in material and workmanship for one year from the date of purchase, excluding the motor. Minka-Aire warrants to the original owner that the motor in this fan shall be free from defects in material and workmanship for as long as the original purchaser owns the fan, and it remains in the original installation.
  • Page 4 This warranty shall not apply to fans which have been damaged in any way, including improper installation, damage as a result of the removal of the fan from the origial installation, or damage in shipping. This warranty shall not apply to fans which have been subjected to use for which the fan was not designed.

  • Page 5: Table Of Contents

    CONTENTS SAFETY RULES..................INSTALLING THE MOUNTING PLATE..........PACKAGE CONTENTS..............INSTALLING THE LIGHT KIT............... INSTALLING THE FAN..............INSTALLING THE GLASS SHADE & LIGHT BULBS....HANGING THE FAN................. FAN WITHOUT LIGHT KIT..............ELECTRICAL CONNECTIONS............OPERATING THE REMOTE CONTROL/WALL CONTROL..FINISHING THE INSTALLATION..........CARE OF YOUR FAN................

  • Page 6: Safety Rules

    SAFETY RULES 1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box. 2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams. 3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring.
  • Page 7 ATTENTION: ATTENTION: The Energy Policy Act of 2005 requires this fan to be equipped with a 190 watt limiting device. If lamping exceeds 190 watts, the ceiling fan's light kit will shut off automatically. NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur.

  • Page 8: Package Contents

    PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: 1. Fan blades (5) 14. 60W candelabra bulbs (3) 15. Extra plug 2. Hanger bracket 16. Balancing kit 3. Canopy 4. Canopy cover A. Mounting hardware: 5a.

  • Page 9: Installing The Fan

    INSTALLING THE FAN Tools Required: Phillips screw driver; slotted screw driver; step-ladder; wire cutters; electrical tape. PARALLEL WOOD BRACE CEILING MOUNTING OPTIONS (MIN. 2" THICK) JOIST CROSS BRACE OUTLET If there isn't an existing mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers.

  • Page 10: Hanging The Fan

    HANGING THE FAN WARNING: All of the parts, hardware and components such as the Step 4. Carefully feed fan wires up through the downrod. (Fig. 8) Thread hanger bracket and hanger ball have been provided for your safety and Downrod into the Coupling until the holes are lined up and secure with the proper installation of your new ceiling fan.
  • Page 11 DOWNROD OUTLET BOX COUPLING DOWNROD CROSS PIN CANOPY *OMIT COUPLING SET SCREWS COVER WHEN USING HITCH THE MINIMUM-LENGTH LOCK DOWNROD HANGER CANOPY COVER SUPPLY REGISTRATION BALL SET SCREW WIRES SLOT SET SCREWS DOWNROD HANGER BRACKET Fig. 10 Fig. 5 Fig. 6 Fig.

  • Page 12: Electrical Connections

    ELECTRICAL CONNECTIONS WARNING: : To avoid possible electrical shock be sure electricity is Step 2. Motor to Receiver Electrical Connections: Connect the WHITE turned off at the main fuse or breaker box before wiring. wire from the fan to the WHITE wire marked "TO MOTOR N" from the Receiver.
  • Page 13 Step 3. Receiver to House Supply Wires Electrical Connections: Connect the WHITE wire (Neutral) from the outlet box to the WHITE wire marked "AC in N" from the receiver. Connect the BLACK wire (Hot) from the outlet box to the BLACK wire marked "AC in L" from the receiver.
  • Page 14 OUTLET BOX WHITE (NEUTRAL) BLACK (HOT) GREEN OR BARE COPPER (GROUND) BLACK ("AC IN L") WHITE ("AC IN N") RECEIVER BLACK ("TO MOTOR L") WHITE ("TO MOTOR N") ORANGE (CONNECT TO GROUND- (FOR UPPER LIGHT) GROUND WIRE ON (GREEN) HANGER BRACKE IF NO HOUSE BLUE (FOR LIGHT) GROUND WIRE...

  • Page 15: Finishing The Installation

    FINISHING THE INSTALLATION Step 1. Slide the canopy up to ceiling and over the two screws on hanger bracket. Rotate OUTLET BOX canopy clockwise, next, while holding the canopy with one hand, slide the canopy cover over the screws and rotate clockwise until tight. HANGER BRACKET Note: Adjust the canopy screws as necessary until the canopy and canopy cover are snug.

  • Page 16: Blade Installation

    BLADE INSTALLATION THE FOLLOWING OPERATION MUST BE ACCOMPLISHED BEFORE INSTALLING THE LIGHT KIT. Step 1. Attach the fan blades to the blade holders using the SCREWS screws and fiber washers provided, tighten screws FIBER WASHERS securely. (Fig. 15) BLADE Step 2. Remove rubber stops from motor. Rotate motor so that the screw holes are revealed through the opening on BLADE HOLDER switch cap plate.

  • Page 17: Installing The Mounting Plate

    INSTALLING THE MOUNTING PLATE Step 1. Remove 1 of 3 screws from the mounting ring and loosen the other 2 screws. (Do not remove) Step 2. Place the key holes from the mounting plate over the 2 screws previously loosened from the mounting ring, turn mounting plate until it locks in place at the narrow section of the key holes.

  • Page 18: Installing The Light Kit

    INSTALLING THE LIGHT KIT NOTE: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at fuse box. Step 1. Remove the 3 screws from the mounting plate. Step 2. Place the light kit attached close to the mounting plate, firmly snap the wire molex MOUNTING PLATE MOLEX together.

  • Page 19: Installing The Glass Shade & Light Bulbs

    INSTALLING THE GLASS SHADE & LIGHT BULBS ATTENTION: The Energy Policy Act of 2005 requires this fan to be equipped with a 190 watt LIGHT limiting device. If lamping exceeds 190 watts, the ceiling fan's light kit will shut off automatically.

  • Page 20: Fan Without Light Kit

    FAN WITHOUT LIGHT KIT 1. Disassemble the switch housing from the light kit, you can keep the light kit for future use. LOCK WASHER SWITCH CUP (Fig. 20) 2. Attach the plug to the switch housing. (Fig. 21) 3. Holding the switch housing under your fan, MOUNTING PLATE snap together the wire connection plugs .

  • Page 21: Operating The Remote Control/Wall Control

    OPERATING THE REMOTE CONTROL/WALL CONTROL Remote Control only: Install a A23 12 volt battery (included). To prevent damage to transmitter remove the battery if not used for long periods of time. Restore Power to Ceiling Fan. D. OFF-ON Slide Button (Wall Control Fans Only) instructions apply to ceiling fans that feature a DOWN This button turns the power Off and On to the Fan and light (...
  • Page 22 Speed settings for warm or cold weather depend on factors such as room size, ceiling height and number of fans. NOTE: Wait for fan to stop before changing the setting of the slide switch. Warm Weather (forward) A DOWNWARD airflow creates a cooling effect as shown in Figure 22.

  • Page 23: Care Of Your Fan

    CARE OF YOUR FAN 4. Use a lint free lightly damp cloth or duster to remove dust from Here are some suggestions to help maintain your fan. the blades. 1. Because of the fan's natural movement some connections may become 5.

  • Page 24: Troubleshooting

    TROUBLESHOOTING SYMPTOM SYMPTOM Fan will not start Fan Sounds Noisy SOLUTION SOLUTION Check to make sure the wall switch is turned on. Allow a 24-hour "break in" period. Most noises associated with a new fan will go away during this time. Check circuit fuses or breakers.
  • Page 25 SYMPTOM SYMPTOM Fan Wobble Lights shut off and will not come back on. SOLUTION SOLUTION NOTE: All blade sets are grouped by weight. Because wood and This unit is equipped with a wattage limiting device. Lamping in plastic blades vary in density, the fan may wobble even though excess of 190 watts will disable your ceiling fan’s light kit.
  • Page 26 SYMPTOM Frequency Interference SOLUTION Turn the power off to your ceiling fan. Please use a small size tool to change the frequency settings on the control system. Return power to the unit. Note: After the AC power is on, do not press any other button on the transmitter before pressing the "Stop" button, doing so will cause the procedure to fail.

  • Page 27: Specifications

    SPECIFICATIONS These are typical readings. Your actual fan may vary. Fan Size Speed Volts Amps Watts RPM CFM N.W. G.W. C.F. They do not include amps and wattage used by the 0.37 2200 light(s). 13.4 11.33 2.802' 52" Medium 0.50 3700 0.59 5700...
