Introduction
Support Thunder Flash - A Windows based innovation tool to provide safe and easy BIOS rescue
function, BIOS flash function and personal start up screen.
Form Factor
305mm x 225 mm ATX size
Depending on the model you purchased, some components are optional and may not be
available.

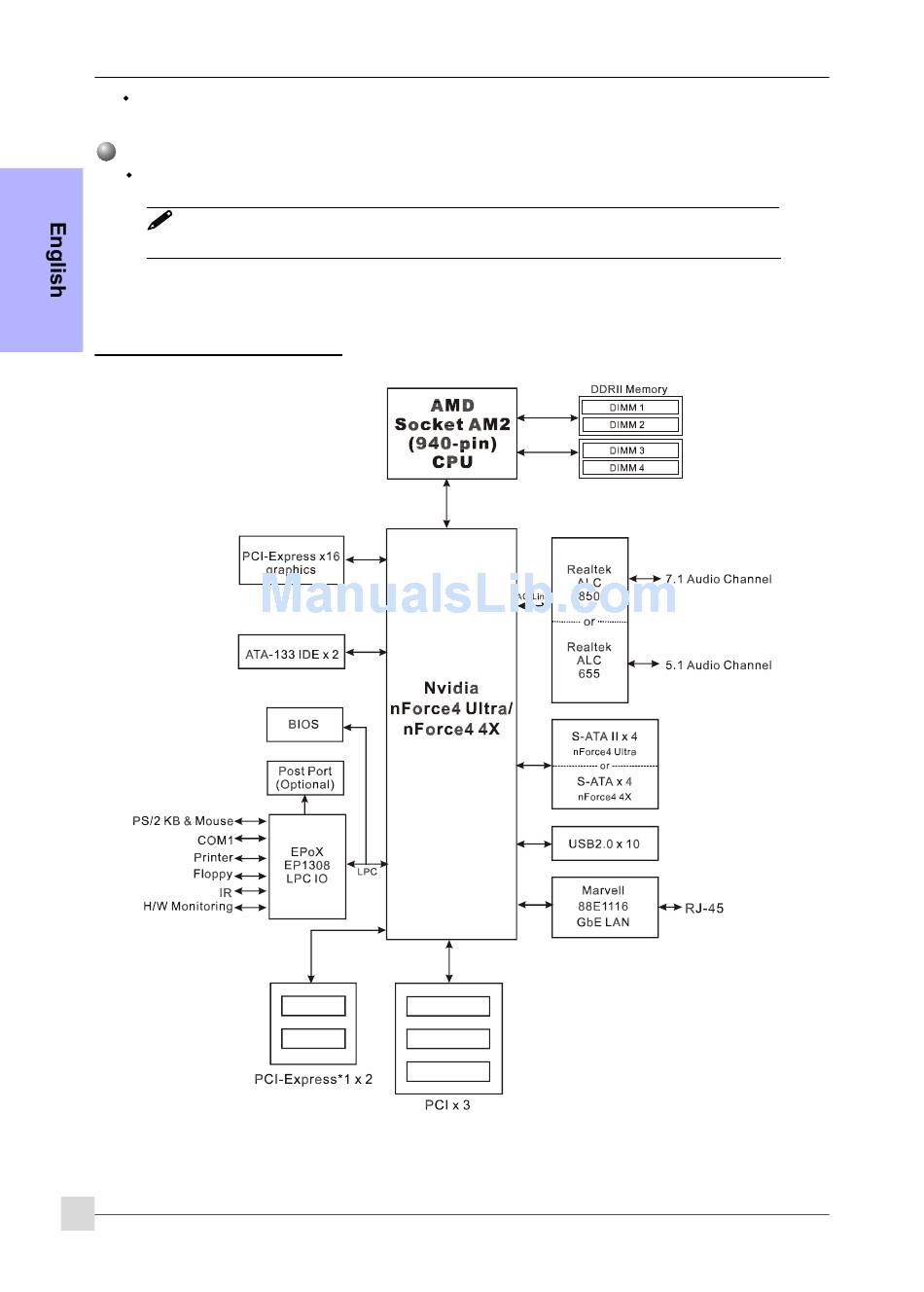

1-4 System Block Diagram
