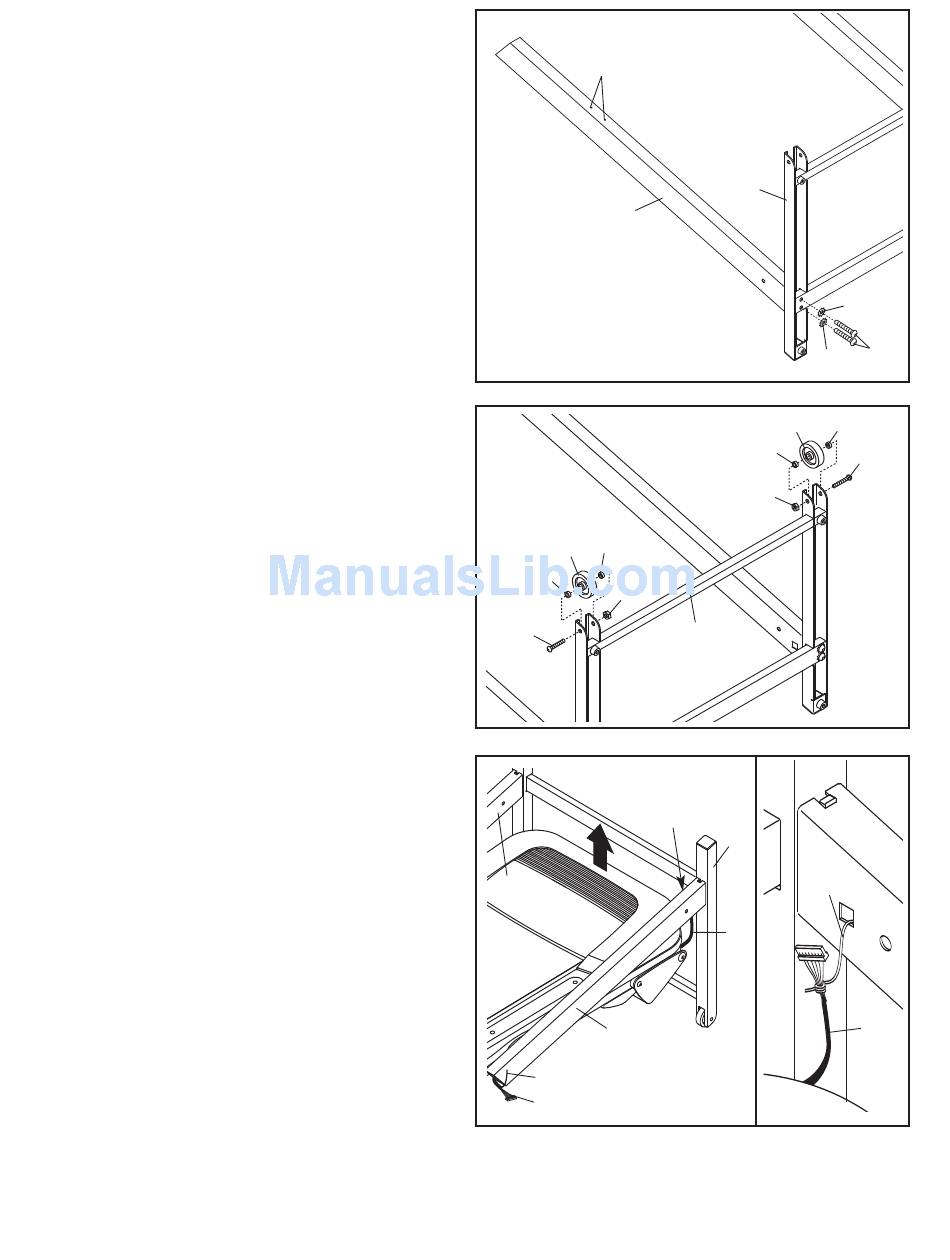

2. Orient the Left Upright (31) as shown, and attach
it to the Base (48) with two Upright Bolts (27) and
two Upright Star Washers (39); do not tighten
the Upright Bolts yet.
3. Attach a Wheel (45) to each side of the Base
(48) with a Wheel Bolt (27), two Wheel Spacers
(44), and a Nut (47) as shown. Do not over-
tighten the Wheel Bolts; the Wheels should
turn freely.
4. Turn the Base (48) over, and set it near the front
of the treadmill as shown.
Cut the tie holding the Upright Wire (28) in a bun-
dle. Leave the large colored tie on the end of
the Upright Wire.
Insert the Upright Wire (28) into the large hole at
the bottom of the Right Upright (36) (see the
inset drawing) and out of the top.
Raise the Uprights (31, 36) so the Base (48) is
flat on the floor. Make sure that the end of the
Upright Wire (28) does not fall into the Right
Upright. It may be helpful to bend the colored
tie on the end of the Upright Wire over the
Right Upright.
