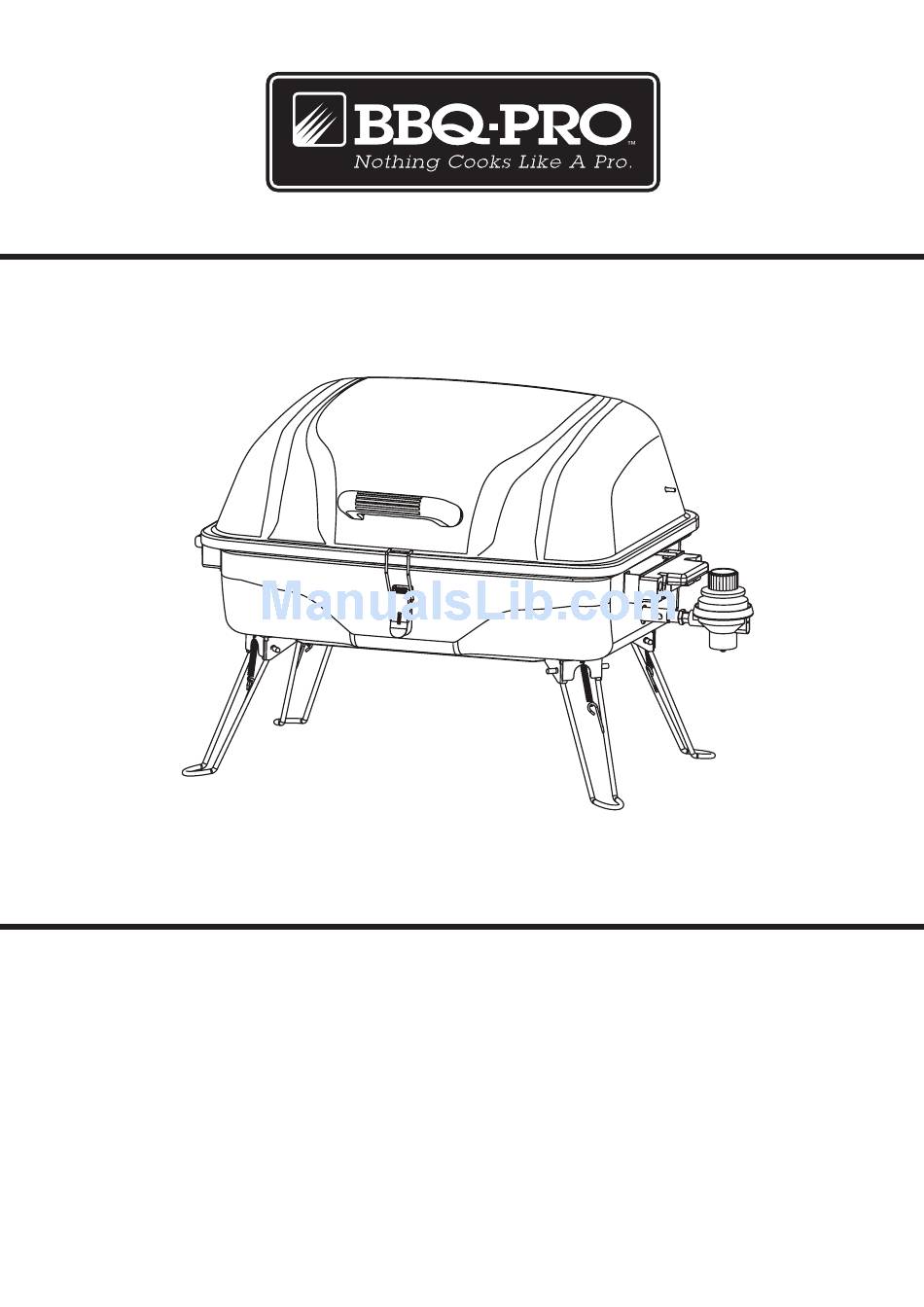

- Page 1 OWNER’S MANUAL 18” TABLETOP GAS GRILL Product code: 23765 / 0-03946210-6 UPC code: 0 45774 87563 8 Date of purchase: _____/ _____/ _____...
-
Page 2: California Proposition
Safety Guidelines........ Read this Use and Care Guide carefully Safety Instructions......and completely before using your grill to Assembly Instructions ...... reduce the risk of fire, burn hazard or Lighting Instructions......other injury. Care and Maintenance......DANGER If you smell gas 1 Shut off gas to the appliance 2 Extinguish any open flame 3 Open lid... - Page 4 Read this Use and Care Guide carefully before assembling and operating your gas grill. Do not use your gas grill in garages, porches, breezeways, sheds or other enclosed areas. Your gas grill is to be used outdoors only, with the back and sides of the grill at least 3 feet away from any combustible wall or surface.
- Page 5 The regulator must be tightly connected to the propane cylinder. Grill Regulator Operation Turn knob clockwise to OFF to stop gas flow to burner. PUSH TO TURN ON. You must push IN on the knob to release the knob to release “...
-
Page 6: Parts List
Assembly Instructions Table Top Gas Grill Verify that all parts are included with your Grill BEFORE beginning assembly by checking the Parts List. For your convenience, some parts may be pre-assembled or attached to grill components. If all parts are not included, do not attempt to assemble grill. Return grill to Kmart with receipt for replacement unit. - Page 7 Assembly Instructions Table Top Gas Grill STEP 1: Attach lid handle (J ) to lid (A) by inserting 2 handle bolts through lid (A) 2 washers (P) and into lid handle (J). Attach one upper hinge (G) to lid (A) by inserting bolt (2) through upper hinge (G)into lid (A) and screwing nut (5).
- Page 8 Assembly Instructions Table Top Gas Grill STEP 3: Attach leg (O) to bottom bowl (B) by inserting 2 bolts (2) through leg (O) and into the bottom bowl (B). Secure 2 bolts (2) with 2 nuts (5). Repeat same procedure for the other legs (O).
- Page 9 Assembly Instructions Table Top Gas Grill STEP 5: Attach upper hinge (G) to lower hinge (M) with 2 bolts (3) and nuts (5). STEP 6: Place heating plate (D) onto support brackets (L). Insert tabs of support brackets(L) into tab slots in heating plate (D). Put cooking grid (C) into bottom bowl (B).
- Page 10 Assembly Instructions Table Top Gas Grill 200465N 210347N 300575N HEATING PLATE 300576N GAS REGULATOR 300560N SIDE HANDLE 300577N UPPER HINGE 300578N BURNER 300579N WARMING RACK 300580N LID HANDLE 220019N BRACE 300581N 300582N SUPPORT BRACKET LOWER HINGE 300583N 300584N HEAT SHIELD LEG ASSEMBLY 300585N WASHER...
- Page 11 1. Make sure all hardware is tightened completely before attaching propane gas canister onto Gas Regulator. When assembled properly, all connections will be securely fastened. 2. Attach the propane gas cylinder onto the gas regulator as described in the safety instructions section of this Use and Care Guide.
- Page 12 Care Care Maintenance Maintenance & & This unit should be kept in an area clear and free from combustible materials, gasoline and other flammable vapors and liquids. Check to be sure all openings into grill body are free of blockages or debris. Make sure there are no objects or materials blocking the flow of combustion or ventilation.
