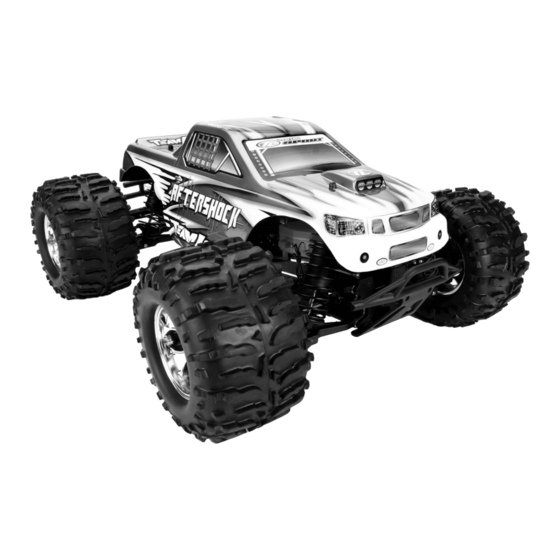

- Page 1 Operations Guide ©Team Losi , A division of Horizon Hobby Inc. Not Responsible For Errors. All prices subject to change without notice. 800-0300 RT 06-01-06...
- Page 2 Safety Precautions THIS IS NOT A TOY! The Aftershock is a sophisticated, high performance radio controlled model, which needs to be operat- ed with caution and common sense. Failure to operate this model in a safe and responsible manner could result in person- al and/or property damage.
- Page 3 There should be a slight sluggishness and thick smoke when accelerating with the smoke decreasing as the model gains speed. At speed there should still be a noticeable trail of smoke from the exhaust pipe. Run the Aftershock on a flat surface in an oval pattern.
- Page 4 Base Start-up Settings from the factory High-Speed Needle -- 3 turns out from bottom Low-Speed Needle -- 3 turns out from bottom Engine Tuning After the engine is broken in you can tune it for optimum performance. When tuning it is critical that you be cautious of overheating as severe damage and premature wear can occur.
- Page 5 About the Radio The JR radio installed in the Aftershock is a professional level system with more than the usual features you may find useful. Be sure to read through the Radio manual included for complete instructions on what and how to use these.
- Page 6 You should never run the Aftershock with the slipper locked (completely tight). The slipper can also be used as a tuning aid for extremely slick conditions. To adjust the slipper start by turning the 1/4"...
-
Page 7: Speed Adjustment
2-Speed Adjustment Although pre-adjusted at the factory, the two-speed can be adjusted to shift at the point that suits you best. Under normal circumstances, it should shift slightly before the engine reaches maximum power. The actual distance traveled will vary with the gear ratio and tune of the engine. There are two adjustment screws (see fig 1) that must be changed evenly for the two-speed to function correctly. - Page 8 Replacing the 2-Speed Gears Be sure to replace the one way bearing in the same direction as removed. Replacing the Clutchbell Use a 3/32 wrench (provided) to remove the retaining screw (turn counter clockwise) while firmly hold- ing the flywheel with a pair of pliers. Remove the screw, washers and clutch bell being careful not to loose any shims that may be used.
- Page 9 Servicing the Differentials The differentails should be serviced periodically. Be sure to clean and inspect all of the gears and replace if severely worn. Always use plenty of high-quality grease (like Team Losi LOSA3066)on all gears. NOTE: These can also be made into racing type viscous diffs as noted below. Always service one diff at a time and pay close attention to install the housing with the "TOP"...
-
Page 10: Servicing The Transmission
Servicing the Transmission The Transmission should also be cleaned and serviced periodically. All gears and shafts should be closely inspected for wear and replaced if necessary. Always use a high quality grease or lubricant to prevent premature wear and/or failure. Removing the transmission Remove the gear cover. -
Page 11: Tools Needed
Rebuilding/Refilling the Shocks Rebuilding/Refilling the Shocks Tools Needed Step 1. Step 2. After removing the shock, Turn the shock upside down push up on the lower spring and using the included shock cup and snap it off of the tool, remove the black shock shaft. -
Page 12: Initial Factory Settings
Quick Reference Guide Quick Reference Guide Initial Factory Settings Initial Factory Settings Engine Hi-Speed Needle - 3 turns out Low-Speed Needle 3 turns out Transmission Slipper - 1 turn out Two-Speed - 5 turns out Shocks Tie Rods 2.7 in. (68mm) Steering Team Losi 30wt Shock Oil... -
Page 13: Troubleshooting Chart
M26SS Customer Support M26SS Customer Support Trouble shooting Chart Trouble shooting Chart Horizon Hobby Inc Horizon Hobby Inc 4105 Fieldstone Rd. 4105 Fieldstone Rd. Champaign, IL 61821 Champaign, IL 61821 1-877-504-0233 1-877-504-0233 Problem Things To Check Remedy Engine won't start........ - Page 14 Aftershock Parts List SUSPENSION PARTS LOSB3541 F/R Diff Drive Yoke (LST/2)..........$5.00 LOSB3545 Center CV Driveshaft (LST/2) .......... $10.99 LOSB2001 F/R Suspension Arms (pr)(LST/AFT) ....... $10.00 LOSB3601 Brake Disks -- Steel(2)(LST/2) ........... $4.00 LOSB2101 F/R Spindles & Carriers (LST/AFT)........$7.00 LOSB3603 Brake Cam (LST/2) ............
-
Page 15: Option Parts
LOSB3532 Alum. Diff Case - Blue (LST/2/AFT) ......... $11.99 LOSB8015 Aftershock Painted Body w/Stickers (Blue)...... $49.99 LOSB3535 Ti-Ni F/R Ring & Pinion (LST/2/AFT) ....... $37.99 LOSB8016 Aftershock Clear Body w/Stickers & Mask ....... $34.99 Hardware LOSB8203 Aftershock Sticker Sheet............ $6.00 LOSB4021 Pivot Balls - Hard Anodized Aluminum (4) (LST/2) .... - Page 16 Page 15...
- Page 17 Drive Train Assy B5021 B5020 B3455 A6201 B4202 B5020 A6350 B3409 B5051 B3455 A6937 B3404 B3341 B3423 A6937 B3301 A6240 A6350 A6356 B3505 B3301 B3421 B3323 A6250 B4301 B3301 B3301 B2257 B3125 B3401 B5051 B3450 B3545 B5049 B3451 B3539 B3532 B5052 B3532 A6250...
- Page 18 Page 17...
- Page 19 Page 18...
- Page 20 Page 19...
- Page 21 Page 20...
- Page 22 Page 21...
-
Page 23: Warranty Information
Your local hobby store and/or place of purchase cannot provide warranty support or repair. Once assem- bly, setup or use of the product has been started, you must contact Horizon Hobby, Inc. directly. This will enable Horizon to better answer your questions and service you in the event that you may need any as-sistance.
