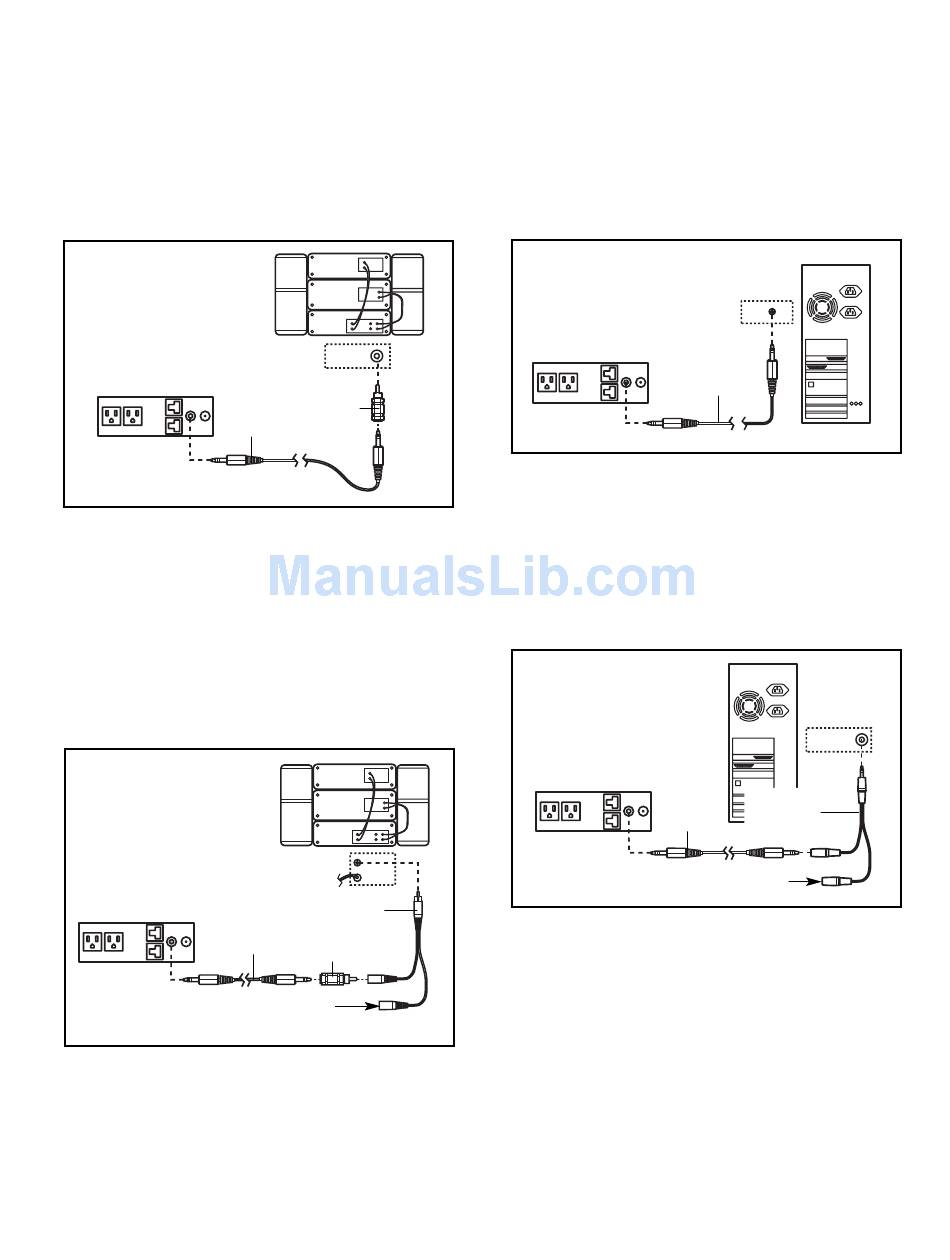

HOW TO CONNECT YOUR HOME STEREO
Note: If your stereo has an unused LINE OUT jack,
see instruction A below. If the LINE OUT jack is
being used, see instruction B.
A. Plug one end of the audio cable into the jack on the
connection panel inside the cabinet. Plug the other
end of the cable into the included adapter. Plug the
adapter into the LINE OUT jack on your stereo.
A
Connection
Panel on
Cabinet
B. Plug one end of the audio cable into the jack on the
connection panel inside the cabinet. Plug the other
end of the cable into the included adapter. Plug the
adapter into an RCA Y-adapter (available at elec-
tronics stores). Next, remove the wire that is cur-
rently plugged into the LINE OUT jack on your
stereo and plug the wire into the unused side of the
Y-adapter. Plug the Y-adapter into the LINE OUT
jack on your stereo.
B
Connection
Panel on
Cabinet
Wire removed from
LINE OUT jack
CD
VCR
Amp
LINE OUT
LINE OUT
Audio Adapter
Cable
CD
VCR
Amp
LINE OUT
RCA
Y-adapter
Audio
Cable
Adapter
HOW TO CONNECT YOUR COMPUTER
Note: If your computer has a 3.5mm LINE OUT jack,
see instruction A. If your computer has only a
PHONES jack, see instruction B.
A. Plug one end of the audio cable into the jack on the
connection panel inside the cabinet. Plug the other
end of the cable into the LINE OUT jack on your
computer.
A
Connection
Panel on
Cabinet
B. Plug one end of the audio cable into the jack on the
connection panel inside the cabinet. Plug the other
end of the cable into a 3.5mm Y-adapter (available
at electronics stores). Plug the Y-adapter into the
PHONES jack on your computer. Plug your head-
phones or speakers into the other side of the Y-
adapter.
B
Connection
Panel on
Cabinet
Headphones/Speakers
16
LINE OUT
Audio
Cable
PHONES
Audio
3.5mm
Cable
Y-adapter
