Image Advanced 1400 IMTL07905.1 User Manual page 7

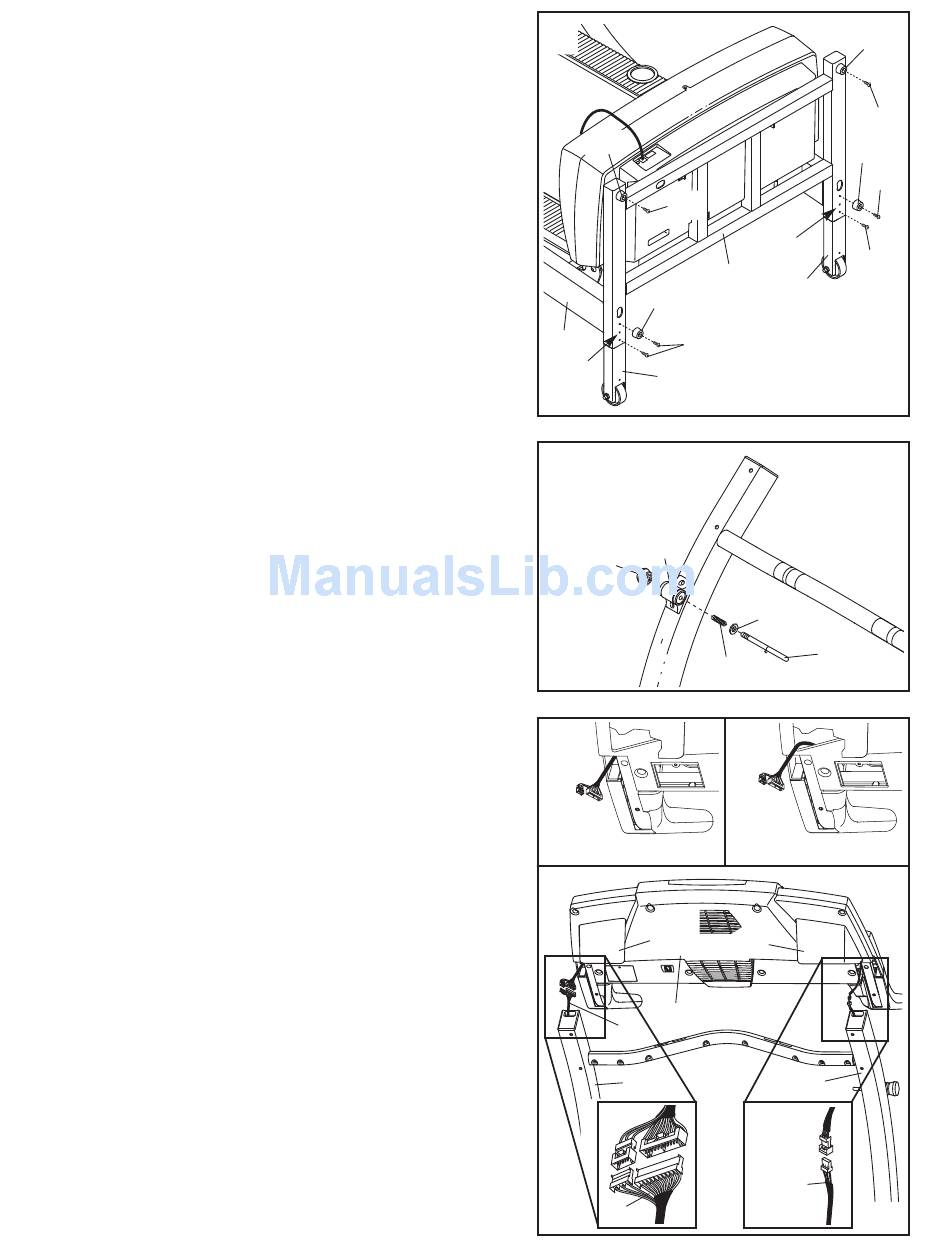

2. With the help of a second person, carefully tip the
Uprights (97) down as shown. (Note: It may be helpful to
place one foot on one of the Extension Legs [92] as you
tip the Uprights.) Make sure that the Extension Legs
remain in the Uprights.
Attach the Extension Legs (92) with four 1" Tek Screws
(80) and two Base Pads (99) as shown. Tighten the Tek
Screws without the Base Pads first. Note: The indi-
cated center holes are not used.
Attach the other two Base Pads (99) to the base of the
Uprights (97) in the locations shown with two 1" Tek
Screws (80).
With the help of a second person, raise the Uprights (97)
to the vertical position.
3. Remove the knob from the pin. Make sure that the collar
and the spring are on the pin. (Note: If there are two col-
lars, place one on each side of the spring.) Insert the pin
into the Latch Housing (82), and tighten the knob back
onto the pin.
4. See drawing 4c. With the help of a second person, hold
the Console Base (101) near the Uprights (97). Look
under the Console Base and locate the wires on the
sides of the Console Base. Make sure that the wires are
not routed through the openings for the Trays (109,
111). Drawing 4a shows the correct route for the wires;
drawing 4b shows an incorrect route.
See drawing 4c. Locate the Wire Harness (74) and the
pulse wire in the Uprights (97). Cut the plastic ties secur-
ing the Wire Harness and the pulse wire.
Connect the Wire Harness (74) and the pulse wire to the
connectors on the sides of the Console Base (101).
Make sure to connect the connectors properly (see
the inset drawings). The connectors should slide to-
gether easily and snap into place. If the connectors do
not slide together easily and snap into place, turn a con-
nector and try again to insert it. IF THE CONNECTORS
ARE NOT CONNECTED PROPERLY, THE CONSOLE
MAY BE DAMAGED WHEN THE POWER IS TURNED
ON. Insert the excess Wire Harness and pulse wire up
into the Console Base.
2
99
97
Not
Used
3
Knob
4a
Correct
4c
74
97
74
7
80
Not
Used
97
92
99
80
92
82
Collar
Pin
Spring
4b
Incorrect
111
109
101
97
Pulse
Wire
99
80
99
80
80
