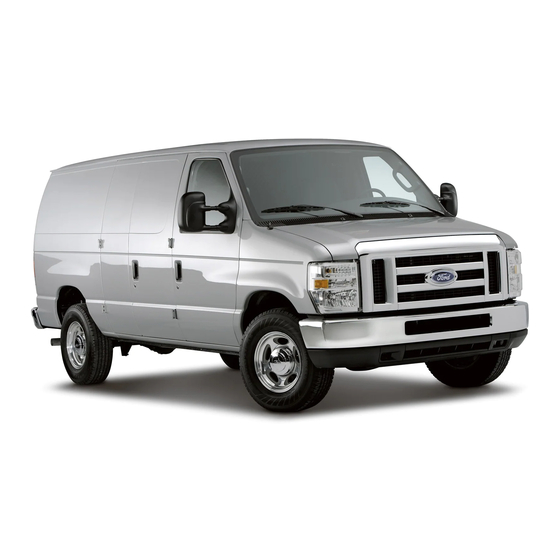

Page 1 2008 Econoline www.hillerford.com Table of Contents Introduction Instrument Cluster Warning lights and chimes Gauges Entertainment Systems AM/FM stereo AM/FM stereo with single CD AM/FM stereo with in-dash six CD Climate Controls Heater only Manual heating and air conditioning Lights Headlamps Turn signal control Bulb replacement Driver Controls...
Page 2: Table Of Contents
Table of Contents Seating and Safety Restraints Seating Safety restraints Airbags Child restraints Tires, Wheels and Loading Tire information Tire inflation Tire Pressure Monitoring System (TPMS) Vehicle loading Trailer towing Recreational towing Driving Starting Brakes Traction Control™ Traction Control™/AdvanceTrac Transmission operation Reverse sensing system Roadside Emergencies Getting roadside assistance...
Page 4: Introduction
– Special handling may apply for service or vehicle end of life disposal. See www.dtsc.ca.gov/hazardouswaste/perchlorate. CONGRATULATIONS Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it.
Page 5 Introduction SAFETY AND ENVIRONMENT PROTECTION Warning symbols in this guide How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.
Page 6 • where the driver was positioning the steering wheel. To access this information, special equipment must be directly connected to the recording modules. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent,...
Page 7 Introduction Vehicle Modification Data Recording Some aftermarket products may cause severe engine and/or transmission damage; refer to the What is not covered section in The new vehicle limited warranty for your vehicle chapter of your vehicle’s Warranty Guide for more information. Some vehicles are equipped with Powertrain Control Systems that can detect and store information about vehicle modifications that increase horsepower and torque output;...
Page 8 For additional information, please contact the Truck Body Builders Advisory Service at 1–877–840–4338. Use of your Ford light truck as an ambulance, without the Ford Ambulance Preparation Package voids the Ford New Vehicle Limited Warranty and may void the Emissions Warranties. In addition, ambulance...
Page 9 WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The driver’s primary responsibility is the safe operation of their vehicle.
Page 10 Introduction These are some of the symbols you may see on your vehicle. Vehicle Symbol Glossary Safety Alert See Owner’s Guide Fasten Safety Belt Airbag - Front Child Seat Lower Airbag - Side Anchor Child Seat Tether Brake System Anchor Anti-Lock Brake System Parking Brake System Brake Fluid -...
Page 11 Introduction Vehicle Symbol Glossary Power Windows Power Window Lockout Front/Rear Child Safety Door Interior Luggage Lock/Unlock Compartment Release Panic Alarm Engine Oil Engine Coolant Engine Coolant Temperature Do Not Open When Hot Battery Avoid Smoking, Flames, Battery Acid or Sparks Explosive Gas Fan Warning Maintain Correct Fluid...
Page 12: Instrument Cluster
Instrument Cluster WARNING LIGHTS AND CHIMES Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulb works.
Page 13 Instrument Cluster WARNING: Under engine misfire conditions, excessive exhaust temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire. Electronic throttle control: Illuminates when the engine has defaulted to a “limp-home” operation.
Page 14 Instrument Cluster Anti-lock brake system: If the ABS light stays illuminated or continues to flash, a malfunction has been detected, have the system serviced immediately by your authorized dealer. Normal braking is still functional unless the brake warning light also is illuminated. Airbag readiness: If this light fails to illuminate when the ignition is turned to ON, continues to flash or...
Page 15 Instrument Cluster Low tire pressure warning (if equipped): Illuminates when your tire pressure is low. If the light remains on at start up or while driving, the tire pressure should be checked. Refer to Inflating your tires in the Tires, Wheels and Loading chapter.
Page 16 Instrument Cluster Overdrive off: Illuminates when the overdrive function of the transmission has been turned off; refer to the Driving chapter. If the light does not illuminate, have the transmission serviced soon, or damage may occur. Charging system: Illuminates when the battery is not charging properly.
Page 17: Gauges
Instrument Cluster GAUGES Speedometer: Indicates the current vehicle speed. Engine coolant temperature gauge: Indicates engine coolant temperature. At normal operating temperature, the needle will be in the normal range (between “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool.
Page 18 Instrument Cluster Trip odometer: Registers the miles (kilometers) of individual journeys. Press the SELECT/RESET control once to switch from the odometer to the trip odometer. Press the control again to select Trip A and Trip B features. To reset the trip, press and hold the control again until the trip reading is 0.0 miles.
Page 19 Instrument Cluster Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the ON position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade. The FUEL icon and arrow indicates which side of the vehicle the fuel filler door is located.
Page 20: Entertainment Systems
AM/FM stereo (if equipped) WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The driver’s primary responsibility is the safe operation of their vehicle.
Page 21 Entertainment Systems 3. AM/FM: Press to choose a AM/FM frequency band in radio mode. 4. Memory preset buttons: To set a station: Select frequency band AM/FM1/FM2; tune to a station, press and hold a preset button until sound returns. 5. Power/volume: Press to turn ON/OFF;...
Page 22 (if equipped) WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The driver’s primary responsibility is the safe operation of their vehicle.
Page 23 Entertainment Systems TEXT is also available when equipped with Satellite radio. Your radio comes equipped with Satellite ready capability. The kit to enable Satellite reception is available through your dealer. Detailed Satellite instructions are included with the dealer installed kit. Check with your authorized dealer for availability.
Page 24 Entertainment Systems stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets. Setting the clock: Press MENU until SELECT HOUR or SELECT MINUTE is displayed. Use SEL to manually increase ( ) or decrease ) the hours/minutes.
Page 25 (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player.
Page 26 Radio (if equipped) WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The driver’s primary responsibility is the safe operation of their vehicle.
Page 27 Entertainment Systems 2. TEXT: The filename (Fi), song title (So), artist text (Ar) or album text (AL) may be viewed while playing an MP3 selection. When MP3 selection text is shown on the message display, its corresponding text indicator (Fi, So, Ar, or AL) is shown in the elapsed time display.
Page 28 Entertainment Systems Fade: Press FADE; then press to shift sound to the rear/front speakers. 9. Menu: Press to access the following functions: Compression: Brings soft and loud CD passages together for a more consistent listening level when in CD mode. Press MENU until compression status is displayed.
Page 29 Entertainment Systems 14. FF(Fast forward): In CD/MP3 mode, press until desired selection is reached. 15. REW(Rewind): In CD/MP3 mode, press until desired selection is reached. 16. SAT (if equipped): Your radio comes equipped with Satellite Ready capability. The kit to enable the Satellite reception is available through your dealer.
Page 30 (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player.
Page 31 (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Dirty, warped or damaged CDs, irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player.
Page 32: Climate Controls
Climate Controls HEATER ONLY SYSTEM (IF EQUIPPED) 1. Fan speed adjustment: Controls the volume of air circulated in the vehicle. 2. Temperature selection: Controls the temperature of the airflow in the vehicle. 3. Air flow selections: Controls the direction of the airflow in the vehicle.
Page 33: Manual Heating And Air Conditioning
Climate Controls MANUAL HEATING AND AIR CONDITIONING SYSTEM (IF EQUIPPED) 1. Fan speed adjustment: Controls the volume of air circulated in the vehicle. 2. Temperature selection: Controls the temperature of the airflow in the vehicle. 3. Air flow selections: Controls the direction of the airflow in the vehicle.
Page 34 Climate Controls During extreme high ambient temperatures when idling stationary for extended periods of time in gear, it is recommended to run the A/C in the MAX A/C position, turn off the rear A/C unit (if equipped), reduce blower fan speed from the highest setting and put the vehicle’s transmission into the PARK gear position to continue to receive cool air from your A/C system.
Page 35: Lights
Lights HEADLAMP CONTROL • The first position turns on the parking, tail, license plate and side marker lamps. • The outer position turns on the headlamps. Battery saver The battery saver can be set to turn off the courtesy lamps within 2 or 10 minutes if a door is left open and the key is not in the ignition.
Page 36 Lights Daytime running lamps (DRL) (if equipped) Turns the headlamps on with a reduced output. To activate: • the ignition must be in the on position and • the headlamp control is in the off or parking lamp position. WARNING: Always remember to turn on your headlamps at dusk or during inclement weather.
Page 37 Lights PANEL DIMMER CONTROL To adjust the brightness of the instrument panel, rotate the dimmer control clockwise/counterclockwise when the headlamp control is in the parking lamp or low-beam position. To turn on the interior lamps, rotate the dimmer control fully counterclockwise past the detent.
Page 38 Lights 3. Turn on the low beam headlamps and open the hood. 4. Locate the high intensity area of the beam pattern and place the top edge of the intensity zone even with the horizontal reference line (4). If the top edge of the high intensity area is not even with the horizontal line, follow the next step to adjust 5.
Page 39 Lights • (1) 8 feet (2.4 meters) • (2) Center height of lamp to ground • (3) 25 feet (7.6 meters) • (4) Horizontal reference line 2. Measure the height from the center of your headlamp (indicated by a 3.0 mm circle on the lens) to the ground and mark an 8 foot (2.4 meter) horizontal reference line on the vertical wall or screen at this height (a piece of masking tape...
Page 40: Turn Signal Control
Lights TURN SIGNAL CONTROL • Push down to activate the left turn signal. • Push up to activate the right turn signal. INTERIOR LAMPS Cargo and dome lamps with rear headliner Rear cargo lamps equipped with an ON/OFF/DOOR control will light when: •...
Page 41: Bulb Replacement
Lights Front and rear courtesy/reading lamps The dome portion of the lamp, the center light, can be turned on when the headlamp control is rotated fully counterclockwise or when any door is opened. The reading lamp portion, the two outer lights, can only be toggled on and off at the lamp.
Page 42 Lights Function Number of Trade number bulbs Side marker with sealed beam Back-up lamps 3156K or 3156 License plate lamp Stop/tail/turn/side 3457K or 3357K marker lamp High-mount brakelamp Cargo lamp 211-2 Dome lamp (standard) Map/reading lamp 211-2 All replacement bulbs are clear in color except where noted. To replace all instrument panel lights - see your authorized dealer Replacing exterior bulbs Check the operation of all the bulbs frequently.
Page 43 Lights 4. Remove the bulb assembly by turning it counterclockwise and pulling it straight out. WARNING: Handle a halogen headlamp bulb carefully and keep out of children’s reach. Grasp the bulb only by its plastic base and do not touch the glass. The oil from your hand could cause the bulb to break the next time the headlamps are operated.
Page 44 Lights Aerodynamic Sealed beam 3. Rotate the bulb socket counterclockwise and remove. 4. Carefully pull the bulb straight out of the socket. To complete installation, follow the removal procedures in reverse order. Replacing side marker bulbs 1. Make sure the headlamp control is in the off position. 2.
Page 45 Lights Sealed beam 3. Rotate the bulb socket counterclockwise and remove. 4. Carefully pull the bulb straight out of the socket. To complete installation, follow the removal procedures in reverse order. Replacing high-mount brakelamp bulbs On vehicles without a rear headliner, the interior cargo lamp (if equipped) will have to be removed from under the high-mount brakelamp assembly located inside the vehicle.
Page 46 Lights Replacing license plate lamp bulbs 1. Turn the headlamp switch to the off position. 2. Remove the two screws and the license plate lamp assembly from the rear door. 3. Remove bulb socket from lamp assembly by turning counterclockwise. 4.
Page 47: Driver Controls
Driver Controls MULTI-FUNCTION LEVER Windshield wiper: Rotate the end of the control away from you to increase the speed of the wipers; rotate towards you to decrease the speed of the wipers. Windshield washer: Push the end of the stalk: •...
Page 48 Driver Controls TILT STEERING WHEEL To adjust the steering wheel: 1. Pull and hold the steering wheel release control toward you. 2. Move the steering wheel up or down until you find the desired location. 3. Release the steering wheel release control.
Page 49 Driver Controls Storage compartment (if equipped) Press the release on the door to open the storage compartment. The storage compartment may be used to secure sunglasses or a similar object. Installing a garage door opener (if equipped) The storage compartment can be converted to accommodate a variety of aftermarket garage door openers: 1.
Page 50 Driver Controls Electronic compass/temperature display (if equipped) Outside air temperature The outside temperature display is contained in the overhead console. The temperature display can be turned off and on by pressing the SELECT control on the overhead console. The temperature can be displayed in Centigrade or Fahrenheit by pressing the SELECT control.
Page 51 Driver Controls 3. Press and hold the SELECT control until VAR appears in the display, then release. The display should show the current zone number. 4. Press the SELECT control until the desired zone number appears. The display will flash and then return to normal operation.
Page 52: Power Windows
Driver Controls To prevent the fuse from being blown, do not use the power point(s) over the vehicle capacity of 12 VDC/180W. If the power point or cigar lighter socket is not working, a fuse may have blown. Refer to Fuses and relays in the Roadside Emergencies chapter for information on checking and replacing fuses.
Page 53: Mirrors
Driver Controls Accessory delay With accessory delay, the window switches and radio may be used for up to 10 minutes after the ignition switch is turned to the off position, or until any door is opened. INTERIOR MIRROR The interior rear view mirror has two pivot points on the support arm which lets you adjust the mirror UP or DOWN and from SIDE to SIDE.
Page 54: Speed Control
Driver Controls Fold-away mirrors The mirrors can be manually folded forward or backwards for narrow spaces like driving through an automatic car wash or backing out of a garage with the trailer tow mirror. The telescoping feature (if equipped) allows the mirror to extend approximately 3.15 inches (80 mm).
Page 55 Driver Controls Setting speed control The controls for using your speed control are located on the steering wheel for your convenience. 1. Press the ON control and release 2. Accelerate to the desired speed. 3. Press the SET ACCEL control and release it.
Page 56 Driver Controls Increasing speed while using speed control There are two ways to set a higher speed: • Press and hold the SET ACCEL control until you get to the desired speed, then release the control. You can also use the SET ACCEL control to operate the Tap-Up function.
Page 57 Driver Controls Turning off speed control There are two ways to turn off the speed control: • Depress the brake pedal. This will not erase your vehicle’s previously set speed. • Press the speed control OFF control. Note: When you turn off the speed control or the ignition, your speed control set speed memory is erased.
Page 58: Locks And Security
Locks and Security KEYS The key operates all locks on your vehicle. You should always carry a second key with you in a safe place in case you require it in an emergency. If your vehicle is equipped with the SecuriLock™ Passive Anti-theft system, your keys are electronically coded to your vehicle;...
Page 59 Locks and Security Deactivating/activating autolock feature Your vehicle comes with the autolock feature disabled; there are two methods to enable/disable this feature: • Through your authorized dealer, or • by using a power door unlock/lock procedure. Power door lock switch autolock enable/disable procedure Before starting, ensure the ignition is in the 3 (OFF) position and all vehicle doors are closed.
Page 60 Locks and Security Back cargo door lock (if equipped) The passenger side rear cargo door has a power door lock control mounted on the inside of the door. When this lock is pressed, all doors will lock/unlock. E-Guard Cargo Protection System™ (if equipped) The E-Guard Cargo Protection System™...
Page 61 Locks and Security For vehicles equipped with manual door locks: • The front door locks can be locked by using either the key or the manual door lock. • In order to activate the E-Guard Cargo Protection System™, use the key or the manual door lock to lock the side and back cargo doors.
Page 62 Locks and Security • The rear door handle is located in the rear door below the glass. To open the side or back cargo doors from the inside: 1. Unlock the E-Guard Cargo Protection System™ using the emergency handle. 2. Unlatch the door using the inside release handle. REMOTE ENTRY SYSTEM (IF EQUIPPED) This device complies with part 15 of the FCC rules and with RSS-210 of Industry Canada.
Page 63 Locks and Security The remote entry system allows you to lock or unlock all vehicle doors without a key. Note: • The lock and unlock features work when the ignition is in any position. • The panic feature is active when the ignition is in either the 1 (ACCESSORY), 2 (LOCK) or 3 (OFF) positions.
Page 64 Locks and Security seconds and release. The park lamps will flash twice to indicate that the vehicle has switched to one step unlocking. Repeat the procedure to switch back to two-step unlocking. Locking the doors 1. Press and release to lock all the doors. If all doors are closed the park lamps will flash once.
Page 65 Locks and Security 2. Do not wipe off any grease on the battery terminals on the back surface of the circuit board. 3. Remove the old battery. Note: Please refer to local regulations when disposing of transmitter batteries. 4. Insert the new battery. Refer to the diagram inside the remote entry transmitter for the correct orientation of the battery.
Page 66: Anti-Theft System
Locks and Security 3. Cycle eight times rapidly (within 10 seconds) between the 3 (off) position and 4 (on). Note: The eighth turn must end in the 4 (on) position. 4. The doors will lock, then unlock, to confirm that the programming mode has been activated.
Page 67 Note: The SecuriLock™ passive anti-theft system is not compatible with non-Ford aftermarket remote start systems. Use of these systems may result in vehicle starting problems and a loss of security protection. Note: Large metallic objects, electronic devices that are used to purchase gasoline or similar items, or a second coded key on the same key chain may cause vehicle starting issues.
Page 68 Locks and Security Replacement keys If your keys are lost or stolen and you don’t have an extra coded key, you will need to have your vehicle towed to an authorized dealer. The key codes need to be erased from your vehicle and new coded keys will need to be programmed.
Page 69 Locks and Security 5. Within 10 seconds of removing the second coded key, insert the new unprogrammed key (new key/valet key) into the ignition and turn the ignition from the 3 (OFF) position to the 4 (ON) position (maintain ignition in the 4 (ON) position for at least one second, but no more than ten seconds).
Page 70: Seating And Safety Restraints
Seating and Safety Restraints SEATING WARNING: Reclining the seatback can cause an occupant to slide under the seat’s safety belt, resulting in severe personal injuries in the event of a collision. WARNING: Do not pile cargo higher than the seatbacks to reduce the risk of injury in a collision or sudden stop.
Page 71 Seating and Safety Restraints Pull lever up to adjust seatback. WARNING: Before returning the seatback to its original position, make sure that cargo or any objects are not trapped behind the seatback. After returning the seatback to its original position, pull on the seatback to ensure that it has fully latched.
Page 72 Seating and Safety Restraints Press to raise or lower the rear portion of the seat cushion. Press the control to move the seat forward, backward, up or down. REAR SEATS Rear captains chair adjust — passenger side only Pull the lever to adjust the seat forward or backward.
Page 73 Seating and Safety Restraints Quick-release captains chair (7 passenger configuration- second row only) To remove the seat: 1. Disengage the lap/shoulder belt from the seat by inserting a key or small screwdriver into the slot in the detachable anchor and lifting upward.
Page 74 Seating and Safety Restraints 1. Position the seat to the floor mount. 2. Pull the seat latch handle downward to lock the seat in position. 3. Make sure the safety belt is not twisted, then insert the safety belt tongue into detachable anchor until you hear a “click” and feel the latch engage.
Page 75 Seating and Safety Restraints 2. Find the clips attached near the ends of the lap/shoulder belts. 3. Clip the end of the belt to the stationary portion of the shoulder belt coming out of the trim panel. The end of the shoulder belt must be clipped in order to keep it from striking anything during vehicle operation.
Page 76 Seating and Safety Restraints 4. With assistance, pull the LH/RH seat latch release straps (1) (located behind the latch mechanisms) to release the latch from the rear strikers. 5. Lift the rear end of seat upward and rearward by pushing on the seatback (2) and lifting the seat cushion (3) to disengage the front seat hook and the rear seat latch from the striker.
Page 77: Safety Restraints
Seating and Safety Restraints 5. After the front LH/RH hooks are engaged to the LH/RH front striker pins, pull LH/RH seat latch release straps to allow engagement of the latch to the striker pins. Refer to the illustration in To remove the rear seats above.
Page 78 Seating and Safety Restraints WARNING: In a rollover crash, an unbelted person is significantly more likely to die than a person wearing a safety belt. WARNING: Each seating position in your vehicle has a specific safety belt assembly which is made up of one buckle and one tongue that are designed to be used as a pair.
Page 79 Seating and Safety Restraints • Front and rear seats 2. To unfasten, push the release button and remove the tongue from the buckle. • Front and rear seats All safety restraints in the vehicle are combination lap and shoulder belts. All of the passenger combination lap and shoulder belts have two types of locking modes described below: Vehicle sensitive mode This is the normal retractor mode, which allows free shoulder belt length...
Page 80 Seating and Safety Restraints Automatic locking mode When to use the automatic locking mode In this mode, the shoulder belt is automatically pre-locked. The belt will still retract to remove any slack in the shoulder belt. The automatic locking mode is not available on the driver safety belt. This mode should be used any time a child safety seat, except a booster, is installed in passenger front or rear seating position (if equipped).
Page 81 Seating and Safety Restraints WARNING: After any vehicle collision, the safety belt systems at all outboard seating positions (except the driver position, which does not have this feature) must be checked by an authorized dealer to verify that the automatic locking retractor feature for child seats is still functioning properly.
Page 82 Seating and Safety Restraints WARNING: Position the safety belt height adjusters so that the belt rests across the middle of your shoulder. Failure to adjust the safety belt properly could reduce the effectiveness of the seat belt and increase the risk of injury in a collision. Safety belt warning light and indicator chime The safety belt warning light illuminates in the instrument cluster and a chime sounds to remind the occupants to fasten their safety belts.
Page 83 Seating and Safety Restraints If... Then... The driver’s safety belt is not The Belt-Minder feature is activated buckled approximately - the safety belt warning light 5 seconds after the safety belt illuminates and the warning chime warning light has turned off... sounds for 6 seconds every 30 seconds, repeating for approximately 5 minutes or until...
Page 84 Seating and Safety Restraints Reasons given... Consider... “I was in a hurry” Prime time for an accident. Belt-Minder reminds us to take a few seconds to buckle up. “Safety belts don’t work” Safety belts, when used properly, reduce risk of death to front seat occupants by 45% in cars, and by 60% in light trucks.
Page 85 Seating and Safety Restraints Deactivating/activating the Belt-Minder feature Read Steps 1 - 5 thoroughly before proceeding with the deactivation/activation programming procedure. The Belt-Minder feature can be deactivated/activated by performing the following procedure: Before following the procedure, make sure that: • the parking brake is set •...
Page 86 (if equipped), shoulder belt guide on seatback (if equipped), child safety seat LATCH and tether anchors, and attaching hardware, should be inspected after a collision. Ford Motor Company recommends that all safety belt assemblies in use in vehicles involved in a collision be replaced.
Page 87: Airbags
Seating and Safety Restraints WARNING: Failure to inspect and if necessary replace the safety belt assembly under the above conditions could result in severe personal injuries in the event of a collision. For proper care of soiled safety belts, refer to Interior in the Cleaning chapter.
Page 88 Seating and Safety Restraints WARNING: Always transport children 12 years old and under in the back seat and always properly use appropriate child restraints. Never place a rear-facing child seat in front of an active airbag. If you must transport a forward-facing child in the front seat, move the seat all the way back and use appropriate restraints.
Page 89 Seating and Safety Restraints Children and airbags Children must always be properly restrained. Accident statistics suggest that children are safer when properly restrained in the rear seating positions than in the front seating position. Failure to follow these instructions may increase the risk of injury in a collision.
Page 90 Seating and Safety Restraints The airbags inflate and deflate rapidly upon activation. After airbag deployment, it is normal to notice a smoke-like, powdery residue or smell the burnt propellant. This may consist of cornstarch, talcum powder or sodium compounds which may irritate the skin and eyes, but none of the residue is toxic.
Page 91 Seating and Safety Restraints Determining if the system is operational The SRS uses a readiness light in the instrument cluster or a tone to indicate the condition of the system. Refer to Airbag readiness section in the Instrument Cluster chapter. Routine maintenance of the airbag is not required.
Page 92 WARNING: If the light fails to illuminate when the passenger air bag switch is in the OFF position and the ignition switch is in ON, have the passenger air bag switch serviced at your Ford or Lincoln-Mercury dealer immediately. 2008 Econoline (eco)
Page 93 Seating and Safety Restraints WARNING: In order to avoid inadvertent activation of the switch, always remove the ignition key from the passenger air bag ON/OFF switch. WARNING: An infant in a rear-facing seat faces a high risk of serious or fatal injuries from a deploying passenger airbag. Rear facing infant seats should NEVER be placed in the front seats, unless the passenger airbag is turned off.
Page 94 Seating and Safety Restraints WARNING: The safety belts for the driver and right front passenger seating positions have been specifically designed to function together with the airbags in certain types of crashes. When you turn OFF your airbag, you not only lose the protection of the airbag, you also may reduce the effectiveness of your safety belt system, which was designed to work with the airbag.
Page 95 Seating and Safety Restraints NHTSA deactivation criteria (excluding Canada) 1. Infant. An infant (less than 1 year old) must ride in the front seat because: • the vehicle has no rear seat; • the vehicle has a rear seat too small to accommodate a rear-facing infant seat;...
Page 96 Seating and Safety Restraints Transport Canada deactivation criteria (Canada Only) 1. Infant: An infant (less than 1 year old) must ride in the front seat because: • my vehicle has no rear seat; • the rear seat in my vehicle cannot accommodate a rear-facing infant seat;...
Page 97: Child Restraints
If you install a forward-facing child safety seat using the vehicle safety belts: • use only seats equipped with lap-shoulder belts; • Ford recommends placing forward-facing safety seats in the 2nd row and using top tether straps for added protection. For more information on top tether straps, see Attaching child safety seats with tether straps in this section.
Page 98 To improve the fit of both the lap and shoulder belt on children who have outgrown child safety seats, Ford Motor Company recommends use of a belt-positioning booster. Booster seats position a child so that safety belts fit better. They lift the child up so that the lap belt rests low across the hips and the knees bend comfortably.
Page 99 Seating and Safety Restraints When children should use booster seats Children need to use booster seats from the time they outgrow the toddler seat until they are big enough for the vehicle seat and lap/shoulder belt to fit properly. Generally this is when they weigh about 80 lb (36 kg) (about 8 to 12 years old).
Page 100 Seating and Safety Restraints • Those with a high back. If, with a backless booster seat, you cannot find a seating position that adequately supports your child’s head, a high back booster seat would be a better choice. Either type can be used at any seating position equipped with lap/shoulder belts if your child is over 40 lb (18 kg).
Page 101 Seating and Safety Restraints WARNING: Move a child to a different seating location if the shoulder belt does not stay positioned on the shoulder during use. WARNING: Follow all instructions provided by the manufacturer of the booster seat. WARNING: Never put the shoulder belt under a child’s arm or behind the back because it eliminates the protection for the upper part of the body and may increase the risk of injury or death in a collision.
Page 102 80 pounds (36 kg) using an upper torso harness and a belt-positioning booster. Ford recommends the use of a child safety seat having a top tether strap. Install the child safety seat in a seating position with LATCH and tether anchors.
Page 103 Seating and Safety Restraints WARNING: An airbag can kill or injure a child in a child seat. Never place a rear-facing child seat in front of an active airbag. If you must use a forward-facing child seat in the front seat, move the seat all the way back.
Page 104 Seating and Safety Restraints 5. To put the retractor in the automatic locking mode, grasp the shoulder portion of the belt and pull downward until all of the belt is extracted. 6. Allow the belt to retract. The belt will click as it retracts to indicate it is in the automatic locking mode.
Page 105 Seating and Safety Restraints Attaching child safety seats with tether straps WARNING: Children should be placed in the rear in an appropriate child safety seat that is properly secured to the vehicle. WARNING: When using forward-facing child safety seats in vehicles with only two seating positions so the forward-facing child safety seat cannot be placed in the rear of the vehicle, move the passenger seat as far back from the instrument panel as possible.
Page 106 Seating and Safety Restraints 1. Position the child safety seat on the front right-hand passenger seat. 2. Adjust the front right-hand passenger seat full forward. 3. Route the child safety seat tether strap over the back of the front right-hand passenger seat as shown. 4.
Page 107 Seating and Safety Restraints 5. Adjust the front right hand passenger seat to the full rearward position. 6. Install the child safety seat tightly using the LATCH anchors or safety belts. Follow the instructions in this chapter. 7. Tighten the child safety seat tether strap according to the manufacturer’s instructions.
Page 108 Seating and Safety Restraints 1. Position the child safety seat on the second row left hand or right hand bucket seat. 2. Route the child safety tether strap over the back of the left hand or right hand second row bucket seat.
Page 109 Seating and Safety Restraints 2. Route the child safety tether strap over the back of the bench seat. 3. Clip the center tether strap hook to the tether bracket mounted under rear rail of seat cushion frame. Clip the outboard tether strap hooks to the tether bracket slot provided on the left side of each seat pedestal.
Page 110 Seating and Safety Restraints • Five passenger crew van • Seven passenger wagon • Eight passenger wagon • Twelve passenger wagon 2008 Econoline (eco) Owners Guide (post-2002-fmt) USA (fus)
Page 111 Seating and Safety Restraints • Fifteen passenger wagon represents LATCH anchors. represents tether strap anchors. WARNING: Never attach two LATCH child safety seats to the same anchor. In a crash, one anchor may not be strong enough to hold two child safety seat attachments and may break, causing serious injury or death.
Page 112 Seating and Safety Restraints Each time you use the safety seat, check that the seat is properly attached to the lower anchors and tether anchor. Try to tilt the child seat from side to side. Also try to tug the seat forward. Check to see if the anchors hold the seat in place.
Page 113: Tires, Wheels And Loading
Tires, Wheels and Loading NOTICE TO UTILITY VEHICLE AND TRUCK OWNERS Utility vehicles and trucks handle differently than passenger cars in the various driving conditions that are encountered on streets, highways and off-road. Utility vehicles and trucks are not designed for cornering at speeds as high as passenger cars any more than low-slung sports cars are designed...
Page 114 Tires, Wheels and Loading VEHICLE CHARACTERISTICS How your vehicle differs from other vehicles SUV and trucks can differ from some other vehicles in a few noticeable ways. Your vehicle may • Higher – to allow higher load carrying capacity and to allow it to travel over rough terrain without getting hung up or damaging underbody components.
Page 115 Title 49 Code of Federal Regulations Part 575.104(c)(2). U.S. Department of Transportation-Tire quality grades: The U.S. Department of Transportation requires Ford Motor Company to give you the following information about tire grades exactly as the government has written it.
Page 116 Tires, Wheels and Loading Traction AA A B C The traction grades, from highest to lowest are AA, A, B, and C. The grades represent the tire’s ability to stop on wet pavement as measured under controlled conditions on specified government test surfaces of asphalt and concrete.
Page 117 At least once a month and before long trips, inspect each tire and check the tire pressure with a tire gauge (including spare, if equipped). Inflate all tires to the inflation pressure recommended by Ford Motor Company. You are strongly urged to buy a reliable tire pressure gauge, as automatic service station gauges may be inaccurate.
Page 118: Tire Inflation
Always inflate your tires to the Ford recommended inflation pressure even if it is less than the maximum inflation pressure information found on the tire. The Ford recommended tire inflation pressure is found on the Safety Compliance Certification Label or Tire Label which is located on the B-Pillar or the edge of the driver’s door.
Page 119 Tires, Wheels and Loading To check the pressure in your tire(s): 1. Make sure the tires are cool, meaning they are not hot from driving even a mile. If you are checking tire pressure when the tire is hot, (i.e. driven more than 1 mile [1.6 km]), never “bleed”...
Page 120 Tires, Wheels and Loading Tire inflation information All tires with Steel Carcass Plies (if equipped): This type of tire utilizes steel cords in the sidewalls. As such, they cannot be treated like normal light truck tires. Tire service, including adjusting tire pressure, must be performed by personnel trained, supervised and equipped according to Federal Occupational Safety and Health Administration (OSHA) regulations.
Page 121 Tires, Wheels and Loading WARNING: Stay out of the trajectory (1) as indicated in the illustration. TIRE CARE Inspecting your tires Periodically inspect the tire treads for uneven or excessive wear and remove objects such as stones, nails or glass that may be wedged in the tread grooves.
Page 122 Tires, Wheels and Loading Improper or inadequate vehicle maintenance can cause tires to wear abnormally. Inspect all your tires, including the spare, frequently, and replace them if one or more of the following conditions exist: Tire wear When the tread is worn down to 1/16th of an inch (2 mm), tires must be replaced to help prevent your vehicle from skidding and...
Page 123 B-Pillar or edge of the driver’s door. If this information is not found on these labels then you should consult your Ford Dealer. Use of any tire or wheel not recommended by Ford can affect the safety and performance of your vehicle, which could result in an increased risk of loss of vehicle control, vehicle rollover, personal injury and death.
Page 124 4. Use both eye and ear protection. For a mounting pressure more than 20 psi greater than the maximum pressure, a Ford Dealer or other tire service professional should do the mounting. Always inflate steel carcass tires with a remote air fill with the person inflating standing at a minimum of 12 ft.
Page 125 Tires, Wheels and Loading • Do not run over curbs or hit the tire against a curb when parking WARNING: If your vehicle is stuck in snow, mud, sand, etc., do not rapidly spin the tires; spinning the tires can tear the tire and cause an explosion.
Page 126 Tires, Wheels and Loading • Rear Wheel Drive (RWD) vehicles/Four Wheel Drive (4WD)/All Wheel Drive (AWD) vehicles (front tires at top of diagram) Sometimes irregular tire wear can be corrected by rotating the tires. Note: If your tires show uneven wear ask an authorized dealer to check for and correct any wheel misalignment, tire imbalance or mechanical problem involved before tire rotation.
Page 127 Tires, Wheels and Loading • DRW – Six tire rotation If your vehicle is equipped with dual rear wheels it is recommended that the front and rear tires (in pairs) be rotated only side to side. We do not recommend splitting up the dual rear wheels.
Page 128 Tires, Wheels and Loading Information on “P” type tires P215/65R15 95H is an example of a tire size, load index and speed rating. The definitions of these items are listed below. (Note that the tire size, load index and speed rating for your vehicle may be different from this example.) 1.
Page 129 Tires, Wheels and Loading Note: You may not find this information on all tires because it is not required by federal law. Letter rating Speed rating - mph (km/h) 81 mph (130 km/h) 87 mph (140 km/h) 99 mph (159 km/h) 106 mph (171 km/h) 112 mph (180 km/h) 118 mph (190 km/h)
Page 130 Tires, Wheels and Loading 12. Treadwear, Traction and Temperature Grades • Treadwear: The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a specified government test course. For example, a tire graded 150 would wear one and one-half (1 ⁄...
Page 131 Tires, Wheels and Loading Additional information contained on the tire sidewall for “LT” type tires “LT” type tires have some additional information beyond those of “P” type tires; these differences are described below. Note: Tire Quality Grades do not apply to this type of tire. 1.
Page 132 Tires, Wheels and Loading Information on “T” type tires “T” type tires have some additional information beyond those of “P” type tires; these differences are described below: T145/80D16 is an example of a tire size. Note: The temporary tire size for your vehicle may be different from this example.
Page 133: Tire Pressure Monitoring System (Tpms)
Tires, Wheels and Loading TIRE PRESSURE MONITORING SYSTEM (TPMS) (IF EQUIPPED) Each tire, including the spare (if provided), should be checked monthly when cold and inflated to the inflation pressure recommended by the vehicle manufacturer on the vehicle placard or tire inflation pressure label. (If your vehicle has tires of a different size than the size indicated on the vehicle placard or tire inflation pressure label, you should determine the proper tire inflation pressure for those tires.)
Page 134 Tires, Wheels and Loading The Tire Pressure Monitoring System complies with part 15 of the FCC rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
Page 135 Tires, Wheels and Loading When your temporary spare tire is installed When one of your road tires needs to be replaced with the temporary spare, the TPMS system will continue to identify an issue to remind you that the damaged road wheel/tire needs to be repaired and put back on your vehicle.
Page 136 Tires, Wheels and Loading Low Tire Pressure Possible cause Customer Action Required Warning Light Solid Warning Light Tire(s) 1. Check your tire pressure to under-inflated ensure tires are properly inflated; refer to Inflating your tires in this chapter. 2. After inflating your tires to the manufacturer’s recommended inflation pressure as shown on the Tire...
Page 137 Tires, Wheels and Loading Low Tire Pressure Possible cause Customer Action Required Warning Light Flashing Warning Spare tire in use Your temporary spare tire is in Light use. Repair the damaged road wheel and re-mount it on the vehicle to restore system functionality.
Page 138 Tires, Wheels and Loading TPMS reset procedure (if applicable) This procedure is only required after tire rotation on vehicles with different front and rear tire pressures. WARNING: To determine if your vehicle requires two different pressures - one for the front tires and one for the rear tires - refer to the Safety Compliance Certification Label or Tire Label which is located on the B-Pillar or the edge of the driver’s door.
Page 139 To reduce the chances of interference from another vehicle, TPMS reset should be performed at least three feet (one meter) away from another Ford Motor Company vehicle undergoing the TPMS reset procedure at the same time. Do not wait more than two (2) minutes between resetting each tire sensor or the system will timeout and the entire procedure will have to be repeated on all four wheels.
Page 140 Tires, Wheels and Loading 3. Press and hold the brake pedal for two (2) seconds, then release. 4. Turn the ignition to OFF/LOCK (DO NOT remove the key.) 5. Cycle the ignition from OFF/LOCK to RUN three (3) times ending in RUN.
Page 141 Tires, Wheels and Loading 1. Left front tire: Place the TPMS reset tool against the left front tire where the tire meets the rim, opposite from the valve stem (1) as shown. This is where the sensor is located inside the rim. The tool needs to be held against the tire sidewall opposite the valve stem as illustrated with the arrow on the tool pointing towards the rim;...
Page 142 Tires, Wheels and Loading Rotation, pressure adjustment and TPMS reset example The following example describes all the major steps involved in rotating tires on a vehicle with different front and rear tire pressures. It illustrates that the TPMS reset procedure needs to follow tire rotation and pressure adjustment to avoid a possible false low tire warning.
Page 143 Tires, Wheels and Loading Sensor position following tire rotation Sensor 1: 50 psi Sensor 2: 50 psi Sensor 3: 80 psi Sensor 4: 80 psi Pressure adjustment without the required TPMS reset procedure Sensor 1: 80 psi Sensor 2: 80 psi Sensor 3: 50 psi Sensor 4: 50 psi In this situation, the TPMS warning...
Page 144 SNOW TIRES AND CHAINS WARNING: Snow tires must be the same size, load index, speed rating as those originally provided by Ford. Use of any tire or wheel not recommended by Ford can affect the safety and performance of your vehicle, which could result in an increased risk of loss of vehicle control, vehicle rollover, personal injury and death.
Page 145: Vehicle Loading
Tires, Wheels and Loading • Remove the tire chains when they are no longer needed. Do not use tire chains on dry roads. • The suspension insulation and bumpers will help prevent vehicle damage. Do not remove these components from your vehicle when using snow tires and chains.
Page 146 Tires, Wheels and Loading vehicle, the weight of the equipment must be subtracted from the payload listed on the Tire Label in order to determine the new payload. WARNING: The appropriate loading capacity of your vehicle can be limited either by volume capacity (how much space is available) or by payload capacity (how much weight the vehicle should carry).
Page 147 Tires, Wheels and Loading Cargo Weight – includes all weight added to the Base Curb Weight, including cargo and optional equipment. When towing, trailer tongue load or king pin weight is also part of cargo weight. GAW (Gross Axle Weight) – is the total weight placed on each axle (front and rear) –...
Page 148 Tires, Wheels and Loading GVWR (Gross Vehicle Weight Rating) – is the maximum allowable weight of the fully loaded vehicle (including all options, equipment, passengers and cargo). The GVWR is shown on the Safety Compliance Certification Label located on the B-Pillar or the edge of the driver’s door.
Page 149 Tires, Wheels and Loading Maximum Loaded Trailer Weight – is the highest possible weight of a fully loaded trailer the vehicle can tow. It assumes a vehicle with only mandatory options, no cargo (internal or external), a tongue load of 10–15% (conventional trailer) or king pin weight of 15–25% (fifth wheel trailer), and driver only (150 lb.
Page 150 Tires, Wheels and Loading 5. Determine the combined weight of luggage and cargo being loaded on the vehicle. That weight may not safely exceed the available cargo and luggage load capacity calculated in Step 4. 6. If your vehicle will be towing a trailer, load from your trailer will be transferred to your vehicle.
Page 151: Trailer Towing
Tires, Wheels and Loading Special loading instructions for owners of pickup trucks and utility-type vehicles WARNING: For important information regarding safe operation of this type of vehicle, see the Preparing to drive your vehicle section in the Driving chapter of this Owner’s Guide. WARNING: Loaded vehicles may handle differently than unloaded vehicles.
Page 152 Tires, Wheels and Loading GCWR (Gross Combined Weight Rating)/Trailer Weights Maximum Maximum Rear Maximum Loaded frontal area of Engine axle GCWR - lb. Trailer Weight trailer - ft ratio (kg) - lb. (kg) E-150 Regular/RV Van (8600 GVWR) 5.4L 3.55 12000 (5443) 6500 (2948) 60 (5.52)
Page 153 Tires, Wheels and Loading GCWR (Gross Combined Weight Rating)/Trailer Weights Maximum Maximum Rear Maximum Loaded frontal area of Engine axle GCWR - lb. Trailer Weight trailer - ft ratio (kg) - lb. (kg) E-250 Regular/RV Van (9000 GVWR) 5.4L 3.73 13000 (5896) 7400 (3356) 60 (5.52)
Page 154 Tires, Wheels and Loading GCWR (Gross Combined Weight Rating)/Trailer Weights Maximum Maximum Rear Maximum Loaded frontal area of Engine axle GCWR - lb. Trailer Weight trailer - ft ratio (kg) - lb. (kg) 6.8L 4.10 18500 (8391) 10000 (4536) 60 (5.52) E-350 Regular Wagon (11/12–passenger) (8800 GVWR) 5.4L 3.73...
Page 155 Tires, Wheels and Loading GCWR (Gross Combined Weight Rating)/Trailer Weights Maximum Maximum Rear Maximum Loaded frontal area of Engine axle GCWR - lb. Trailer Weight trailer - ft ratio (kg) - lb. (kg) E-350 Cutaway (158” wheelbase, dual rear wheel) (12500 GVWR) 5.4L 4.10...
Page 156 Tires, Wheels and Loading GCWR (Gross Combined Weight Rating)/Trailer Weights Maximum Maximum Rear Maximum Loaded frontal area of Engine axle GCWR - lb. Trailer Weight trailer - ft ratio (kg) - lb. (kg) E-350 Stripped Chassis (158” wheelbase, dual rear wheel) (10000 GVWR) 5.4L 4.10...
Page 157 Tires, Wheels and Loading GCWR (Gross Combined Weight Rating)/Trailer Weights Maximum Maximum Rear Maximum Loaded frontal area of Engine axle GCWR - lb. Trailer Weight trailer - ft ratio (kg) - lb. (kg) E-450 Stripped Chassis (158” wheelbase, dual rear wheel) (14050 GVWR) 5.4L 4.56...
Page 158 Tires, Wheels and Loading WARNING: Do not exceed the GVWR or the GAWR specified on the certification label. WARNING: Towing trailers beyond the maximum recommended gross trailer weight exceeds the limit of the vehicle and could result in engine damage, transmission damage, structural damage, loss of vehicle control, vehicle rollover and personal injury.
Page 159 Tires, Wheels and Loading Trailer lamps Trailer lamps are required on most towed vehicles. Make sure all running lights, brake lights, turn signals and hazard lights are working. See your authorized dealer or trailer rental agency for proper instructions and equipment for hooking up trailer lamps.
Page 160 Tires, Wheels and Loading Trailer towing tips • Practice turning, stopping and backing up before starting on a trip to get the feel of the vehicle trailer combination. When turning, make wider turns so the trailer wheels will clear curbs and other obstacles. •...
Page 161: Recreational Towing
Tires, Wheels and Loading Replace the rear axle lubricant any time the axle has been submerged in water. Rear axle lubricant quantities are not to be checked or changed unless a leak is suspected or repair required. RECREATIONAL TOWING Follow these guidelines if you have a need for recreational (RV) towing. An example of recreational towing would be towing your vehicle behind a motorhome.
Page 162: Driving
Driving STARTING Positions of the ignition 1. ACCESSORY, allows the electrical accessories such as the radio to operate while the engine is not running. 2. LOCK, locks the automatic transmission gearshift lever and allows key removal. 3. OFF, shuts off the engine and all accessories without locking the steering wheel.
Page 163 Driving WARNING: Do not start your vehicle in a closed garage or in other enclosed areas. Exhaust fumes can be toxic. Always open the garage door before you start the engine. See Guarding against exhaust fumes in this chapter for more instructions. WARNING: If you smell exhaust fumes inside your vehicle, have your dealer inspect your vehicle immediately.
Page 164 Driving • Turn the key to 4 (ON) without turning the key to 5 (START). Some warning lights will briefly illuminate. See Warning lights and chimes in the Instrument Cluster chapter for more information regarding the warning lights. Starting the engine 1.
Page 165 Driving You may experience a decrease in peak performance when the engine is cold when operating on E ethanol. Do not crank the engine for more than 30 seconds at a time as starter damage may occur. If the engine fails to start, turn the key to OFF and wait 30 seconds before trying again.
Page 166 Driving See Cold weather starting in the Driving chapter for more information on starting with ethanol. WARNING: Failure to follow engine block heater instructions could result in property damage or physical injury. WARNING: To reduce the risk of electrical shock, do not use your heater with ungrounded electrical systems or two-pronged (cheater) adapters.
Page 167: Brakes
Driving • Be sure that the engine block heater, heater cord and extension cord are solidly connected. A poor connection can cause the cord to become very hot and may result in an electrical shock or fire. Be sure to check for heat anywhere in the electrical hookup once the system has been operating for approximately a half hour.
Page 168 Driving Using ABS When hard braking is required, apply continuous force on the brake pedal; do not pump the brake pedal since this will reduce the effectiveness of the ABS and will increase your vehicle’s stopping distance. The ABS will be activated immediately, allowing you to retain steering control during hard braking and on slippery surfaces.
Page 169: Traction Control
Driving The parking brake is not recommended to stop a moving vehicle. However, if the normal brakes fail, the parking brake can be used to stop your vehicle in an emergency. Since the parking brake applies only the rear brakes, the vehicle’s stopping distance will increase greatly and the handling of your vehicle will be adversely affected.
Page 170 Driving If a system fault is detected, the traction control active light will illuminate, the Traction Control™ button will not turn the system on or off and your vehicle should be serviced by an authorized dealer. ADVANCETRAC WITH ROLL STABILITY CONTROL™ (RSC) STABILITY ENHANCEMENT SYSTEM (IF EQUIPPED) The AdvanceTrac with RSC system provides stability and traction enhancement for certain driving situations when driver assistance is...
Page 171 Driving WARNING: Aggressive driving in any road conditions can cause you to lose control of your vehicle increasing the risk of severe personal injury or death. The occurrence of a AdvanceTrac with RSC event is an indication that at least some of the tires have exceeded their ability to grip the road;...
Page 172 Driving The AdvanceTrac with RSC button allows the driver to control the availability of the AdvanceTrac with RSC system. AdvanceTrac with RSC system status is indicated by a warning indicator light with a “sliding car” icon in the instrument cluster that will flash when the system is active and an indicator light in the control button that will illuminate when the system is turned off.
Page 173 Driving Some drivers may notice a slight movement of the brake pedal when the AdvanceTrac with RSC performs a system self-check. During AdvanceTrac with RSC operation you may experience the following: • A rumble or grinding noise • A slight deceleration of the vehicle •...
Page 174 Driving • loose or worn suspension components • loose or worn steering components • improper steering alignment A high crown in the road or high crosswinds may also make the steering seem to wander/pull. TRACTION-LOK AXLE (IF EQUIPPED) This axle provides added traction on slippery surfaces, particularly when one wheel is on a poor traction surface.
Page 175 Driving Vehicle stability and handling The risk of a rollover crash increases as the number of people and load in the vehicle increase. This increased risk occurs because the passenger weight and load raises the vehicle’s center of gravity and causes it to shift rearward.
Page 176: Transmission Operation
Driving WARNING: Vehicles with a higher center of gravity such as utility and four-wheel drive vehicles handle differently than vehicles with a lower center of gravity. Utility and four-wheel drive vehicles are not designed for cornering at speeds as high as passenger cars any more than low-slung sports cars are designed to perform satisfactorily under off-road conditions.
Page 177 Driving See your authorized dealer for service immediately. WARNING: If your brake lamps are not working properly or if you have disconnected the vehicle battery cables, the vehicle brake lamps and hazard flashers may not properly warn traffic of a vehicle breakdown or approaching danger, which can increase the risk of serious injury or death.
Page 178 Driving Understanding the gearshift positions of the 4–speed automatic transmission This vehicle is equipped with an adaptive Transmission Shift Strategy. Adaptive Shift Strategy offers the optimal transmission operation and shift quality. When the vehicle’s battery has been disconnected for any type of service or repair, the transmission will need to relearn the normal shift strategy parameters, much like having to reset your radio stations when your vehicle battery has been disconnected.
Page 179 Driving N (Neutral) With the gearshift lever in N (Neutral), the vehicle can be started and is free to roll. Hold the brake pedal down while in this position. (Overdrive) The normal driving position for the best fuel economy. Transmission operates in gears one through four.
Page 180 Driving 1 (First) • Provides maximum engine braking. • Allows upshifts by moving gearshift lever. • Will not downshift into 1 (First) at high speeds; allows for 1 (First) when vehicle reaches slower speeds. Forced downshifts • Allowed in (Overdrive) or Drive. •...
Page 181 Driving To put your vehicle in P (Park): • Come to a complete stop • Move the gearshift lever and securely latch it in P (Park) WARNING: Always set the parking brake fully and make sure the gearshift is latched in P (Park). Turn the ignition to the LOCK position and remove the key whenever you leave your vehicle.
Page 182 Driving Tow/Haul delays upshifts to reduce frequency of transmission shifting. Tow/Haul also provides engine braking in all forward gears when the transmission is in the D (Overdrive) position; this engine braking will slow the vehicle and assist the driver in controlling the vehicle when descending a grade.
Page 183 Driving Understanding the shift positions of the 5–speed automatic transmission (if equipped - diesel engines only) P (Park) This position locks the transmission and prevents the rear wheels from turning. To put your vehicle in gear: • Start the engine •...
Page 184 Driving D (Drive) without Overdrive D (Drive) without Overdrive can be activated by pressing the transmission control switch (TCS) ON/OFF on the end of the gearshift lever. • This position allows for all forward gears except overdrive. • The O/D OFF lamp will illuminate in the instrument cluster.
Page 185: Reverse Sensing System
Driving If your vehicle goes off the edge of the pavement • If your vehicle goes off the edge of the pavement, slow down, but avoid severe brake application, ease the vehicle back onto the pavement only after reducing your speed. Do not turn the steering wheel too sharply while returning to the road surface.
Page 186 Driving WARNING: To help avoid personal injury, always use caution when in reverse and when using the RSS. WARNING: This system is not designed to prevent contact with small or moving objects. The system is designed to provide a warning to assist the driver in detecting large stationary objects to avoid damaging the vehicle.
Page 187 Your vehicle is qualified for use as a stationary power source, within limits detailed in the Ford Truck Body Builders Layout Book, found at www.fleet.ford.com/truckbbas, and through the Ford Truck Body Builders Advisory Service.
Page 188 Driving Gas engine vehicles are qualified for up to 10 minutes of continuous operation as a stationary power source, due to the potential for the normal venting of fuel vapors. For stationary PTO operation of extended duration (beyond 10 minutes), diesel engine is recommended. Further consult your aftermarket PTO installer, since the duration of operation limit for the aftermarket PTO may be less than the vehicle is capable of.
Page 189: Roadside Emergencies
Roadside Emergencies ROADSIDE ASSISTANCE Getting roadside assistance To fully assist you should you have a vehicle concern, Ford Motor Company offers a complimentary roadside assistance program. This program is separate from the New Vehicle Limited Warranty. The service is available: •...
Page 190 Motorhome customers in the U.S and Canada should contact 1-800-444-3311. If you need to arrange roadside assistance for yourself, Ford Motor Company will reimburse a reasonable amount for towing to the nearest dealership within 35 miles. To obtain reimbursement information, U.S.
Page 191: Fuel Pump Shut-Off Switch
Roadside Emergencies Note: With extended use, the flasher may run down your battery. FUEL PUMP SHUT-OFF SWITCH This device stops the electric fuel pump from sending fuel to the engine when your vehicle has had a substantial jolt. After an accident, if the engine cranks but does not start, this switch may have been activated.
Page 192: Fuses And Relays
Roadside Emergencies On commercial stripped chassis vehicles, this switch is located on a bracket above the brake pedal. To reset the switch: 1. Turn the ignition OFF. 2. Check the fuel system for leaks. 3. If no leaks are apparent, reset the switch by pushing in on the reset button.
Page 193 Roadside Emergencies Standard fuse amperage rating and color COLOR Cartridge Fuse Mini Standard Maxi Fuse link maxi rating fuses fuses fuses cartridge fuses Grey Grey — — — Violet Violet — — — Pink Pink — — — — — —...
Page 194 Roadside Emergencies The fuses are coded as follows. Fuse/Relay Fuse Amp Passenger Compartment Fuse Location Rating Panel Description — Not used Remote Keyless Entry (RKE), O/D cancel, IVD module, 4W ABS Delayed accessory overhead console, Audio Courtesy lamps Power door locks without BSM Daytime Running Lamps (DRL) module, Reverse Park Aid (RPA) Multi-function switch, Turn signals...
Page 195 Roadside Emergencies Fuse/Relay Fuse Amp Passenger Compartment Fuse Location Rating Panel Description Wiper control module Main light switch, Park lamps, License lamp (external lamps), Multi-function switch (flash-to-pass), BSM Multi-function switch (hazards), Brake lamps, IVD relay Back-up lamps, Auxiliary battery relay (gasoline engine only) Blend door actuator, A/C mode Instrument cluster Trailer battery charge relay,...
Page 196 Roadside Emergencies Fuse/Relay Fuse Amp Passenger Compartment Fuse Location Rating Panel Description Right headlamp (low beam) Power point #1 (instrument panel) Starter relay — Not used — Not used Instrument illumination Ignition switch Brake Shift Interlock Trailer tow electric brake, Center High-Mounted Stop Lamp (CHMSL) Power point (body B-pillar)
Page 197 Roadside Emergencies If the battery has been disconnected and reconnected, refer to the Battery section of the Maintenance and Specifications chapter. The high-current fuses are coded as follows. Fuse/Relay Fuse Amp Power Distribution Box Location Rating Description — Powertrain Control Module (PCM) diode —...
Page 198 Roadside Emergencies Fuse/Relay Fuse Amp Power Distribution Box Location Rating Description 30A** Trailer tow electric brake controller 40A** 4-Wheel Anti-lock Brake System (4WABS) and Flex fuel (FF) module (if equipped), or AdvanceTrac with RSC. 60A** I/P fuses 29, 34, 35, 40 and 41 20A** Fuel pump relay 50A**...
Page 199 Roadside Emergencies Fuse/Relay Fuse Amp Power Distribution Box Location Rating Description 10A* PCM KAPWR, Canister vent (gasoline engine only) — Not used — Fuel pump relay — Horn relay — Trailer back-up lamps relay — Trailer running lamps relay — Trailer battery charge relay —...
Page 200 Roadside Emergencies The relays are coded as follows: Relay location Description Interior lamps Open Open Battery saver Engine compartment relay module The engine compartment relay module is located in one of two places depending on which type of engine your vehicle is equipped with: •...
Page 201 Ford. If the dissimilar spare tire or wheel is damaged, it should be replaced rather than repaired.
Page 202 Roadside Emergencies When driving with one of the dissimilar spare tires listed above, do not: • Exceed 50 mph (80 km/h) • Load the vehicle beyond maximum vehicle load rating listed on the Safety Compliance Label • Tow a trailer •...
Page 203 Roadside Emergencies When driving with the full-size dissimilar spare tire/wheel additional caution should be given to: • Towing a trailer • Driving vehicles equipped with a camper body • Driving vehicles with a load on the cargo rack Drive cautiously when using a full-size dissimilar spare tire/wheel and seek service as soon as possible.
Page 204 Roadside Emergencies To remove the spare tire: 1. Open the rear doors and remove the thumb screw and anti-theft bracket. If finger pressure will not remove the thumb screw, use the lug wrench to loosen the screw. 2. Remove the access plug under the left door.
Page 205 Roadside Emergencies 1. Block the wheel that is diagonally opposite the tire you are changing. On E-450 vehicles, the parking brake is on the transmission. Therefore, the vehicle will not be prevented from moving when a rear wheel is lifted, even if the parking brake is applied. Be sure to block both directions of the wheel that is diagonally opposite to the wheel that is being lifted.
Page 206 Roadside Emergencies WARNING: To lessen the risk of personal injury, do not put any part of your body under the vehicle while changing a tire. Do not start the engine when your vehicle is on the jack. The jack is only meant for changing the tire.
Page 207 Roadside Emergencies Front axle jacking points: Place the jack under the pin on the front surface of the front axle. Do not place the jack under or on the steering linkage. • Raise the jack until the wheel is completely off the ground. (Turn jack handle clockwise if your vehicle is equipped with a screw-type jack or pump the jack...
Page 208 Roadside Emergencies WARNING: Never use wheels or lug nuts different than the original equipment as this could damage the wheel or mounting system. This damage could allow the wheels to come off while the vehicle is being driven. 6. Install any wheel covers, ornaments or hub caps.
Page 209: Wheel Lug Nut Torque
9/16 x 18 two-piece lug nut * Torque specifications are for nut and bolt threads free of dirt and rust. Use only Ford recommended replacement fasteners. On all two-piece flat wheel nuts, apply one drop of motor oil between the flat washer and the nut. Do not apply motor oil to the wheel nut threads or the wheel stud threads.
Page 210: Jump Starting
Roadside Emergencies WARNING: When a wheel is installed, always remove any corrosion, dirt or foreign materials present on the mounting surfaces of the wheel or the surface of the wheel hub, brake drum or brake disc that contacts the wheel. Ensure that any fasteners that attach the rotor to the hub are secured so they do not interfere with the mounting surfaces of the wheel.
Page 211 Roadside Emergencies Preparing your vehicle When the battery is disconnected or a new battery is installed, the automatic transmission must relearn its shift strategy. As a result, the transmission may have firm and/or soft shifts. This operation is considered normal and will not affect function or durability of the transmission.
Page 212 Roadside Emergencies 2. Connect the other end of the positive (+) cable to the positive (+) terminal of the assisting battery. 3. Connect the negative (-) cable to the negative (-) terminal of the assisting battery. 2008 Econoline (eco) Owners Guide (post-2002-fmt) USA (fus)
Page 213 Roadside Emergencies 4. Make the final connection of the negative (-) cable to an exposed metal part of the stalled vehicle’s engine, away from the battery and the carburetor/fuel injection system. Do not use fuel lines, engine rocker covers or the intake manifold as grounding points. WARNING: Do not connect the end of the second cable to the negative (-) terminal of the battery to be jumped.
Page 214 Roadside Emergencies Removing the jumper cables Remove the jumper cables in the reverse order that they were connected. 1. Remove the jumper cable from the ground metal surface. Note: In the illustrations, lightning bolts are used to designate the assisting (boosting) battery. 2.
Page 215 Roadside Emergencies 3. Remove the jumper cable from the positive (+) terminal of the booster vehicle’s battery. 4. Remove the jumper cable from the positive (+) terminal of the disabled vehicle’s battery. After the disabled vehicle has been started and the jumper cables removed, allow it to idle for several minutes so the engine computer can relearn its idle conditions.
Page 216: Wrecker Towing
Ford recommends your vehicle be towed with a wheel lift or flatbed. Do not tow with a slingbelt. Ford Motor Company has not approved a slingbelt towing procedure.
Page 217 Roadside Emergencies Emergency towing In case of a roadside emergency with a disabled vehicle (without access to wheel dollies, car hauling trailer, or flatbed transport vehicle) your vehicle (regardless of transmission powertrain configuration) can be flat towed (all wheels on the ground) under the following conditions: •...
Page 218: Customer Assistance
Center at 1-800-392-3673 (FORD). Away from home If you own a Ford or Mercury vehicle and are away from home when your vehicle needs service, or if you need more help than the authorized dealer could provide, after following the steps described above, contact the Ford Customer Relationship Center to find an authorized dealer to help you.
Page 219 Away from home–motorhome service If you own a motorhome built on a Ford Chassis and are away from home when your vehicle needs service, or if you need more help than the authorized dealer could provide, after following the steps above, contact the Ford Motorhome Customer Assistance Center to find an authorized dealer or service location to help you.
Page 220 In the case of 1 or 2 above, the consumer must also notify the manufacturer of the need for the repair of the nonconformity at the following address: Ford Motor Company 16800 Executive Plaza Drive Mail Drop 3NE-B Dearborn, MI 48126...
Page 221 You are not bound by the decision but may choose to accept it. If you choose to accept the BBB AUTO LINE decision then Ford must abide by the accepted decision as well. If the arbitrator has decided in...
Page 222 (CANADA ONLY) For vehicles delivered to authorized Canadian dealers. In those cases where you continue to feel that the efforts by Ford of Canada and the authorized dealer to resolve a factory-related vehicle service concern have been unsatisfactory, Ford of Canada participates in an impartial third party mediation/arbitration program administered by the Canadian Motor Vehicle Arbitration Plan (CAMVAP).
Page 223 Customer Assistance If you did not take advantage of the Ford Extended Service Plan at the time of purchasing your vehicle, you may still be eligible. Since this information is subject to change, please ask your authorized dealer for complete details about Ford Extended Service Plan coverage options, or visit the Ford ESP website at www.ford-esp.com.
Page 224: Reporting Safety Defects (U.s. Only)
However, NHTSA cannot become involved in individual problems between you, your dealer, or Ford Motor Company. 2008 Econoline (eco)
Page 225: Reporting Safety Defects (Canada Only)
Customer Assistance To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1–888–327–4236 (TTY: 1–800–424–9153); go to http://www.safercar.gov; or write to: Administrator 1200 New Jersey Avenue, Southeast Washington, D.C. 20590 You can also obtain other information about motor vehicle safety from http://www.safercar.gov.
Page 226: Cleaning
Cleaning WASHING THE EXTERIOR Wash your vehicle regularly with cool or lukewarm water and a neutral pH shampoo, such as Motorcraft Detail Wash (ZC-3-A), which is available from your authorized dealer. • Never use strong household detergents or soap, such as dish washing or laundry liquid.
Page 227 Cleaning • After polishing chrome bumpers, apply a coating of Motorcraft Premium Liquid Wax (ZC-53-A), available from your authorized dealer, or an equivalent quality product to help protect from environmental effects. WAXING • Wash the vehicle first. • Do not use waxes that contain abrasives; use Motorcraft Premium Liquid Wax (ZC-53-A), which is available from your authorized dealer, or an equivalent quality product.
Page 228 Cleaning • Some automatic car washes may cause damage to the finish on your wheel rims or covers. Chemical-strength cleaners, or cleaning chemicals, in combination with brush agitation to remove brake dust and dirt, could wear away the clearcoat finish over time. •...
Page 229 Cleaning PLASTIC (NON-PAINTED) EXTERIOR PARTS Use only approved products to clean plastic parts. These products are available from your authorized dealer. • For routine cleaning, use Motorcraft Detail Wash (ZC-3-A). • If tar or grease spots are present, use Motorcraft Bug and Tar Remover (ZC-42).
Page 230 Cleaning INSTRUMENT PANEL/INTERIOR TRIM AND CLUSTER LENS Clean the instrument panel, interior trim areas and cluster lens with a clean and damp white cotton cloth, then with a clean and dry white cotton cloth; you may also use Motorcraft Dash & Vinyl Cleaner (ZC-38-A) on the instrument panel and interior trim areas.
Page 231 Cleaning • If a ring forms on the fabric after spot cleaning, clean the entire area immediately (but do not oversaturate) or the ring will set. • Do not use household cleaning products or glass cleaners, which can stain and discolor the fabric and affect the flame retardant abilities of the seat materials.
Page 232 Cleaning FORD AND LINCOLN MERCURY CAR CARE PRODUCTS Your Ford or Lincoln Mercury authorized dealer has many quality products available to clean your vehicle and protect its finishes. These quality products have been specifically engineered to fulfill your automotive needs; they are custom designed to complement the style and appearance of your vehicle.
Page 233: Maintenance And Specifications
Maintenance and Specifications SERVICE RECOMMENDATIONS To help you service your vehicle, we provide scheduled maintenance information which makes tracking routine service easy. If your vehicle requires professional service, your authorized dealer can provide the necessary parts and service. Check your Warranty Guide/Customer Information Guide to find out which parts and services are covered.
Page 234 Maintenance and Specifications Working with the engine on 1. Set the parking brake and shift to P (Park). 2. Block the wheels. WARNING: To reduce the risk of vehicle damage and/or personal burn injuries, do not start your engine with the air cleaner removed and do not remove it while the engine is running.
Page 235: Engine Compartment
Maintenance and Specifications IDENTIFYING COMPONENTS IN THE ENGINE COMPARTMENT Engine compartment component locations Refer to the 6.0L and 6.4L Power Stroke Direct Injection Turbo Diesel Owner’s Guide Supplement for diesel engine component locations. 1. Windshield washer fluid reservoir 2. Engine oil filler cap 3.
Page 236 In very cold weather, do not fill the reservoir completely. Only use a washer fluid that meets Ford specification WSB-M8B16-A2. Do not use any special washer fluid such as windshield water repellent type fluid or bug wash. They may cause squeaking, chatter noise, streaking and smearing.
Page 237: Engine Oil
Maintenance and Specifications CHANGING THE WIPER BLADES 1. Pull the wiper arm away from the vehicle. Turn the blade at an angle from the wiper arm. Push the lock pin manually to release the blade and pull the wiper blade down toward the windshield to remove it from the arm.
Page 238 Maintenance and Specifications 5. Locate and carefully remove the engine oil level dipstick. 6. Wipe the dipstick clean. Insert the dipstick fully, then remove it again. • If the oil level is between the lower and upper holes or between the MIN and MAX marks (depending on application), the oil level is acceptable.
Page 239 Approval Committee (ILSAC), comprised of U.S. and Japanese automobile manufacturers. To protect your engine’s warranty, use Motorcraft SAE 5W-20 or an equivalent SAE 5W-20 oil meeting Ford specification WSS-M2C930-A. SAE 5W-20 oil provides optimum fuel economy and durability performance meeting all requirements for your vehicle’s engine.
Page 240: Battery
Maintenance and Specifications Ford production and aftermarket (Motorcraft) oil filters are designed for added engine protection and long life. If a replacement oil filter is used that does not meet Ford material and design specifications, start-up engine noises or knock may be experienced.
Page 241 Maintenance and Specifications It is recommended that the negative battery cable terminal be disconnected from the battery if you plan to store your vehicle for an extended period of time. This will minimize the discharge of your battery during storage. WARNING: Batteries normally produce explosive gases which can cause personal injury.
Page 242 Maintenance and Specifications Battery relearn Because your vehicle’s engine is electronically controlled by a computer, some control conditions are maintained by power from the battery. When the battery is disconnected or a new battery is installed, the engine must relearn its idle and fuel trim strategy for optimum driveability and performance.
Page 243: Engine Coolant
Maintenance and Specifications • Always dispose of automotive batteries in a responsible manner. Follow your local authorized standards for disposal. Call your local authorized recycling center to find out more about recycling automotive batteries. RECYCLE ENGINE COOLANT Checking engine coolant The concentration and level of engine coolant should be checked at the intervals listed in scheduled maintenance information.
Page 244 Maintenance and Specifications When the engine is cold, check the level of the engine coolant in the reservoir. • The engine coolant should be at the “FULL COLD” level or within the “COLD FILL RANGE” as listed on the engine coolant reservoir (depending upon application).
Page 245 Motorcraft Premium Gold Engine Coolant from yellow to golden tan. • Do not add/mix an orange-colored, extended life coolant such as Motorcraft Specialty Orange Engine Coolant, meeting Ford specification WSS-M97B44-D, or DEX-COOL brand with the factory-filled coolant. Mixing Motorcraft Specialty Orange Engine...
Page 246 Maintenance and Specifications water to the “FULL COLD” level. For all other vehicles which have a coolant degas system with a pressurized cap, or if it is necessary to remove the coolant pressure relief cap on the radiator of a vehicle with an overflow system, follow these steps to add engine coolant.
Page 247 Maintenance and Specifications Recycled engine coolant Ford Motor Company does NOT recommend the use of recycled engine coolant in vehicles originally equipped with Motorcraft Premium Gold Engine Coolant since a Ford-approved recycling process is not yet available. Used engine coolant should be disposed of in an appropriate manner.
Page 248 Maintenance and Specifications Vehicles driven year-round in non-extreme climates should use a 50/50 mixture of engine coolant and distilled water for optimum cooling system and engine protection. What you should know about fail-safe cooling (if equipped) If the engine coolant supply is depleted, this feature allows the vehicle to be driven temporarily before incremental component damage is incurred.
Page 249 Maintenance and Specifications 2. Arrange for the vehicle to be taken to an authorized dealer. 3. If this is not possible, wait a short period for the engine to cool. 4. Check the coolant level and replenish if low. WARNING: Never remove the coolant reservoir cap while the engine is running or hot.
Page 250 Maintenance and Specifications WARNING: Fuel ethanol and gasoline may contain benzene, which is a cancer-causing agent. Observe the following guidelines when handling automotive fuel: • Extinguish all smoking materials and any open flames before fueling your vehicle. • Always turn off the vehicle before fueling.
Page 251 Maintenance and Specifications Pure ethanol is the alcohol which is the intoxicating agent in liquor, beer and wine. It is distilled from the fermentation of plants such as field corn and sugar cane. When ethanol is produced for use in motor fuels, a small amount of gasoline is added to make it unfit for beverage use.
Page 252 Maintenance and Specifications Refueling WARNING: Fuel vapor burns violently and a fuel fire can cause severe injuries. To help avoid injuries to you and others: • Read and follow all the instructions on the pump island; • Turn off your engine when you are refueling; •...
Page 253 The customer warranty may be void for any damage to the fuel tank or fuel system if the correct genuine Ford, Motorcraft or other certified fuel filler cap is not used. WARNING: The fuel system may be under pressure. If the fuel filler cap is venting vapor or if you hear a hissing sound, wait until it stops before completely removing the fuel filler cap.
Page 254 Repairs to correct the effects of using a fuel for which your vehicle was not designed may not be covered by your warranty. Cleaner air Ford endorses the use of reformulated “cleaner-burning” gasolines to improve air quality, per the recommendations in the Choosing the right fuel section.
Page 255 Maintenance and Specifications common abbreviation or the appropriate percentage for that region. Use of other fuels such as Fuel Methanol may cause powertrain damage, a loss of vehicle performance, and your warranty may be invalidated. Fuel quality Do not add aftermarket fuel additive products to your fuel tank. It should not be necessary to add any aftermarket products to your fuel tank if you continue to use high quality fuel of the recommended octane rating.
Page 256 Maintenance and Specifications Running out of fuel Avoid running out of fuel because this situation may have an adverse effect on powertrain components. If you have run out of fuel: • You may need to cycle the ignition from off to on several times after refueling to allow the fuel system to pump the fuel from the tank to the engine.
Page 257 Maintenance and Specifications For consistent results when filling the fuel tank: • Turn the engine/ignition switch to the off position prior to refueling, an error in the reading will result if the engine is left running. • Use the same filling rate setting (low — medium — high) each time the tank is filled.
Page 258 Maintenance and Specifications Habits • Smooth, moderate operation can yield up to 10% savings in fuel. • Steady speeds without stopping will usually give the best fuel economy. • Idling for long periods of time (greater than one minute) may waste fuel.
Page 259 If other than Ford, Motorcraft or Ford-authorized parts are used for maintenance replacements or for service of components affecting emission control, such non-Ford parts should be equivalent to genuine Ford Motor Company parts in performance and durability.
Page 260 Maintenance and Specifications WARNING: Do not park, idle, or drive your vehicle in dry grass or other dry ground cover. The emission system heats up the engine compartment and exhaust system, which can start a fire. Illumination of the Service engine soon indicator, charging system warning light or the temperature warning light, fluid leaks, strange odors, smoke or loss of engine power could indicate that the emission control...
Page 261 Maintenance and Specifications These temporary malfunctions can be corrected by filling the fuel tank with good quality fuel, properly tightening the fuel cap or letting the electrical system dry out. After three driving cycles without these or any other temporary malfunctions present, the Service engine soon indicator should stay off the next time the engine is started.
Page 262 Maintenance and Specifications Allow the vehicle to sit for at least eight hours without starting the engine. Then, start the engine and complete the above driving cycle. The engine must warm up to its normal operating temperature. Once started, do not turn off the engine until the above driving cycle is complete. If the vehicle is still not ready for I/M testing, the above driving cycle will have to be repeated.
Page 263 Maintenance and Specifications 5. Recheck the fluid level on the dipstick. Do not add fluid if the level is between the arrows in the FULL COLD range. 6. If the fluid is low, add fluid in small amounts, continuously checking the level until it reaches the FULL COLD range.
Page 264 Maintenance and Specifications DRIVELINE UNIVERSAL JOINT AND SLIP YOKE Your vehicle may be equipped with universal joints that require lubrication. Refer to the scheduled maintenance information for maintenance intervals. If the original universal joints are replaced with universal joints equipped with grease fittings, lubrication will also be necessary.
Page 265 Maintenance and Specifications Low fluid level Do not drive the vehicle if the fluid level is at the bottom of the dipstick and the ambient temperature is above 50°F (10°C). COLD DO NOT ADD Correct fluid level The transmission fluid should be checked at normal operating temperature 150°F-170°F (66°C-77°C) on a level surface.
Page 266 Maintenance and Specifications COLD DO NOT ADD The transmission fluid should be in this range if at normal operating temperature (150°F-170°F [66°C-77°C]). DON'T ADD IF IN CROSSHATCHED AREA • CHECK WHEN HOT IDLING IN PARK COLD DO NOT ADD The transmission fluid should be in this range if at ambient temperature (50°F-95°F [10°C-35°C]).
Page 267 Maintenance and Specifications High fluid level DON'T ADD IF IN CROSSHATCHED AREA • CHECK WHEN HOT IDLING IN PARK COLD DO NOT ADD Fluid levels above the safe range may result in transmission failure. An overfill condition of transmission fluid may cause shift and/or engagement concerns and/or possible damage.
Page 268: Air Filter(S)
Maintenance and Specifications An overfill condition of transmission fluid may cause shift and/or engagement concerns and/or possible damage. Do not use supplemental transmission fluid additives, treatments or cleaning agents. The use of these materials may affect transmission operation and result in damage to internal transmission components. Automatic transmission fluid filter The Torqshift automatic transmission is equipped with a...
Page 269 Maintenance and Specifications Changing the air filter element 1. Disconnect the fresh air inlet tube from the radiator support. 2. Open the clamp that secures the two halves of the air filter housing together. 3. Carefully separate the two halves of the air filter housing.
Page 270: Part Numbers
PCV valve. Replace the PCV valve with one that meets Ford material and design specifications for your vehicle, such as a Motorcraft or equivalent replacement part. The customer warranty may be void for any damage to the emissions system if such a PCV valve is not used.
Page 271 Maintenance and Specifications 2008 Econoline (eco) Owners Guide (post-2002-fmt) USA (fus)
Page 272 Maintenance and Specifications 2008 Econoline (eco) Owners Guide (post-2002-fmt) USA (fus)
Page 273 Maintenance and Specifications 2008 Econoline (eco) Owners Guide (post-2002-fmt) USA (fus)
Page 274: Engine Data
Maintenance and Specifications ENGINE DATA Engine 4.6L V8 engine 5.4L V8 engine 6.8L V10 engine Cubic inches 87 octane or 87 octane 87 octane Required fuel (E-85) Firing order 1-3-7-2-6-5-4-8 1-3-7-2-6-5-4-8 1-6-5-10-2-7-3-8-4-9 Ignition Coil on plug Coil on plug Coil on plug system 0.052–0.056 inch 0.052–0.056 inch...
Page 275 • 4.6L V8 and 5.4L V8 Engines with A/C • 6.8L V10 Engine VEHICLE IDENTIFICATION NUMBER Complete Ford built vehicles The vehicle identification number is attached to your vehicle in the following places: • The top of the instrument panel on the driver’s side.
Page 276 Maintenance and Specifications • On the certification label. This label is required by the National Highway Traffic Safety Administration and is made of special material. If it is tampered with, it will be destroyed or a destruction pattern will appear. The Vehicle Identification Number (VIN) contains the following information: 1.
Page 277 Maintenance and Specifications TRANSMISSION CODE DESIGNATIONS You can find a transmission code on the Safety Compliance Certification Label. The following table tells you which transmission each code represents. Description Code Five-speed automatic TorqShift-diesel engine with overdrive cancel Four-speed automatic overdrive (4R75E) Five-speed automatic TorqShift-gasoline engine with Tow/Haul 2008 Econoline (eco)
Page 278: Accessories
GENUINE FORD ACCESSORIES FOR YOUR VEHICLE A wide selection of Genuine Ford Accessories are available for your vehicle through your local Ford or Ford of Canada dealer. These quality accessories have been specifically engineered to fulfill your automotive needs; they are custom designed to complement the style and aerodynamic appearance of your vehicle.
Page 279 Accessories For maximum vehicle performance, keep the following information in mind when adding accessories or equipment to your vehicle: • When adding accessories, equipment, passengers and luggage to your vehicle, do not exceed the total weight capacity of the vehicle or of the front or rear axle (GVWR or GAWR as indicated on the Safety Compliance Certification label).
Page 280: Index
Index acid, treating emergencies ..240 battery saver ......35 jumping a disabled battery ..210 Accessory delay ......53 maintenance-free ....240 AdvanceTrac ......170 replacement, specifications ...270 Air cleaner filter ....268–270 servicing ........240 Airbag supplemental restraint Belt-Minder .......82 system ..........87 Booster seats .......98 and child safety seats ....89 Brakes ........167 description ........87 disposal ........91...
Page 281 ......271 (see Speed control) ....54 service points ......235 Customer Assistance ....189 starting after a collision ..191 Ford Extended Service Plan ...222 Engine block heater ....165 Getting assistance outside the U.S. and Canada ....223 Engine oil ........237 Getting roadside assistance ...189 checking and adding ....237...
Page 282 Index Flexible Fuel Vehicle (FFV) ..249 aiming ........38 bulb specifications ....41 Fluid capacities ......271 daytime running lights .....36 Four-Wheel Drive vehicles flash to pass ......36 preparing to drive your high beam .........36 vehicle ........174 replacing bulbs ......42 turning on and off ....35 Fuel ..........249 Heating calculating fuel economy ..256...
Page 283 Index Power distribution box (see Fuses) .......196 Lamps Power door locks ......58 bulb replacement Power mirrors ......53 specifications chart ....41 Power point .........51 daytime running light ....36 headlamps .........35 Power steering ......173 headlamps, flash to pass ..36 fluid, checking and adding ..262 instrument panel, dimming ..37 fluid, refill capacity ....271 interior lamps ......40...
Page 284 Index extension assembly ....86 Tilt steering wheel ......48 for adults ......78–80 Tire Pressure Monitoring for children ......97–98 System (TPMS) safety belt maintenance ...86 Tires, Wheels and Loading ..133 warning light and chime ..82 Tires ......115–116, 200 Safety seats for children ..101 alignment ........125 care ..........121 Seats ..........70...
Page 285: Table Of Contents
Index Windshield washer fluid and wipers ..........47 Warning lights (see Lights) ..12 checking and adding fluid ..236 Washer fluid ......236 replacing wiper blades ...237 Water, Driving through .....188 Wrecker towing ......216 Windows power .........52 2008 Econoline (eco) Owners Guide (post-2002-fmt) USA (fus)

Ford Econoline 2008 Owner's Manual

Introduction

Instrument Cluster

Entertainment Systems

Climate Controls

Lights

Driver Controls

Locks and Security

Seating and Safety Restraints

Tires, Wheels and Loading

Driving

Quick Links

Table of Contents

Related Manuals for Ford Econoline 2008

Summary of Contents for Ford Econoline 2008

Table of Contents
