Summary of Contents for Iluv i277
-

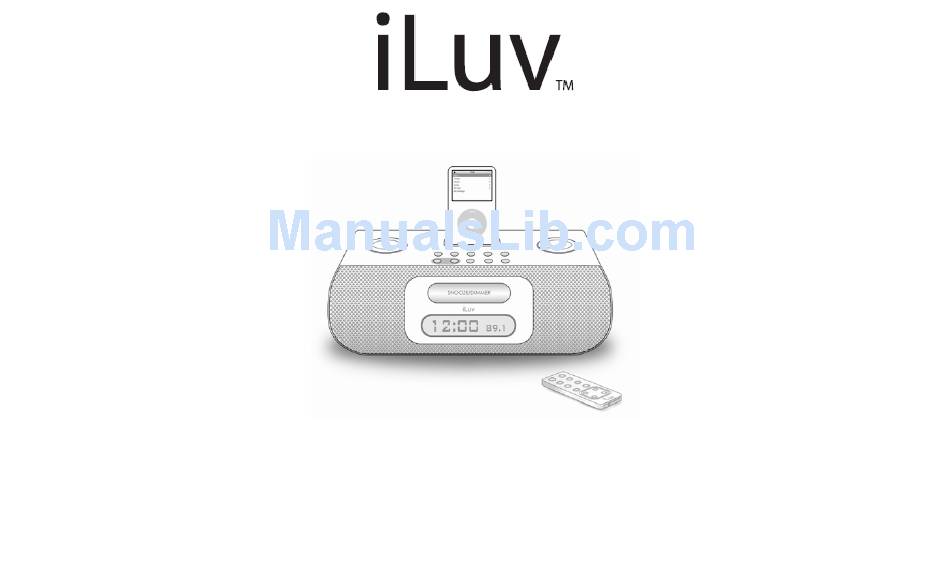

Page 1: Instruction Manual
® Stereo Audio System for Your iPod Instruction Manual Model: i277 Please read this manual carefully before operating and save it for future reference. Have a question? Please visit http://www.i-Luv.com... -
Page 2: User Safety Guide
Stereo Audio System for Your iPod USER SAFETY GUIDE INSTRUCTIONS ON ENVIRONMENT PROTECTION Do not dispose of this product in the usual household garbage at the end of its life cycle; bring it to a collection point for the recycling of electrical and electronic appliances. - Page 3 Stereo Audio System for Your iPod USER SAFETY GUIDE IMPORTANT SAFETY INSTRUCTIONS – CONTINUED POWER SOURCES – The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance itself. CLEANING –...
- Page 4 Stereo Audio System for Your iPod USER SAFETY GUIDE FCC NOTICE (USA) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 5: About Electromagnetic Interference (Emi)
Stereo Audio System for Your iPod USER SAFETY GUIDE About Electromagnetic Interference (EMI) This device is designed and manufactured not to exceed the exposure limit for radio frequency energy, which is set by the Federal Communications Commission of the U.S government. The term “EMI”... -
Page 6: Table Of Contents
Stereo Audio System for Your iPod TABLE OF CONTENTS Getting Started General features ……………………………………………………………………………………………………………………………………………...… Installing the AC adapter…………….……………………………………………………………..………………………………………………………..… Installing the backup battery for clock and alarm settings ………………..……………………….………………………………………………………. Installing the remote control battery …...………………………………………………………………………………………………………….………… Installing the AM loop antenna ………………………………………………………………………………………………………………………….…….. Installing the dock adapter …………………………………………………………………………………………………………………………………….. -
Page 7: Getting Started
GETTING STARTED Congratulations on your purchase of the new iLuv i277 for your iPod. Uniquely designed to work with your iPod, this iLuv stereo audio system with built-in universal dock provides advanced audio and radio performance that brings out the best in your music. Remember to keep this manual for future reference. -
Page 8: Installing The Ac Adapter
Installing the Backup Battery for Clock and Alarm Settings In order to offer consistent clock settings and alarm functions, the i277 uses a backup battery system. This means that in the event of a power failure, all the settings of the i277 will remain saved. For example, after the installation of the Backup Battery, the AC cord is disconnected or a power failure occurs, the display will NOT remain lit, but the time and date settings will be temporarily maintained. - Page 9 Stereo Audio System for Your iPod GETTING STARTED Installing the Backup Battery for Clock and Alarm Settings -Continued Locate the battery compartment on the bottom of the unit and open. Insert 2 “AA” batteries, following the correct polarity (+/-) drawings inside the battery compartment. For longer battery life, alkaline batteries are suggested.
-
Page 10: Installing The Remote Control Battery
Stereo Audio System for Your iPod GETTING STARTED Installing the Remote Control Battery The remote control battery has been previously installed and ready for operation for immediate use. When the remote control stops functioning, you must replace the battery with a new one. To do so, locate the battery compartment on the side of the remote and follow the steps below: Squeeze the notch labeled “Tab A”... -
Page 11: Location Of Controls On The Main Unit
Stereo Audio System for Your iPod GETTING STARTED Location of Controls on the Main Unit PLAY / PAUSE VOLUME BluePin 10. SELECT 13. WAKE TO 16. LCD Display 19. FM Antenna Wire 22. AV-OUT Jack iPod / Bluetooth Built-in Universal Dock 11. -
Page 12: Location Of Controls On The Remote Control
35. MUTE Note: The included remote control controls all basic functions on the i277 and iPod. Aim the remote control toward the bottom right corner of the main unit for the best results. Please note that following models can not be controlled by the i277’s remote: first generation iPod, second generation iPod. -
Page 13: Location Of Indications On The Lcd Screen
Stereo Audio System for Your iPod GETTING STARTED Location of Indications on the LCD Screen Alarm 2 armed iPod Indicator Sleep Indicator Alarm 1 armed Time/Alarm Display AM/FM Indicator PM Indicator Wake To Indicator iPod, Radio, Buzzer Bluetooth Indicator TX/RX Indicator ST/KHz/MHz Indicator Radio Frequency/Date Volume Level/AUX Display... -
Page 14: Operational Instructions
01 to 40. When the Alarm(s) is (are) activated, the volume will gradually rise from low to the pre-set setting. Press the ALARM 1 or ALARM 2 button again to exit the alarm setting mode. Notes: Make sure the alarm volume level set to desired level and the i277’s display has icon indicating alarm armed Using the Alarm Function To preview the alarm time, press the ALARM 1 or ALARM 2 buttons once. -
Page 15: Adjusting The Brightness Of The Lcd Screen
• In the event of a power outage or if AC power is disconnected, when the i277 is powered by the Backup Battery, the alarm will NOT sound and time and date will not be displayed. Time and date settings, however, will be temporarily saved. -
Page 16: Setting The Sleep Time
Setting the Sleep Time To enter sleep mode, press the SLEEP button while the i277 is off or while listening to your iPod or the radio. The unit will automatically turn off after the selected time. The sleep mode also has a feature called the “Gentle Sleep”, which gradually decreases the volume. -
Page 17: Listening To Your Favorite Songs On Your Ipod
To listen to music, make sure that your iPod is in play mode, when inserted into the built-in universal dock correctly, then i277 will automatically turn ON and music will begin to play. NOTE: If i277 fails to automatically play or you do not hear any sound coming out from the unit, make sure iPod is securely docked in the Built-In Universal dock and press the PLAY/PAUSE button on the i277 or on the Remote Control twice for music play to begin. - Page 18 Using AV out port to watch Video on your iPod from an External Monitor or TV – Continued Note: The line output is not affected by the volume setting on the i277. Please use the volume control of the external device to increase or decrease the volume level.
-
Page 19: Listening To Other Audio Devices Using Line-In Port
Listening to Other Audio Devices using line-in port You can still listen to the first, second and third generations of iPod, or any other audio players other then iPod, with the i277 by simply using the LINE-IN port, located on the rear of the i277. -
Page 20: Bluepin Setup And Operating Instructions
Mode Button NOTE: Certain devices with Bluetooth technology might not be compatible with the BluePin product for this operation is iLUV Stereo Headsets with Bluetooth technology which are fully compatible with the BluePin Overview: , please check with your dealer for compatibility. The best... - Page 21 Once the BluePin is securely plugged in to the i277, please long press the pairing button for 3 seconds to start pairing with other devices. You will notice that blue and red light flashing from the unit which indicates device is ready to be paired with other devices with Bluetooth technology.
- Page 22 The switch for TX and RX is located on the left side of the BluePin TX/RX Switch Example (RX Mode): If you have a MP3 cell phone with Bluetooth Stereo Profile (A2DP) could transmit the music on your cell phone to our i277 w/ Bluepin to enjoy the music on the i277(For this operation the BluePin as TX or RX depending on the purpose.
- Page 23 • You can use the PLAY/PAUSE, PREV, NEXT buttons of i277 to remote control the MP3 cell phones or other devices that support AVRCP profile. Note: Depends on the device these functions might be disabled due to software issues.
- Page 24 When both units are no longer flashing red and blue lights, and flashes steady blue light you are now connected and can send music from i277 to Headset with Bluetooth wireless technology. The speakers of i277 will be muted after it connected to Bluetooth headset, you can press the MUTE button or VOLUME buttons to release mute.
-
Page 25: Maintenance & Troubleshooting Guide
The software of your iPod is outdated. Upgrade the software on your iPod. For the details on how to upgrade the software on your iPod, please visit Apple Computer’s website: http://www.apple.com. You are using the first or second generation iPod. The i277 does not recognize first or second generation iPod. Use the line-in jack for the first or second generation of iPod. - Page 26 The remote control does not operate properly. The installed battery is weak. Replace with a new battery. It is not aimed to the i277 or too far away from it. Move within 10 feet of the unit and point the remote control toward the i277. •...
- Page 27 Please check your device manual, or check with manufacturer to see if device has matching A2DP Bluetooth Stereo Profile) • There seems to be noticeable delay between the devices with Bluetooth wireless technology and i277. This is normal when using devices using Bluetooth wireless technology. •...
-
Page 28: Specifications
Stereo Audio System for Your iPod SPECIFICATIONS General • Power Requirement Main Unit: DC 15V, 1100mA Adapter (Center Positive) Clock Backup: Two 1.5V “AA” size batteries (not included) Remote Control: One 3V “CR2025” size lithium battery (included) • Speakers: 4 Ohms (each) Output Power: 3W + 3W (RMS) Radio •... - Page 29 Electronics Corp. iPod is a trademark of Apple Computer Inc. iPod is not included in this package. Features and specifications are subject to change without prior notification. BluePin is a trademark of jWIN Electronics Corp. The Bluetooth word mark and logos are owned by Bluetooth SIG, Inc.
