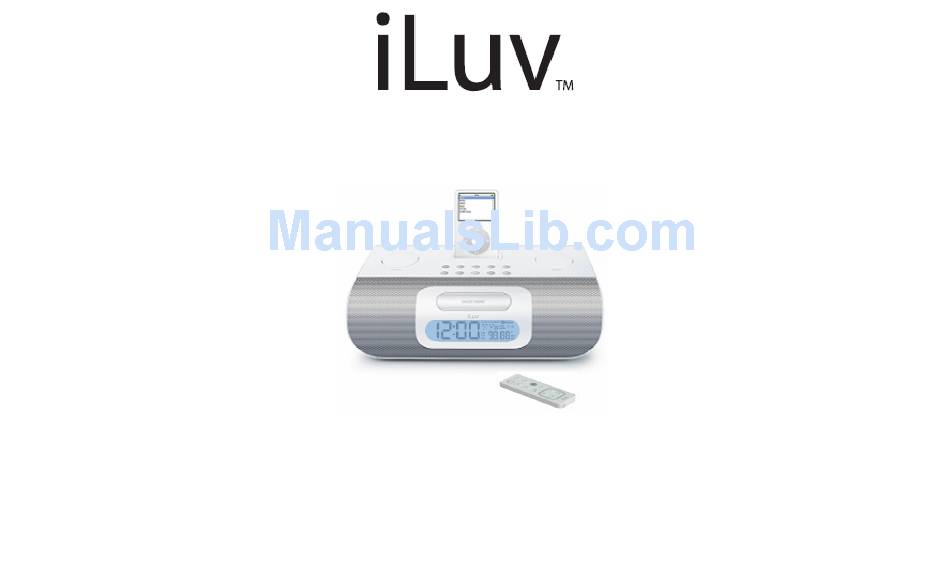

- Page 1 ® Stereo Audio System for Your iPod Instruction Manual Model: i277 Please read this manual carefully before operating and save it for future reference. Have a question? Please visit http://www.i-Luv.com...
- Page 2 Stereo Audio System for Your iPod V11M10_IM_EN_11012006 USER SAFETY GUIDE YOU CAN HELP TO PROTECT THE ENVIRONMENT! Please remember to respect the local regulations: Hand in the non-working electrical equipment to an appropriate waste disposal center. FOR BATTERIES Attention: All batteries must be recycled and disposed of properly.
- Page 3 Stereo Audio System for Your iPod V11M10_IM_EN_11012006 USER SAFETY GUIDE IMPORTANT SAFETY INSTRUCTIONS – CONTINUED POWER SOURCES - The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.
- Page 4 Stereo Audio System for Your iPod V11M10_IM_EN_11012006 USER SAFETY GUIDE TO A USER IN USA As specified in Part 15 of the FCC Rules, this equipment complies within the limits of a Class B digital device. These restrictions provide sufficient protection against radio and TV interference in residential areas.
-
Page 5: Table Of Contents
Stereo Audio System for Your iPod V11M10_IM_EN_11012006 TABLE OF CONTENTS Getting Started General features ……………………………………………………………………………………………………………………………………………...… Installing the AC adapter…………….……………………………………………………………..………………………………………………………..… Installing the backup battery for clock and alarm settings ………………..……………………….………………………………………………………. Installing the remote control battery …..………………………………………………………………………………………………………….………… Installing the AM loop antenna ………………………………………………………………………………………………………………………….…….. -
Page 6: Getting Started
Congratulations on your purchase of the new iLuv i277 for your iPod. Targeted specifically to work with iPod, iLuv stereo audio system with the built-in universal dock provides advanced audio and radio performance that brings out the best in your music. Do not forget to keep this manual for future reference. -
Page 7: Installing The Ac Adapter
In order to offer consistent clock settings and alarm functions, i277 uses a backup battery system. This means that despite the occurrence of a power failure, all the settings of i277 will remain saved. For example, after the installation of the Backup Battery, if for some reason the AC cord is disconnected or a power failure does occur, the display will not remain lit, but the current time and alarm time settings will be temporarily maintained. -
Page 8: Installing The Remote Control Battery
Stereo Audio System for Your iPod V11M10_IM_EN_11012006 GETTING STARTED Installing the Remote Control Battery The remote control battery has been previously installed and ready for operation for the first time use. When the remote control stops functioning, you must replace the battery with a new one. To do so, you must first locate the battery compartment on the side of the remote and follow the three steps below: Squeeze the notch labeled “Tab A”... -
Page 9: Location Of Controls On The Main Unit
Stereo Audio System for Your iPod V11M10_IM_EN_11012006 GETTING STARTED Location of Controls on the Main Unit PLAY / PAUSE iPod / Bluetooth AM/FM VOLUME ALARM 1 BluePin Built-in Universal Dock ALARM 2 10. SELECT 11. SLEEP 12. POWER 13. WAKE TO 14. -
Page 10: Location Of Controls On The Remote Control
Mutes the sound Note: The included remote control commands all of the basic functions on i277. Aim the remote control towards the bottom right corner of the main unit for the best results. Please note that the provide remote control cannot control the first generation of iPod, and the second generation of iPod. -
Page 11: Location Of Indications On The Lcd Screen
Stereo Audio System for Your iPod V11M10_IM_EN_11012006 GETTING STARTED Location of Indications on the LCD Screen - 10 - www.i-Luv.com... -
Page 12: Setting The Clock Time
• Now that you have set the Alarm Time, the i277 is now activated and set to wake you up. To ensure this setting, you will see an Alarm Icon appear on the display. If see Wake Icon need press again Alarm button the Wake Icon show on display few second •... -
Page 13: Operational Instructions
Outputting the Video Signal to an External Monitor or TV i277 has a feature to output the video signal of your iPod to the external display device, such as TV or a monitor, if your iPod has the ability to play a video. -
Page 14: Charging Your Ipod
Listening to Other Audio Devices You can still listen to the first and second generations of iPod, or any other audio player that is not an iPod, with i277 by simply using the LINE-IN jack, located on the rear of i277. Please ensure that before using the LINE-IN jack there is no iPod in the built-in universal dock. -
Page 15: Listening To Your Favorite Radio Stations
Listening to Your Favorite Radio Station For the best FM radio clarity, you should fully extend the pig-tail wire antenna, located on the rear of i277. It is important not to alter, obstruct or attach to other antennas to this wire antenna. To achieve the best AM reception possible, it is recommended to have a distance of 12” between the AM antenna, the unit and iPod. -
Page 16: Adjusting The Brightness Of Lcd Screen
Set iPod to the repeat mode if you’ve selected Wake To iPod, and your iPod has less than one hour of songs. • If you have selected the Wake To iPod setting, yet no iPod is present or there is no music on the iPod at the alarm time, i277 will automatically switch to the buzzer mode. -
Page 17: Maintenance & Troubleshooting Guide
This is normal. Lower the volume or power off the unit and let it rest. i277 does not turn on. The AC adapter may not be inserted securely into Insert the AC adapter fully into a wall outlet and then plug the wall outlet or into the power supply jack located the connector into the supply jack on the unit. - Page 18 Check that your iPod is operating properly before putting into the dock. Please refer to your iPod manual for reference. Using 1st and 2nd generation iPod, iPod shuffle or i277 cannot control the recognition of other iPod or various other devices. types of players.
- Page 19 Rotate the AM loop antenna and keep away from the main the unit unit for the best reception. Sound is distorted. Volume level on the device or the i277 is set too Decrease the volume. high. Sound source is distorted.
- Page 20 Electronics Corp. iPod is a trademark of Apple Computer Inc. All logos and brands are property of their respective owners. iPod is not included in this package. Features and specifications are subject to change without prior notification.
