User's Manual

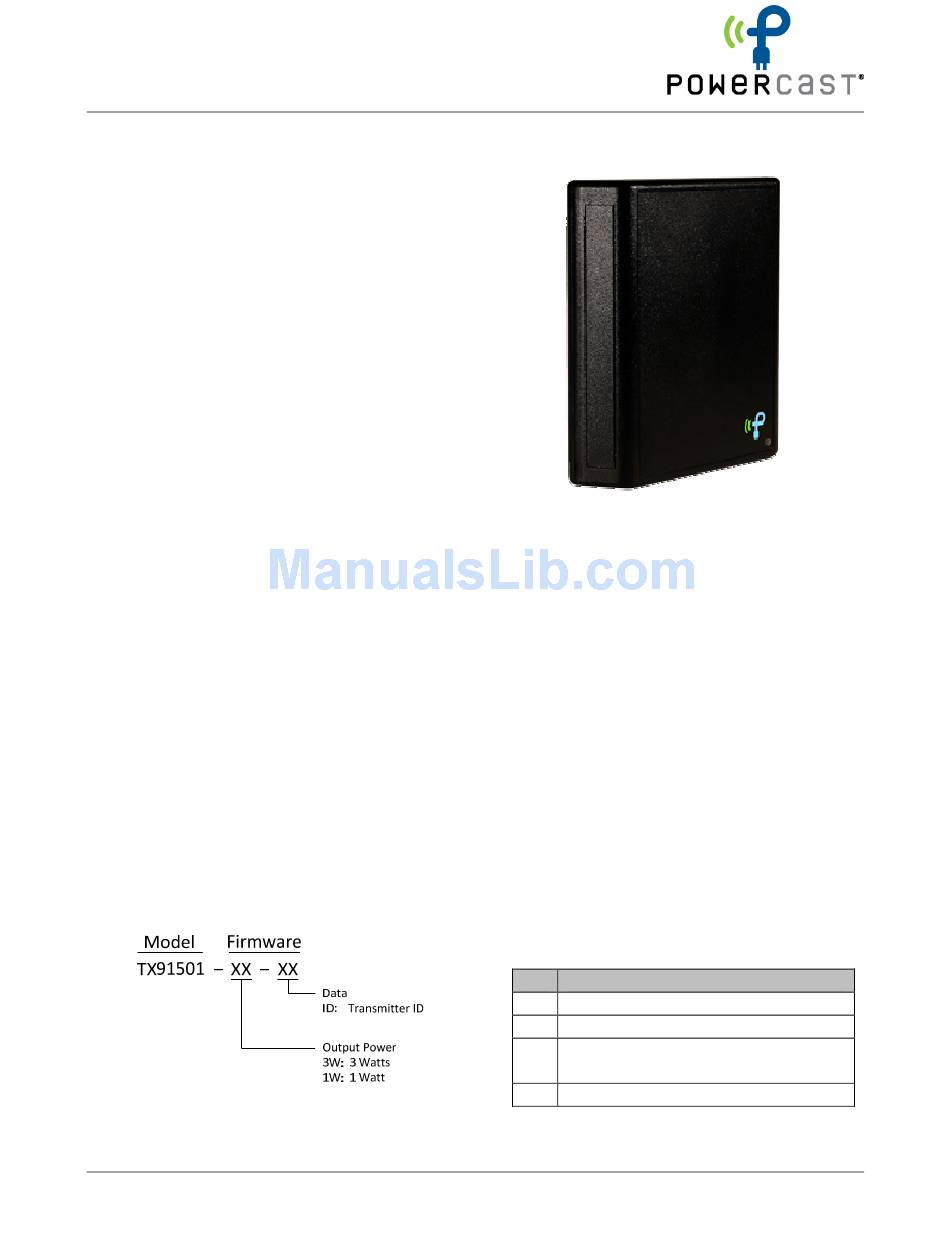

TX91501 – 915 MHz Powercaster
PRODUCT DESCRIPTION
The
Powercast
TX91501
transmitter is specially designed to provide
both power and data to end devices
containing the Powercast P2110 or P1110
Powerharvester® receivers. The TX91501 is
housed in a durable plastic case with several
mounting options.
provided to either of the two DC power
connectors at 5V DC. The TX91501 includes
a status LED to provide feedback on
functional state. The TX91501 has a factory
set, fixed power output and no user-
adjustable settings. The label indicates the
effective power for which the device is
configured, with 3 watts EIRP being the
maximum.
Once
transmission is initiated by applying power
to the TX91501.
FEATURES
• FCC and IC approved
• Flexible wall mounting options
• Fully integrated system
• Transmits power and data
• Factory configurable for custom
applications
• Wide temperature range
• RoHS compliant
ORDERING OPTIONS
Powercast®, Lifetime Power®, Powerharvester®, and Powercaster™ are registered trademarks of Powercast Corporation.
Rev A – 2010/10
TM
Powercaster
Operational power is
properly
mounted,
All other trademarks are the property of their respective owners.
User's Manual - TX91501 Transmitter
www.powercastco.com
Transmitter
POWERING APPLICATIONS
• Wireless battery charging
• Battery-free wireless sensors
- Industrial Monitoring
- Smart Grid
- Structural Health Monitoring
- Defense
- Building automation
- Agriculture
- Oil & Gas
- Location-aware services
• Wireless trigger
• Low power electronics
PRODUCT CONTENTS
The following items are included inside the
package:
Qty Description
1
915 MHz transmitter
1
Power supply
1
US plug for Power supply (must be
snapped in to the Power supply)
1
Quick Start instruction card
Page 1
