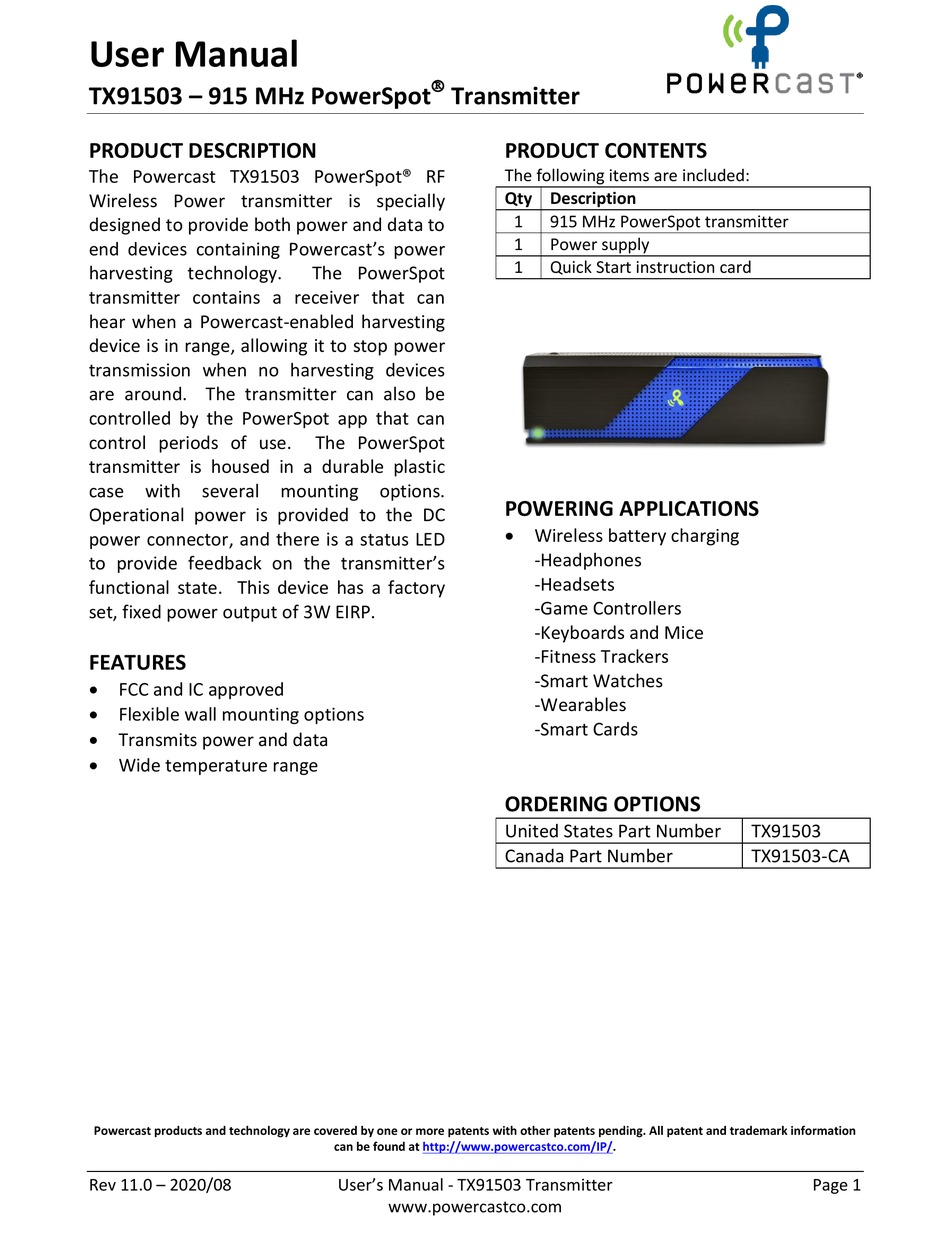

User Manual
TX91503 – 915 MHz PowerSpot
PRODUCT DESCRIPTION
The Powercast TX91503 PowerSpot® RF
Wireless Power transmitter is specially
designed to provide both power and data to
end devices containing Powercast's power
harvesting technology.
transmitter contains a receiver that can
hear when a Powercast-enabled harvesting
device is in range, allowing it to stop power
transmission when no harvesting devices
are around. The transmitter can also be
controlled by the PowerSpot app that can
control periods of use.
transmitter is housed in a durable plastic
case
with
several
Operational power is provided to the DC
power connector, and there is a status LED
to provide feedback on the transmitter's
functional state. This device has a factory
set, fixed power output of 3W EIRP.
FEATURES
FCC and IC approved
Flexible wall mounting options
Transmits power and data
Wide temperature range
Powercast products and technology are covered by one or more patents with other patents pending. All patent and trademark information
Rev 11.0 – 2020/08
Transmitter
The PowerSpot
The PowerSpot
mounting
options.
can be found at http://www.powercastco.com/IP/.
User's Manual - TX91503 Transmitter
www.powercastco.com
PRODUCT CONTENTS
The following items are included:
Qty Description
1
915 MHz PowerSpot transmitter
1
Power supply
1
Quick Start instruction card
POWERING APPLICATIONS
Wireless battery charging
-Headphones
-Headsets
-Game Controllers
-Keyboards and Mice
-Fitness Trackers
-Smart Watches
-Wearables
-Smart Cards
ORDERING OPTIONS
United States Part Number
Canada Part Number
TX91503
TX91503-CA
Page 1
Advertisement
Table of Contents
Related Manuals for Powercast TX91503
Summary of Contents for Powercast TX91503
- Page 1 United States Part Number TX91503 Canada Part Number TX91503-CA Powercast products and technology are covered by one or more patents with other patents pending. All patent and trademark information can be found at http://www.powercastco.com/IP/. Rev 11.0 – 2020/08 User’s Manual - TX91503 Transmitter Page 1 www.powercastco.com...
- Page 2 User Manual TX91503 – 915 MHz PowerSpot Transmitter SET-UP AND OPERATION 1. Mount the PowerSpot Transmitter at the back of a desk, counter or other area where you store your devices when not in use to create a PowerSpot recharging zone.
- Page 3 User Manual TX91503 – 915 MHz PowerSpot Transmitter Note: The PowerSpot transmitter will not transmit the RF energy that is used for power and data as described above while the Snooze is being set. Note: When setting the Snooze, the transmitter’s time is automatically synced with the time of the mobile phone.
- Page 4 Approvals Canada - IC ID: 8985A-TX91503 An 8-bit, factory-set, TX91503 identification (ID) number is broadcast with Data Communications the wireless power. The ID number can be found on the TX91503 label. Operating Temperature -20°C to 40°C Environment Indoor use only...
- Page 5 +1 412-455-5800 COMPLIANCE STATEMENTS Changes or modifications not expressly approved by Powercast could void the user’s authority to operate the equipment. Use and maintain device only as specified in this manual. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
- Page 6 User Manual TX91503 – 915 MHz PowerSpot Transmitter WARNING! FCC Radiation Exposure Statement: This equipment complies with FCC’s RF radiation exposure limits set forth for an uncontrolled environment under the following conditions: 1. This equipment should be installed and operated such that a minimum separation distance of 20cm is maintained between the radiator (antenna) &...
- Page 7 No responsibility is assumed by Powercast for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Powercast assumes no liability for misuse of this product. Specifications are subject to change without notice.
