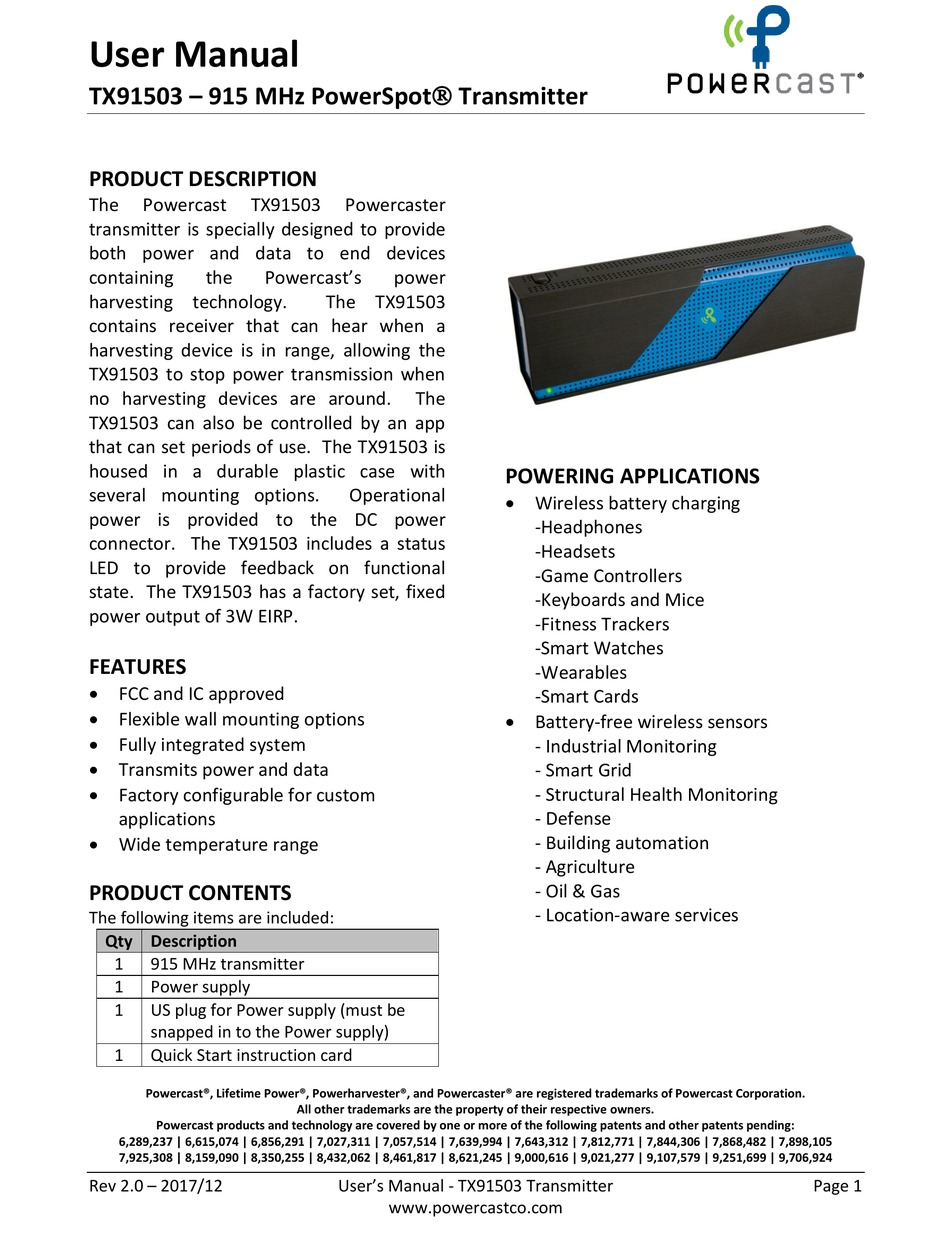

User Manual

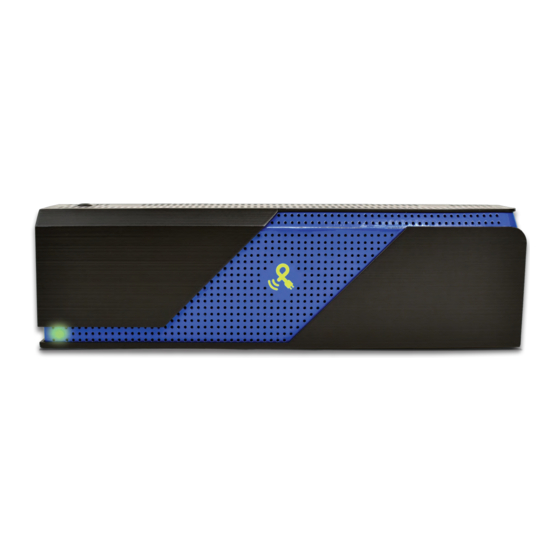

TX91503 – 915 MHz PowerSpot Transmitter
PRODUCT DESCRIPTION
The
Powercast
TX91503
transmitter is specially designed to provide
both power and data to end devices
containing
the
Powercast's
harvesting technology.
contains receiver that can hear when a
harvesting device is in range, allowing the
TX91503 to stop power transmission when
no harvesting devices are around.
TX91503 can also be controlled by an app
that can set periods of use. The TX91503 is
housed in a durable plastic case with
several mounting options.
power is provided to the DC power
connector. The TX91503 includes a status
LED to provide feedback on functional
state. The TX91503 has a factory set, fixed
power output of 3W EIRP.
FEATURES
FCC and IC approved
Flexible wall mounting options
Fully integrated system
Transmits power and data
Factory configurable for custom
applications
Wide temperature range
PRODUCT CONTENTS
The following items are included:
Qty Description
1
915 MHz transmitter
1
Power supply
1
US plug for Power supply (must be
snapped in to the Power supply)
1
Quick Start instruction card
Powercast®, Lifetime Power®, Powerharvester®, and Powercaster® are registered trademarks of Powercast Corporation.
Powercast products and technology are covered by one or more of the following patents and other patents pending:
6,289,237 | 6,615,074 | 6,856,291 | 7,027,311 | 7,057,514 | 7,639,994 | 7,643,312 | 7,812,771 | 7,844,306 | 7,868,482 | 7,898,105
7,925,308 | 8,159,090 | 8,350,255 | 8,432,062 | 8,461,817 | 8,621,245 | 9,000,616 | 9,021,277 | 9,107,579 | 9,251,699 | 9,706,924
Rev 2.0 – 2017/12
Powercaster
power
The TX91503
The
Operational
All other trademarks are the property of their respective owners.
User's Manual - TX91503 Transmitter
www.powercastco.com
POWERING APPLICATIONS
Wireless battery charging
-Headphones
-Headsets
-Game Controllers
-Keyboards and Mice
-Fitness Trackers
-Smart Watches
-Wearables
-Smart Cards
Battery-free wireless sensors
- Industrial Monitoring
- Smart Grid
- Structural Health Monitoring
- Defense
- Building automation
- Agriculture
- Oil & Gas
- Location-aware services
Page 1
