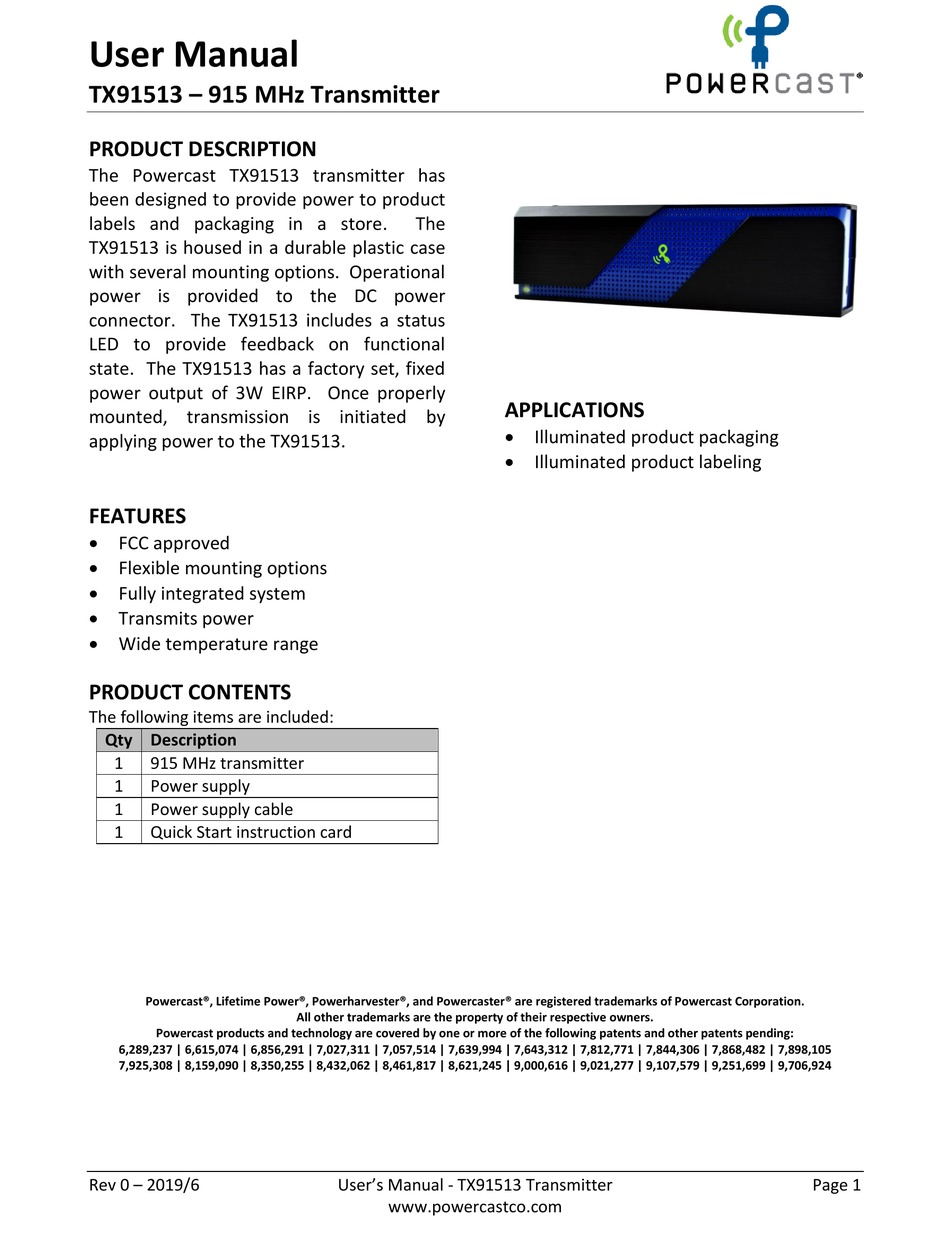

User Manual
TX91513 – 915 MHz Transmitter
PRODUCT DESCRIPTION
The Powercast TX91513 transmitter has
been designed to provide power to product
labels and packaging in a store.
TX91513 is housed in a durable plastic case
with several mounting options. Operational
power is provided to the DC power
connector. The TX91513 includes a status
LED to provide feedback on functional
state. The TX91513 has a factory set, fixed
power output of 3W EIRP. Once properly
mounted, transmission is initiated by
applying power to the TX91513.
FEATURES
FCC approved
Flexible mounting options
Fully integrated system
Transmits power
Wide temperature range
PRODUCT CONTENTS
The following items are included:
Qty Description
1
915 MHz transmitter
1
Power supply
1
Power supply cable
1
Quick Start instruction card
Powercast®, Lifetime Power®, Powerharvester®, and Powercaster® are registered trademarks of Powercast Corporation.
Powercast products and technology are covered by one or more of the following patents and other patents pending:
6,289,237 | 6,615,074 | 6,856,291 | 7,027,311 | 7,057,514 | 7,639,994 | 7,643,312 | 7,812,771 | 7,844,306 | 7,868,482 | 7,898,105
7,925,308 | 8,159,090 | 8,350,255 | 8,432,062 | 8,461,817 | 8,621,245 | 9,000,616 | 9,021,277 | 9,107,579 | 9,251,699 | 9,706,924
Rev 0 – 2019/6
The
All other trademarks are the property of their respective owners.
User's Manual - TX91513 Transmitter
www.powercastco.com
APPLICATIONS
Illuminated product packaging
Illuminated product labeling
Page 1
Advertisement
Table of Contents
Related Manuals for Powercast TX91513
Summary of Contents for Powercast TX91513
- Page 1 All other trademarks are the property of their respective owners. Powercast products and technology are covered by one or more of the following patents and other patents pending: 6,289,237 | 6,615,074 | 6,856,291 | 7,027,311 | 7,057,514 | 7,639,994 | 7,643,312 | 7,812,771 | 7,844,306 | 7,868,482 | 7,898,105 7,925,308 | 8,159,090 | 8,350,255 | 8,432,062 | 8,461,817 | 8,621,245 | 9,000,616 | 9,021,277 | 9,107,579 | 9,251,699 | 9,706,924 Rev 0 –...
- Page 2 1. Mount the TX91513 in the desired location with the Powercast logo and status LED facing the direction in which the energy is desired. 2. Plug the DC connector of the power supply into the connector on the TX91513. Plug the power supply into a 120V outlet.
- Page 3 User Manual TX91513 – 915 MHz Transmitter MECHANICAL (REAR VIEW) *Dimensions in inches Rev 0 – 2019/6 User’s Manual - TX91513 Transmitter Page 3 www.powercastco.com...
- Page 4 This device is intended to be located under or behind a store shelf to illuminate product labels and packaging on the shelf. Changes or modifications not expressly approved by Powercast could void the user’s authority to operate the equipment. Use and maintain device only as specified in this manual.
- Page 5 No responsibility is assumed by Powercast for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Powercast assumes no liability for misuse of this product. Specifications are subject to change without notice.
- Page 6 Powercast products fail to conform to the warranty above, the exclusive remedy of Customer and the sole liability of Powercast shall be, at the option of Powercast, to replace or repair the affected products, or to refund to Customer the price of the affected products. The availability of replacement products is subject to product discontinuance policies at Powercast.
