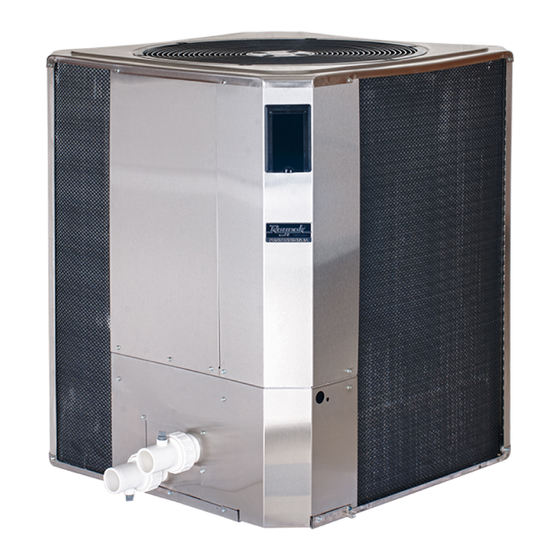

Raypak Professional PS10353ti-E-HC Installation & Operating Instructions Manual
Professional series heat pump pool & spa heater
Hide thumbs
Also See for Professional PS10353ti-E-HC:
- Installation & operating instructions manual (25 pages)
Table of Contents
Advertisement
INSTALLATION & OPERATING
Heat Pump
Pool & Spa
Heater
Professional Series
PS10353ti-E-HC
PS10354ti-E-HC
PS10355ti-E-HC
FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors and
liquids or other combustible materials in the vicinity of this or any other appliance. To
do so may result in an explosion or fire.
NOTE: The instructions in this manual are for the use of qualified individuals specially trained and experienced
in the installation and maintenance of this type of equipment and related system components. Installation and
service personnel are required by some states to be licensed. Persons not qualified shall not attempt to install,
service, or maintain this equipment.
This manual should be maintained in legible condition and kept adjacent to the heat pump pool heater or in a
safe place for future use.
Catalog No. 6000.554
INSTRUCTIONS
Effective: 12-21-11
Replaces: NEW
P/N 241460 Rev. 1
R
C
US
Advertisement
Table of Contents
Related Manuals for Raypak Professional PS10353ti-E-HC
Summary of Contents for Raypak Professional PS10353ti-E-HC
- Page 1 Heat Pump Pool & Spa Heater Professional Series PS10353ti-E-HC PS10354ti-E-HC PS10355ti-E-HC FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors and liquids or other combustible materials in the vicinity of this or any other appliance. To do so may result in an explosion or fire.
-
Page 3: Water Chemistry
Water Chemistry (Corrosive water voids all warranties) For your health and the protection of your pool equipment, it is essential that your water be chemically balanced. The following levels must be used as a guide for balanced water. Recommended Level(s) Fiberglass Pools Fiberglass Spas Other Pool &... -
Page 4: Table Of Contents
ONTENTS Water Chemistry System Drain-Down Warnings Continuous Pump Operation Maintenance Pay Attention to These Terms Introduction Air Coil Cleaning Installation Considerations Cabinet Care (optional) Electrical Connections Unplug Condensation Drain Holes Water Connections Troubleshooting Pressure Drop Service Call Verification Controls Power Supply Operating Instructions Water Flow To Select Pool or Spa Mode... -
Page 5: Warnings
— Warnings Pay Attention to These Terms Indicates the presence of immediate hazards which will cause severe personal injury, death DANGER: or substantial property damage if ignored. Indicates the presence of hazards or unsafe practices which could cause severe personal WARNING: injury, death or substantial property damage if ignored. - Page 6 Introduction Installation Considerations WARNING: Do not install the unit within 3 ft of WARNING: This pool/spa heat pump pool heater is fossil fuel burning heaters. Air intake along the an electromechanical machine that incorporates a sides of this heat pump pool heater could disturb pressurized refrigerant gas in a sealed system.
-
Page 7: Electrical Connections
60” AIR FLOW OUT 3 FT 12” FLOW FLOW HEATER Fig. 1: Installation Clearances • When installed in areas where freezing tempera- NOTE: Refer to the National Electrical Code, Article tures can be encountered, drain the water circuit 680, for general requirements for swimming pools to prevent possible freeze-up damage. -
Page 9: Water Connections
Minimum Circuit Maximum Breaker Model No. VAC - Phase - Hz Ampacity (A) Size (A) 10353 208/230 - 3 - 60 42.0 10354 460 - 3 - 60 26.0 10355 380 - 3 - 60 29.0 Table A: Typical System Electrical Power Requirements This unit is pre-wired to work with external control sys- the purpose and, in either case, should be at least tems, heat-on-demand options and other external time... -
Page 10: To Select Pool Or Spa Mode
Operating Instructions WARNING: Install a check valve and/or a Hartford loop AFTER the heat pump pool heater and BEFORE any chlorinating devices. Install any auto- The electronic board has the capability of memorizing matic chemical feeders AFTER the heat pump pool two different programmed temperature settings as fol- heater. -
Page 11: System Start-Up
Heat/Cool Operation Seasonal Start-Up or Annual Check The Raypak Professional models come standard with heat/cool operation. The heat/cool model is designed NOTE: At the beginning of the heating season, or to both heat and cool the pool. To select heat or cool whenever the pool water temperature is to be raised mode, push the SET key until H/C is displayed. -
Page 12: Freeze Protection
Freeze Protection Cabinet Care (optional) The stainless steel cabinet is designed for harsh out- If the unit is installed in a location subject to freezing door use and requires little care. However, you can conditions, it is important to protect the water circuit clean it if you wish. -
Page 13: Service Call Verification
Service Call Verification • Is airflow through the unit being obstructed? NOTE: The Raypak Service number is 800-260-2758. Restrictions such as shrubbery, tall grass, dirty For units in Canada, call 800-268-6966. coils, or any other obstruction to airflow will reduce performance. -
Page 14: Time Clock Adjustment
Time Clock Adjustment Verify that the time clock is set to permit the unit to run long enough to heat properly. Fault Code Meaning of Code The desired programmed temperature point is lower than 50°F (10°C). There is a shortage of refrigerant gas in the unit or a faulty low pressure control, or the ambient air is too cold. -
Page 15: Plumbing Diagrams
Plumbing Diagrams Fig. 6: For systems with pumps of less than 2 HP (under 80 gpm), no external bypass is required. Connections are 2-inch unions. Plumb the heat pump pool heater AFTER the filter and BEFORE any chlorinators. - Page 16 Fig. 7: For systems with pumps of 2 HP or greater (over 80 gpm), an external bypass is required. Adjust the bypass valve to divert a minimum of 40 gpm through the heat pump pool heater. Connections are 2-inch unions. Plumb the heat pump pool heater AFTER the filter and BEFORE any chlorinators.
- Page 17 Fig. 8: Pool Piping for Heat Pump Pool Heater and Gas Pool Heater...
- Page 18 Fig. 9: Pool Piping for Heat Pump Pool Heaters, Multiple, Primary/Secondary...
- Page 19 Wiring Diagram 208V/230V 3Ph, 60Hz Models...
- Page 20 Wiring Diagram 460V 3Ph, 60 Hz Models...
- Page 21 Wiring Diagram 380V 3Ph, 60 Hz Models...
-
Page 22: Installing A Remote Control Device
Installing a Remote Control Device Wiring For a 2-wire control, use the TOTAL and COMMON connections on the heat pump pool heater wiring block. For a 3-wire control, use the COMMON, SPA and POOL connections on the heat pump pool heater wiring block. - Page 24 Raypak, Inc., 2151 Eastman Avenue, Oxnard, CA 93030 (805) 278-5300 Fax (805) 278-5468 Heat Pump Service 1-800-260-2758 Litho in U.S.A.
