R-3A54
R-3E54

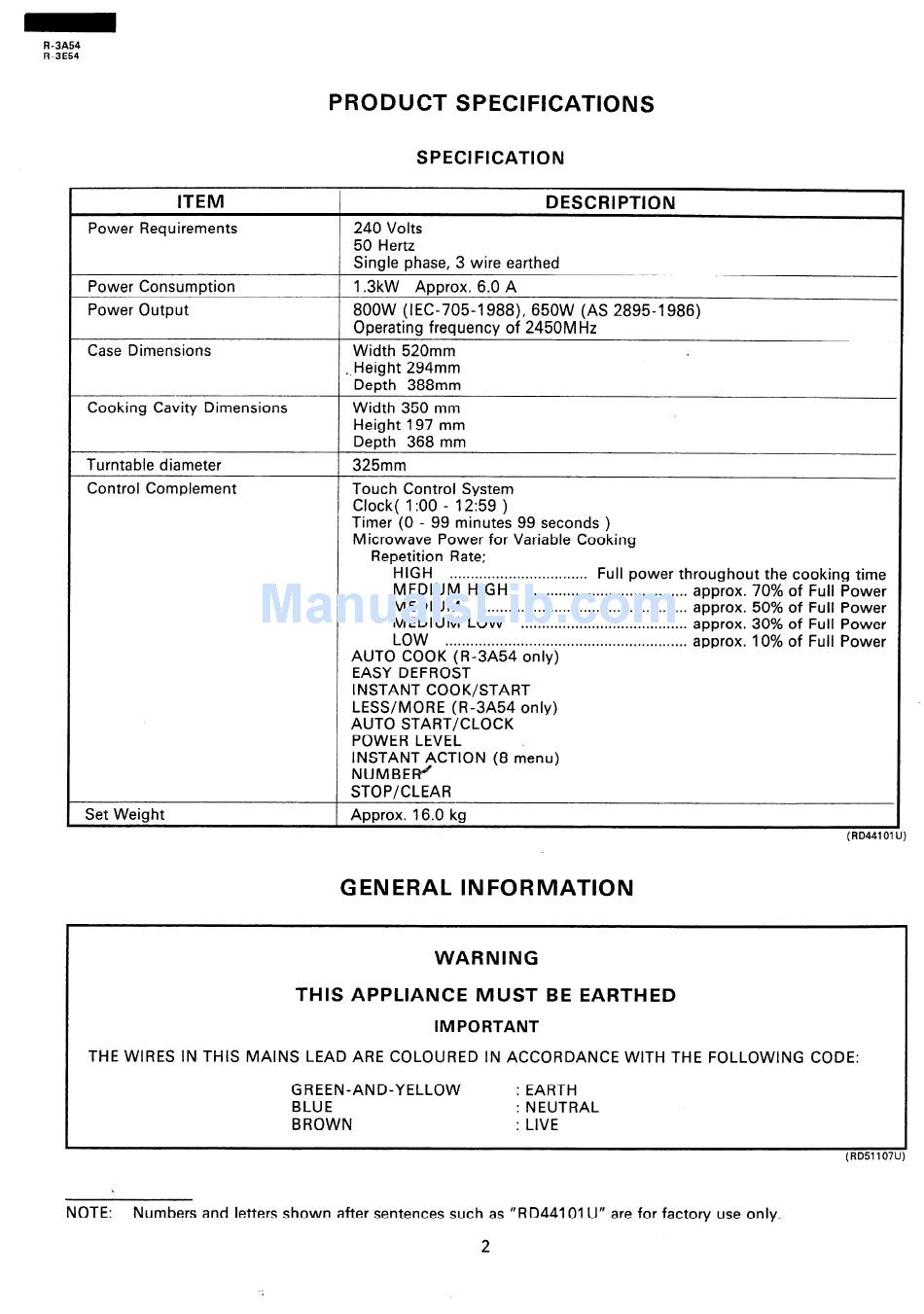

PRODUCT SPECIFICATIONS
SPECIFICATION
ITEM
Power Requirements
240 Volts
50 Hertz
DESCRIPTION
Power Consumption
Power Output
Case Dimensions
Single phase, 3 wire earthed
I .3kW Approx. 6.0 A
800W (IEC-705-1988), 650W (AS 2895-l 986)
Operating frequency of 2450M Hz
Width 520mm
._ Height 294mm
Depth 388mm
Cooking Cavity Dimensions
Width 350 mm
Height 197 mm
Depth 368 mm
Turntable diameter
Control Complement
325mm
Touch Control System
Clock( I:00 - 12:59 )
Timer (0 - 99 minutes 99 seconds )
Microwave Power for Variable Cooking
Repetition Rate;
HIGH . . . . . . . . ..*...................... Full power throughout the cooking time
MEDIUM
HIGH
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . approx. 70% of Full Power
MEDIUM
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . approx. 50% of Full Power
MEDIUM LOW . . ..*...............*........*.......... approx. 30% of Full Power
LOW
*..................,.................................,.... approx. 10% of Full Power
AUTO COOK (R-3A54 only)
EASY DEFROST
Set Weight
INSTANT COOK/START
LESS/MORE (R-3A54 only)
AUTO START/CLOCK
POWER LEVEL
INSTANT ACTION (8 menu)
NUMBER"
STOP/CLEAR
Approx. 16.0 kg
,PnA*,n, 1 I
L
,.l"v-rl"I u)
GENERAL INFORMATION
WARNING
THIS APPLIANCE MUST BE EARTHED
IMPORTANT
THE WIRES IN THIS MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:
GREEN-AND-YELLOW
: EARTH
BLUE : NEUTRAL
BROWN
: LIVE
i
NOTE: Numbers and letters shown after sentences such as "RD44101 U" are for factory use only.
