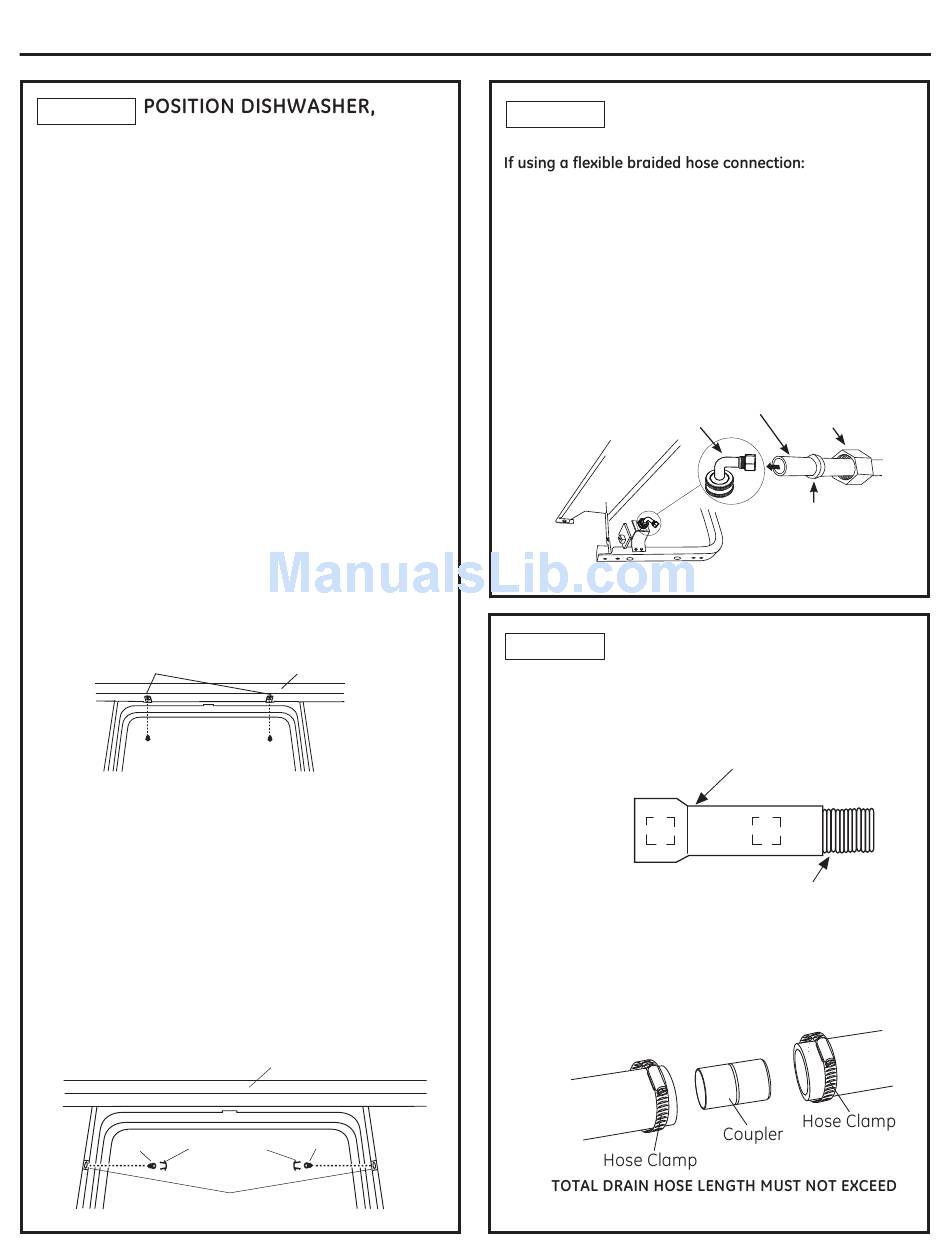

STEP 16
SECURE TO COUNTERTOP OR

CABINET

In this step you will need the 2 Phillips special head screws
from the screws set aside in Step 1.
The dishwasher must be secured to the countertop or the
cabinet sides. When the underside of the countertop is wood,
use Method 1. Use Method 2 when the underside of the
countertop is made of a material, such as granite, that will
not accept wood screws.
IMPORTANT –
Prevent door panel and control
panel damage. Dishwasher must be positioned so the front
panel and control panel do not contact the adjacent
cabinets or countertop. Mounting screws must be driven
straight and flush. Protruding screw heads could scratch the
door panel or control panel and interfere with door
operation.
Method 1
Secure dishwasher to underside of wood countertop.
• Recheck alignment of the dishwasher in the cabinet. Refer
to Steps 14 and 15. Door panel and/or control panel must
not hit cabinets or countertop.
• Fasten the dishwasher to the underside of the countertop
with the 2 Phillips special head screws. Refer to figure.
Make certain screws are driven straight and flush to
prevent panel damage.
Brackets
Method 2
Secure dishwasher to cabinet sides.
• Recheck alignment of the dishwasher in the cabinet. Refer
to Steps 14 and 15. Door panel and/or control panel must
not hit cabinets or countertop. Remove plug buttons. Do
not discard.
• Remove plug buttons. Do not discard.
• Fasten the dishwasher to the adjacent cabinets with the
2 Phillips special head screws provided. Refer to Figure
X. Make certain screws are driven straight and flush to
prevent panel damage.
• Install plug buttons to the side of the tub in the holes
provided.
Solid Surface Countertop
Screws
Plug buttons
Side Brackets
Figure X
Dishwasher Installation
Wood Countertop
Screws

STEP 17 CONNECT WATER SUPPLY

Connect water supply line to 90° elbow.
• Attach nut to 90° elbow using an adjustable wrench.
If using a copper tubing connection:
• Slide compression nut, then ferrule over end of water line.
• Insert water line into 90° elbow.
• Slide ferrule against elbow and secure with compression
nut.
IMPORTANT –
and/or door spring cable do not rub or contact the fill
hose or water supply line. Test by opening and closing the
door. Reroute the water supply lines if a rubbing noise or
interference occurs.
Bottom Left Side

STEP 18 CONNECT DRAIN LINE

The molded end of the drain hose will fit 5/8" through 1"
diameter inlet ports on the air gap, waste tee or disposer.
• Determine size of inlet port.
• Cut drain hose connector on the marked line, if required, to
fit the inlet port.
IMPORTANT: Do not cut corrugated
Figure Z
• If a longer drain hose is required and you did not purchase
drain hose GPF12 or WD24X10065, add up to 66" length
for a total of 144" (12 feet) to the factory-installed hose. Use
5/8" or 7/8" inside diameter hose and a coupler to connect
the 2 hose ends. Secure the connection with hose clamps.
Figure AA
NOTE:
15 FEET FOR PROPER DRAIN OPERATION.
11
Check to be sure that door spring
Hot Water
Supply Line
Compression
90° Elbow
Nut
Ferrule
Figure Y
Cutting Line
1"
5/8"
portion of hose
